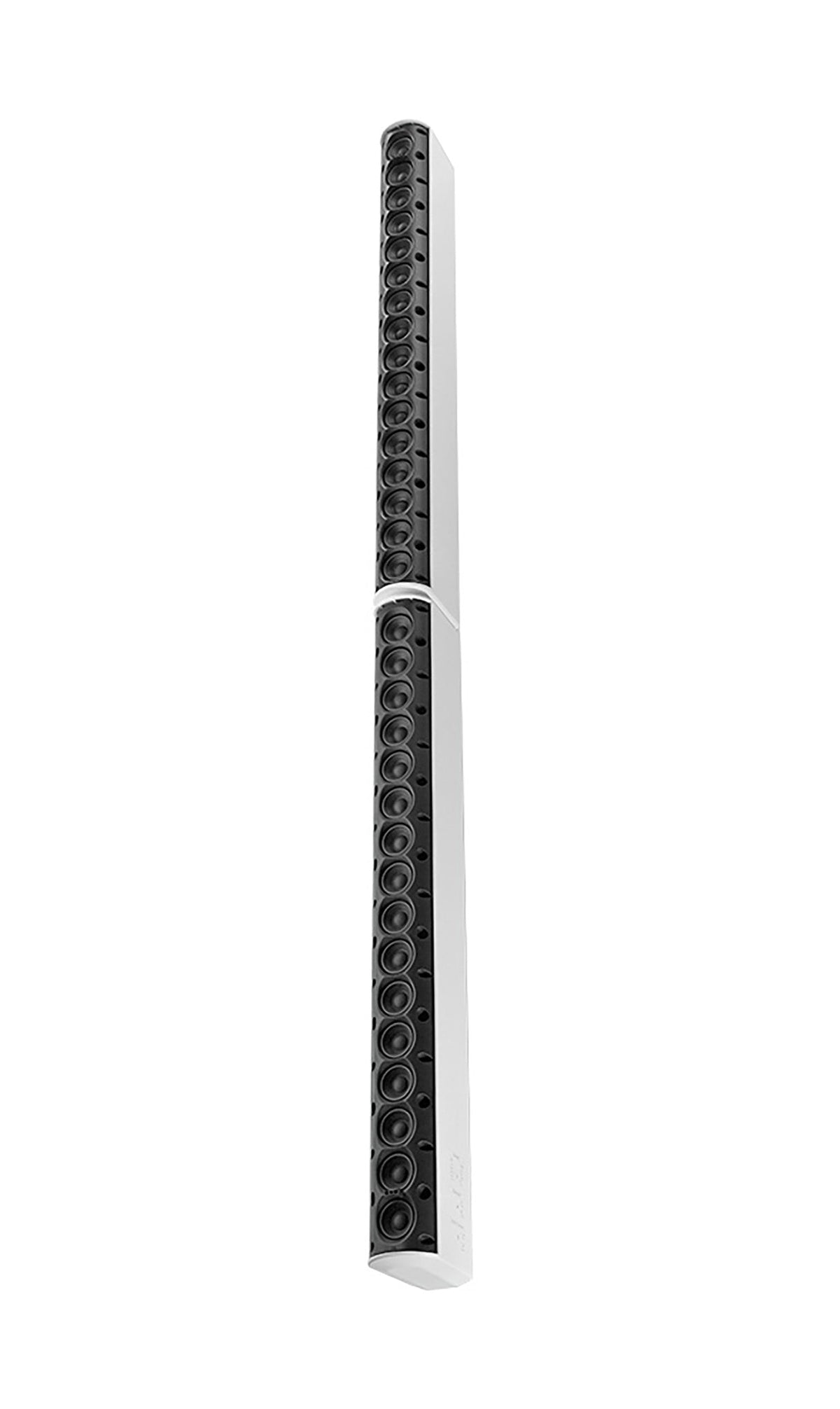

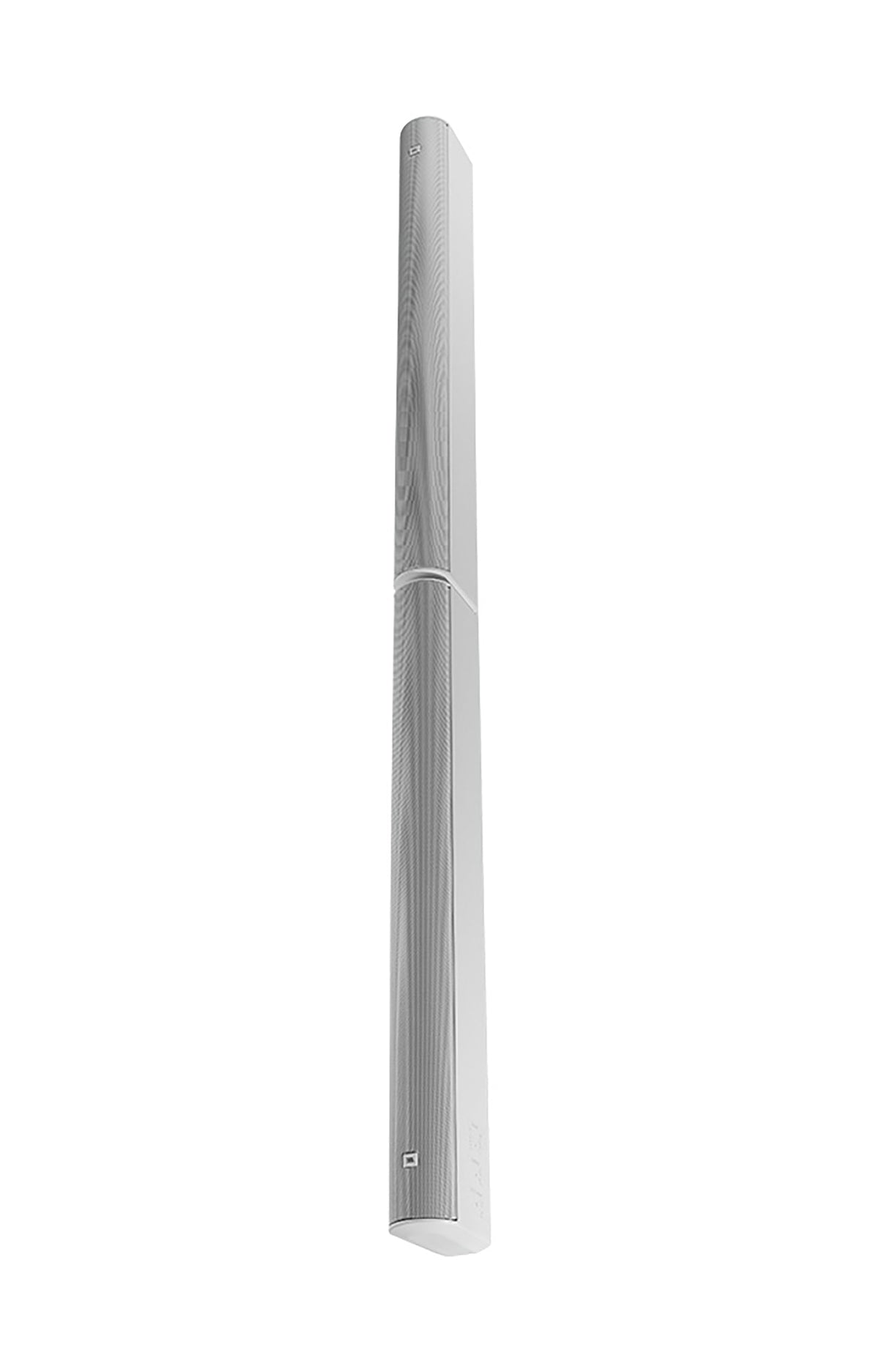

JBL CBT 200LA-1-WH Line Array Column Speaker w/ Thirty-Two 50 - White
JBL CBT 200LA-1-WH Line Array Column Speaker w/ Thirty-Two 50 - White
Model / SKU: H-JBL-CBT200LA1WH
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The JBL CBT 200LA-1-WH, with Constant Beamwidth Technology, represents a breakthrough in pattern control consistency and coverage options, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent coverage without the inconsistent vertical beaming, uneven coverage, and out-of-coverage lobing that are typical of both powered and nonpowered column speakers.
Product Specifications:
Drivers: Thirty-two 50 mm (2 in) Full-Range Drivers
Frequency Range (-10dB): 80 Hz, 20 kHz
Frequency Response (±3 dB): 130 Hz, 18 kHz (narrow coverage, music mode setting)
Sensitivity - Narrow: 95 dB (2 kHz, 5 kHz)(music mode): 92 dB (150 Hz, 18 kHz)
Sensitivity - Broad: 93 dB (2 kHz, 5 kHz)(music mode): 90 dB (150 Hz, 18 kHz)
Impedance: 8Ω per half (top and bottom) for 4 ohms total (in thru mode).Min-Z for system = 2.9Ω.
Power Rating: 650W (2600W peak), 2 hrs400W (1600W peak) 100 hrs
Max SPL - Narrow: (speech mode): 123 dB cont ave (129 dB peak)(music mode): 120 dB cont ave (126 dB peak)
Max SPL - Broad: (speech mode): 121 dB cont ave (127 dB peak)(music mode): 118 dB cont ave (124 dB peak)
Enclosure: Fiberglass reinforced ABS cabinet, painted aluminum grille
Color: White (-WH)
Insert Points: 28 M6 insert points on back panel.
Dimensions (H x W x D): 2000 x 98.5 x 153 mm (78.8 x 3.8 x 6.0 in)
Net Weight: 14.6 kg (33 lb)
Included Accessories: Swivel (pan) / tilt wall bracket, Coupler plate
