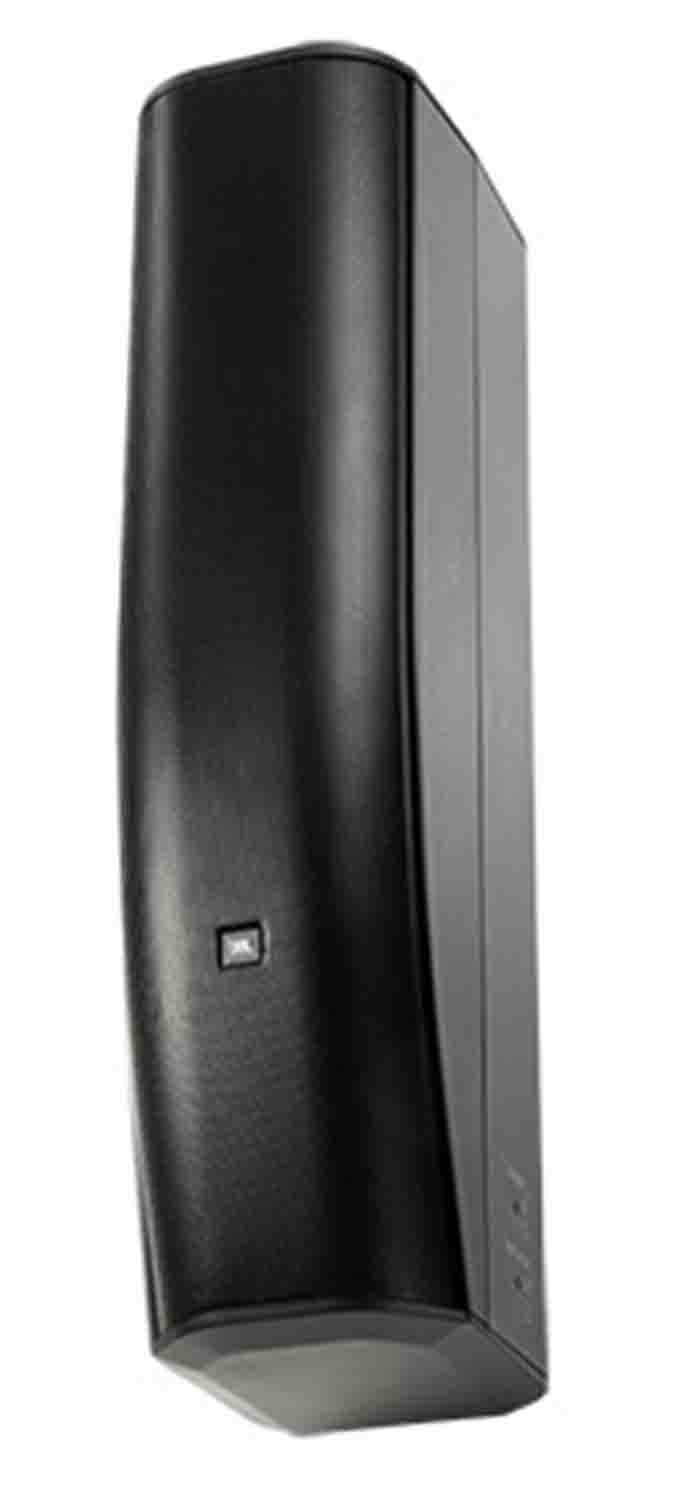

JBL CBT 70J-1 Two-Way Line Array Column Speaker w/ Asymmetrical
JBL CBT 70J-1 Two-Way Line Array Column Speaker w/ Asymmetrical
Model / SKU: H-JBL-CBT70J1
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.

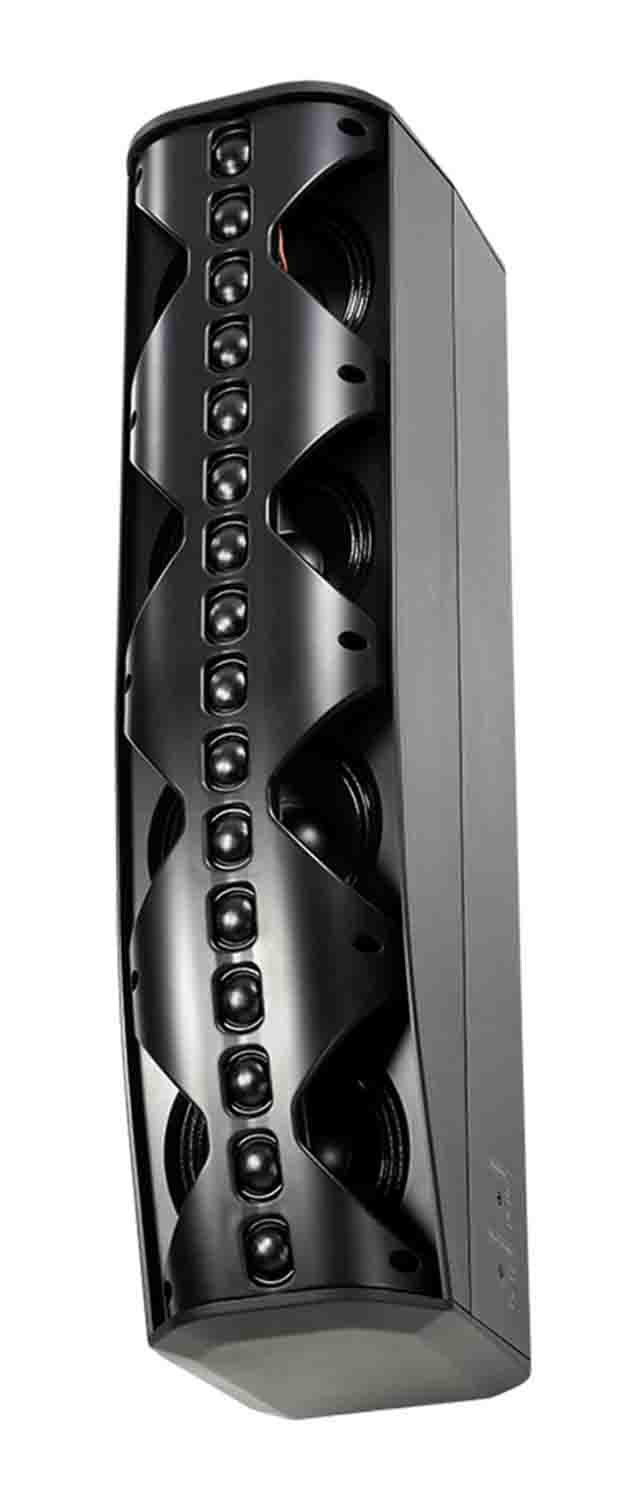

The JBL CBT 70J-1 is a Two-Way Line Array Column Loudspeaker with Asymmetrical Vertical Cove With improved mounting bracket for enhanced aiming flexibility and stronger grille. The CBT 70J-1, with Constant Beamwidth Technology, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers. (shown with included grille removed).
Product Specifications:
Powered: No
LF Driver Size: 4 x 5"
Power Rating: 500W
Total Power: 2000W
Impedance: 8 ohms
Frequency Range: 60Hz-20kHz (-10dB)
Maximum Peak SPL: 117dB
Horizontal Coverage Angle: 150 Degrees
Vertical Coverage Angle: 25 Degrees/45 Degrees
Enclosure Material: Fiberglass Reinforced ABS
Mounting Options: Wall Mount (hardware included), Multiple Fly Points
Height: 27.4"
Width: 6.7"
Depth: 9.3"
Weight: 21 lbs.
