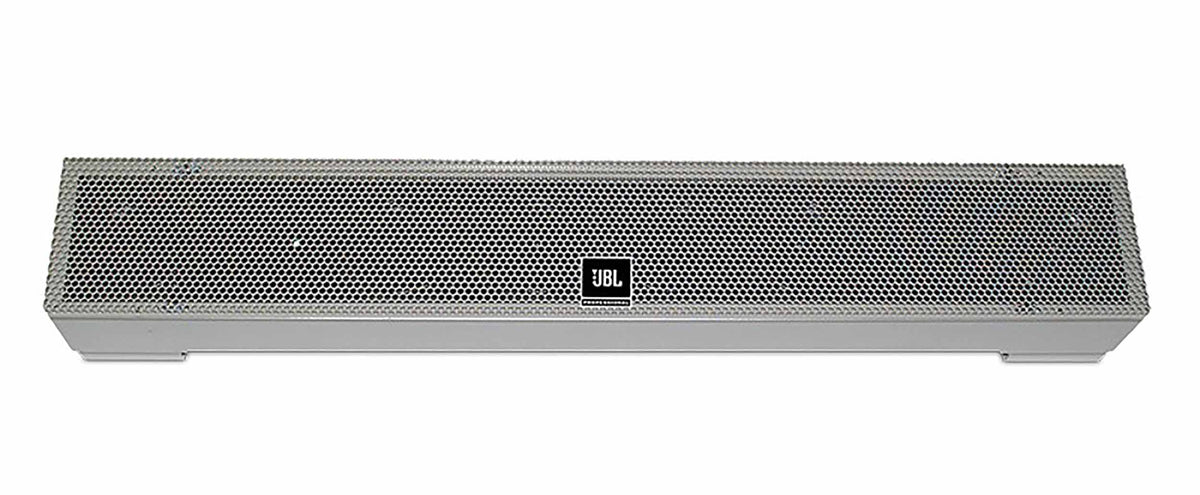

JBL IVX-576126 Intellivox Series H-90 MKII 100 Watts Column Speaker
JBL IVX-576126 Intellivox Series H-90 MKII 100 Watts Column Speaker
Model / SKU: H-JBL-IVX576126
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The JBL IVX-576126 Mark II is designed for use on platforms and in high ceiling corridors, to minimize spill over a large bandwidth outside the listening area. The precisely defined horizontal dispersion aims the acoustic signal at the listener area, whilst minimizing disturbance outside of this locality. This dramatically improves the listening comfort in surrounding areas of for instance, open platform railway stations. The column is designed to be mounted horizontally and can be mechanically aimed according to desired throw. The Intellivox ADC-H90 Mark II is designed to evenly cover distances up to 10-15 m. It has a fixed vertical dispersion of 130º and a horizontal opening angle of 30º. The focus point for the horizontal beam is at 15m. This loudspeaker is EN 54-24 Compliant for life safety applications.
Product Specifications:
Frequency Range: 260 - 11k Hz (+/-3dB) 150 - 14k Hz (-10 dB)
Sensitivity (1 W / 4 m): 79 dBSPL
Maximum SPL (100 W / 4 m): 99 dBSPL
Coverage, Horizontal: 40º (-6 dB)
Coverage, Vertical: 130º (-6 dB)
Coverage - Steering Angle: Horizontal 0º
Coverage - Typical Throw: 15 m
Rated Impedence (100 W tap): 100 Ω
Rated Impedence (50 W tap): 200 Ω
Rated Impedence (25 W tap): 400 Ω
Rated Noise Power: 100 Wrms(100 W tap)
Rated Noise Voltage: 100 Vrms
Control switches (Tap setting): 100 W / 50 W / 25 W
Control switches (Highpass filter): HPF active / Flat
Control switches (Correction EQ): EQ active / Flat
Pilot tone detection (Indicator): Green LED on front
Pilot tone detection (Frequency range): 20k - 23k Hz
Pilot tone detection (Minimum level): 6 Vrms
Suggested amplifiers: JBL 100 V IndustryAmp series
Material: Steel, powder coated
Mounting Points: 4 x M5 left and 4 x M5 right
Dimensions (H x W x D): 134 x 865 x 92 mm (5.3” x 34.1” x 3.6”)
Standard Colours (Enclosure and grill): RAL 9007 (grey) or RAL 9010 (white)
Standard Colours (Speaker baffle): RAL 9011 (black)
Weight: 10 kg (22 lbs)
Drivers: 6 x 4” full range
Transformer Taps: 100 W, 50 W, 25 W (100v only)
Enclosure: Steel, powder coated
Outdoor Capability: EN 54-24 Type B (outdoor)
