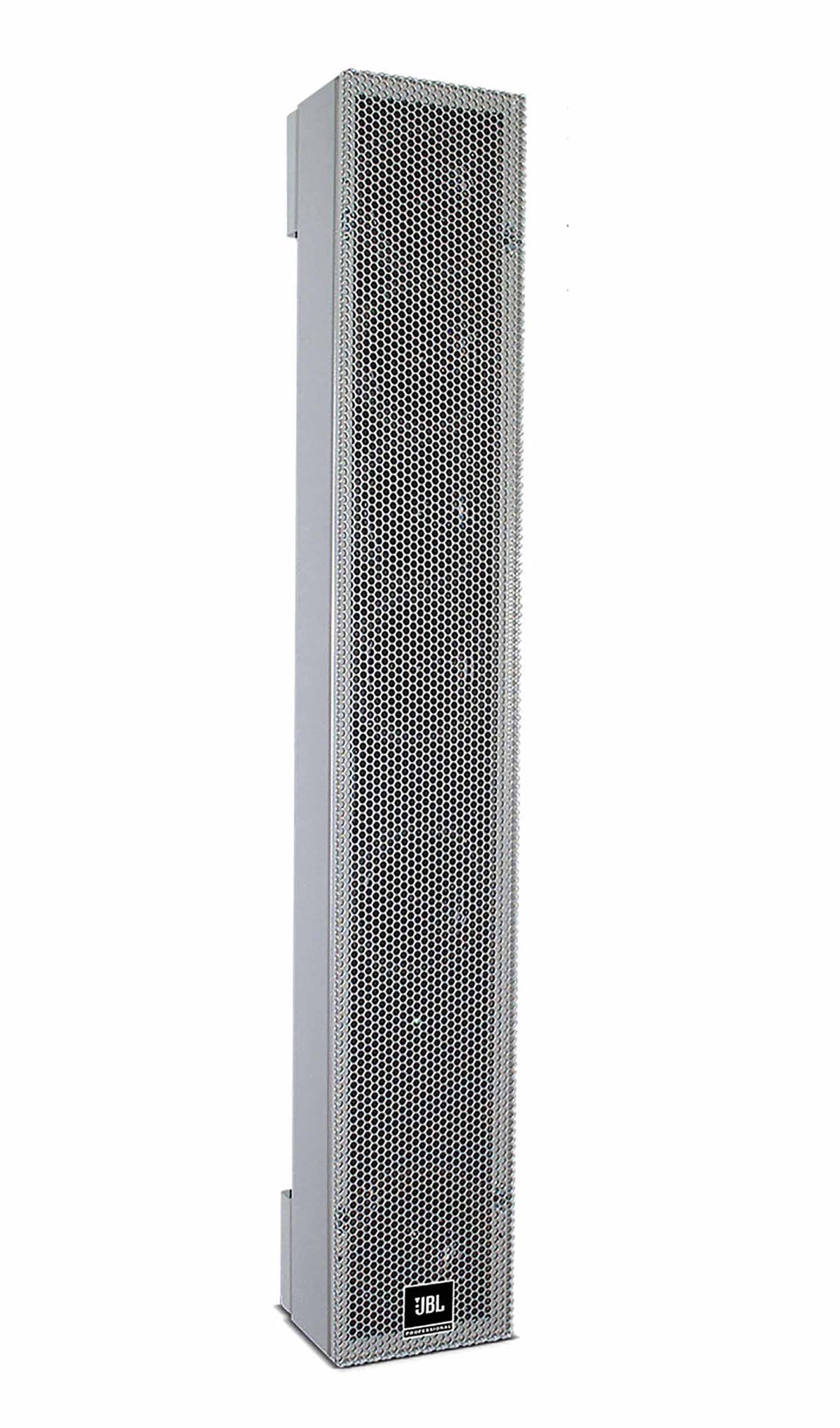

JBL IVX-577125 Compact Speaker Arrays for 70V / 100V Distributed

The JBL IVX-577125, Compact loudspeaker arrays for 70V / 100V Distributed Systems utilises a preset vertical opening angle with a -4º steering angle to accurately cover the listening plane when mounted flat to a vertical surface. This results in a reduction of incoherent reflections from the mounting surface. An additional advantage of vertical or even recessed mounting is that the Model V90 becomes architecturally unobtrusive. This loudspeaker is EN 54-24 Compliant for life safety applications.

Product Specifications:

Frequency Range: 220 - 10k Hz (+/-3 dB) 120 - 12k Hz (-10 dB)

Sensitivity (1 W / 4 m): 80 dBSPL

Maximum SPL (100 W / 4 m): 100 dBSPL

Coverage Angle: Vertical: 30º, Horizontal: 130º, Steering Angle: Vertical -4º, Typical Throw: 15 m

Rated Impedence (100 W tap): 100 Ω

Rated Impedence (50 W tap): 200 Ω

Rated Impedence (25 W tap): 400 Ω

Rated Noise Power: 100 Wrms(100 W tap)

Rated Noise Voltage: 100 Vrms

Control switches (Tap setting): 100 W / 50 W / 25 W

Control switches (Highpass filter): HPF active / Flat

Control switches (Correction EQ): EQ active / Flat

Pilot tone detection (Indicator): Green LED on front

Pilot tone detection (Frequency range): 20k - 23k Hz

Pilot tone detection (Minimum level): 6 Vrms

Suggested amplifiers: JBL 100 V IndustryAmp series

Material: Steel, powder coated

Mounting Points: 4 x M5 left and 4 x M5 right

Dimensions (H x W x D): 865 x 134 x 92 mm (34.1” x 5.3” x 3.6”)

Standard Colours (Enclosure and grill): RAL 9007 (grey) or RAL 9010 (white)

Standard Colours (Speaker baffle): RAL 9011 (black)

Weight: 10 kg (22 lbs)

Drivers: 6 x 4” full range

Transformer Taps: 100 W, 50 W, 25 W (100v only)

Enclosure: Steel, powder coated

Outdoor Capability: EN 54-24 Type B (outdoor)
