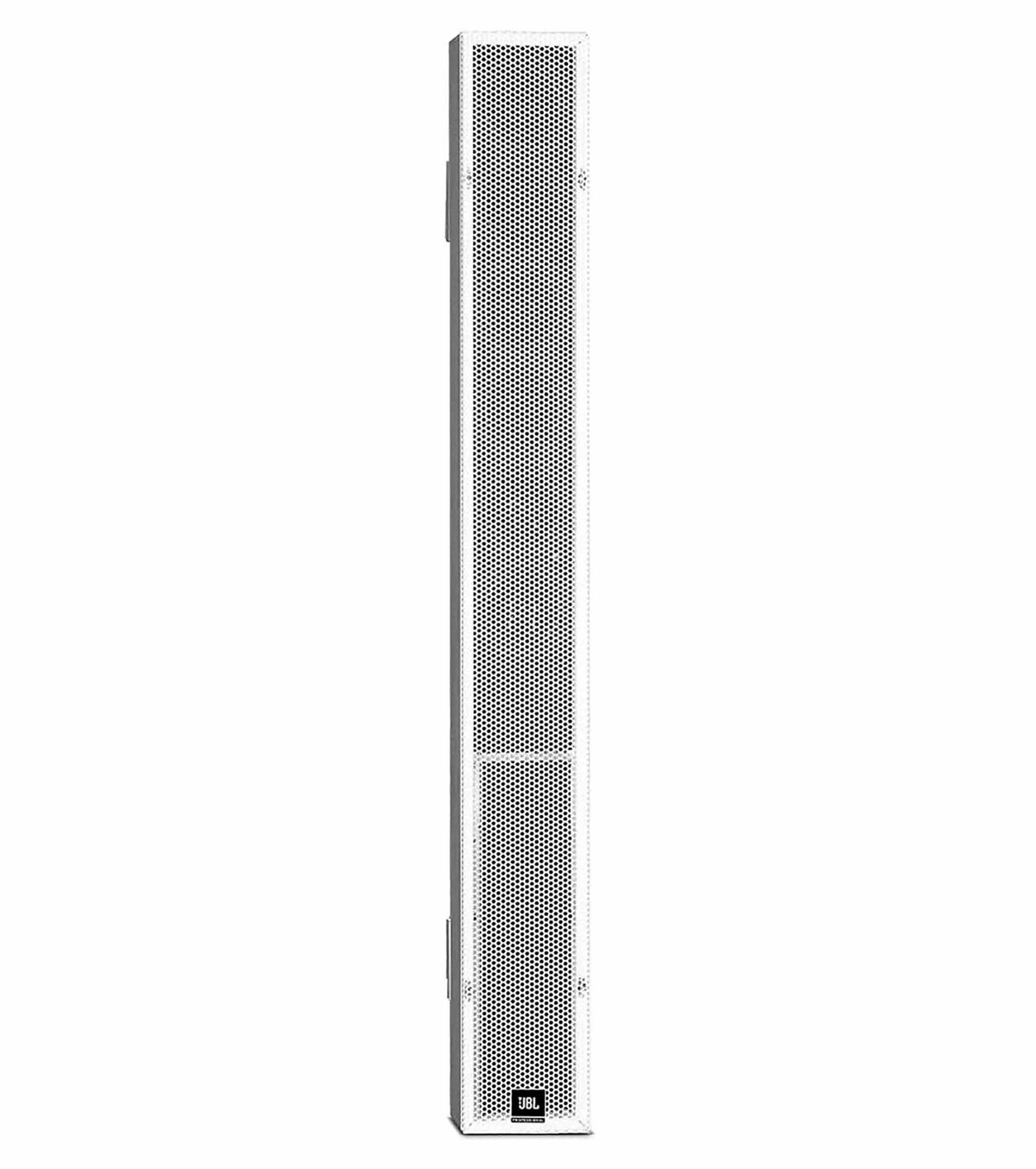

JBL IVX-587001 Active Beam Shaping Self Powered Column Speaker Array
JBL IVX-587001 Active Beam Shaping Self Powered Column Speaker Array
Model / SKU: H-JBL-IVX587001
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The JBL IVX-587001, Active beam shaping self-powered column loudspeaker array the smallest member of the Intellivox DDS range, is primarily designed to be used as a ‘fill system’ in larger Intellivox installations, providing high frequency coverage in off axis or shadowed areas. The IVX-587001 offers remarkable directivity and is capable of covering an area up to 15 m while maintaining an even sound pressure over the audience area. The six, custom designed, 4" loudspeakers and two dome tweeters are driven by an eight-channel class-D amplifier, powered by a sophisticated switched mode power supply, all of which combine to ensure years of reliable operation.
Product Specifications:
Maximum SPL (1m): Continuous: 85 dB SPL
Peak: 88 dB SPL
Typical Maximum Throw: 10-20 m / 33-66 ft
Drivers: 6 x 4” full range
2 x 10 mm ferrofluid cooled tweeter, coaxially mounted
Dimensions: Height- 1149mm
Width- 134mm
Depth- 92mm
Weight: 13kg / 28.6lb
Enclosure: stainless steel (AISI 304) with epoxy coating
Color: Enclosure and grill: RAL 9010 (white)
Speaker Baffle: RAL 9011 (black)
