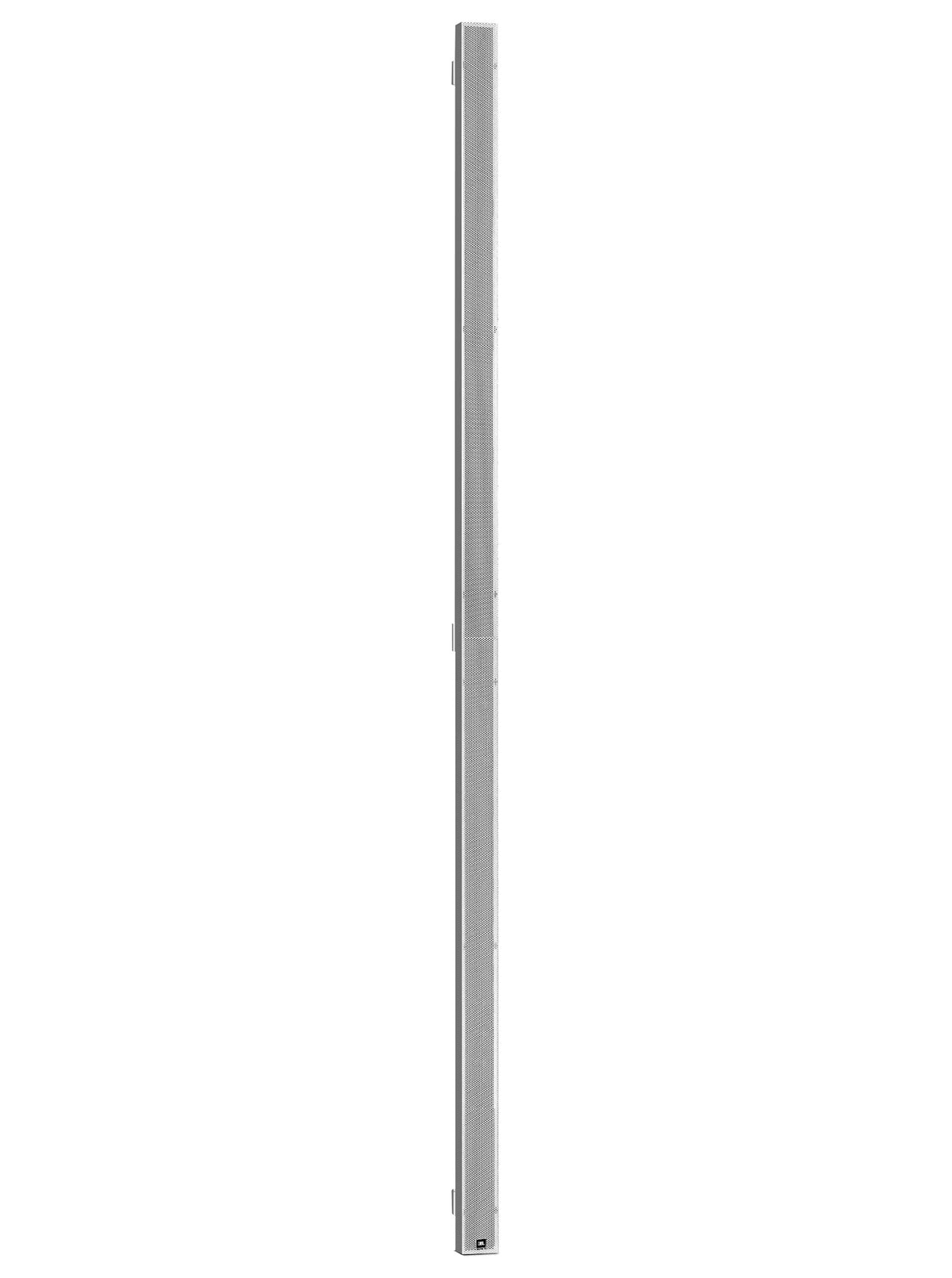

JBL IVX-587140, Active Beam Shaping Self Powered Loudspeaker Array

Name: JBL IVX-587140, Active Beam Shaping Self Powered Loudspeaker Array
Brand: JBL
SKU: H-JBL-IVX587140

Request a quote

Model / SKU: H-JBL-IVX587140

In a hurry? Call us.

1-800-700-4542
System design direct line: (213) 816-4102

Free system design. Real people, Mon to Sat, 10 to 5 Pacific.

The JBL IVX-587140, is the second tallest of Duran Audio’s fully integrated digitally controlled loudspeaker arrays. A single IVX-587140 is capable of covering an area of up to 50 m while maintaining an even sound pressure level. Its array length not only offers long throw capability but also extended control at lower frequencies, making it ideally suited to highly reverberant environments. The thirteen, custom designed, 4” loudspeakers and eight 1" dome tweeters are driven by a sixteen-channel class-D amplifier, powered by a sophisticated switched mode power supply, all of which combine to ensure years of reliable operation.

The dome tweeters in the DSX units not only improve the horizontal coverage at high frequencies but also enhance the subjective sound quality of the system for both speech and music. An extensive set of surveillance functions have also been implemented to meet the stringent demands of typical Voice Alarm (life safety) applications. The unit can be controlled using our proprietary Win Control software which offers user friendly control of the beam steering parameters, audio processing, pre-sets and surveillance features. The increased lower frequency control offered by the array makes the Intellivox-DSX430 suitable for easy and unobtrusive implementation in highly reverberant and architecturally sensitive environments. The low frequency response of the system can be easily extended using a JBL sub-woofer system.
