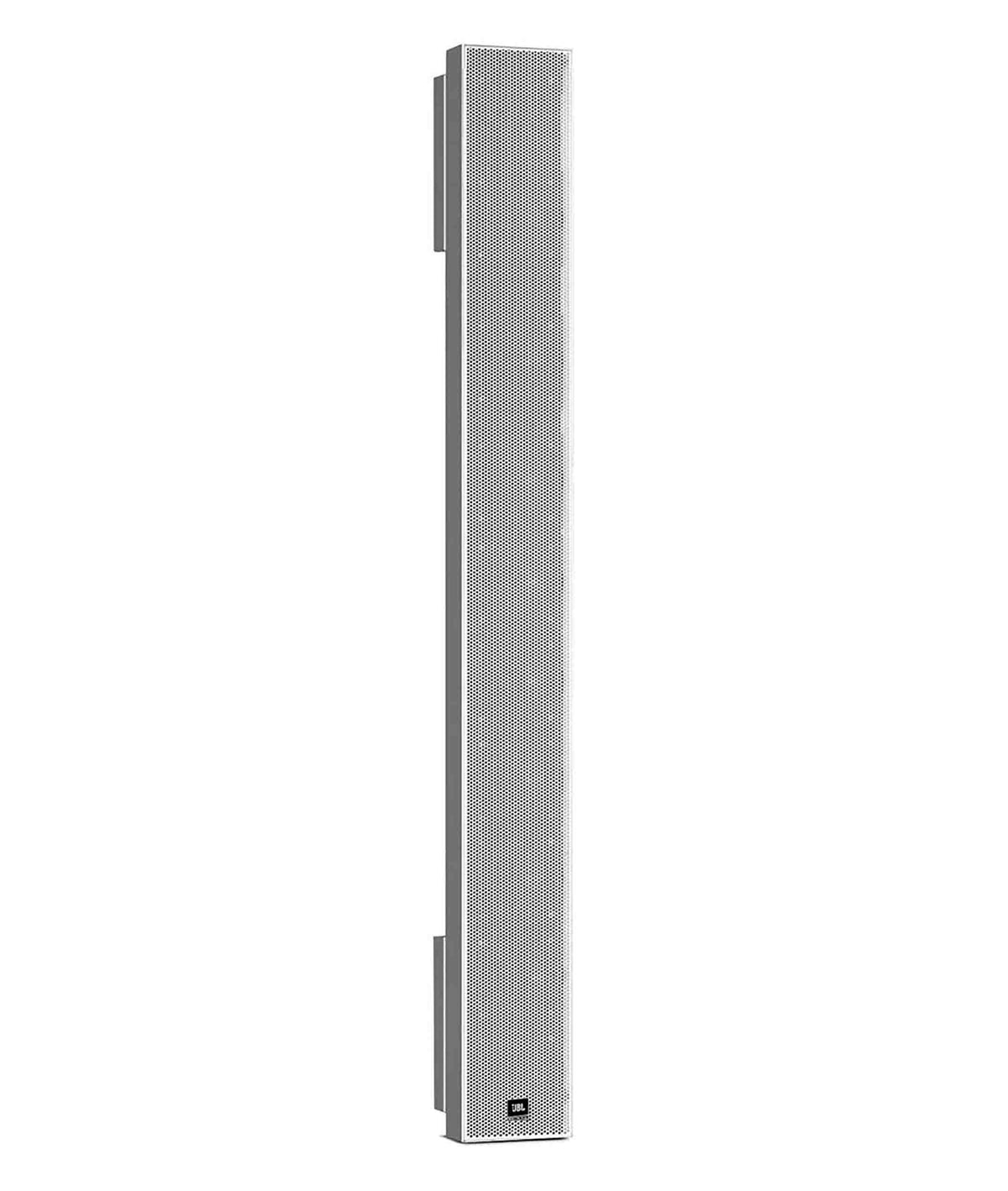

JBL IVX-587870 Active Beam Shaping Self-Powered Column Speaker Array
JBL IVX-587870 Active Beam Shaping Self-Powered Column Speaker Array
Model / SKU: H-JBL-IVX587870
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The JBL IVX-587870, is a self-contained, especially high-power and high-output, 2-way, wide-bandwidth beam-shaping powered column loudspeaker with a high degree of outdoor capability. Since beam shaping’s introduction in 1999 the Intellivox High Power models have been specified to solve the problems of speech intelligibility and musical reinforcement in large highly reverberant spaces including houses of worship, theaters, transportation halls and more. The IVX-587870 is capable of delivering up to 106 dB SPL at 30 meters (100 ft) and has a horizontal dispersion of 100°. With an array length of 1.7 meters (5’ 7”) it is designed to fit unobtrusively into spaces with challenging architectural and acoustical factors. Enclosing ten, high efficiency, 6.5” loudspeakers and two coaxially mounted 1” compression drivers, each with dedicated amplification, the IVX-587870 is capable of covering a substantial audience area while maintaining an even sound pressure level throughout.
Product Specifications:
Maximum SPL (30m): Continuous: 97 dB SPL
Peak: 105 dB SPL
Typical Maximum Throw: 10-25 m / 33-82 ft
Drivers: 10 x 6.5”
2 x 1” Compression
Dimensions: Height- 1698mm
Width- 198mm
Depth- 189mm
Weight- 56kg / 123lb
Enclosure: Stainless steel (AISI 304) with epoxy coating
Color: Enclosure and Grill: RAL 9010 (white)
Speaker Baffle: RAL 9011 (black)
Optional Accessories: Multiple optional accessories available.
Coverage Angle: Vertical complex beam shaping, wide horizontal dispersion
