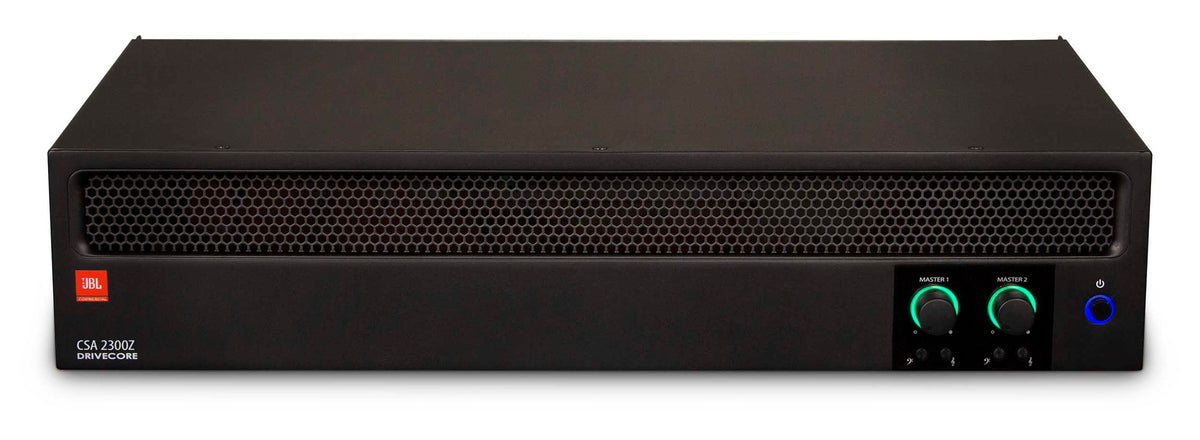

JBL NCSA2300Z-0-US, 2-Channel 300W Amplifier
JBL NCSA2300Z-0-US, 2-Channel 300W Amplifier
Model / SKU: H-JBL-NCSA2300Z0US
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.

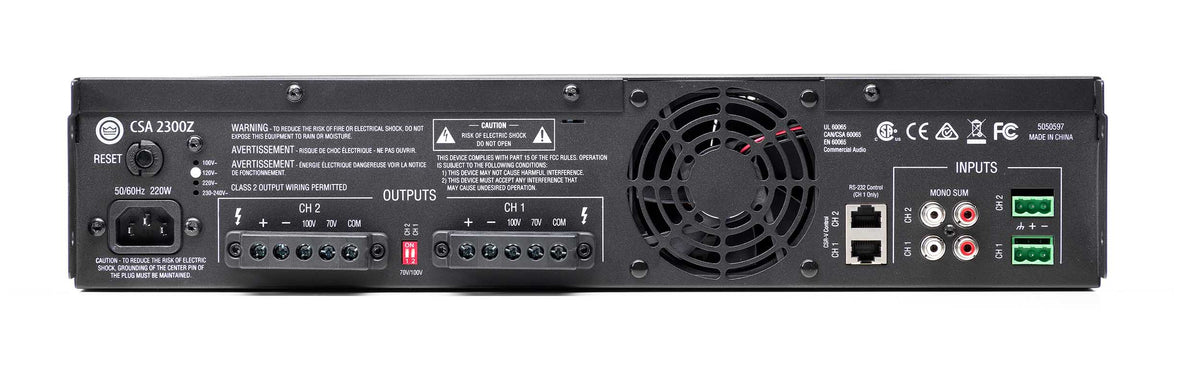

The JBL NCSA2300Z-0-US Dual-Channel 300W Amplifier delivers powerful sound and efficient performance using the Crown’s DriveCore commercial power amplifier technology. Simple to configure, this amplifier provides a DriveCore-based sound solution, which utilizes one small chip that significantly reduces the part count and increases reliability while still maintaining high performance. It provides amplification with a choice of low impedance, 70V or 100V outputs. The amp includes a rack mounting kit for installations to a cabinet, and a RJ45 connector for an optional remote volume control using JBL's CSR-V control module.
Product Specifications:
Number of Channels: 2
Power Rating: 4 Ohms / 8 Ohms:
300 W (1 kHz, 0.5% THD)
Load Impedance / Voltage: 4 Ohms (Minimum)
70 / 100 V
Analog Audio I/O: 2 x Block 3-Pin Balanced/Unbalanced Input
2 x 2RCA TS Unbalanced Summed-Mono Input
2 x Barrier Strip 5-Pin Output
DSP: Yes
Crossover: Yes
EQ: 2-Band
Compressor: Yes
Limiting: Yes
Analog Audio I/O: 2 x Block 3-Pin Balanced/Unbalanced Input
2 x 2RCA TS Unbalanced Summed-Mono Input
2 x Barrier Strip 5-Pin Output
Phantom Power: Yes
AC Input Power : 100 to 240 VAC, 50 / 60 Hz
Operating Temperature: 32 to 95°F / 0 to 35°C
Storage Temperature: -4 to 185°F / -20 to 85°C
Dimensions: 17.0 x 11.0 x 3.5" / 43.0 x 27.0 x 8.9 cm
Weight: 17.8 lb / 8.1 kg
