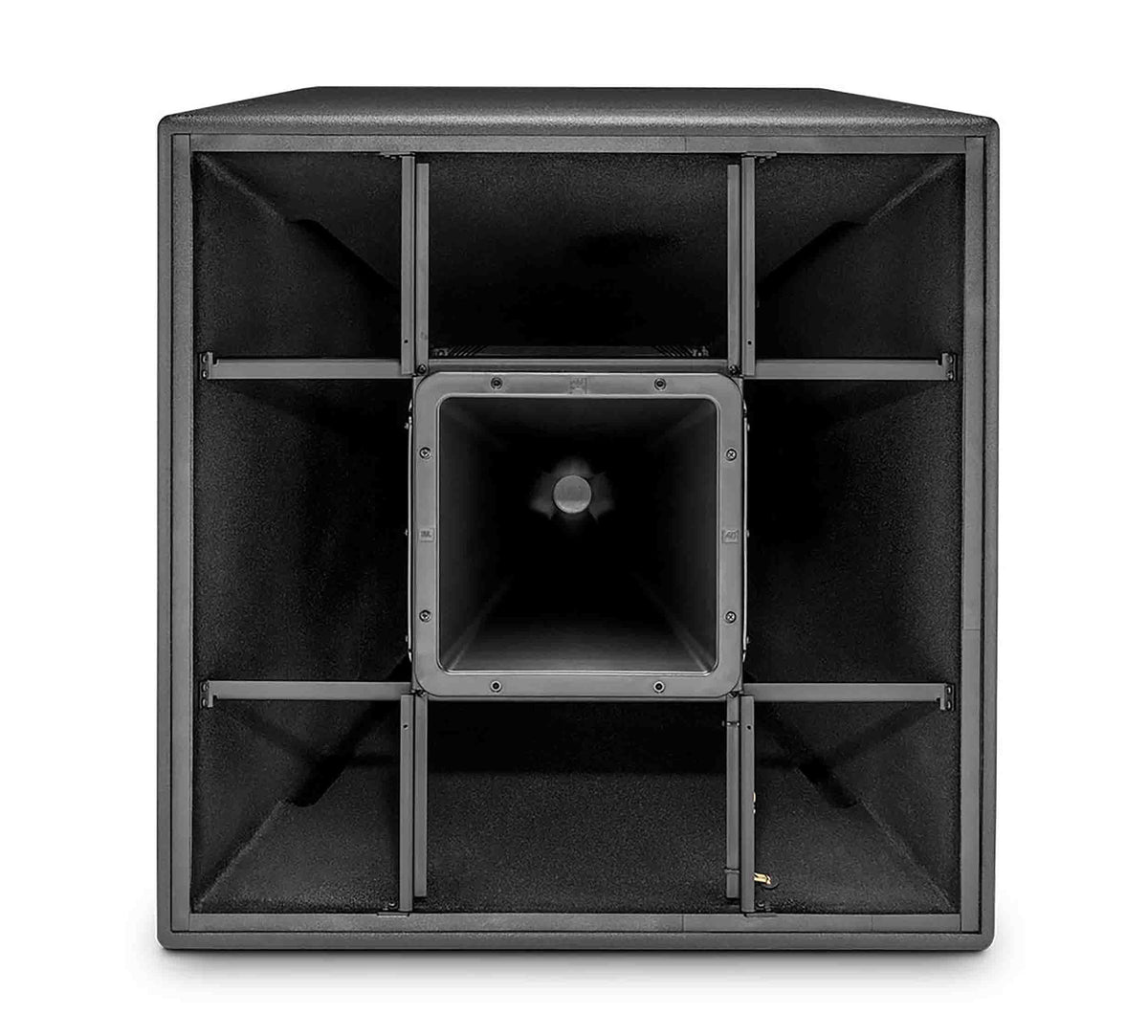

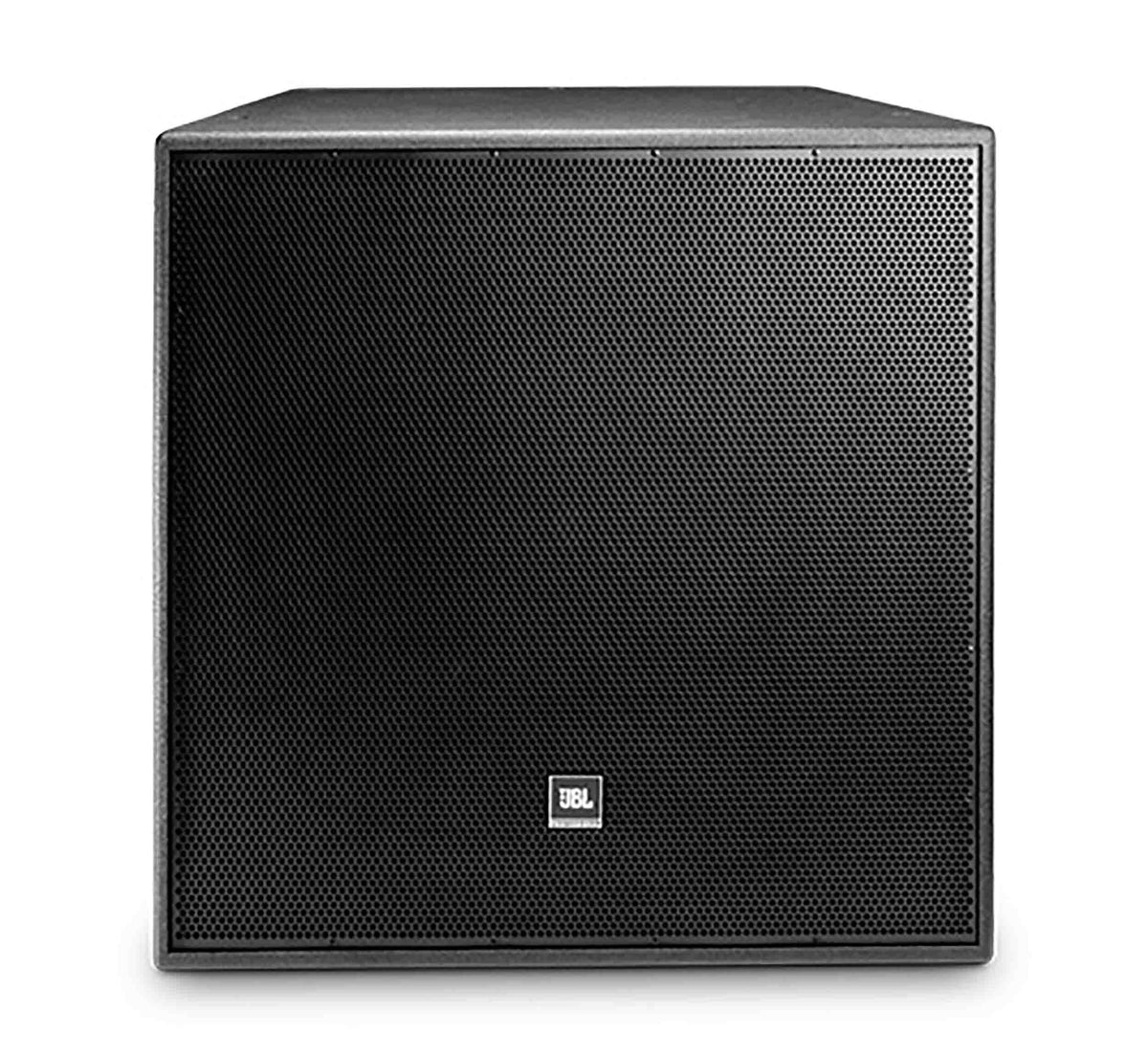

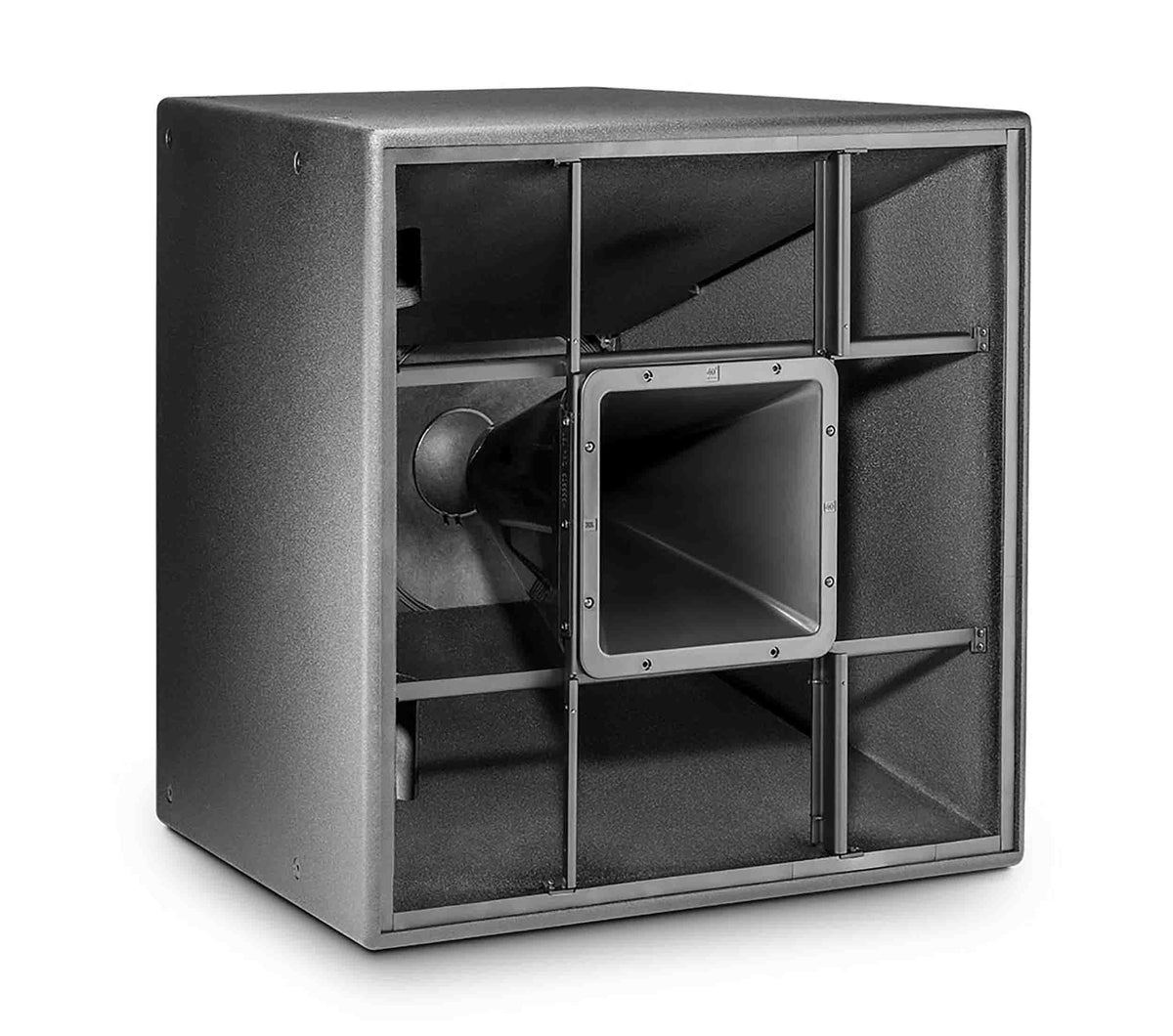

JBL PD544, 15 Inch Horn Loaded Full Range Loudspeaker System
JBL PD544, 15 Inch Horn Loaded Full Range Loudspeaker System
Model / SKU: H-JBL-PD544
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The JBL PD544 is a Precision Directivity loudspeaker designed for applications requiring high output capability with excellent pattern control. PD544 can be utilized in music or speech systems where frequency extension to 80 Hz is adequate or combined with subwoofers to create extended bandwidth fullrange systems.
Product Specification:
Product Type: Speaker - for PA system
Protection: Weatherproof, moisture-proof, thermal protection
Enclosure Color: Black
Enclosure Material: Fiberglass, birch plywood
Design Features: DuraFlex finish, trapezoidal design
Speaker Type: Passive
Nominal Output Power: 300 Watt
Max (RMS) Output Power: 500 Watt
Frequency Response: 50 - 20000 Hz
Nominal Impedance: 8 Ohm
Max Output Level (Max SPL): 116.8 dB
Sensitivity: 106 dB
Crossover Frequency: 1200Hz
Coverage: 40° x 40°
Recommended Placing: Outdoor
Compliant Standards: MIL-STD-810, IEC 529/IP56
Width: 30.8 in
Depth: 26.4 in
Height: 30.8 in
Weight: 152.12 lbs
