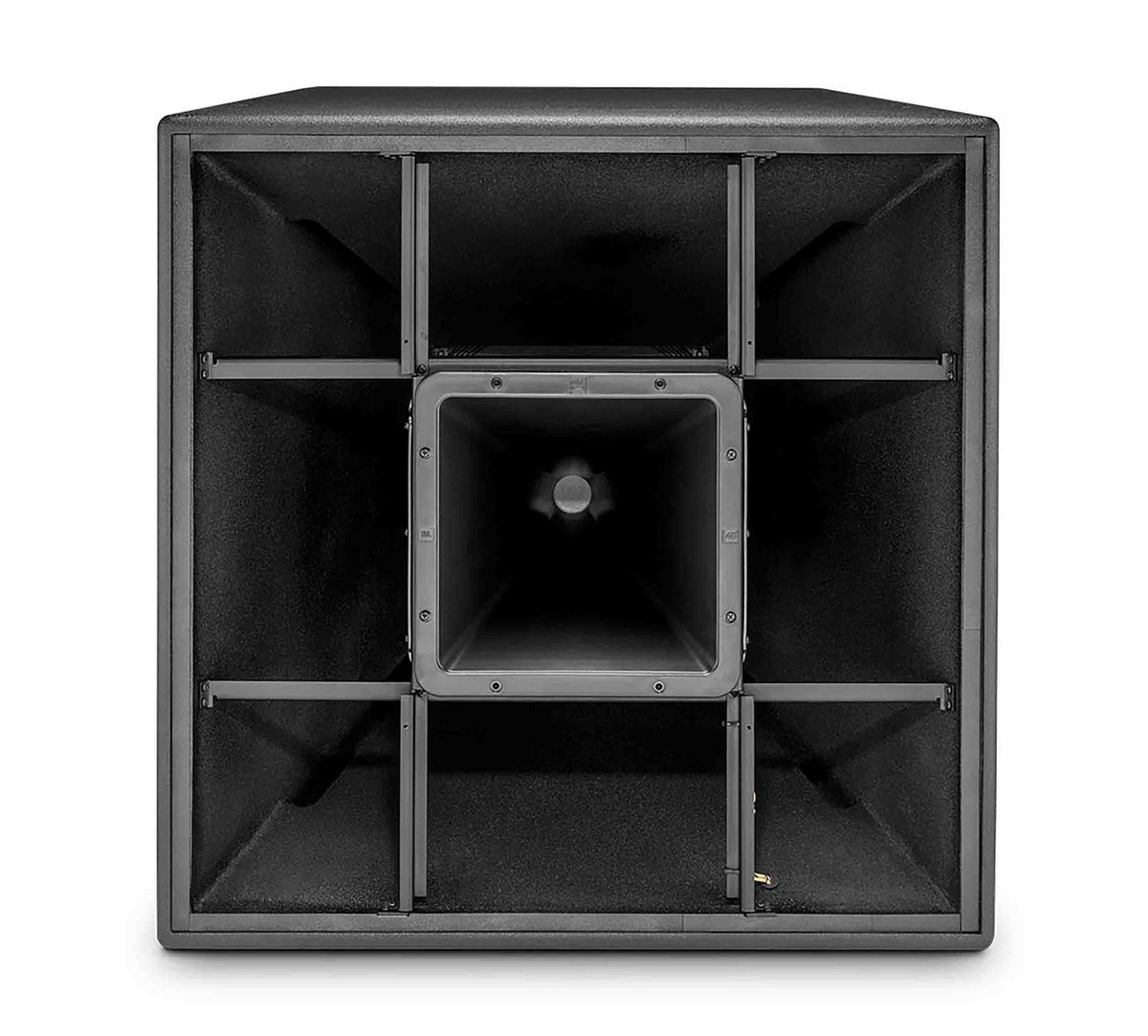

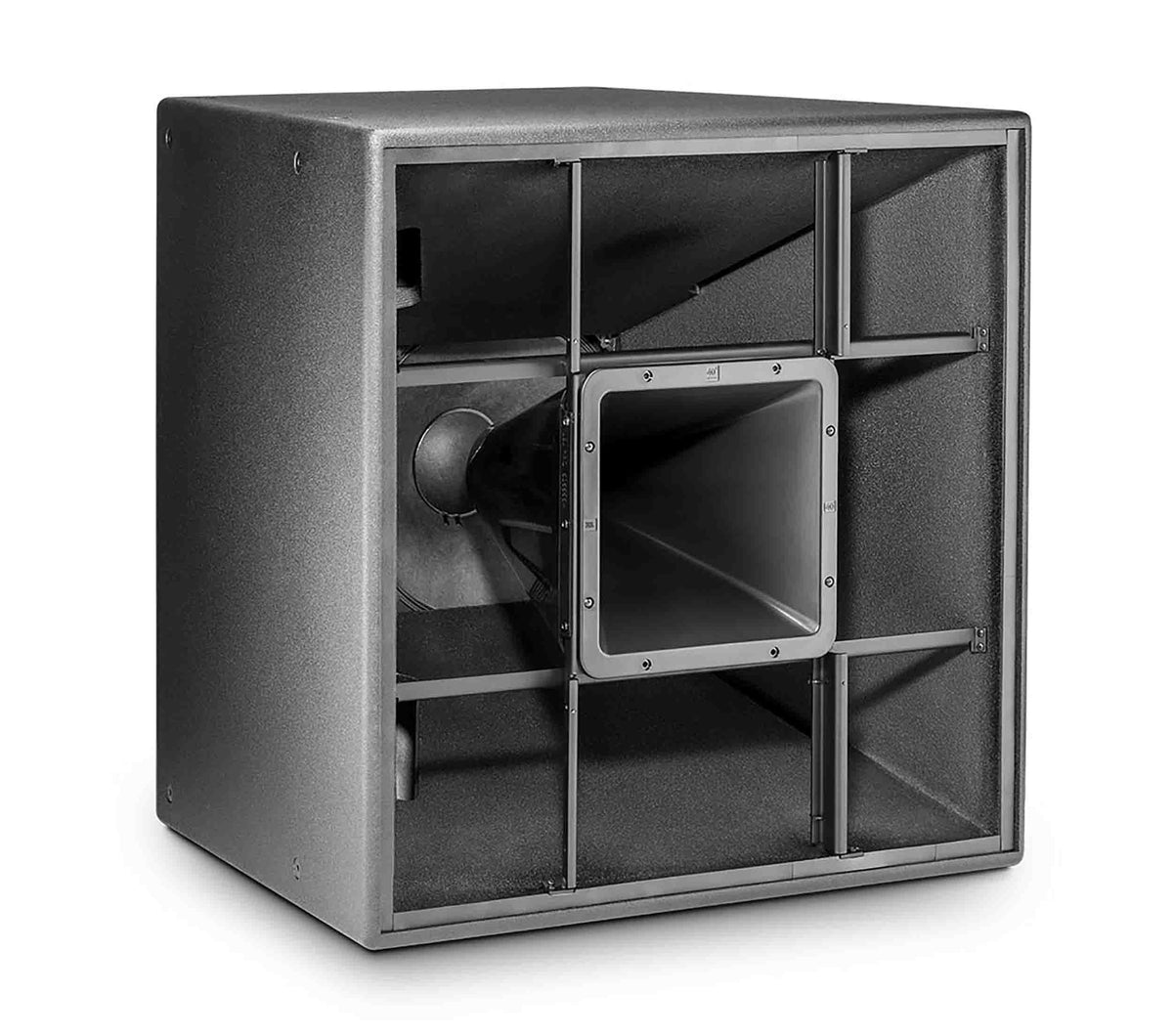

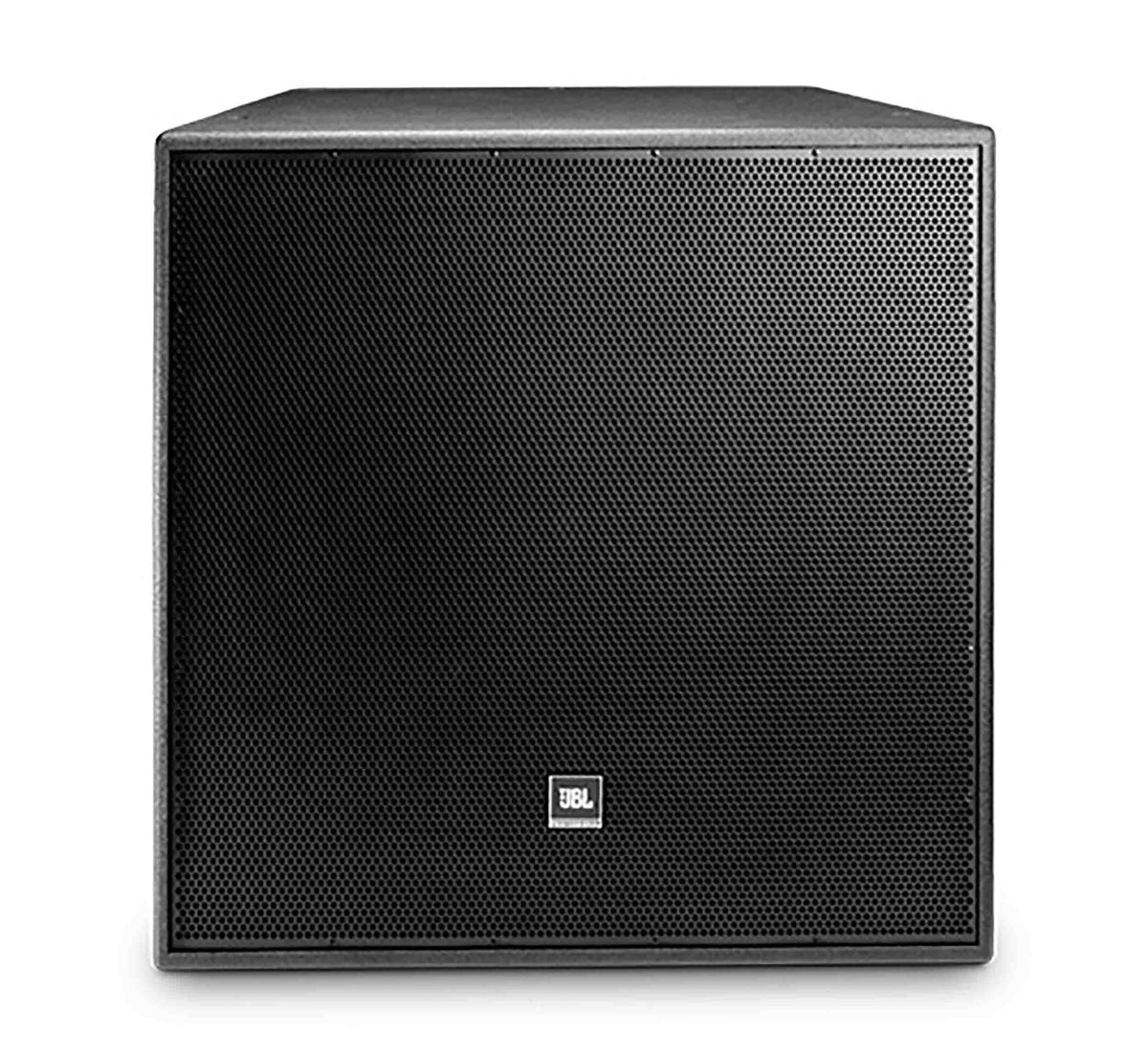

JBL PD595, 15 Inch Horn Loaded Full Range Loudspeaker System

The JBL PD595 is a Precision Directivity loudspeaker designed for applications requiring high output capability with excellent pattern control. PD595 can be utilized in music or speech systems where frequency extension to 80 Hz is adequate or combined with subwoofers to create extended bandwidth fullrange systems.

Product Specification:

Frequency Range (-10dB): 50Hz to 20kHz

Frequency Response (±3 dB): 90Hz to 16kHz

Coverage Pattern: 90° x 50°

Directivity Factor (Q): 10

Directivity Index (DI): 10 dB

Crossover Modes: Bi-amp/Passive switchable

Passive Crossover: 1.3 kHz

Transducer Power Ratings (AES): LF: 450W 2hrs, 300W 100hrs HF: 75W, 2hrs, 50W 100hrs

System Power Rating: Passive mode: 500W 2hrs, 300W 100hrs (IEC)

System Sensitivity (1w @ 1m): 104 dB SPL

Nominal Impedance: 8 ohms

LF Driver: 2031H 380 mm (15 in) driver with 75 mm (3 in) voice coil

Sensitivity (1W, 1m within operational band): 106 dB (avg 300Hz-1.3kHz)

HF Driver: JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil

Sensitivity: 113 dB (avg 1.5k-5kHz)

Waveguide: HF: PT-H95HF-1 300 x 300 mm (12 x 12 in)

Suspension Attachment: 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware.

Finish: Black DuraFlex finish. White (-WH) available upon request.

Environmental: Mil-Std 810; IP-x3 per IEC529. For higher environmental ratings, use WRC or WRX.

Optional Accessories: 229-00009-01 kit of three M10 x 35 mm forged shoulder steel eyebolts.

Nominal LF Driver Impedance: 8 ohms

Nominal HF Driver Impedance: 8 ohms

Dimensions (H x W x D in vertical orientation): 782 mm x 783 mm x 670 mm

30.8 in x 30.8 in x 26.4 in"

Weight: 69.0 kg (152 lb)
