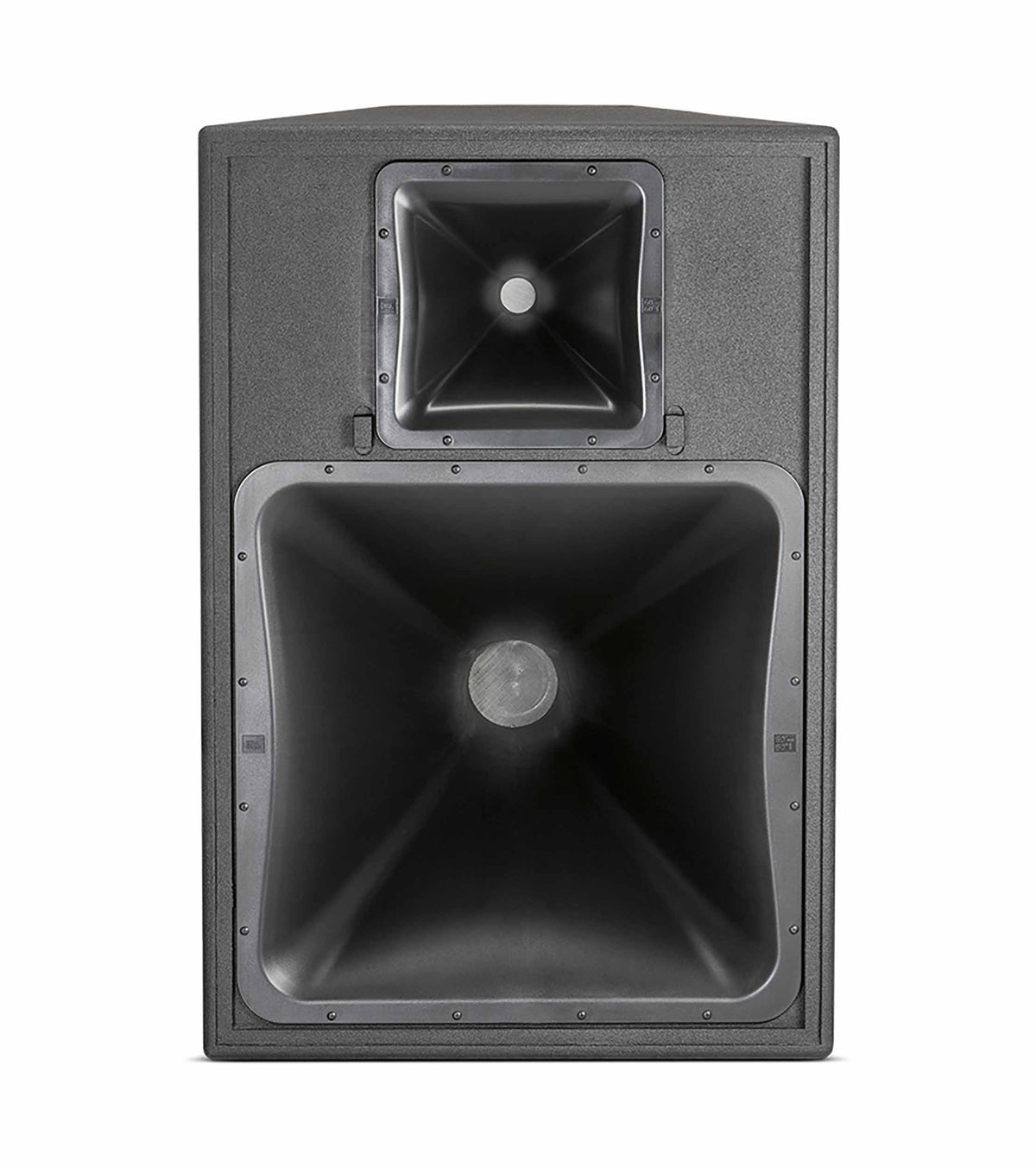

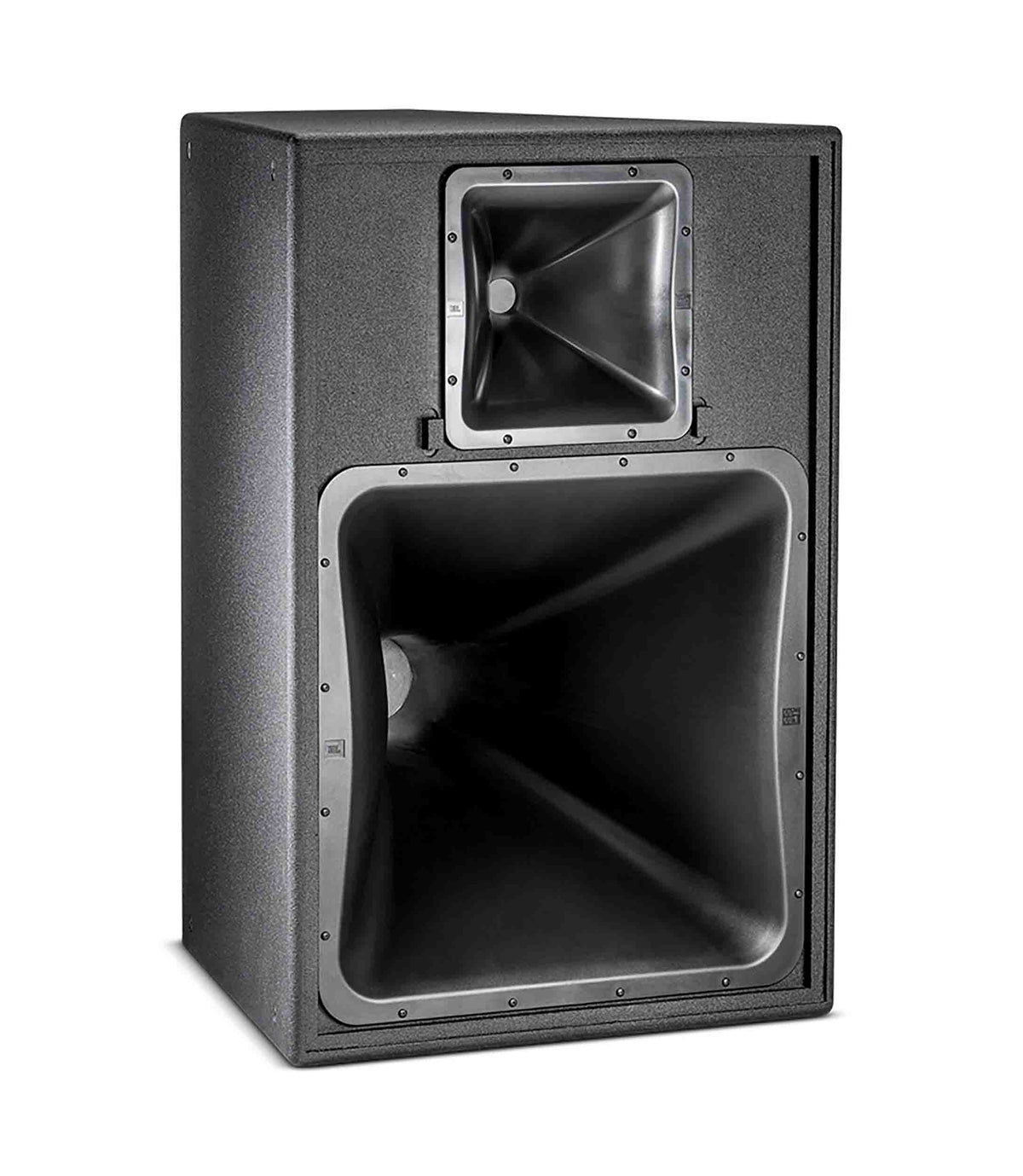

The JBL PD6200/64 Passive/Biamp Two-Way Mid-/High-Frequency Loudspeaker is a versatile, high-output speaker well suited for professional installations such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live music venues, night clubs, sports facilities, and theme parks. The PD6200/64 is comprised of the JBL CMCD-82H cone midrange compression driver with integral 8" diameter Differential Drive dual voice coil driver, and a 2432H, 1.5" exit high-frequency compression driver. The two PT Progressive Transition waveguides provide 60x40° of coverage and are both rotatable for deploying the loudspeaker system in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability. The PD6200/64 will perform as either a bi-amped or passive cabinet, at the flick of a switch.
Product Specification:
Frequency Range (-10dB): 200 Hz to 18 kHz
Frequency Response (±3 dB): 240 Hz to 16 kHz
Coverage Pattern: /43: 40° x 30°/64: 60° x 40°/66: 60° x 60°/95: 90° x 50°
Crossover Modes: Bi-amp / Passive switchable
Passive Crossover: 6th order (36 dB / oct) Linkwitz-Riley HP & LP, 1.7 kHz
System Power Rating: Passive Mode: 300 W (1200 W peak), 100 hrs. (IEC rated)
System Sensitivity (1w @ 1m): Passive Mode: 110 dB SPL
HF Driver: 2432H, 38 mm (1.5 in) exit compression driver with 75 mm (3 in) voice coil
Nominal Impedance: 8 ohms
Enclosure: Trapezoidal with 15 degree side angles, 16 mm (.625 in) exterior grade 11-ply Finnish birch plywood
Suspension Attachment: 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware.
Finish: Black DuraFlex finish. White (-WH) available upon request.
Grille: Powder coated 14 gauge perforated steel, zinc-phosphate dipped, foam backing.
Environmental: Mil-Std 810; IP-x3 per IEC529. For higher environmental ratings, use WRC or WRX.
Dimensions (H x W x D in vertical orientation): 991 x 673 x 897 mm (39.0 x 26.5 x 35.3 in)
Net Weight (each): 58.8 kg (130 lb)
Optional Accessories: 229-00009-01 kit of three M10 x 35 mm forged shoulder steel eyebolts
Nominal LF Driver Impedance: 8 ohms
Nominal MF Driver Impedance: 8 ohms
