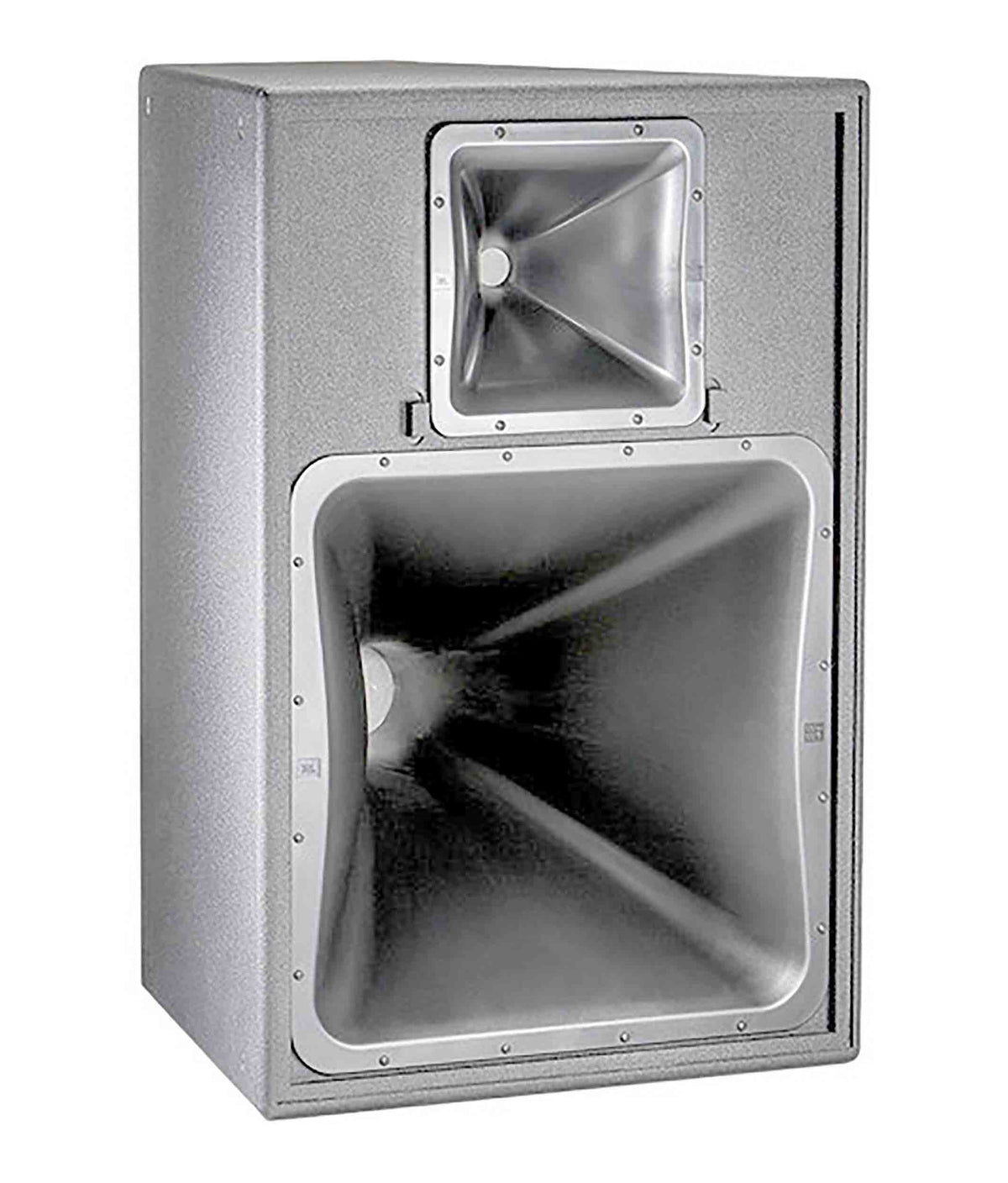

JBL PD6200/95-WH Passive/Biamp Two Way Mid-High Frequency - White
JBL PD6200/95-WH Passive/Biamp Two Way Mid-High Frequency - White
Model / SKU: H-JBL-PD620095WH
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The JBL PD6200/95-WH Passive/Biamp Two-Way Mid-/High-Frequency Loudspeaker is a versatile, high-output speaker well suited for professional installations such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live music venues, night clubs, sports facilities, and theme parks. The PD6200/95 is comprised of the JBL CMCD-82H cone midrange compression driver with integral 8" diameter Differential Drive dual voice coil driver, and a 2432H, 1.5" exit high-frequency compression driver. The large format PT Progressive Transition waveguide provides 90x50° coverage and is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability. The PD6200/95 will perform as either a bi-amped or passive cabinet, at the flick of a switch.
Product Specification:
Frequency Range (-10dB): 200 Hz to 17 kHz
Frequency Response (±3 dB): 240 Hz to 15 kHz
Coverage Pattern: /43: 40° x 30°/64: 60° x 40°/66: 60° x 60°/95: 90° x 50°
Crossover Modes: Bi-amp / Passive switchable
Passive Crossover: 6th order (36 dB / oct) Linkwitz-Riley HP & LP, 1.7 kHz
System Power Rating: Passive Mode: 300 W (1200 W peak), 100 hrs. (IEC rated)
System Sensitivity (1w @ 1m): Passive Mode: 109 dB SPL
HF Driver: 2432H, 38 mm (1.5 in) exit compression driver with 75 mm (3 in) voice coil
Nominal Impedance: 8 ohms
Enclosure: Trapezoidal with 15 degree side angles, 16 mm (.625 in) exterior grade 11-ply Finnish birch plywood
Suspension Attachment: 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware.
Finish: Black DuraFlex finish
Grille: Powder coated 14 gauge perforated steel, zinc-phosphate dipped, foam backing.
Environmental: Mil-Std 810; IP-x3 per IEC529. For higher environmental ratings, use WRC or WRX.
Dimensions (H x W x D in vertical orientation): 991 x 673 x 897 mm (39.0 x 26.5 x 35.3 in)
Weight (each): 58.8 kg (130 lb)
Optional Accessories: 229-00009-01 kit of three M10 x 35 mm forged shoulder steel eyebolts
Nominal LF Driver Impedance: 8 ohms
Nominal HF Driver Impedance: 8 ohms
