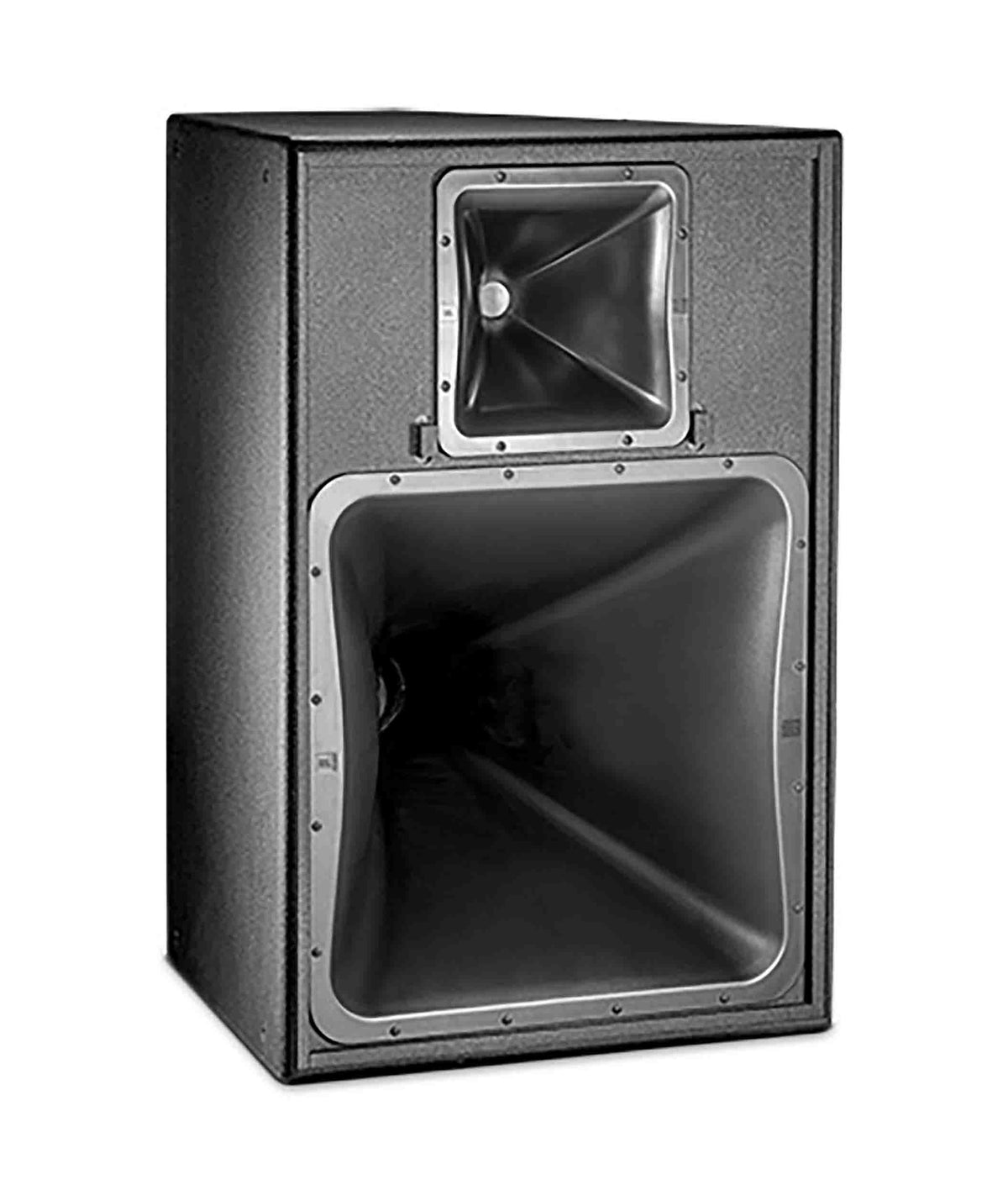

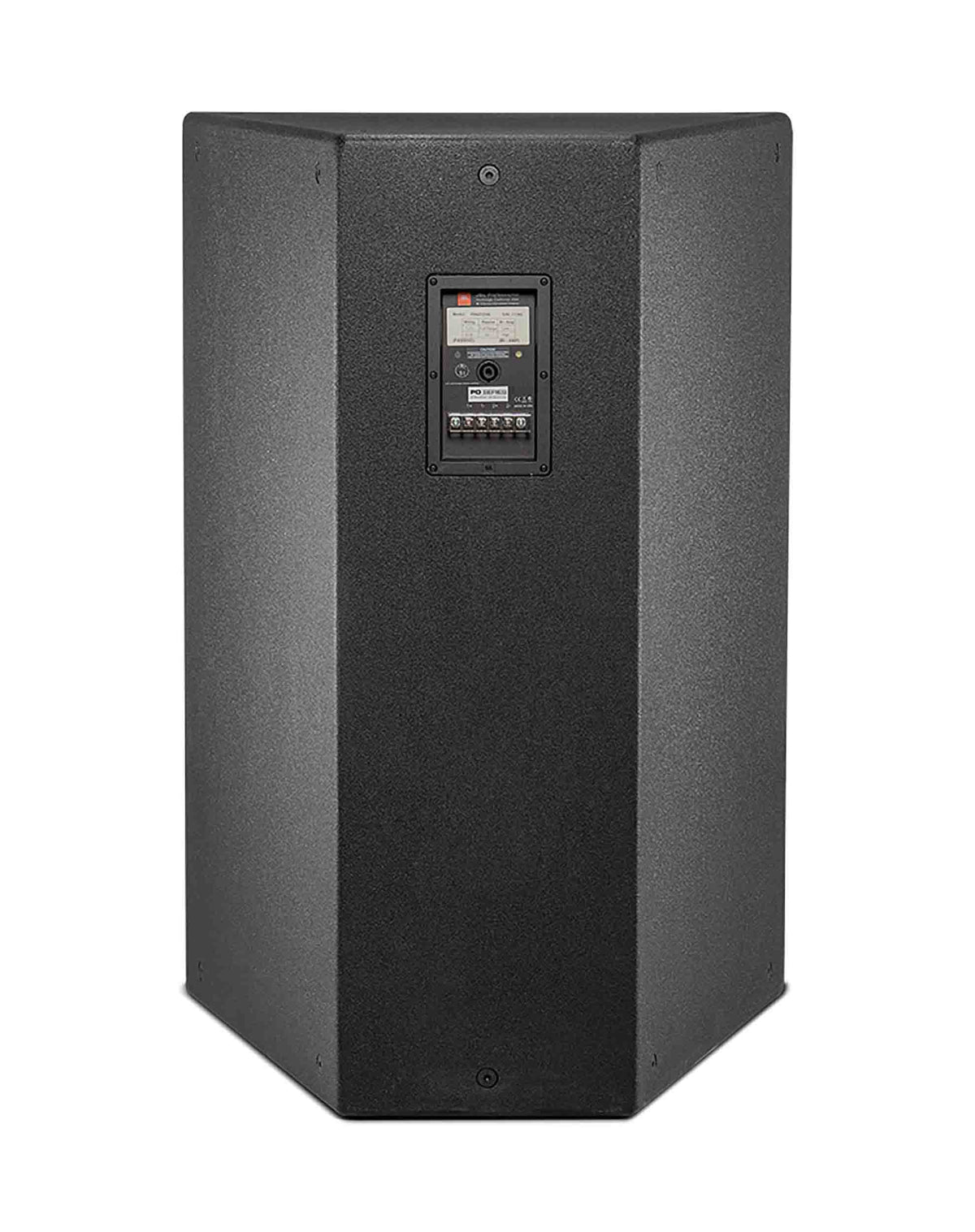

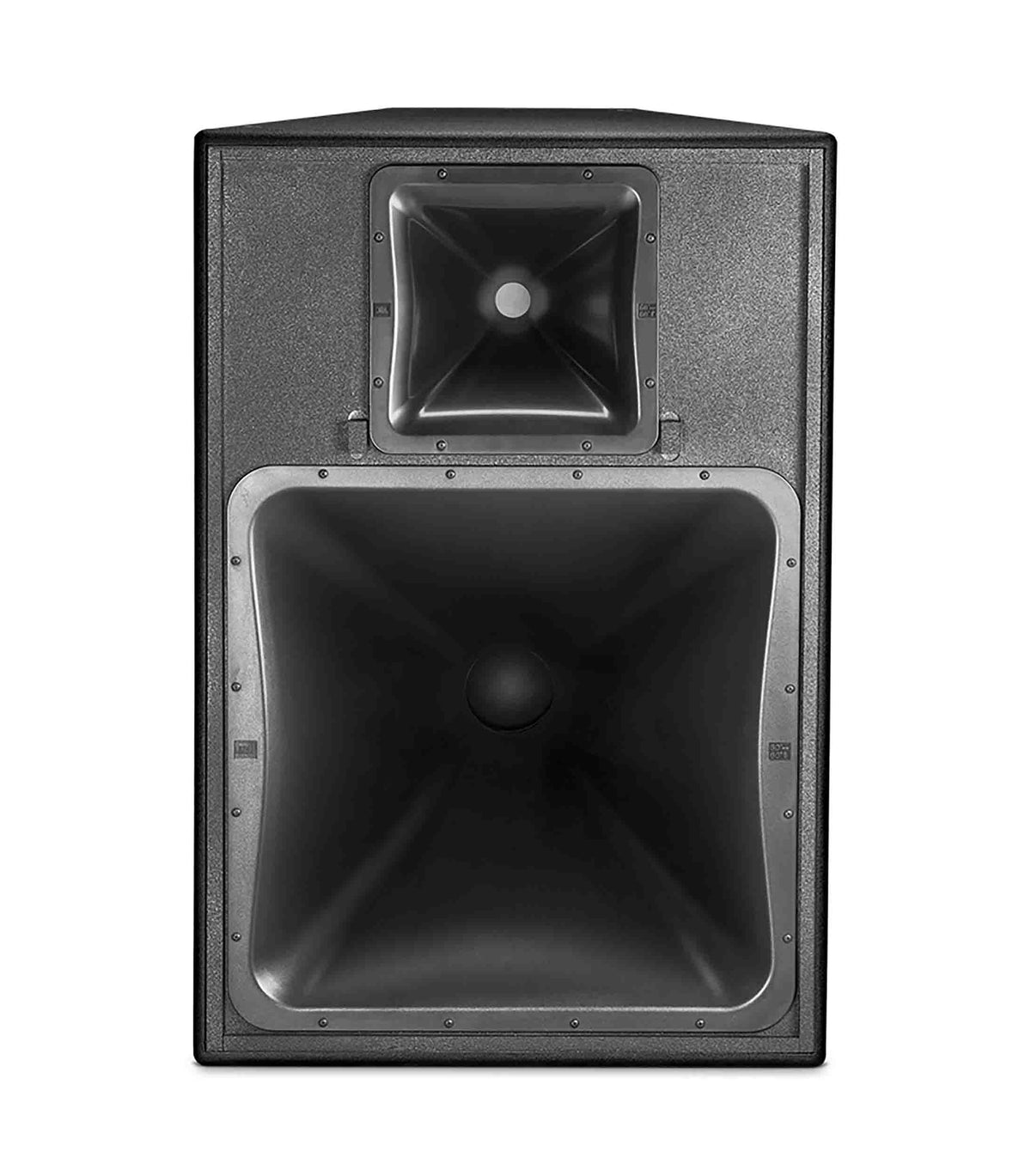

The JBL PD6212/95 Passive/Biamp Two-Way Full-Range Loudspeaker is a versatile, high-output speaker well suited for professional installations such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live music venues, night clubs, sports facilities, and theme parks. The PD6212/95 is comprised of the JBL M222-8A 12" low-frequency driver with a 3" voice coil and a 2453H 1.5" exit high-frequency compression driver with a 4" voice coil. The two PT Progressive Transition waveguides provide 90x50° of coverage and both are rotatable for deploying the loudspeaker system in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap, while a well-controlled off-axis response enhances arrayability. The PD6212/95 will perform as either a biamped or passive cabinet, at the flick of a switch.
Product Specification:
Frequency Range (-10dB): 80 Hz to 18 kHz
Frequency Response (±3 dB): 90 Hz to 16 kHz
Coverage Pattern: /43: 40° x 30°/64: 60° x 40°/66: 60° x 60°/95: 90° x 50°
Crossover Modes: Bi-amp / Passive switchable
Passive Crossover: 6th order (36 dB/oct) Linkwitz-Riley HP & LP, 850 Hz
System Power Rating: Passive Mode: 300 W (1200 W peak), 100 hrs
Maximum SPL (1m): LF: 137 dB-SPL HF: 135 dB SPL (141 dB peak)Passive Mode: 134 dB SPL (140 dB peak)
System Sensitivity (1w @ 1m): Passive Mode: 106 dB-SPL
LF Driver: M222-8A 300 mm (12 in) driver with 75 mm (3 in) voice coil
HF Driver: 2453H, 38 mm (1.5 in) exit compression driver with 100 mm (4 in) voice coil
Nominal Impedance: 8 ohms
Enclosure: Trapezoidal with 12.5 degree side angles, 16 mm (5/8 in) exterior
Suspension Attachment: 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware
Finish: Black DuraFlex finish
Grille: Powder coated 14 gauge perforated steel, zinc-phosphate dipped, foam
Environmental: Mil-Std 810; IP-x3 per IEC529.
Dimensions (H x W x D in vertical orientation): 991 x 673 x 897 mm
Net Weight (each): 69 kg (152 lb)
Optional Accessories: 229-00009-01 kit of three M10 x 35 mm forged shoulder steel eyebolts.
Nominal LF Driver Impedance: 8 ohms
Nominal HF Driver Impedance: 8 ohms
