JBL SRX910LA AF, Array Frame for SRX910LA
JBL SRX910LA AF, Array Frame for SRX910LA
Model / SKU: H-JBL-SRX910LAAF
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.

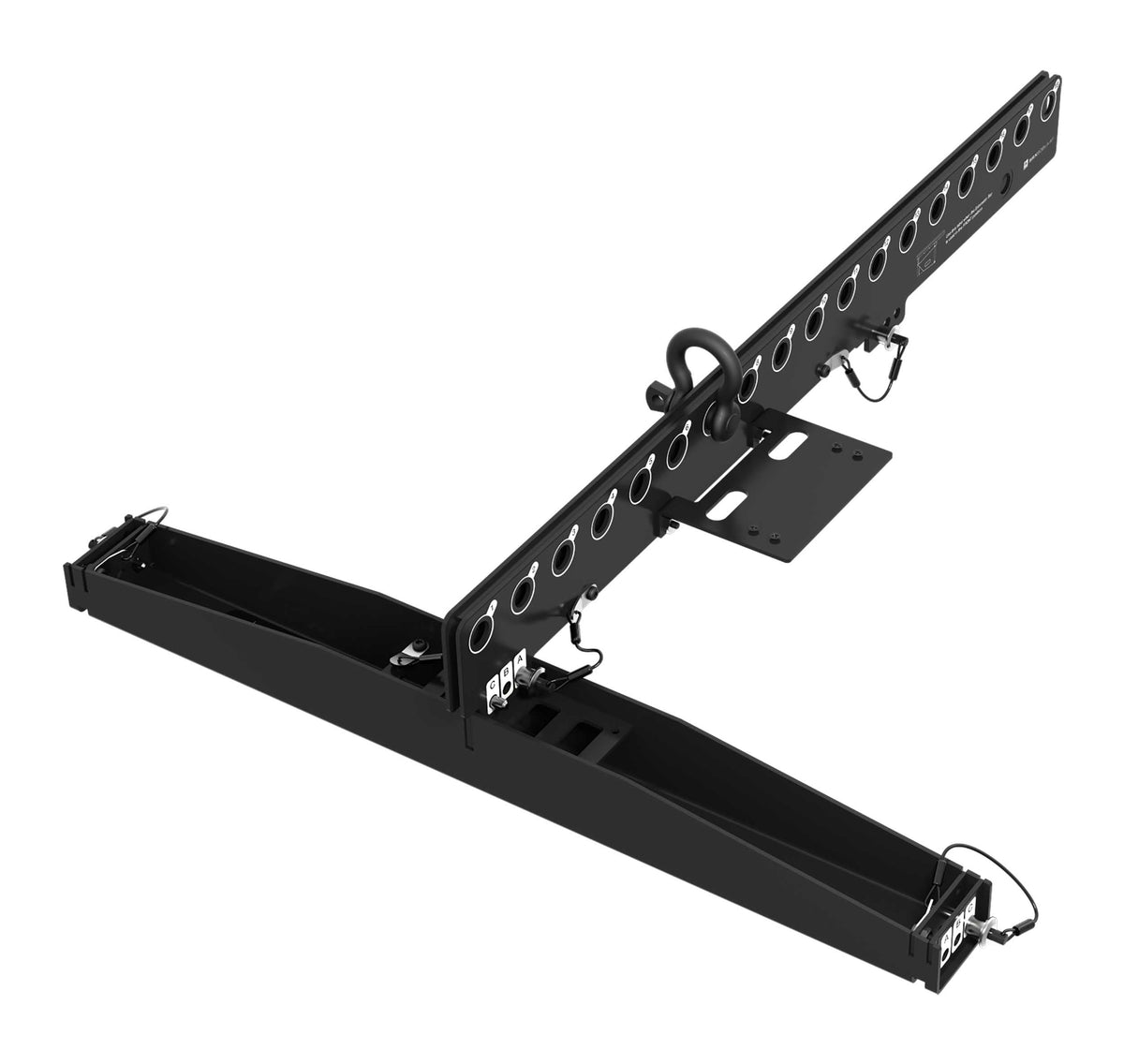

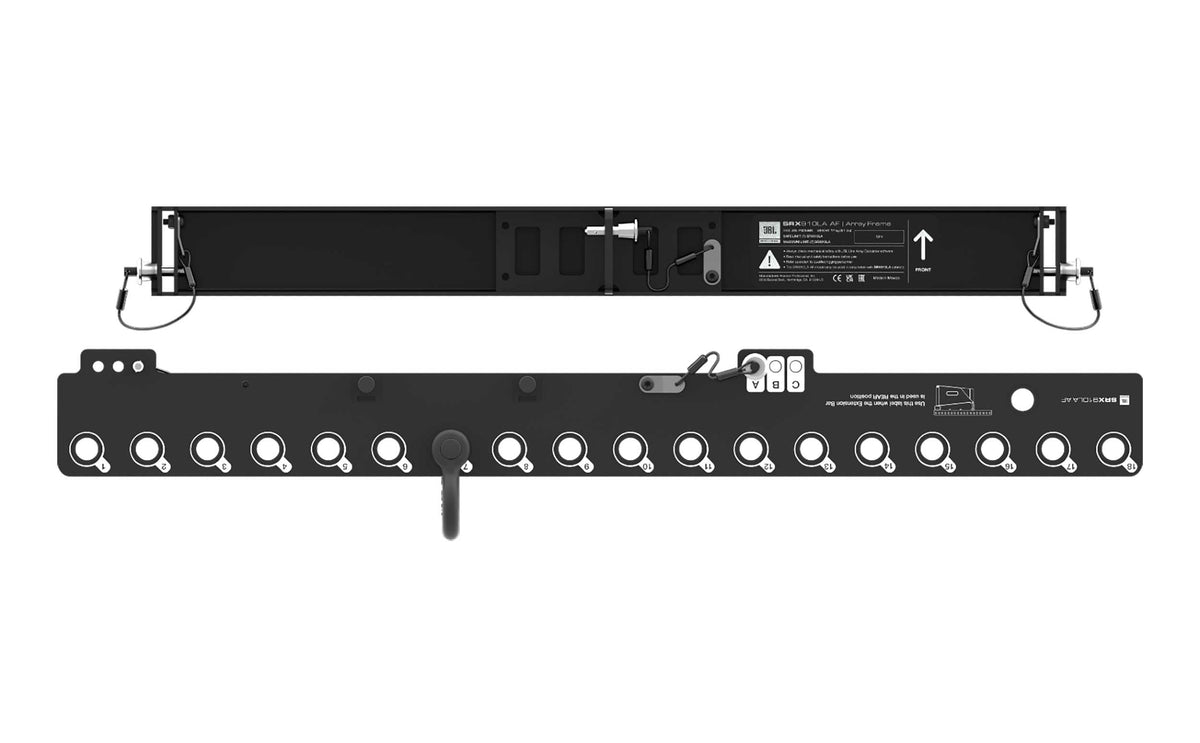

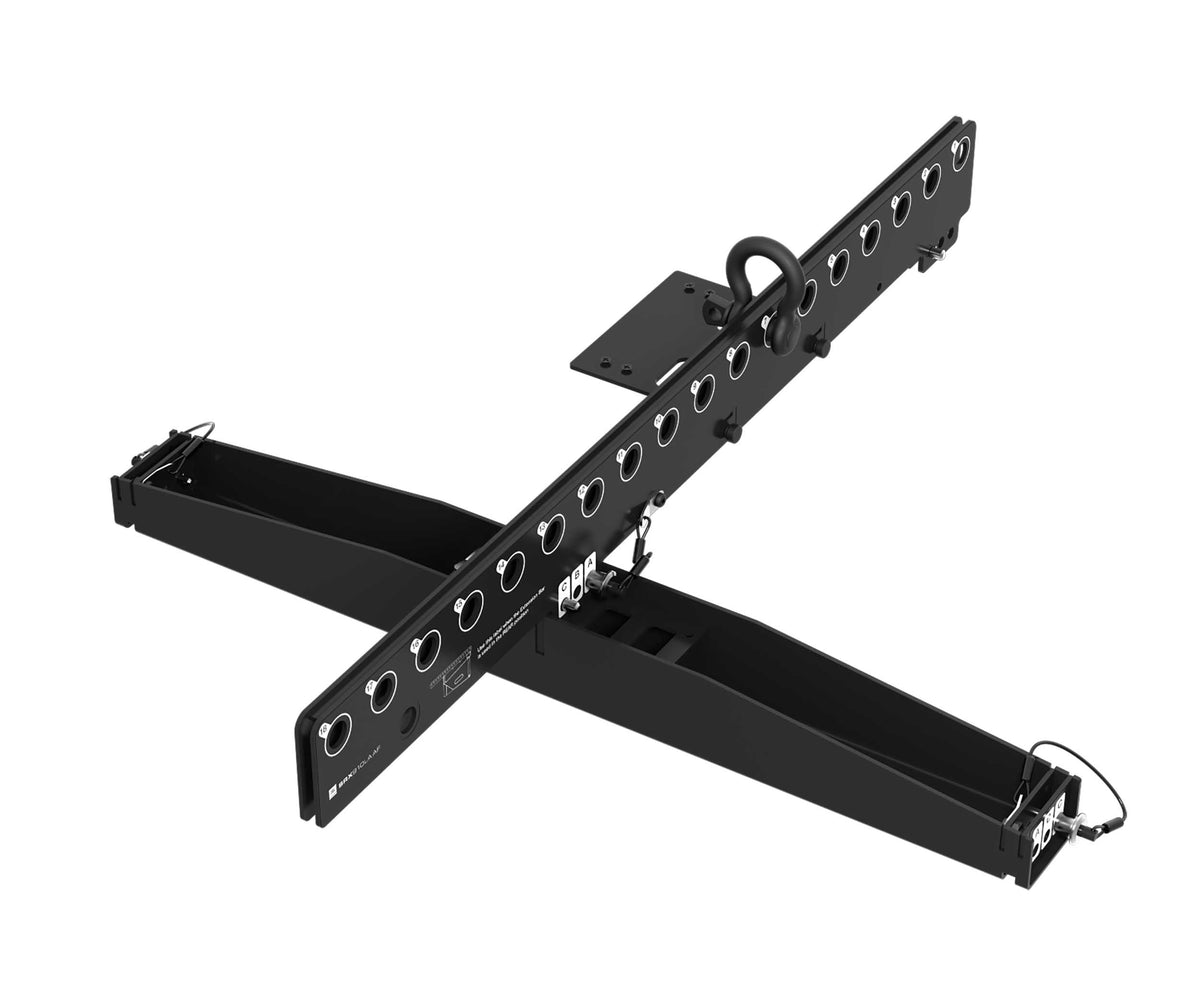

The JBL SRX910LA AF is a lightweight and compact array frame for suspending SRX910LA arrays. The array frame was designed to work with single-point and front-back suspension methods. For single-point applications, the array frame can be used in conjunction with the VTX RC500 rotating clamp, allowing smaller SRX910LA arrays to be suspended from standard size trusses or pipes. The two-piece design is comprised of one extension bar and one spreader bar. The extension bar can extend to the front or rear of the frame to accommodate both uptilt and downtilt aiming options. Three connection points are available for attaching the extension bar to the spreader bar, allowing for precise control of shackle positioning for single-point applications. Support for third-party inclinometers is available using the included laser attachment bracket. The two parts can be collapsed easy for storage. For more information about the array frame and use cases, refer to the SRX900 Series Rigging Manual.
Product Specification:
Construction: High-grade steel with anti-corrosion coating
Finish: Black powder coat
Compatible Shackle Size: 1/2-inch
Compatible Lasers: TEQ-SAS, RECLINE
Mechanical Safe Limit: (14) SRX910LA
Mechanical Maximum Limit: (16) SRX910LA
