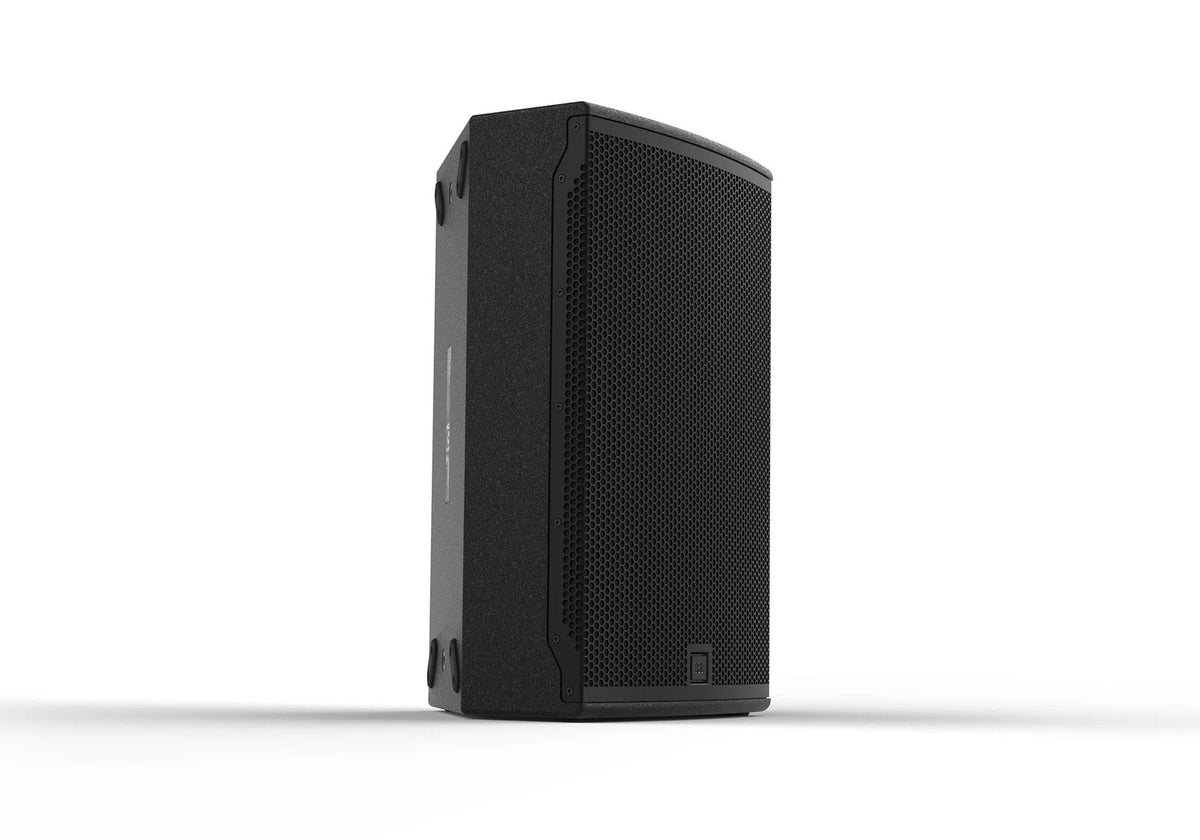

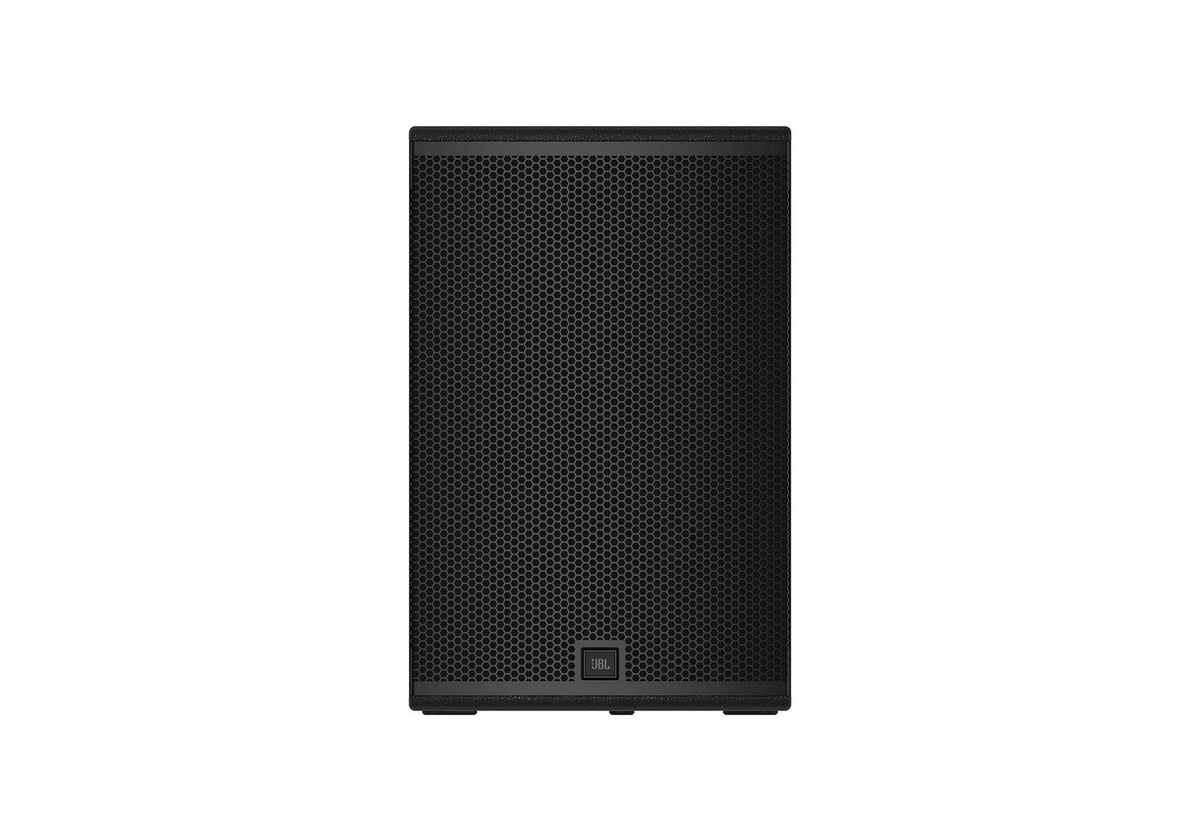

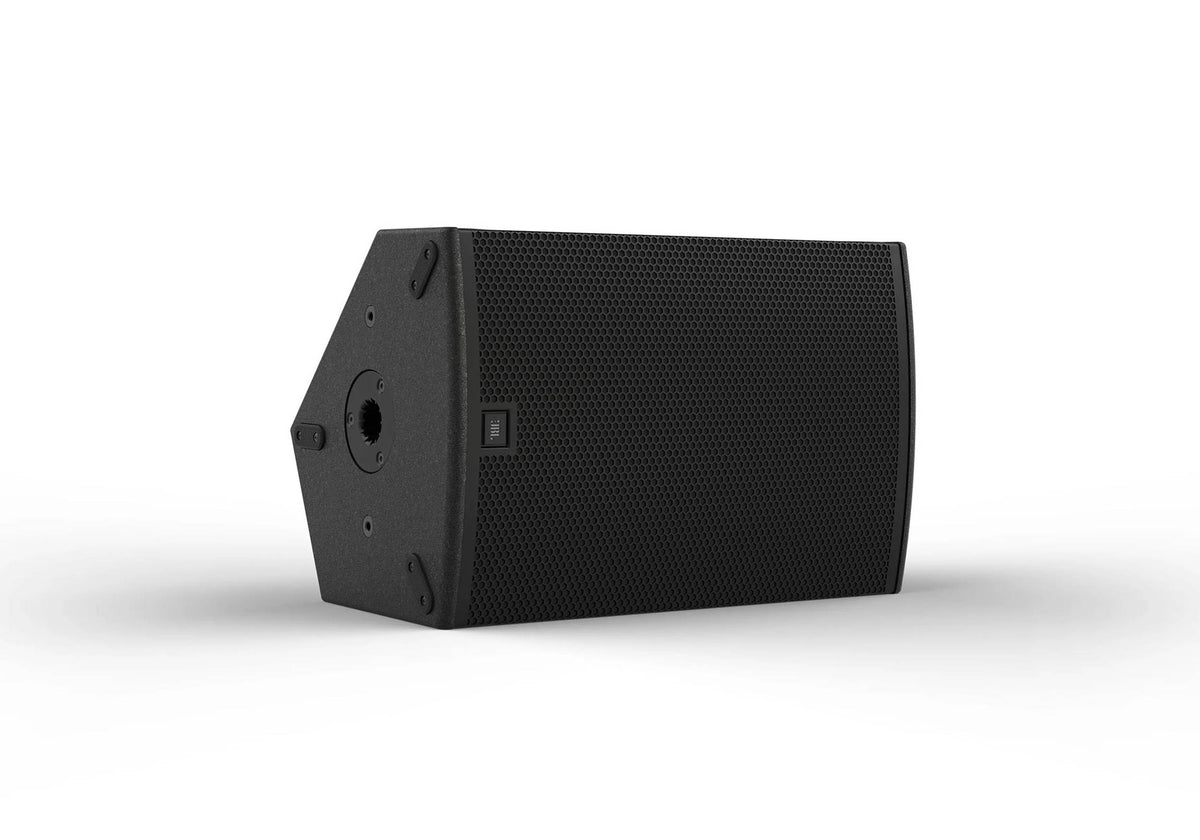

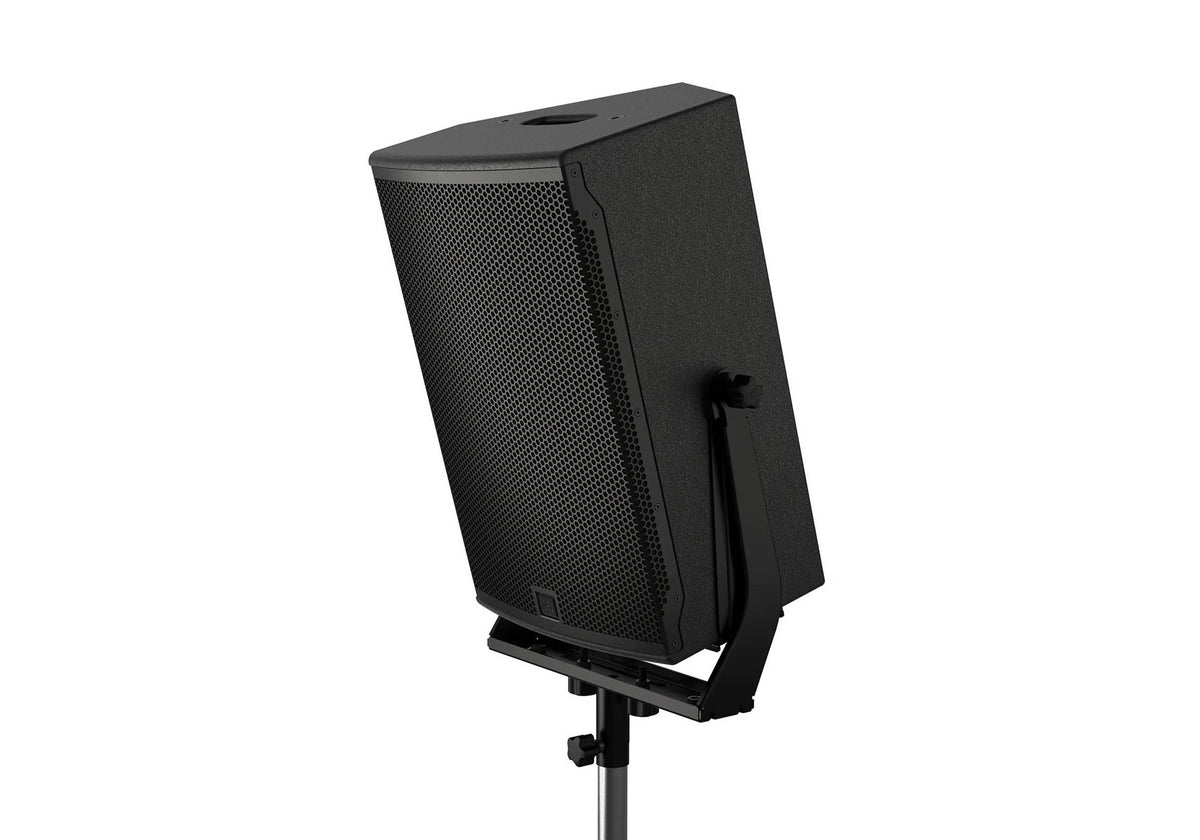

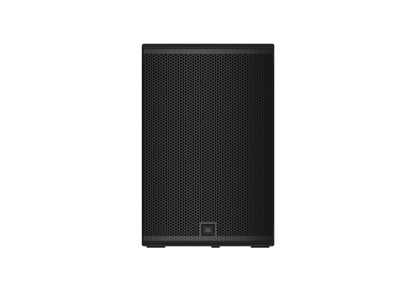

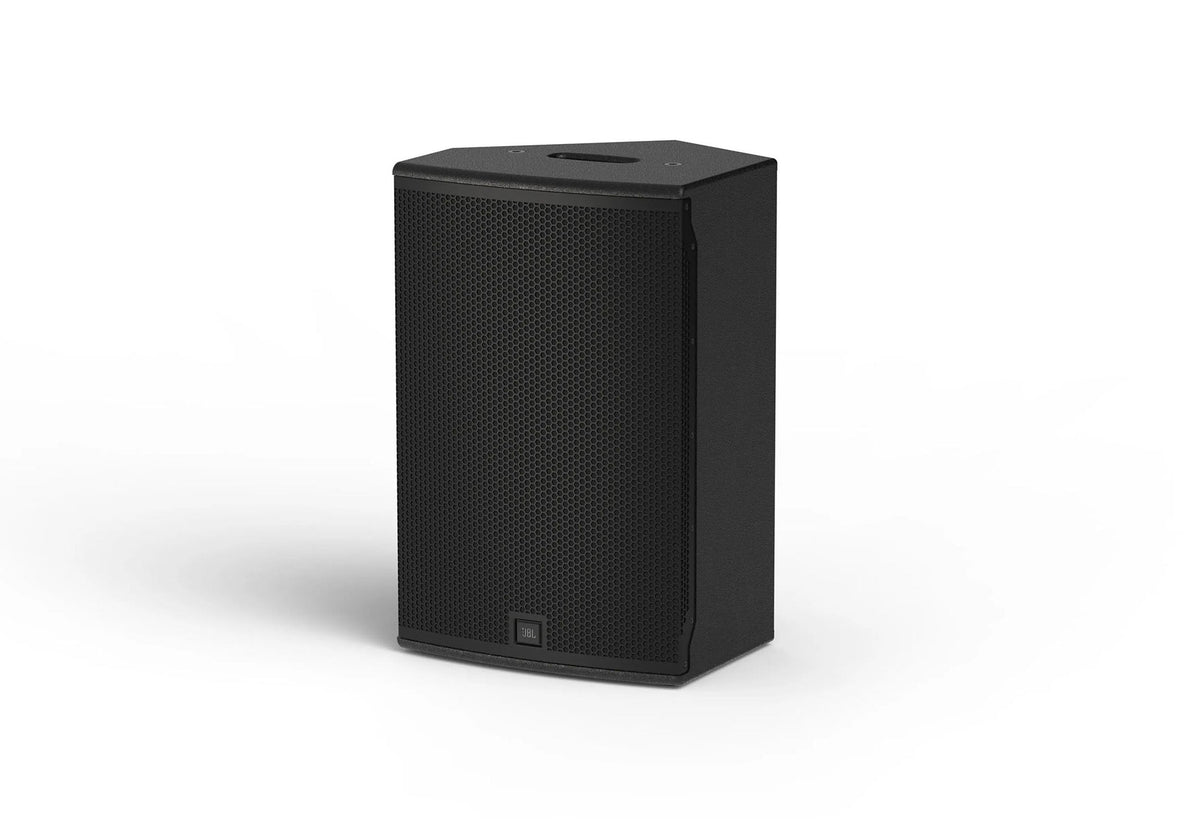

The JBL SRX912M 12-Inch Powered Multi-Purpose Professional Loudspeaker is a compact, high-performance powered speaker engineered for professional sound reinforcement in portable and installed applications. Its versatile enclosure allows it to serve as a main PA, stage monitor, or front fill, while the integrated Class-D amplifier and advanced DSP provide exceptional clarity, high output, and plug-and-play operation.

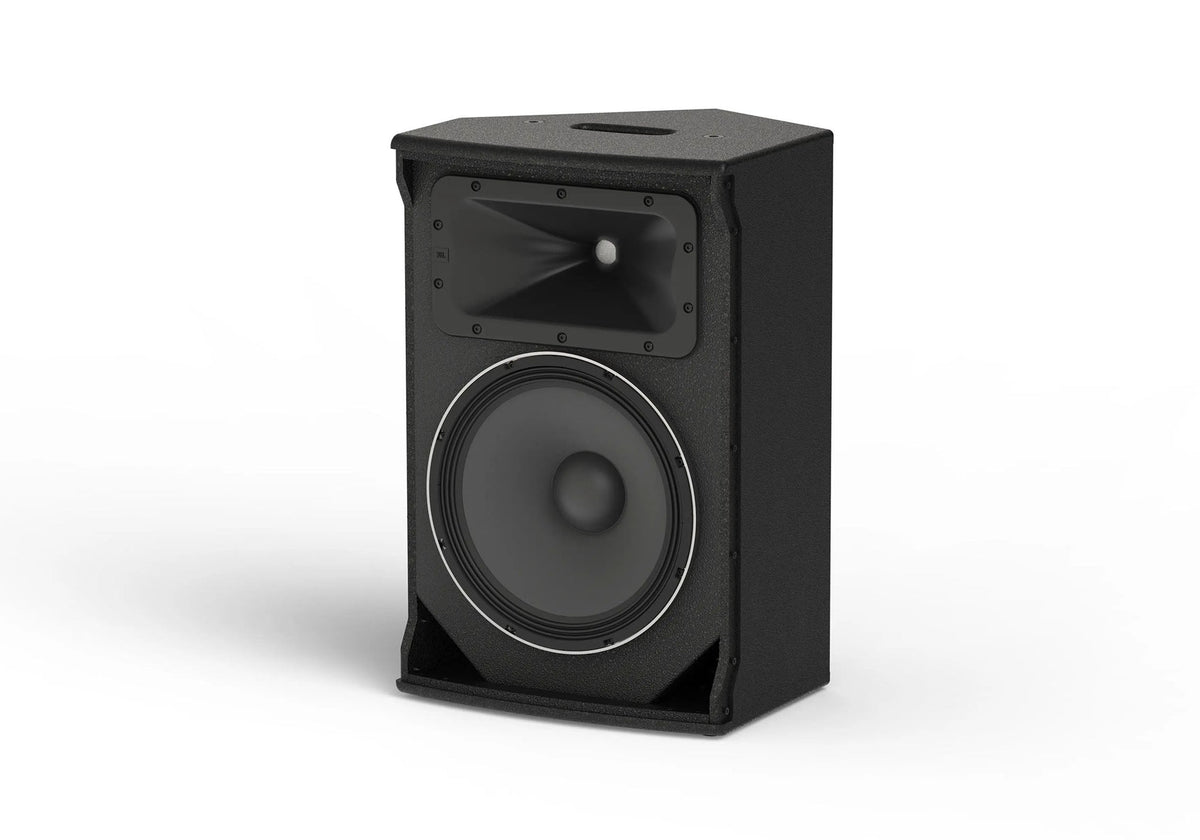

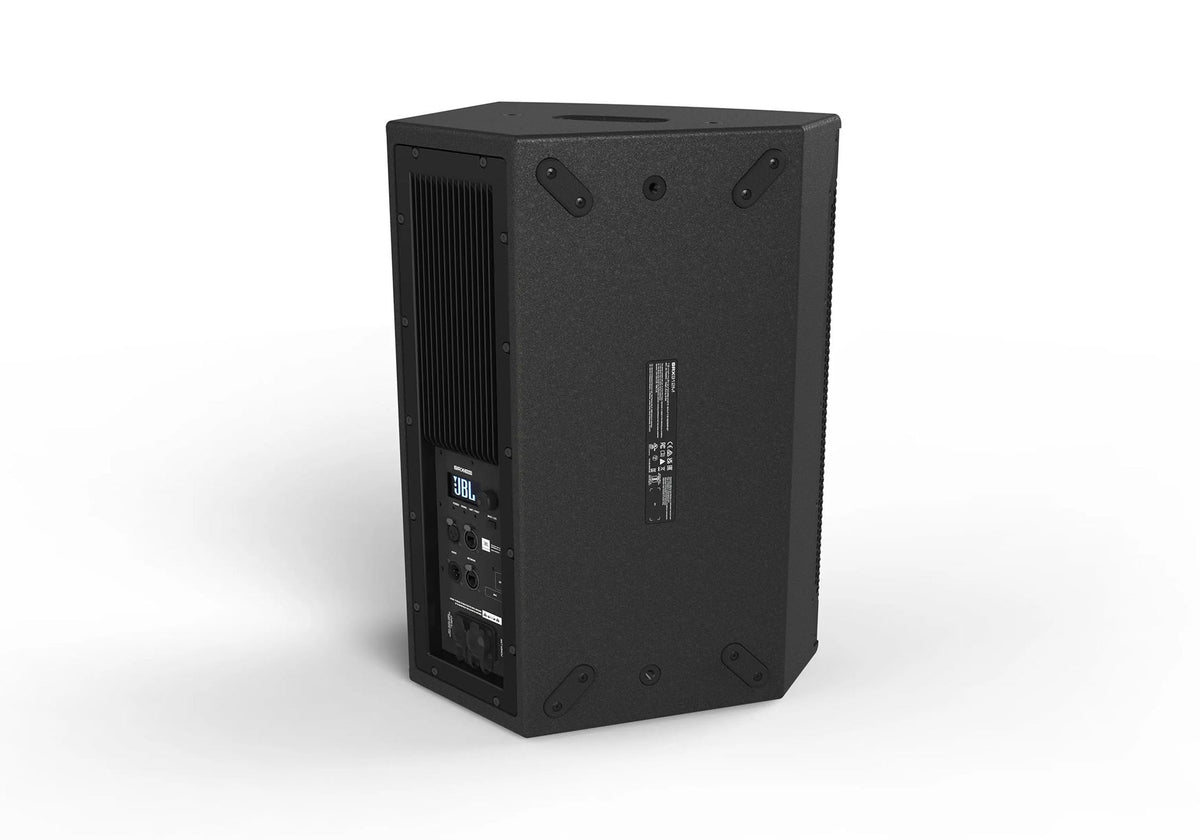

Equipped with JBL's patented Differential Drive® 12-inch woofer and a neodymium compression driver, the SRX912M delivers powerful low-frequency response, smooth high-frequency reproduction, and consistent 90° × 60° coverage. The rear LCD interface enables quick system configuration, while comprehensive DSP features including user-adjustable filters and delay offer precise system optimization.
Constructed from durable outdoor-grade Baltic birch plywood with a rugged DuraFlex™ finish, the SRX912M is built for demanding touring and fixed-installation environments. Six M10 QuickLink™ suspension points provide flexible mounting options, making it an ideal solution for live sound, theaters, and houses of worship, event venues, and professional AV installations.
Product Specifications
Product Type: Powered Multi-Purpose Loudspeaker
System Configuration: 2-Way Powered
Low-Frequency Driver: 12" JBL 272F Differential Drive® Woofer
High-Frequency Driver: 1.5" Neodymium Compression Driver
Coverage Pattern: 90° × 60°
Frequency Range (-10 dB): 50 Hz, 20 kHz
Maximum Peak Output: 133 dB SPL
Amplifier Type: Class-D
Continuous Power: 600 Watts (LF: 400W / HF: 200W)
Peak Power: 880 Watts (LF: 580W / HF: 300W)
DSP Features: 24 User-Adjustable Filters, 2,000 ms Delay
Sample Rate: 48 kHz / 24-bit

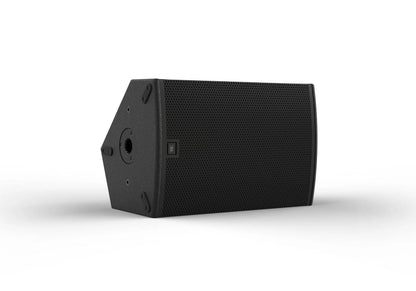

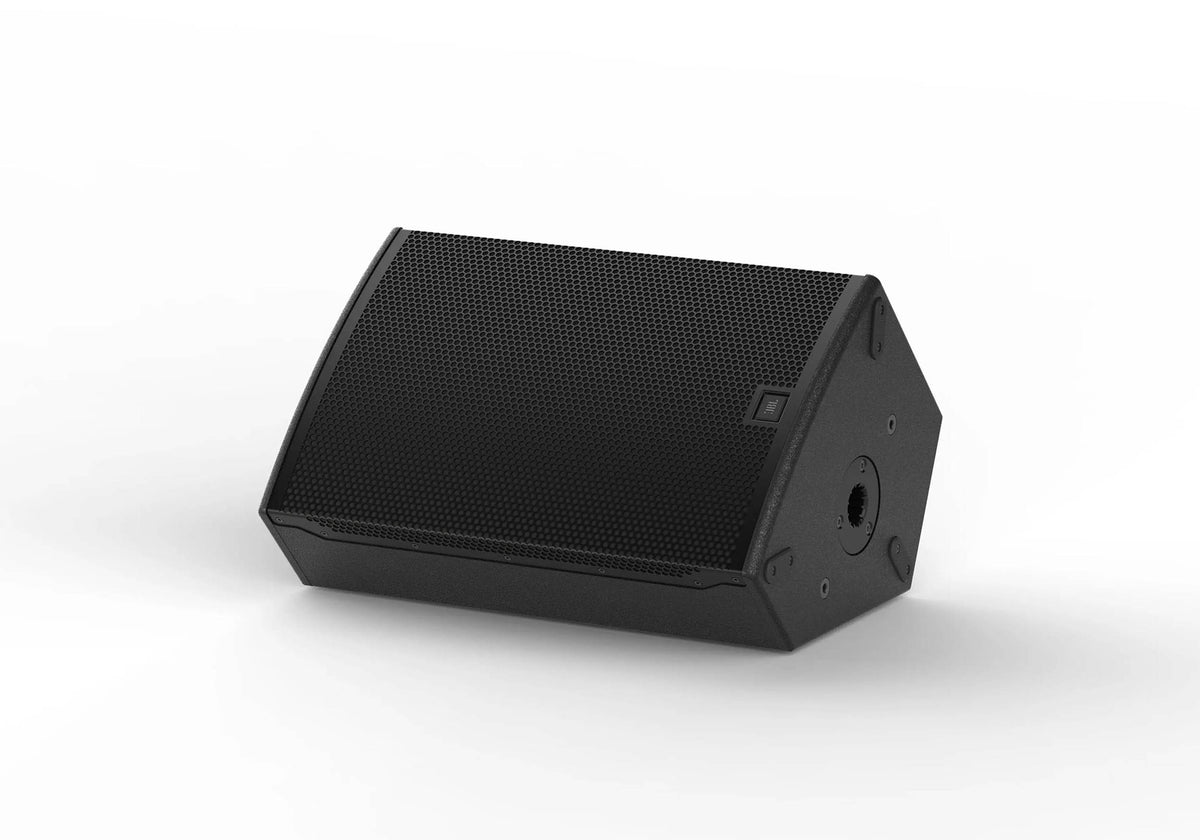

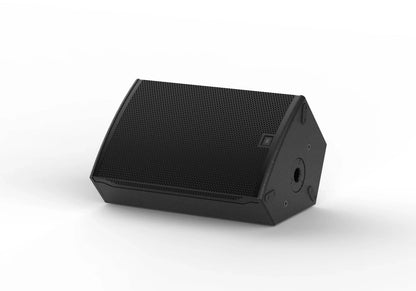

Monitor Angle: 42°
Input Connectors: (2) Neutrik XLR (IN/OUT)
Power Connectors: Dual Neutrik powerCON TRUE1® (IN/OUT)
Enclosure Material: Exterior-Grade Baltic Birch Plywood
Finish: DuraFlex™ Black Finish

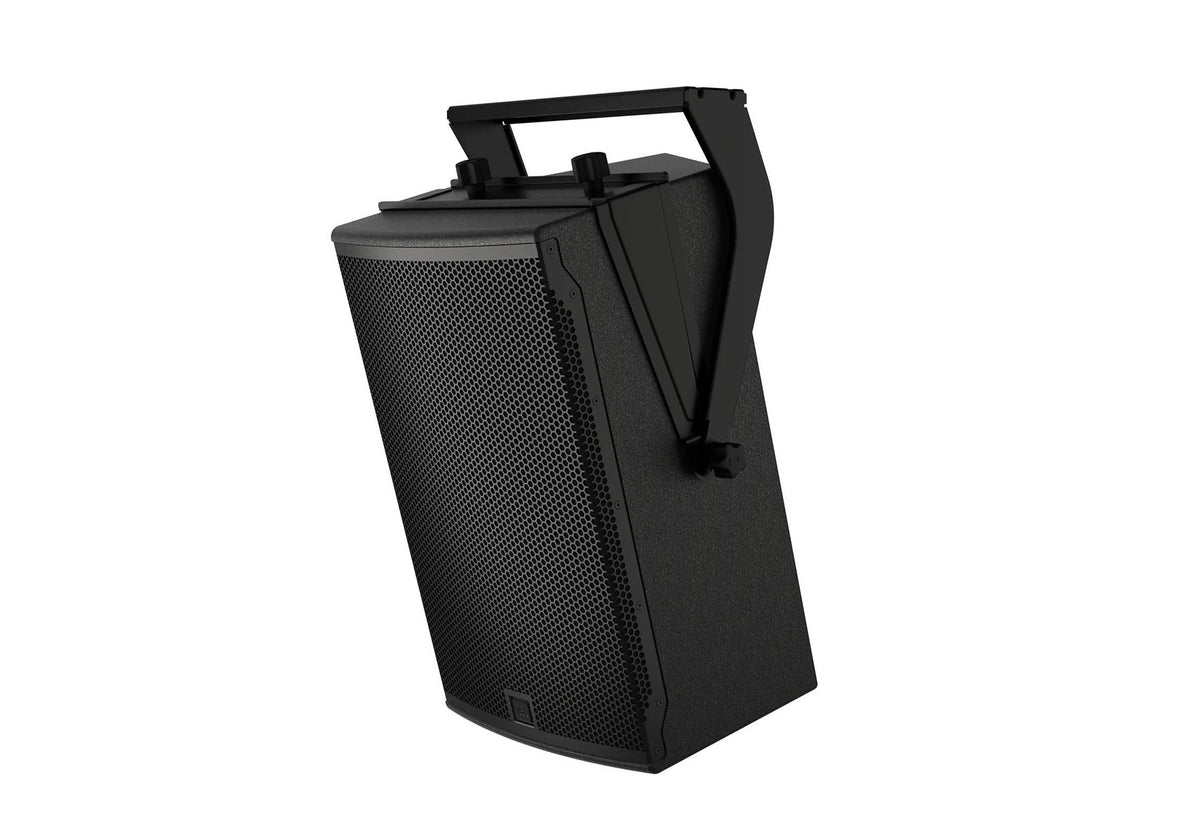

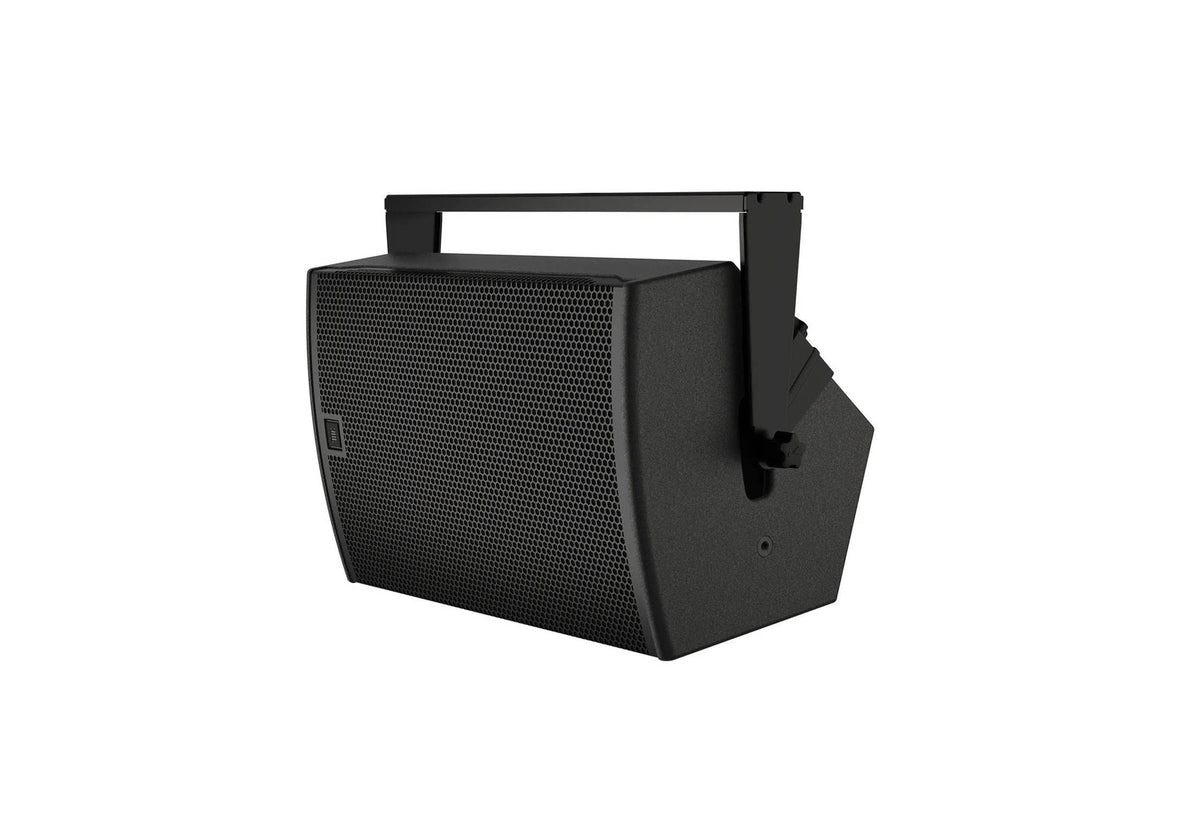

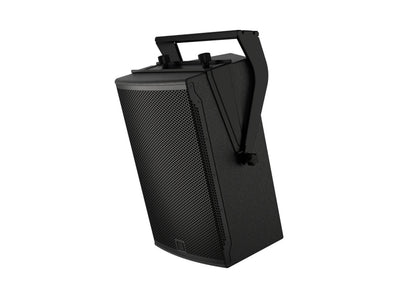

Suspension Points: Six JBL QuickLink™ M10 Points
Included Accessories: SRX912M Speaker, Neutrik NAC3F-TRUE1-S, Neutrik NAC3M-TRUE1-S
Product Weight: 45 lbs
Product Dimensions: 23" × 15" × 13.4"
Shipping Weight: 58 lbs
Shipping Dimensions: 25" × 17" × 15"
