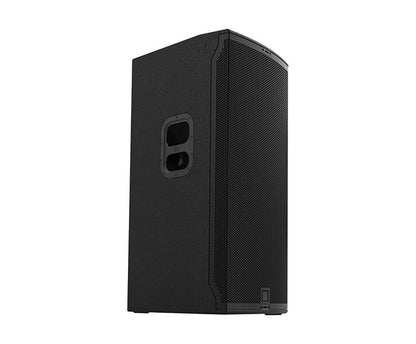

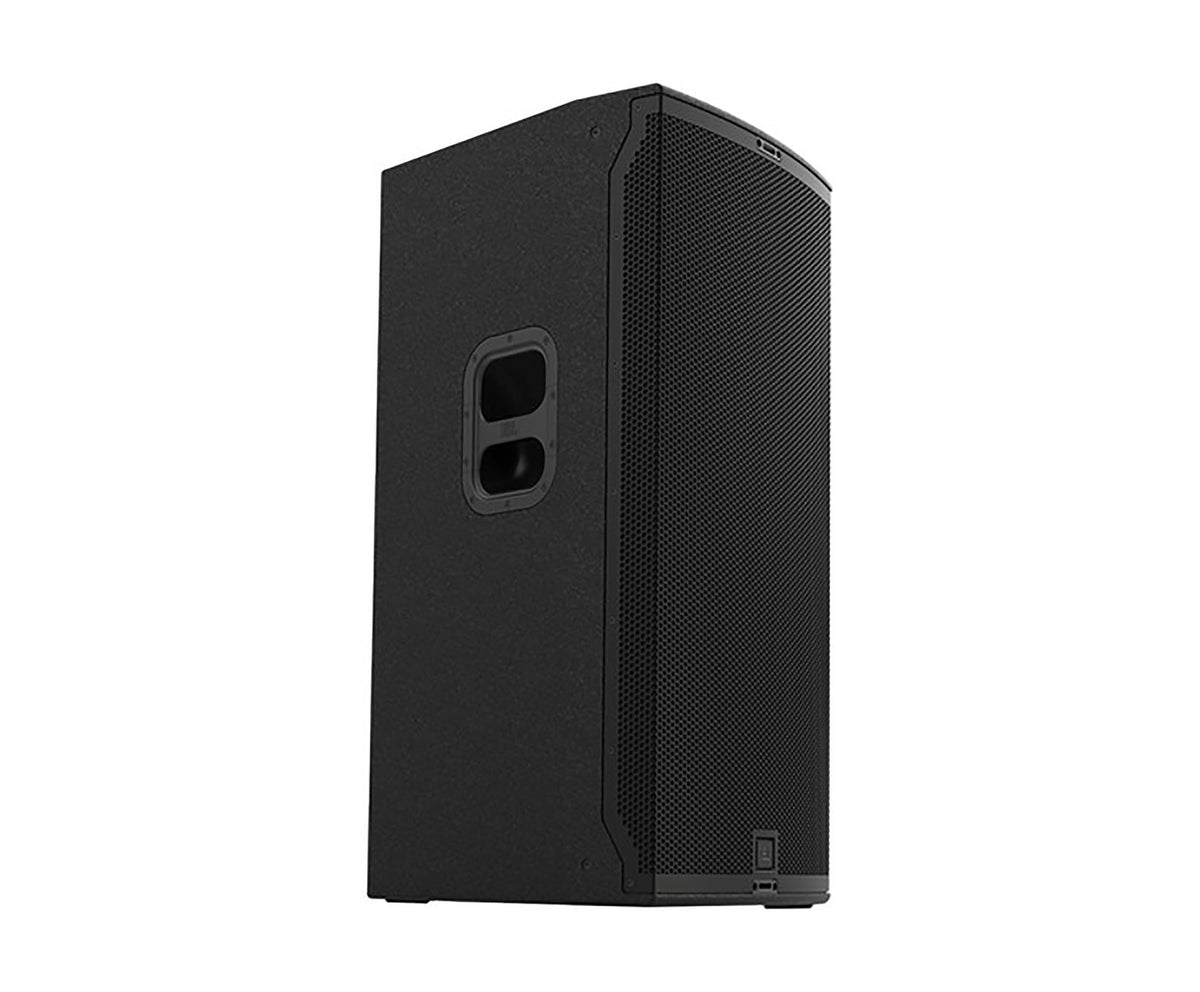

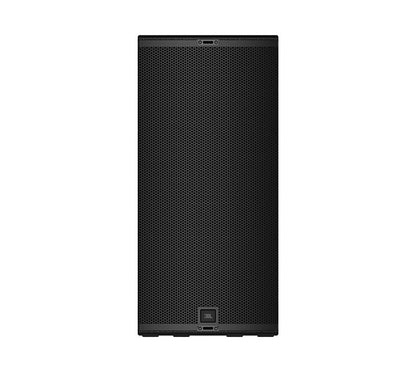

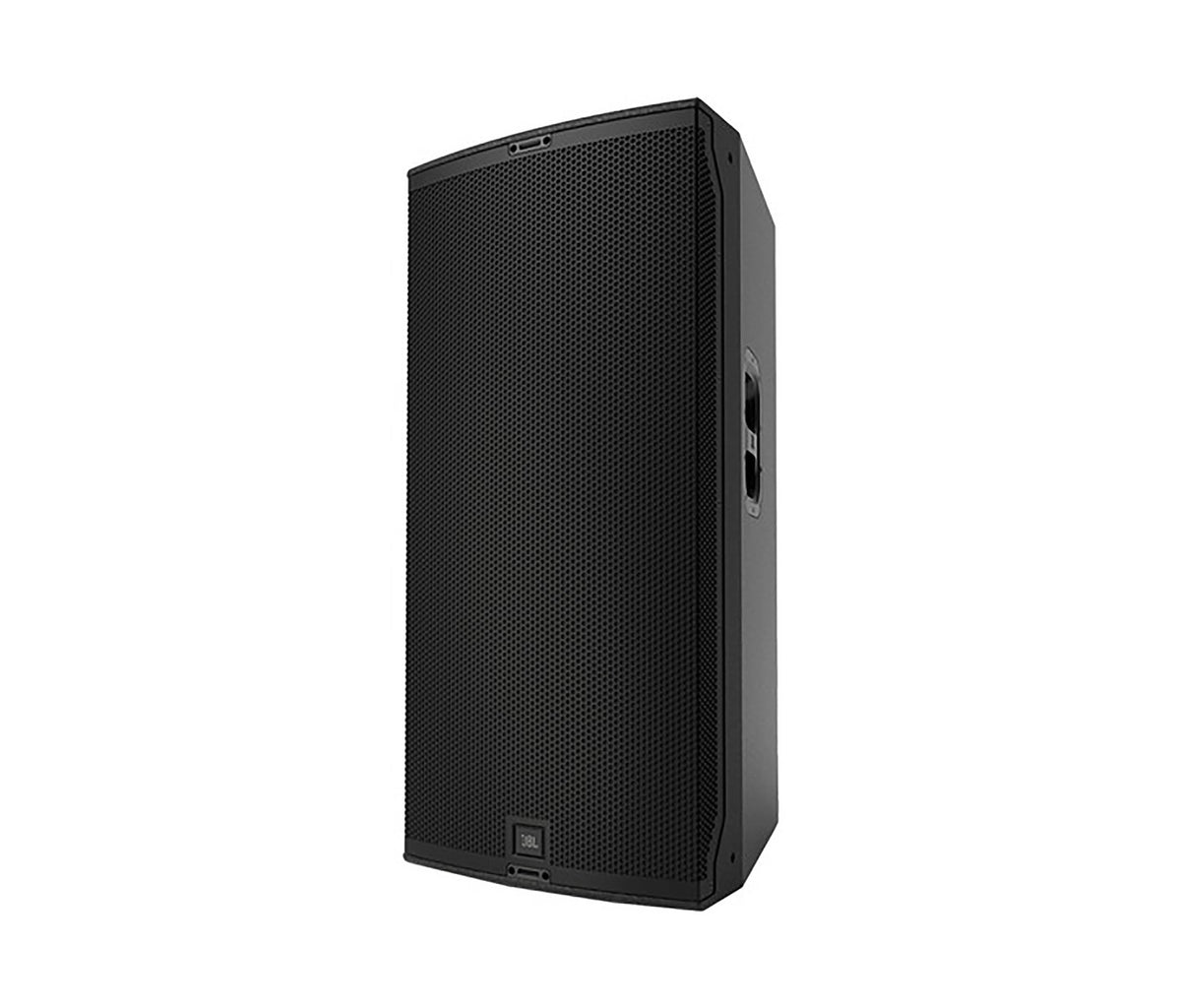

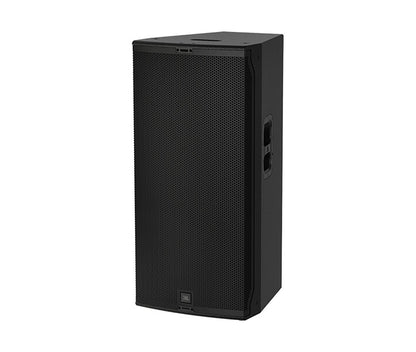

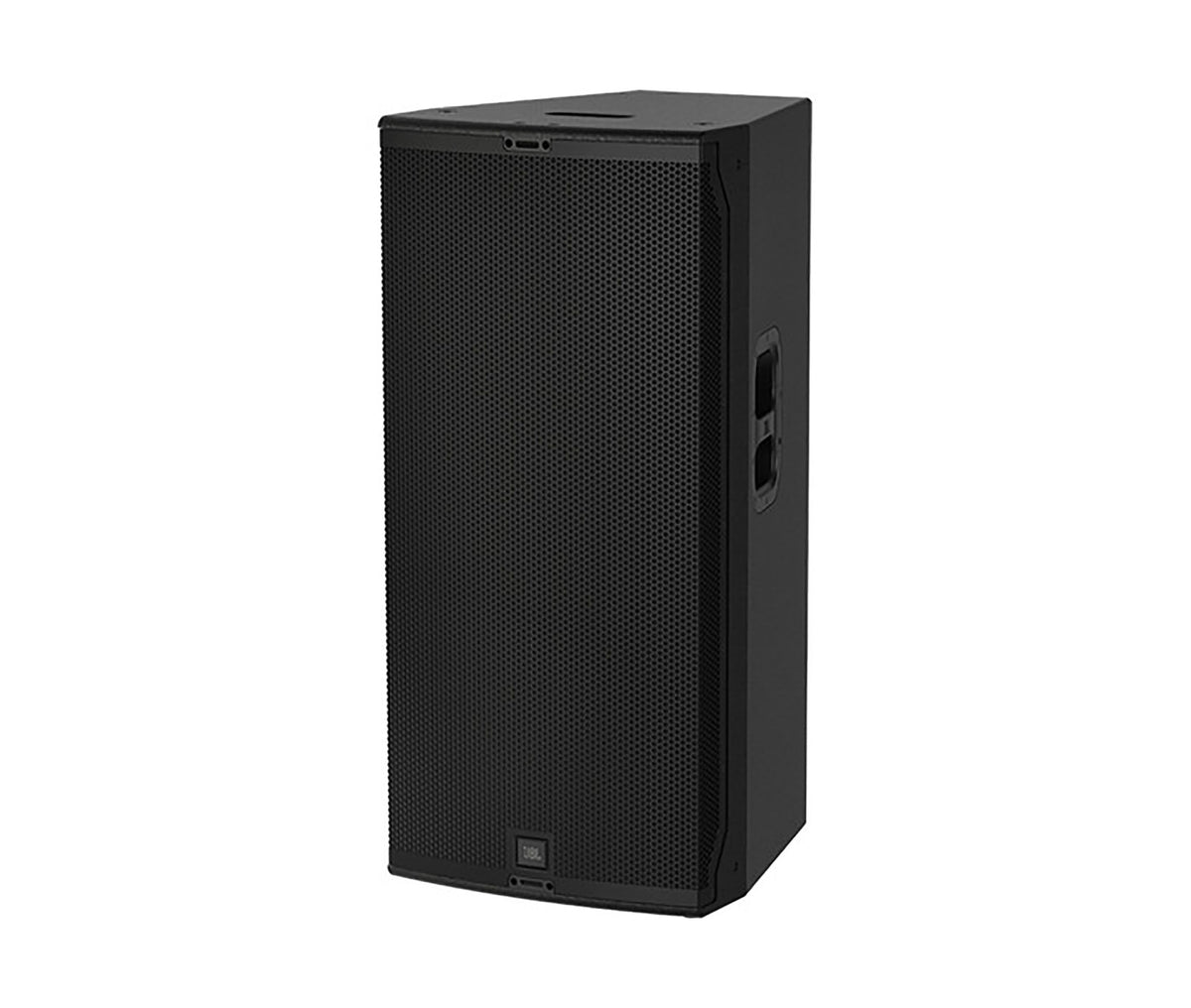

JBL SRX922 Dual 12" Powered Point-Source Speaker with 138 dB SPL, 1600W Peak Power and DSP

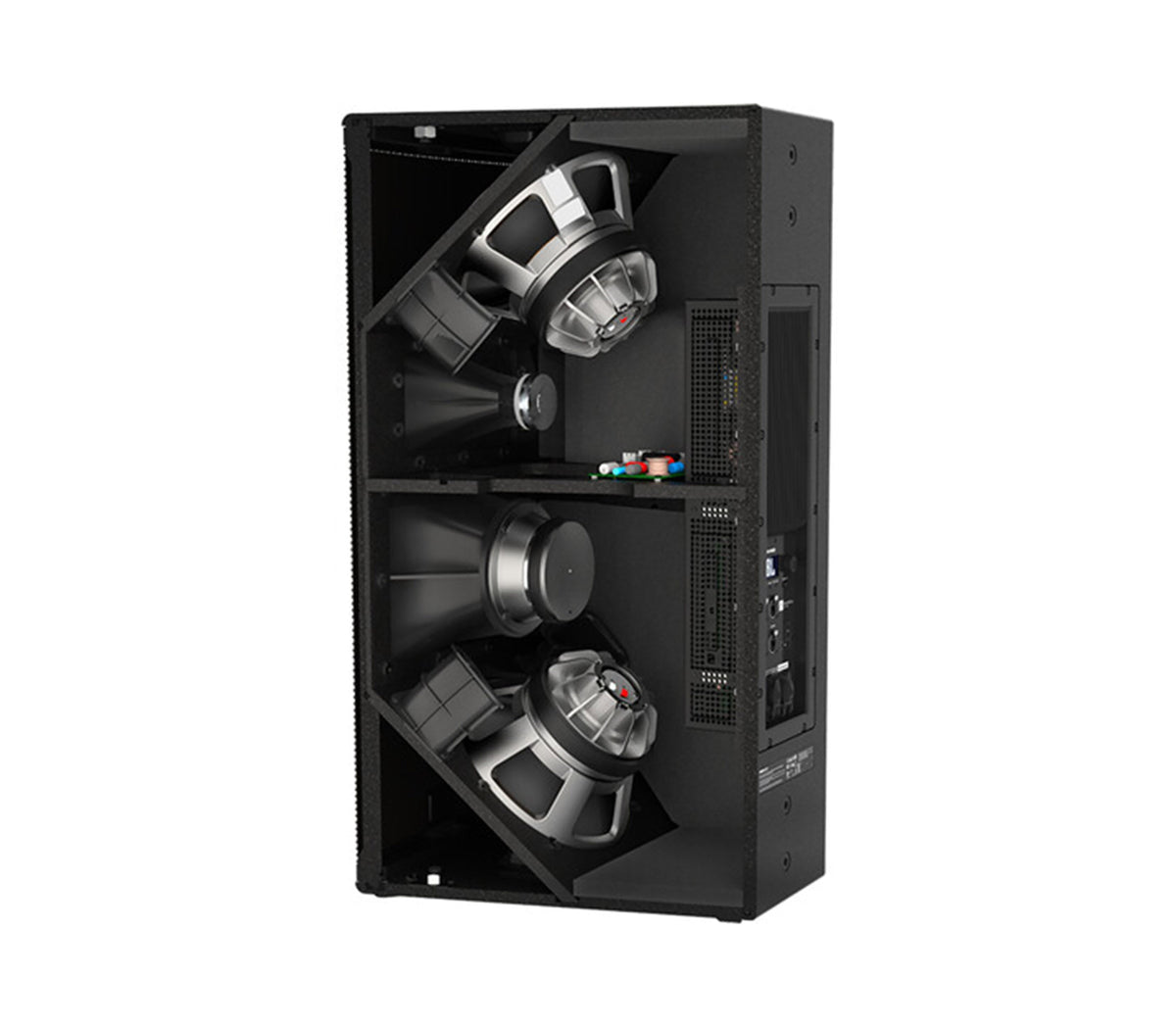

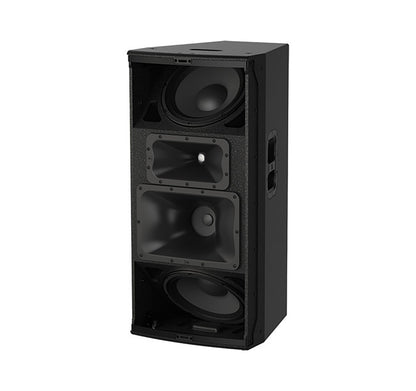

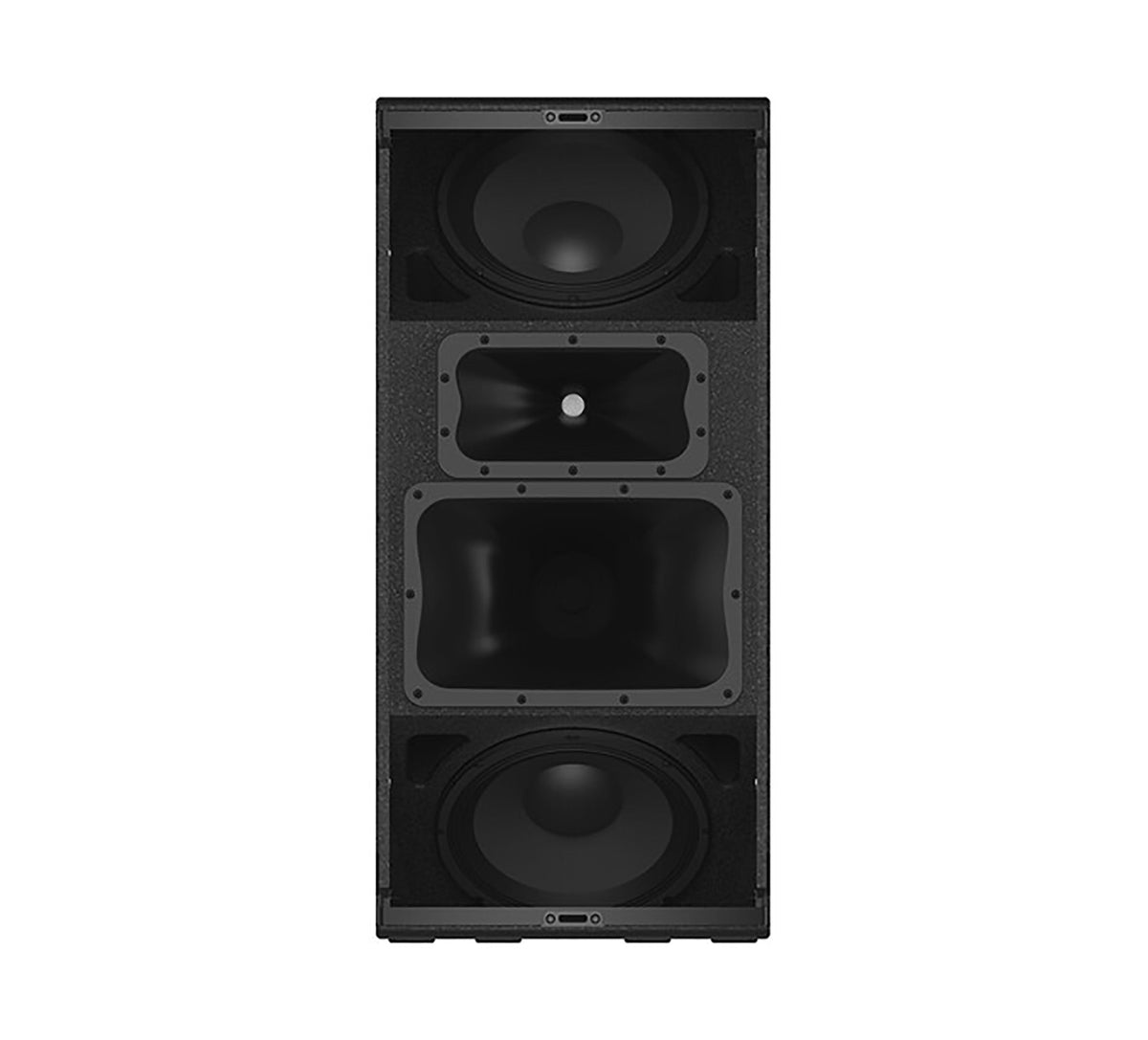

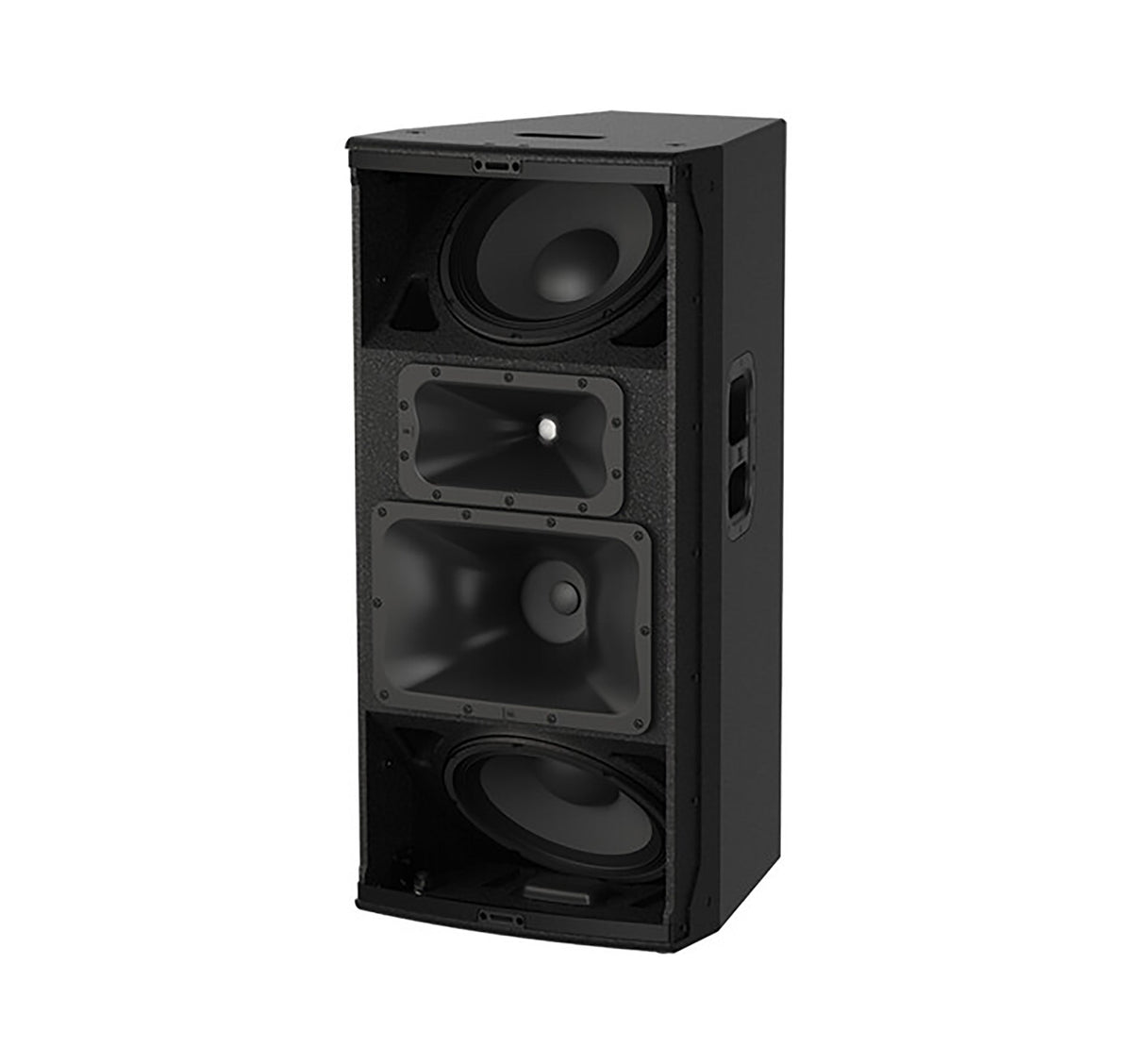

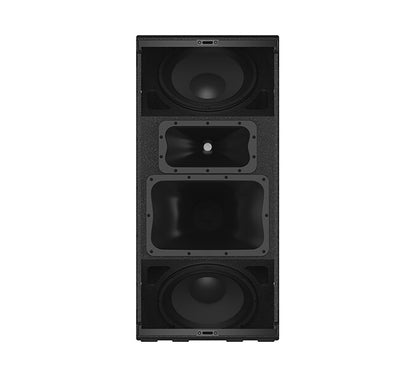

The JBL SRX922 is a high-output dual 12-inch powered point-source loudspeaker designed for demanding professional audio applications. Its acoustically three-way architecture combines two 12-inch LF woofers, a horn-loaded mid-frequency driver, and a 1.5-inch annular-diaphragm compression driver to deliver exceptional output, clarity, and controlled directivity. With a maximum SPL of 138 dB and a frequency range extending down to 40 Hz, the SRX922 provides powerful full-range performance for high-output mains, side-fills, and larger SRX900 deployments.

The dual LF woofer configuration provides increased low-frequency headroom and improved vertical directivity compared with conventional single-woofer systems. Dual 90° × 60° Progressive Transition™ waveguides provide smooth and predictable coverage, while the horn-loaded MF section allows the LF drivers to operate within a more controlled bandwidth. An 80 Hz high-pass preset is also available when integrating the speaker with SRX900 subwoofers.

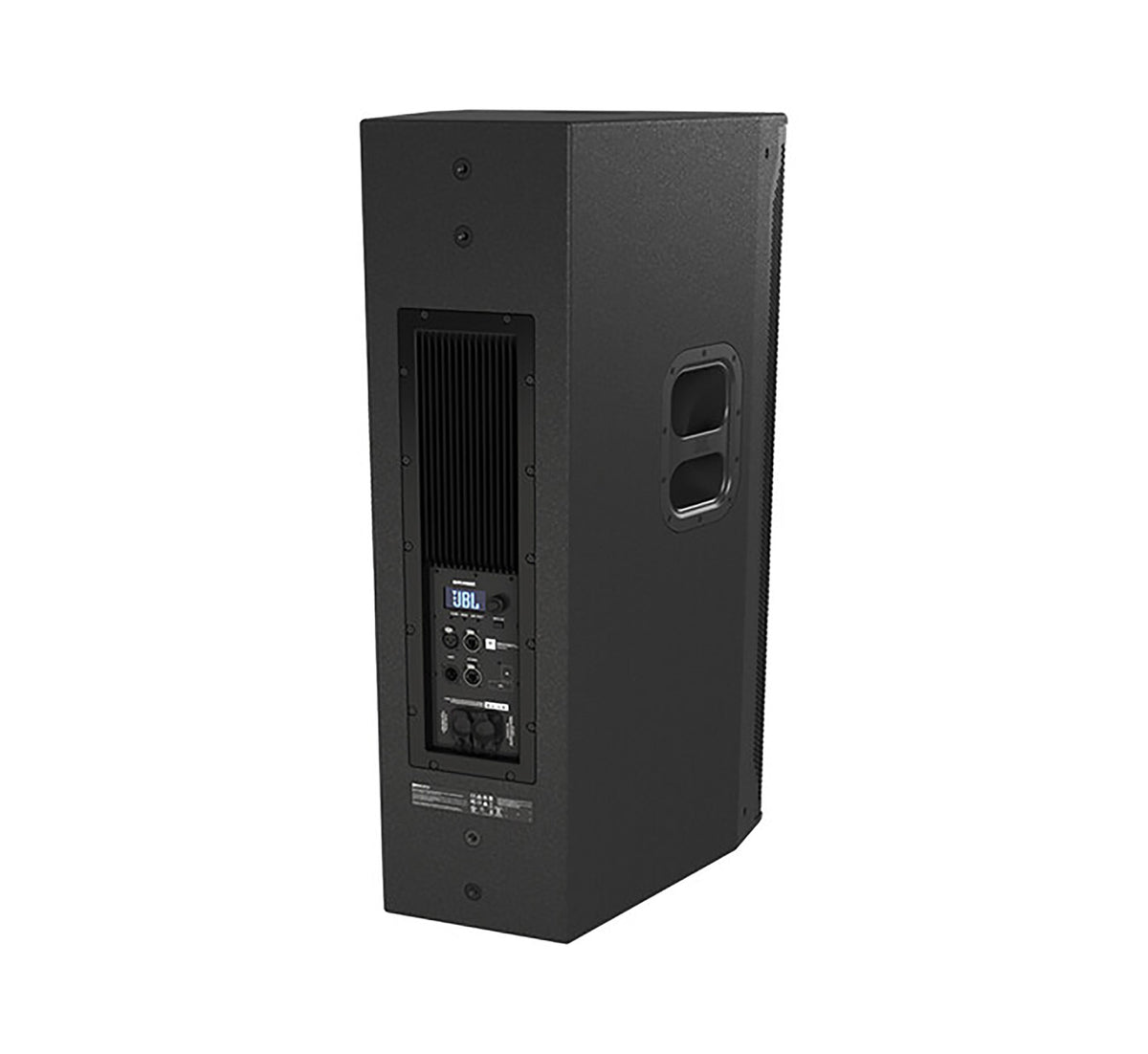

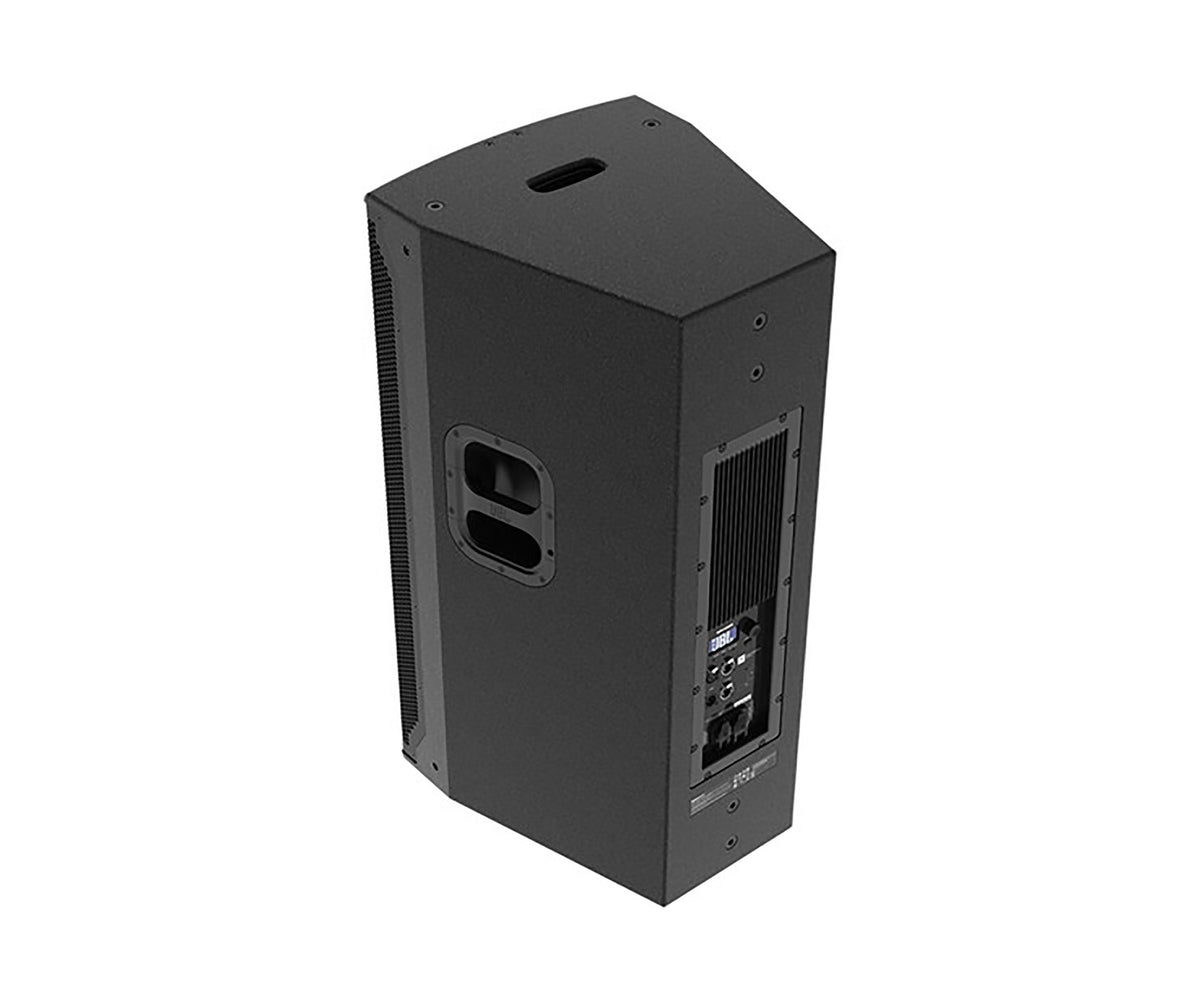

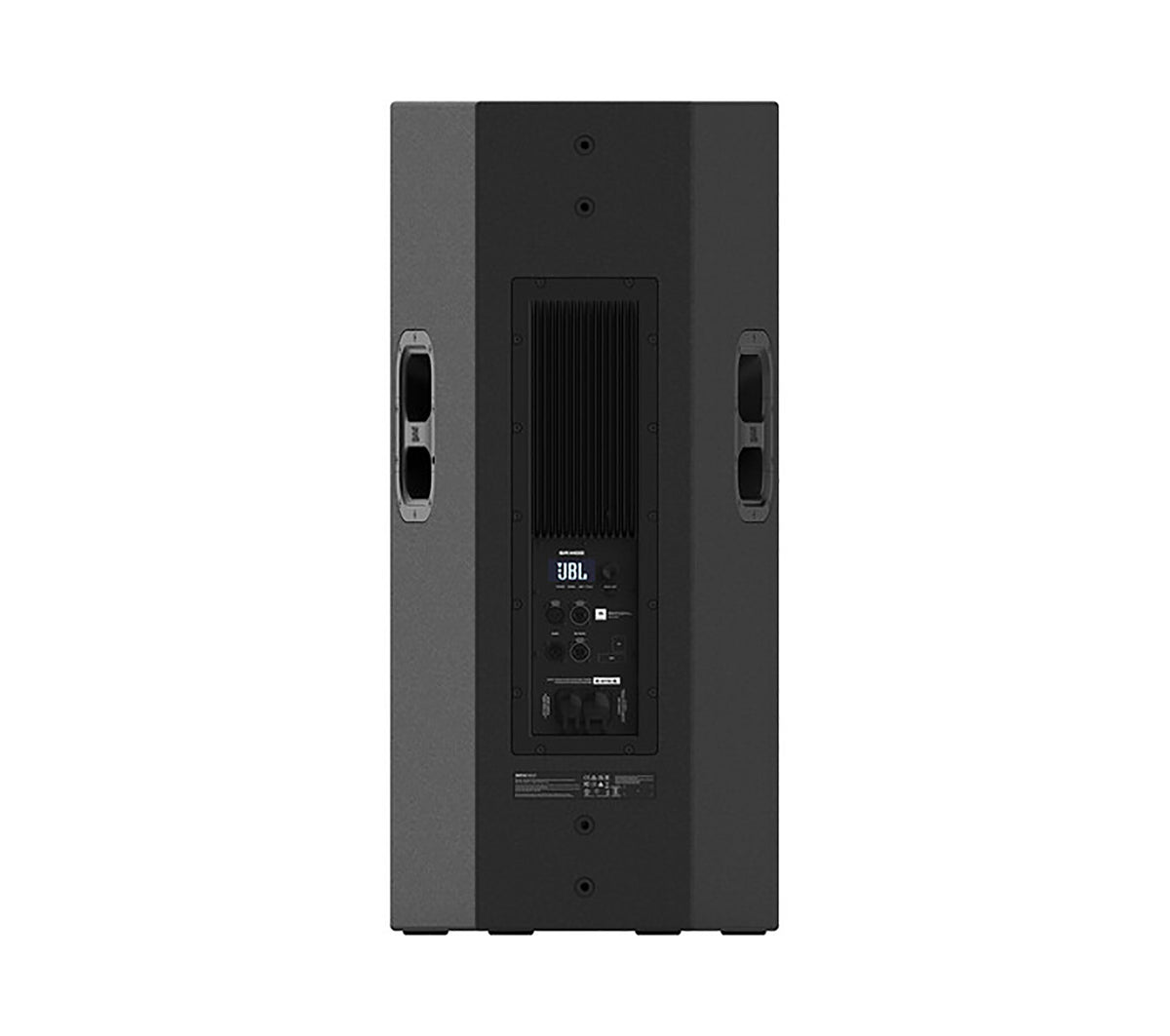

Integrated Class-D amplification and DSP provide a complete plug-and-play solution with consistent system performance. The onboard DSP includes 24 user-adjustable filters, 2,000 ms of delay, essential loudspeaker management tools, and a rear LCD for quick configuration. Dual 100 Mbps Ethernet ports support network control through Harman HControl, while eight M10 QuickLink™ suspension points provide flexible installation and touring options. The durable birch plywood enclosure with DuraFlex™ finish is built for demanding professional applications.

Specifications

Amplifier: Class-D, 2-Channel

Continuous Power: 1100W (LF: 550W / MHF: 550W)

Peak Power: 1600W (LF: 800W / MHF: 800W)

Maximum SPL: 138 dB

Frequency Response (-10 dB): 40 Hz, 17.5 kHz

Frequency Response (-3 dB): 48 Hz, 17 kHz

Coverage Pattern: 90° × 60°

Input Type: Balanced Line Level

Inputs/Outputs: 2 × Neutrik XLR

Nominal Input Sensitivity: +5 dBu

Maximum Input Level: +21 dBu

Input Impedance: 100 kΩ

DSP: Integrated 24-Bit DSP

Sample Rate: 48 kHz

DSP Filters: 24 User-Adjustable Filters

Output Delay: Up to 2,000 ms

High-Pass Preset: 80 Hz for SRX900 Subwoofer Integration

Network Control: TCP/IP, Harman HControl

Network Ports: 2 × 100 Mbps Neutrik etherCON®

AC Power: 100-240 VAC, 50/60 Hz

AC Power Limits: 80-260 VAC, 50/60 Hz

Power Connectors: 2 × Neutrik powerCON TRUE1®

Cooling: Convection with External Aluminum Heat Sink and On-Demand Internal Fan

Suspension: 8 × M10 JBL QuickLink Points

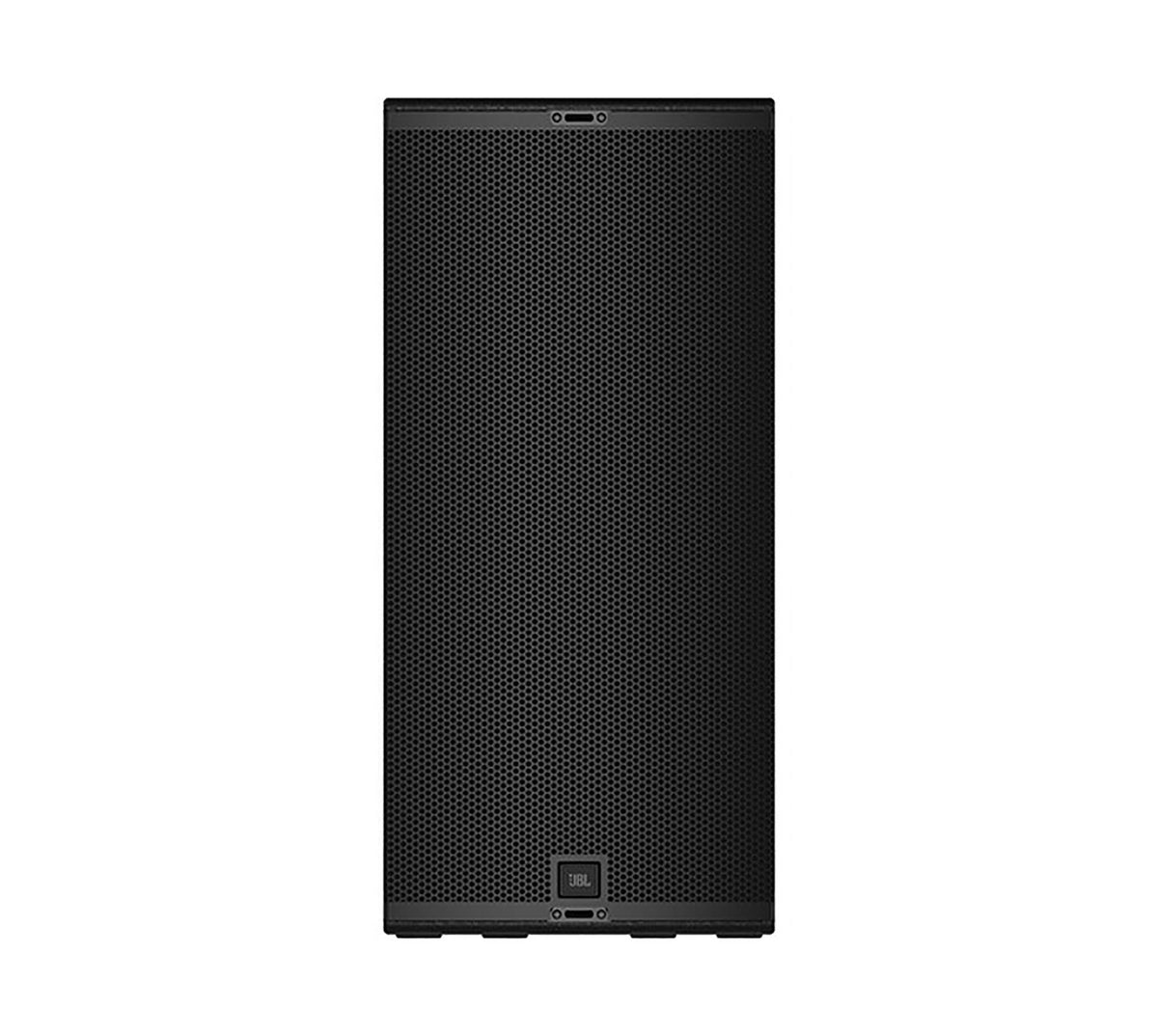

Grille: Powder-Coated 1.5 mm Perforated Steel with Acoustic Cloth Backing

Product Weight: 100 lbs

Product Dimensions: 37.2" x 17.3" x 19.9"

Shipping Weight: 117 lbs

Shipping Dimensions: 39.2" x 19.2" x 21.9"
