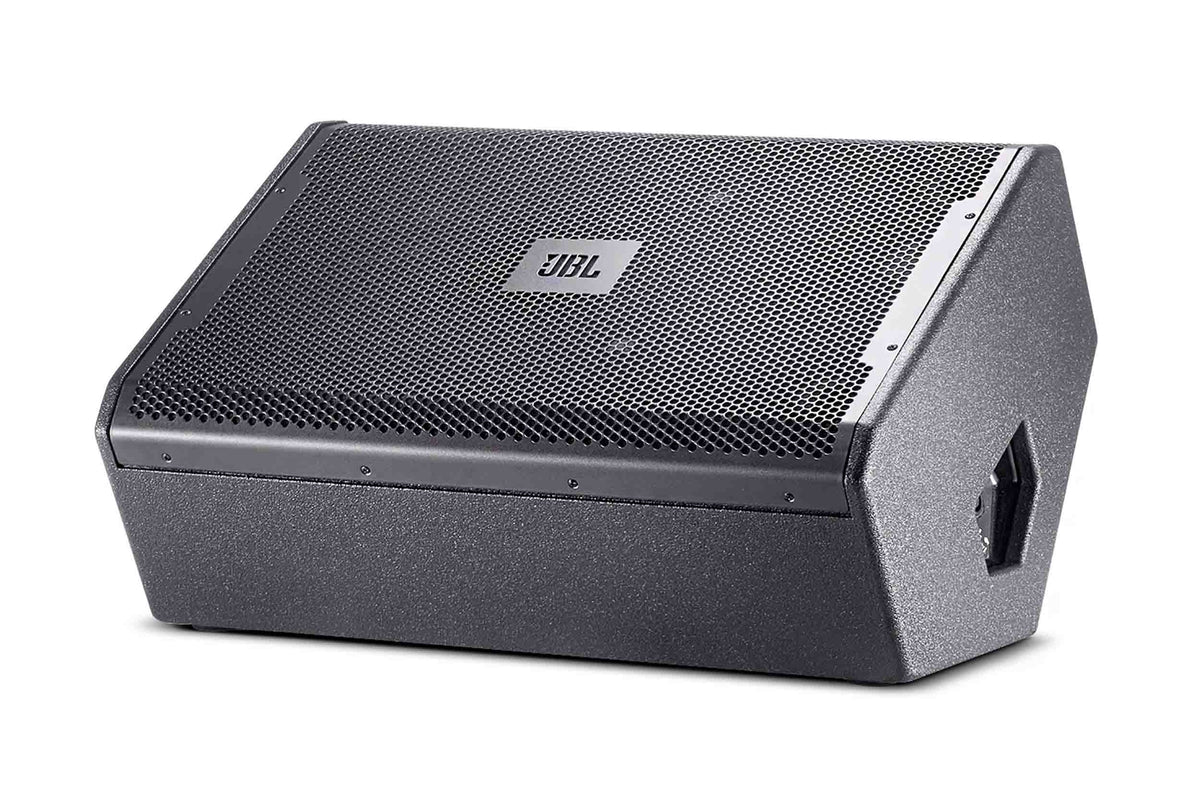

JBL VRX915M, 15 Inch 2-Way Stage Monitor
JBL VRX915M, 15 Inch 2-Way Stage Monitor
Model / SKU: H-JBL-VRX915M
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The JBL VRX915M is a dedicated, compact and lightweight, 15", two-way touring-class floor monitor, with only a 375 mm (14.75 in) stage height and JBL’s latest neodymium-magnet transducers. A 380 mm (15 in) 2265H patented Differential Drive woofer handles 800 watts (continuous) and delivers accurate and precise low frequency reproduction. The 2452H 102 mm (4 in) voice-coil compression driver is coupled to a 50° x 90° aluminum horn to provide smooth and clear high frequency reproduction, critical for high performance monitoring. Bi-amp or full-range passive operation may be selected via a recessed, high-current switch mounted alongside the NL4 input connector in one of the handle cups. An additional NL4 connector is mounted in the other handle cup for a convenient loop-thru connection, minimizing cable runs on stage. The enclosure is constructed of top-quality Baltic birch plywood and is coated in JBL’s rugged DuraFlex finish. It is a symmetrical 30° wedge design, with four non-slip rubber feet per side enabling convenient left and right applications of adjacent monitors. The transducers are protected by an attractive 16-gauge CNC-machined steel grille, which is internally lined with acoustically transparent foam to provide additional transducer protection.
Product Specification:
Power Rating: 800 W / 1600 W / 3200W
Frequency Range (-10dB): 60 Hz - 20 kHz
Dimensions (H x W x D): 629 mm x 432 mm x 324 mm (375 mm stage height) 24.75 in x 17 in x 12.75 in (14.75" stage height)
Coverage Pattern (-6 dB): 50° x 90° nominal
Crossover Modes: Passive / Bi-amp
Crossover Frequency: 1.1 kHz
Maximum SPL (1m): 127 dB SPL continuous (133 dB SPL peak)
Sensitivity: 98 dB SPL
LF Driver: 1 x JBL 2265H 380 mm (15 in) Differential Drive woofer 8 Ohms
HF Driver: 1 x JBL 2453H-SL, 38 mm (1.5 in) exit compression driver, 100 mm (4 in) voice coil and neodymium magnet
Nominal Impedance: 8 ohms
Enclosure: Symmetrical stage monitor, 15/18 mm, plywood
Finish: Black DuraFlex finish
Grille: Powder coated, black, 16 gauge perforated steel with acoustically transparent black screen backing
Inputs: Neutrik Speakon NL-4 (x2), one on each end
Net Weight (each): 21 kg (46.0 lb)
Outputs: 1 x XLR
