JBL VRX928LA, 8 Inch 2-Way Line Array Loudspeaker System
JBL VRX928LA, 8 Inch 2-Way Line Array Loudspeaker System
Model / SKU: H-JBL-VRX928LA
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.

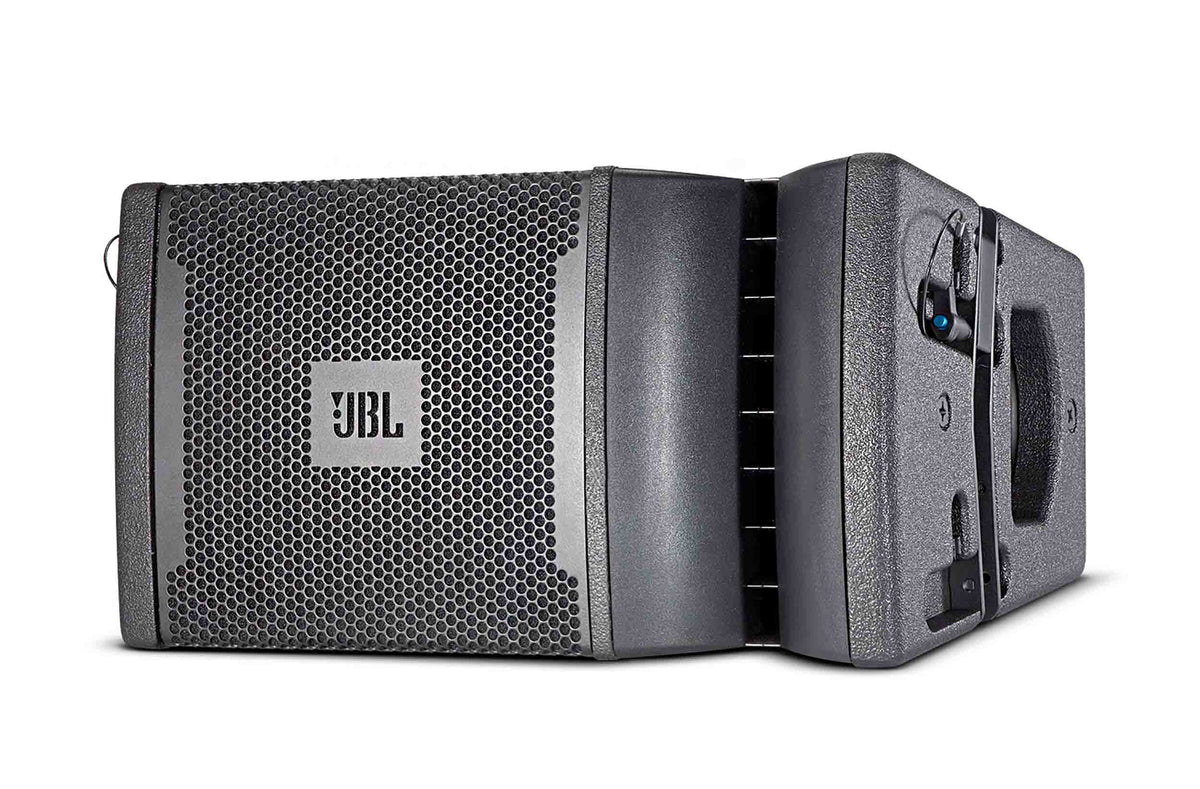

The JBL VRX928LA, 8 Inch 2-Way Line Array Loudspeaker System is the smaller version of the VRX932LA is a light-weight, compact, 8" designed for use in arrays of up to six units. VRX928LA is the ideal choice when line-array performance is needed but the venue size doesn't call for the very long-throw characteristics of larger line-arrays. The VRX928LA offers all the same features as the VRX932LA. As with the VRX932LA, the Array Configuration Selector (ACS) makes it possible to distribute the sound more evenly over the entire audience area, by reducing the output near the stage and increasing it for the far to reach rear areas.
Product Specification:
Power Rating: 400 W / 800 W / 1600W
Frequency Range (-10dB): 70 Hz - 20 kHz
Dimensions (H x W x D): 230mm x 420mm x 270mm (9.0in x 16.5in x 10.5in)
Coverage Pattern: 100 x 15 nominal
Frequency Response (±3 dB): 85 Hz - 19 Hz

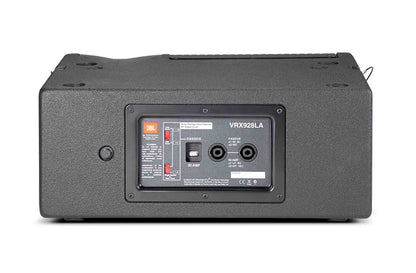

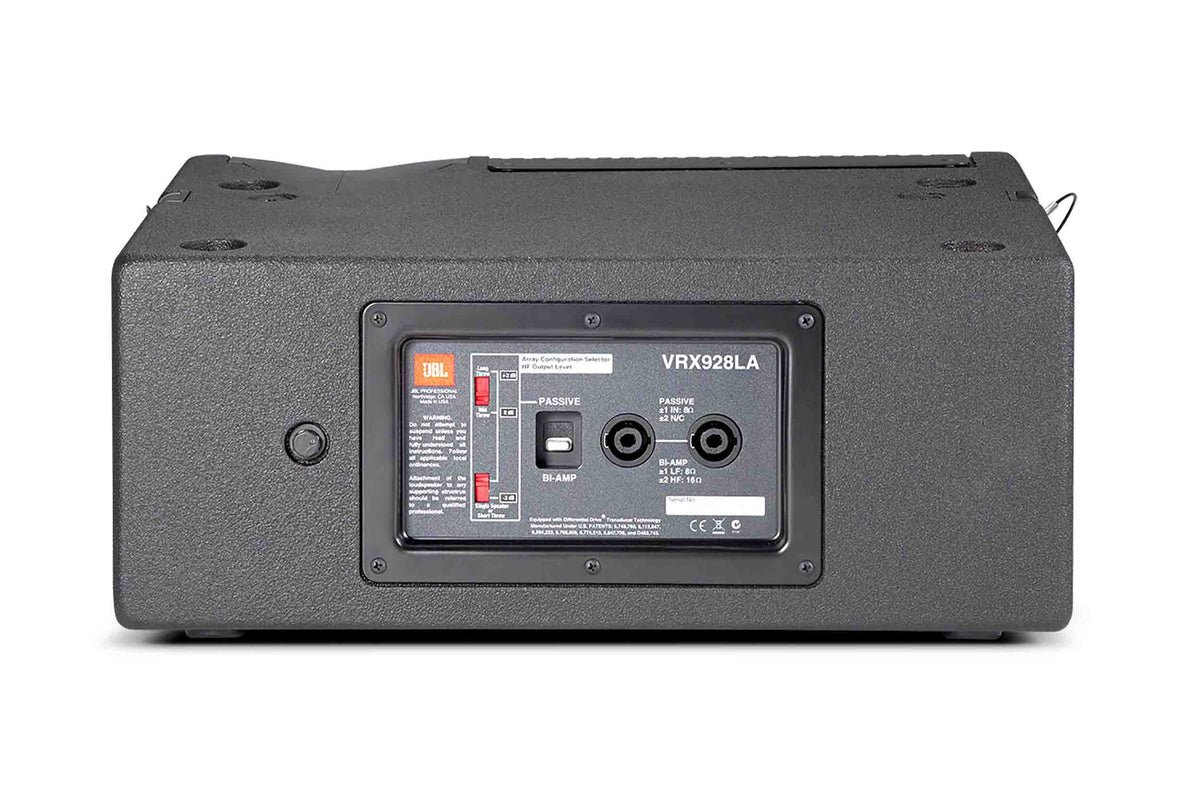

Crossover Modes: Bi-amp / passive,
Crossover Frequency: 2.0 kHz
Net Weight (each): 12.7 kg (28 lb)
Inputs: Neutrik Speakon NL-4 (x2)
Outputs: 1 x XLR
Enclosure: Duraflex coated plywood
System Type: Constant Curvature 8" Two-Way Line Array System
Maximum SPL (1m): 122 dB SPL peak (passive mode) LF: 122 dB (bi-amp mode) HF: 128 dB (bi-amp mode)
Nominal Impedance: Passive = 8 ohm
Bi-amp LF = 8 ohm
Bi-amp HF = 16 ohm
LF Driver: 1 x 200 mm (8 in) Differential Drive woofer
HF Driver: 2 x 25 mm (1.0 in) neodymium compression driver
Suspension / Mounting: Dual 36 mm pole socket included. Suspension requires optional VRX-SMAF line array frame kit or M10 eyebolts.
