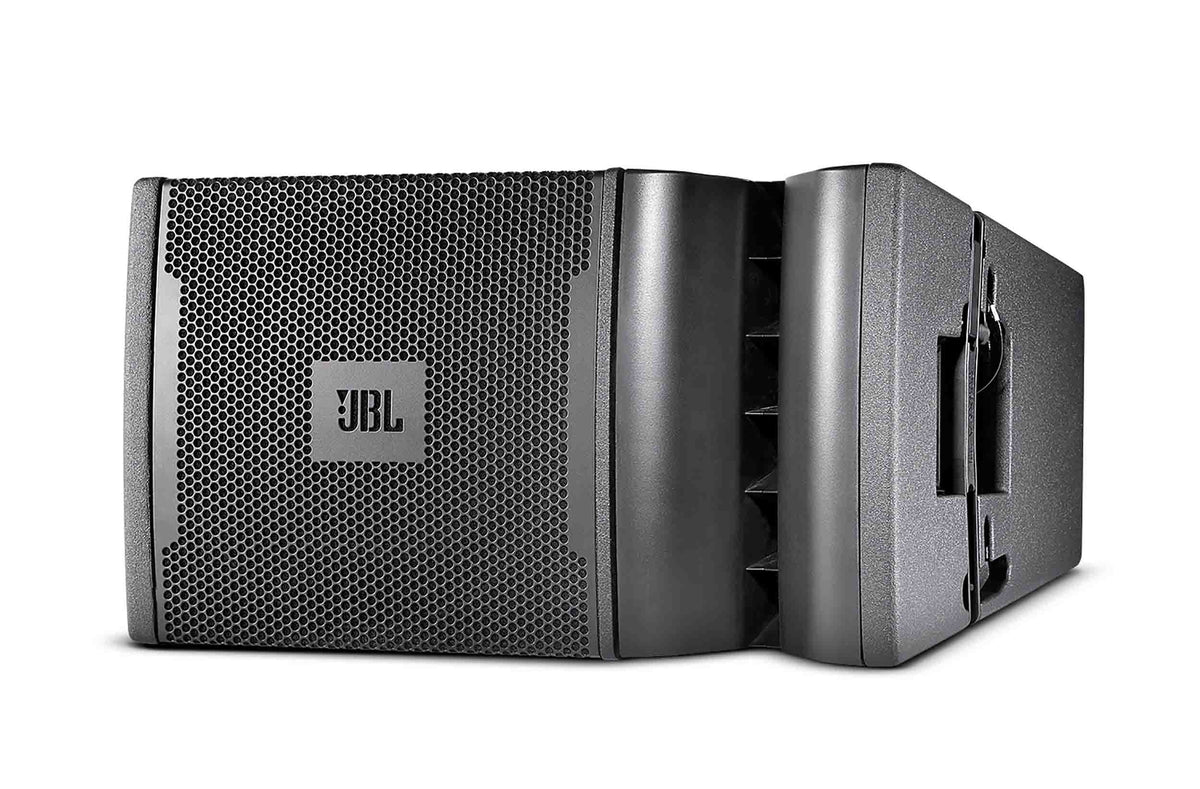

JBL VRX932LA-1, 12 Inch 2-Way Line Array Loudspeaker System
JBL VRX932LA-1, 12 Inch 2-Way Line Array Loudspeaker System
Model / SKU: H-JBL-VRX932LA1
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The JBL VRX932LA-1 is a two-way, line-array loudspeaker system intended for use in arrays of up to six enclosures. Three high-frequency drivers are mounted to the Constant Curvature waveguide which is designed so that multiple enclosures may be arrayed with no discontinuity in the vertical coverage pattern. As a result, the array will behave in much the same way as would a single loudspeaker. Array coverage may be adjusted by means of the Array Configuration Selector (ACS), a feature that provides amplitude shading when the system is used in passive mode. Integral rigging hardware, a dual angle pole socket and an accessory array frame provide for a variety of mounting and suspension options. VRX932LA and VRX932LA-1 are completely interchangeable and can be used together. When operated in passive mode, frequency response characteristics are exactly the same and both can be used in the same array.
Product Specification:
Power Rating: 800 W / 1600 W / 3200 W
Frequency Range (-10dB): 57 Hz - 20 kHz
Dimensions (H x W x D): 343mm x 597mm x 376mm (13.5in x 23.5in x 14.8in)
Frequency Response (±3 dB): 75 Hz - 20 Hz
Coverage Pattern: 100 x 15 nominal
Crossover Modes: Bi-amp / passive, externally switchable
Crossover Frequency: 132 dB SPL peak 1.2 kHz
Maximum SPL (1m): 130 dB SPL peak (passive mode)
LF: 130 dB HF: 139 dB
Sensitivity: Passive: 95 dB SPL Bi-amp LF: 95 dB SPL Bi-amp HF: 114 dB SPL
LF Driver: 1 x JBL 2262H 305 mm (12 in) Differential Drive® woofer with neodymium magnet, dual voice-coils, and dual magnetic gaps.
HF Driver: 3 x JBL 2408J, 38 mm (1.5 in) voice-coil, neodymium compression driver
Nominal Impedance: Passive = 8 ohm
Bi-amp LF = 8 ohm
Bi-amp HF = 8 ohm
Enclosure: 18 mm, 11-ply birch plywood
Suspension / Mounting: Optional VRX932LA-AF line array frame kit
Finish: Black DuraFlex finish
Grille: Power coated, black, 16-guage perforated steel with with acoustically transparent foam

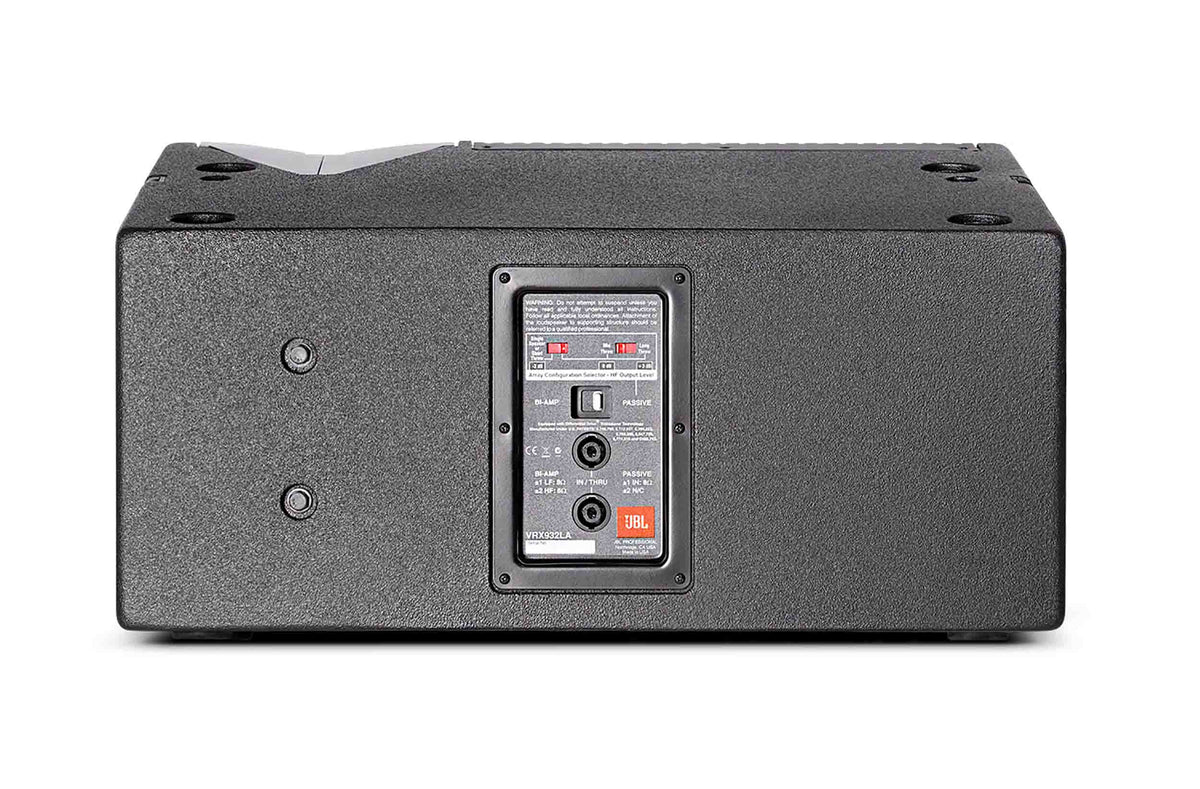

Inputs: Neutrik Speakon NL-4 (x2)
Net Weight (each): 21 kg (46 lb)
Outputs: 1 x XLR
System Type: Constant Curvature 12" Two-Way Line Array System
