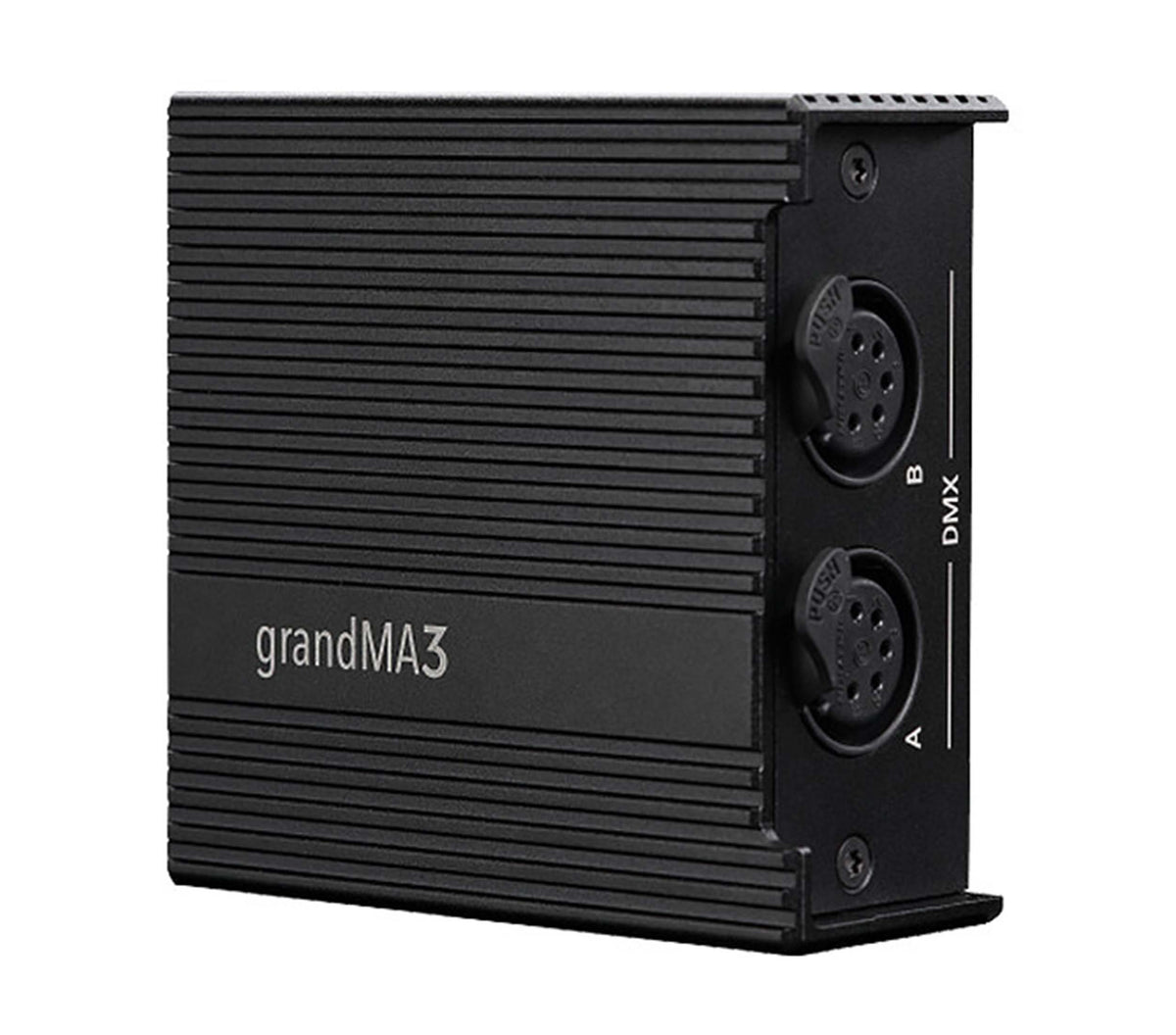

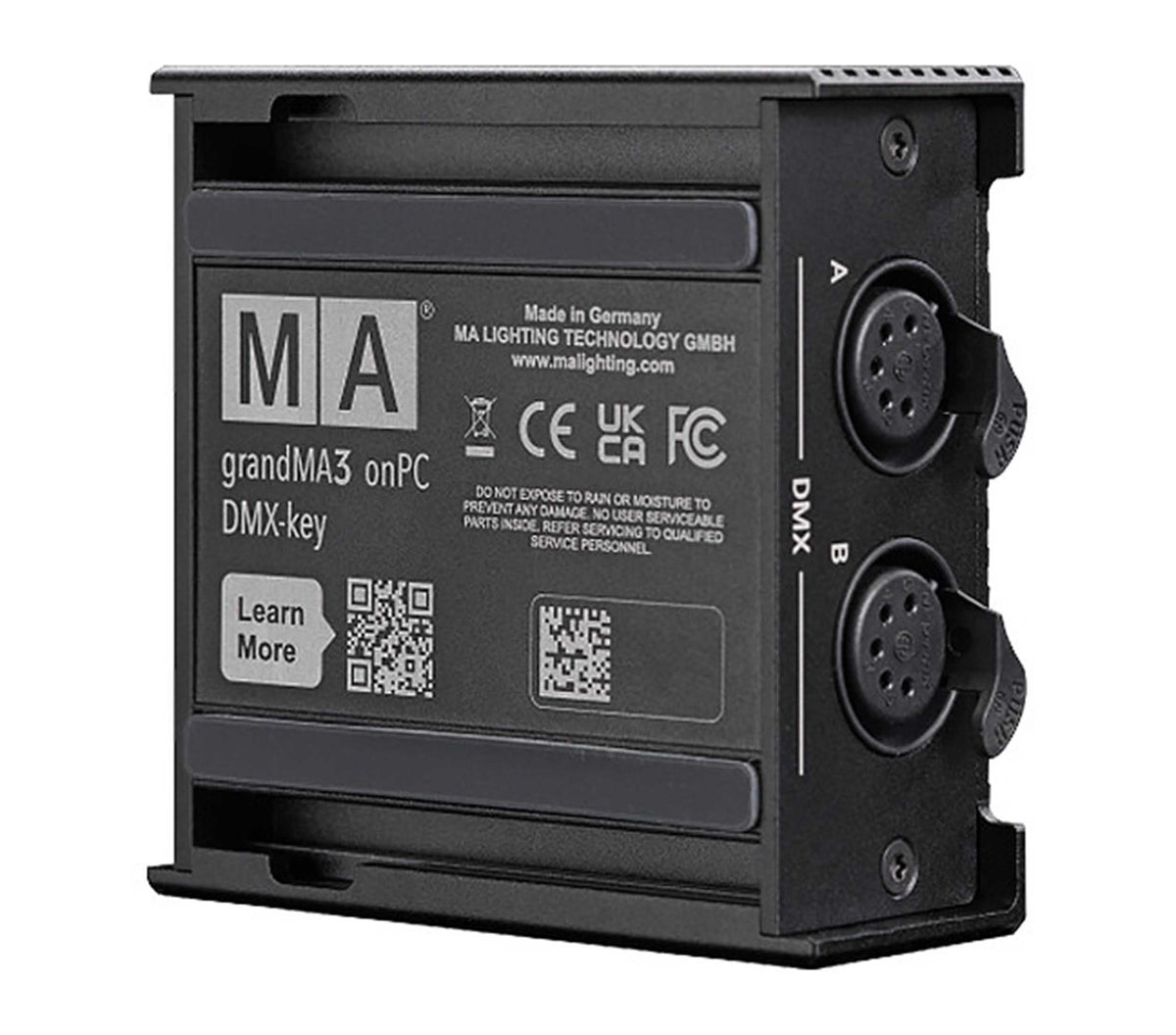

MA Lighting MA4035535 grandMA3 onPC DMX-Key with 4096 Parameters and 2 × 5-Pin DMX Outputs

The MA Lighting MA4035535 grandMA3 onPC DMX-Key is a compact plug-and-play lighting control interface designed to bring professional grandMA3 onPC control capabilities to smaller venues and flexible lighting environments. With support for 4096 HTP/LTP parameters and two 5-pin DMX512 outputs, it provides a practical solution for real-time lighting control without requiring a dedicated lighting console.

Powered directly through its locking USB-C connection, the DMX-Key integrates with grandMA3 onPC software on compatible Windows 10/11 and macOS systems. Its compact design makes it suitable for small theatres, clubs, television studios, houses of worship, and other applications where a streamlined computer-based lighting control setup is preferred.

The MA4035535 DMX-Key features a lightweight aluminum housing with anti-slip strips, guide rails, and mounting hardware for flexible installation in racks or cases. It includes a 1.6-foot USB-C cable along with two M5 × 12 screws and two M5 nuts, providing the essential accessories needed for convenient setup and mounting.

Product Specifications:

Product Type: USB DMX Lighting Control Interface

Control Platform: grandMA3 onPC

Parameters: 4096 HTP/LTP

Protocol: DMX512

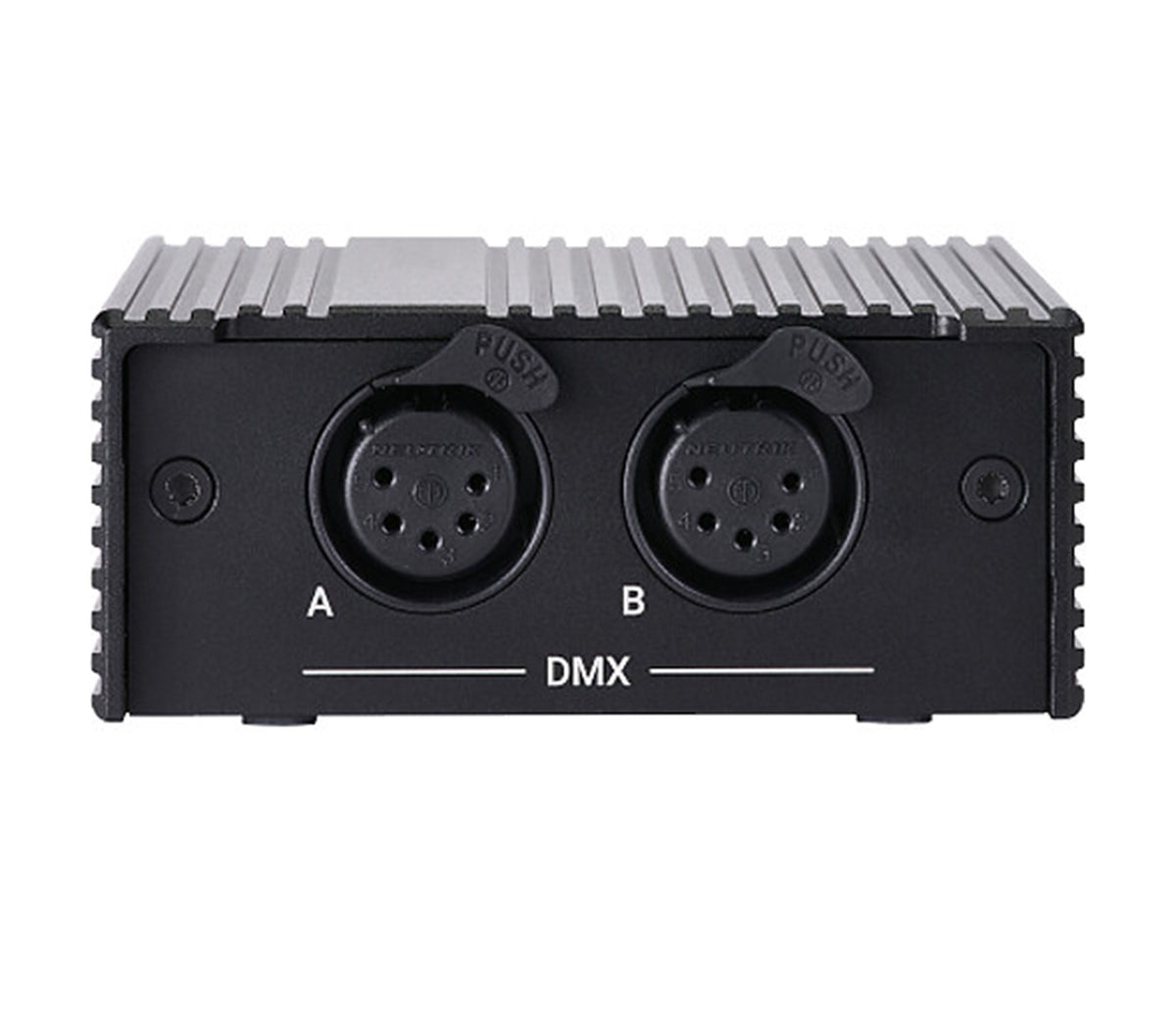

DMX Outputs: 2 × XLR 5-Pin Female

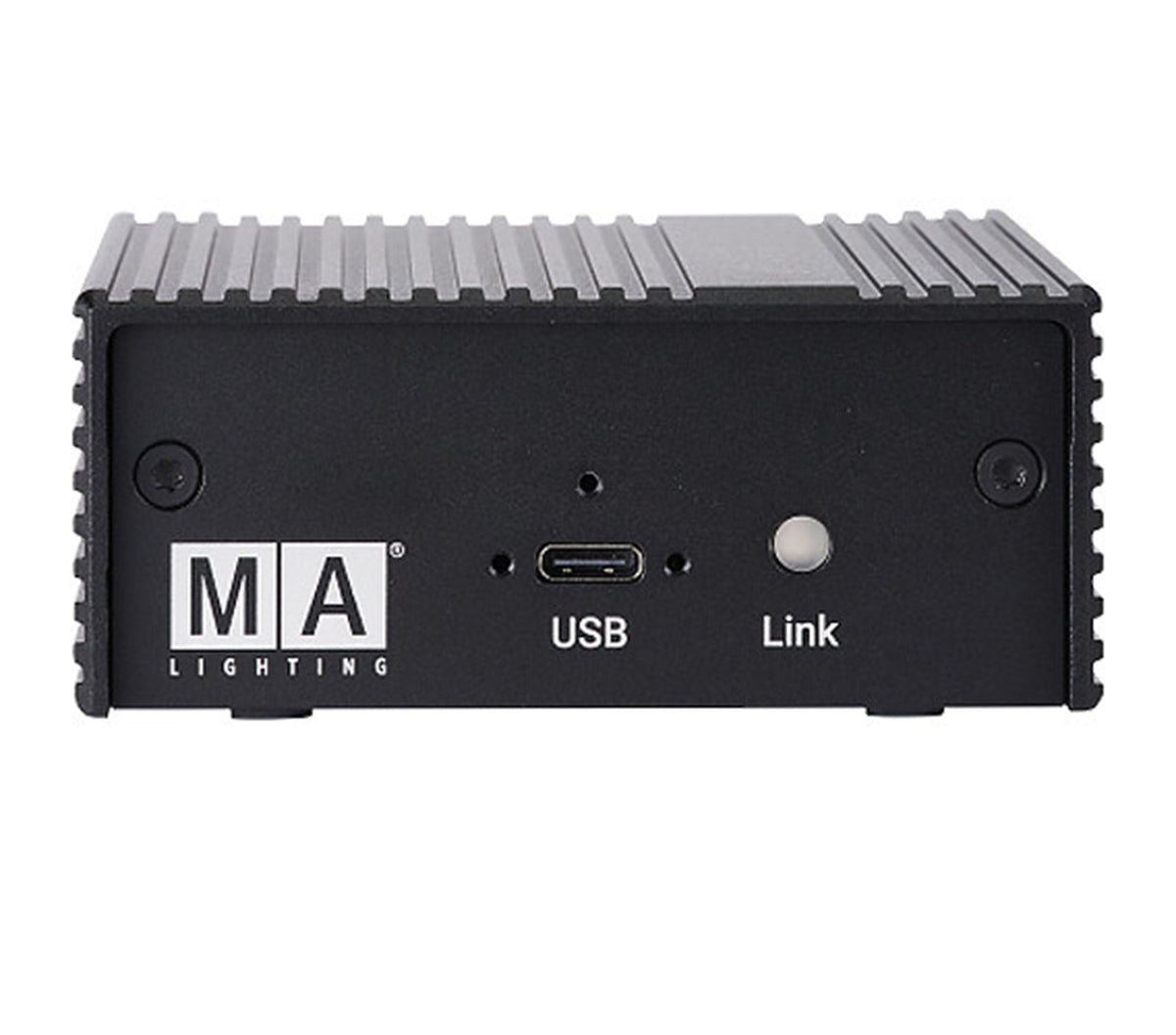

Power Input: 1 × USB-C Locking Female Input

Power Source: USB Powered

Input Voltage: 5 VDC

Dimming: Optional

OS Compatibility: macOS; Windows 10-11

Housing Material: Aluminum

Status Indicator: LED

Mounting: Rack or Case Mountable

Base Features: Anti-Slip Strips

Operating Temperature: 32-104°F / 0-40°C

Environmental Resistance: No

Cable Length: 1.6 ft / 0.5 m

Included Cable: USB-C Cable

Mounting Hardware: 2 × M5 × 12 Screws and 2 × M5 Nuts

Product Weight: 0.53 lbs

Product Dimensions: 1.5" H × 3.5" W × 3.5" L

Shipping Weight: 0.775 lbs

Shipping Dimensions: 1.8" H × 5.1" W × 6.8" L
