Martin Audio CDD6B 6" Passive Coaxial Differential Dispersion On-wall
Martin Audio CDD6B 6" Passive Coaxial Differential Dispersion On-wall
Model / SKU: H-MART-CDD6B
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.

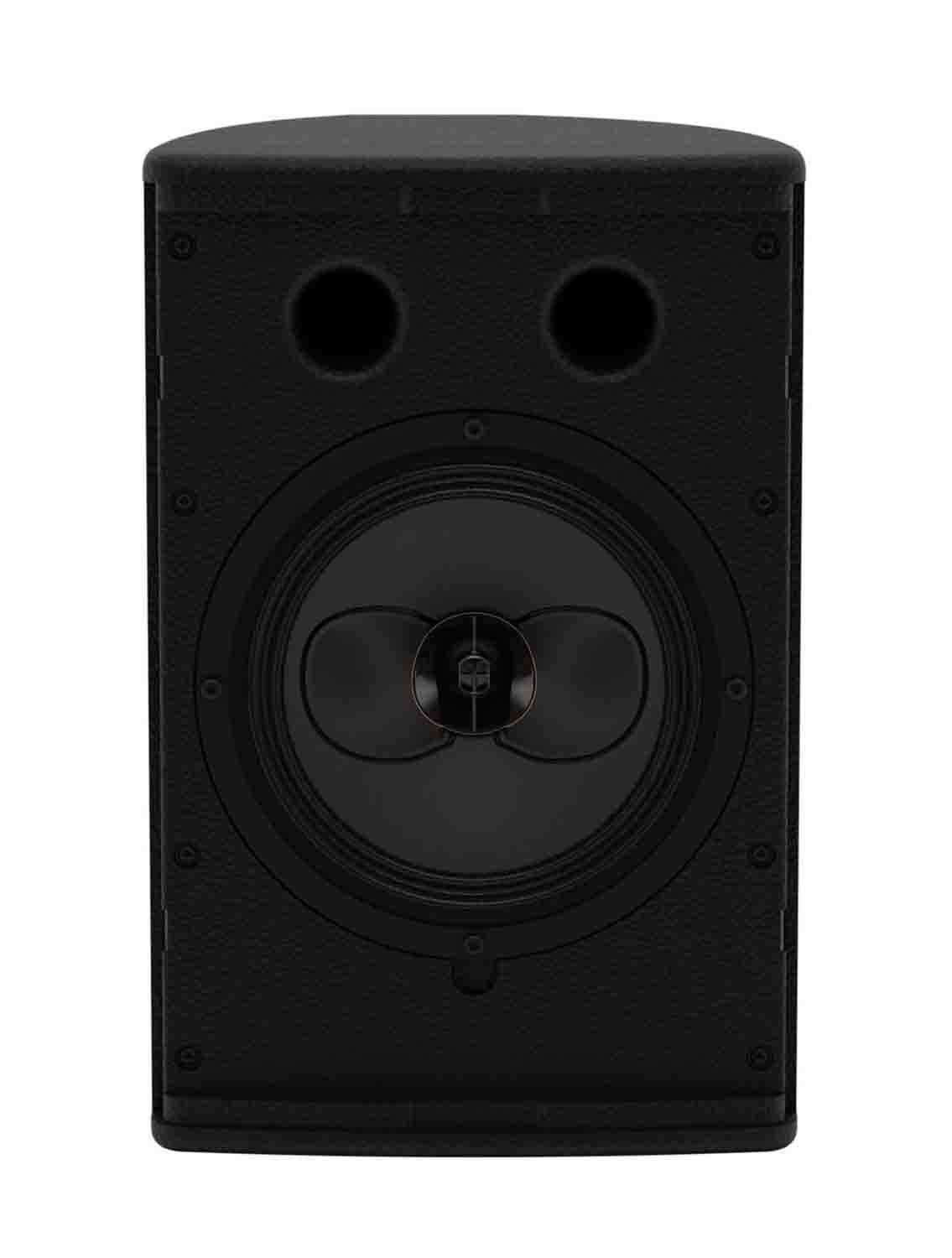

The Martin Audio CDD6B 6 Inch Passive Coaxial Differential Dispersion On-wall Loudspeaker is a two-way passive loudspeaker system designed to fulfil the requirement for full-frequency dynamic performance from a very small enclosure. Featuring a 6.5” (165mm) LF/1” (25mm) HF Coaxial Differential Dispersion driver, it’s extremely small size and sleek lines make it ideal for visibly-unobtrusive applications. It can also be used as a fill system in conjunction with larger CDD Series models and, with the addition of an SX subwoofer, can reproduce surprisingly high levels of music program.
Product Specification:
Frequency Response: 80hz-20khz ± 3db, -10db @ 70hz
Driver Lf: 6.5” (165mm)/1.5” (38mm) Voice Coil, Long Excursion, Ferrite Motor System
Hf: 1” (25mm) Voice Coil, Fabric Dome with Neodymium Motor System
Rated Power: 150w Aes, 600w Peak
Recommended Amplifier: Ma2.8q, Ma2.0
Sensitivity: 91db
Maximum Spl: 113db Continuous, 119db Peak
Nominal Impedance: 8 Ohms
Dispersion (-6db): 110˚-80˚ Horizontal, 80˚ Vertical (User-Rotatable)
Crossover: 2.5khz Passive
Enclosure: 9-Liter, Composite Material
Finish: Black or White Textured Paint
Protective Grille: Black or White Perforated Steel with Scrim Cloth Backing
Connectors: Low Profile 13a Push-Lock
Pin Connections: Left to Right: Input+, Input -, Link -, Link +
Fittings: 4 X M6 Inserts for Wall/Ceiling Brackets
Dimensions: (W) 8.3ins X (H) 12.8ins X (D) 8.3ins
Weight: 11lbs
