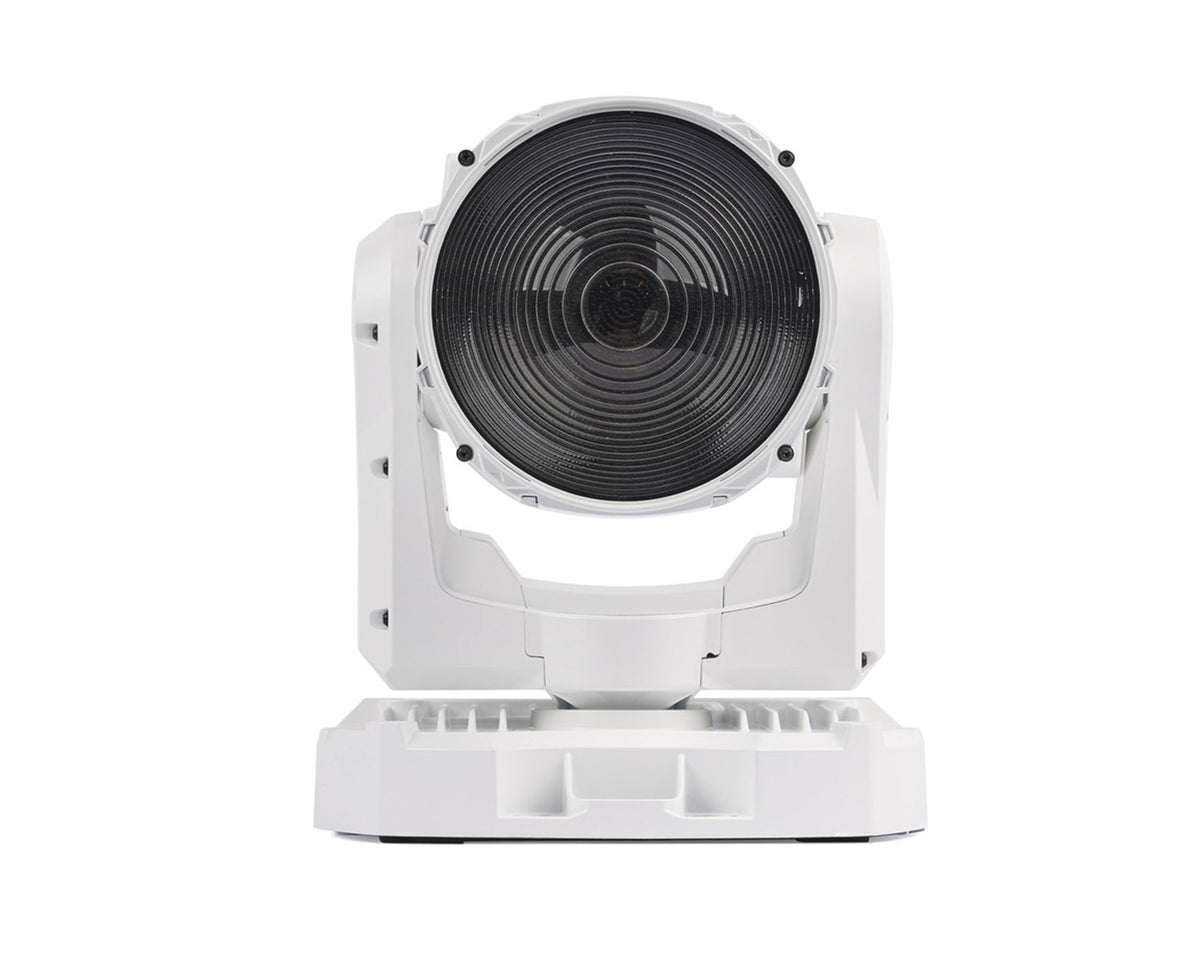

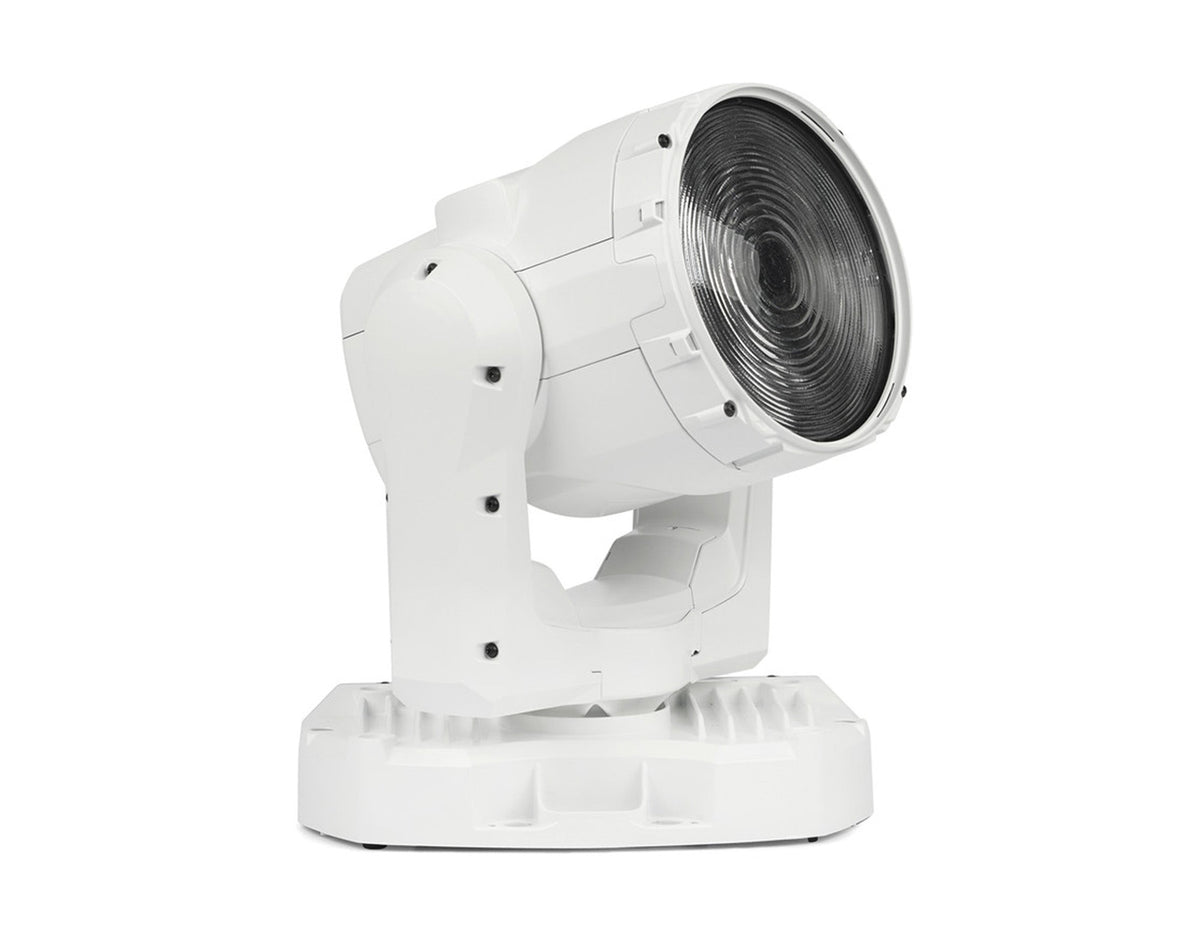

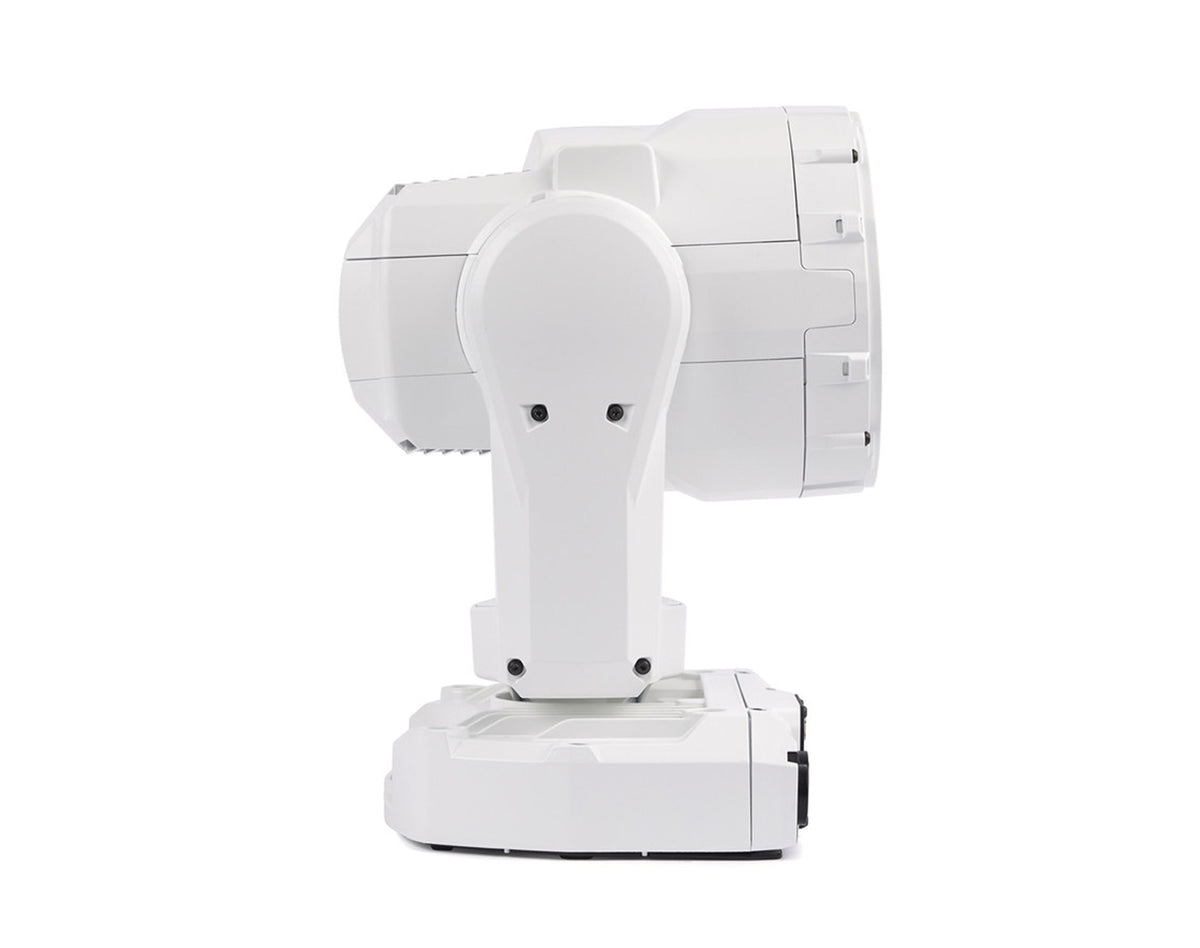

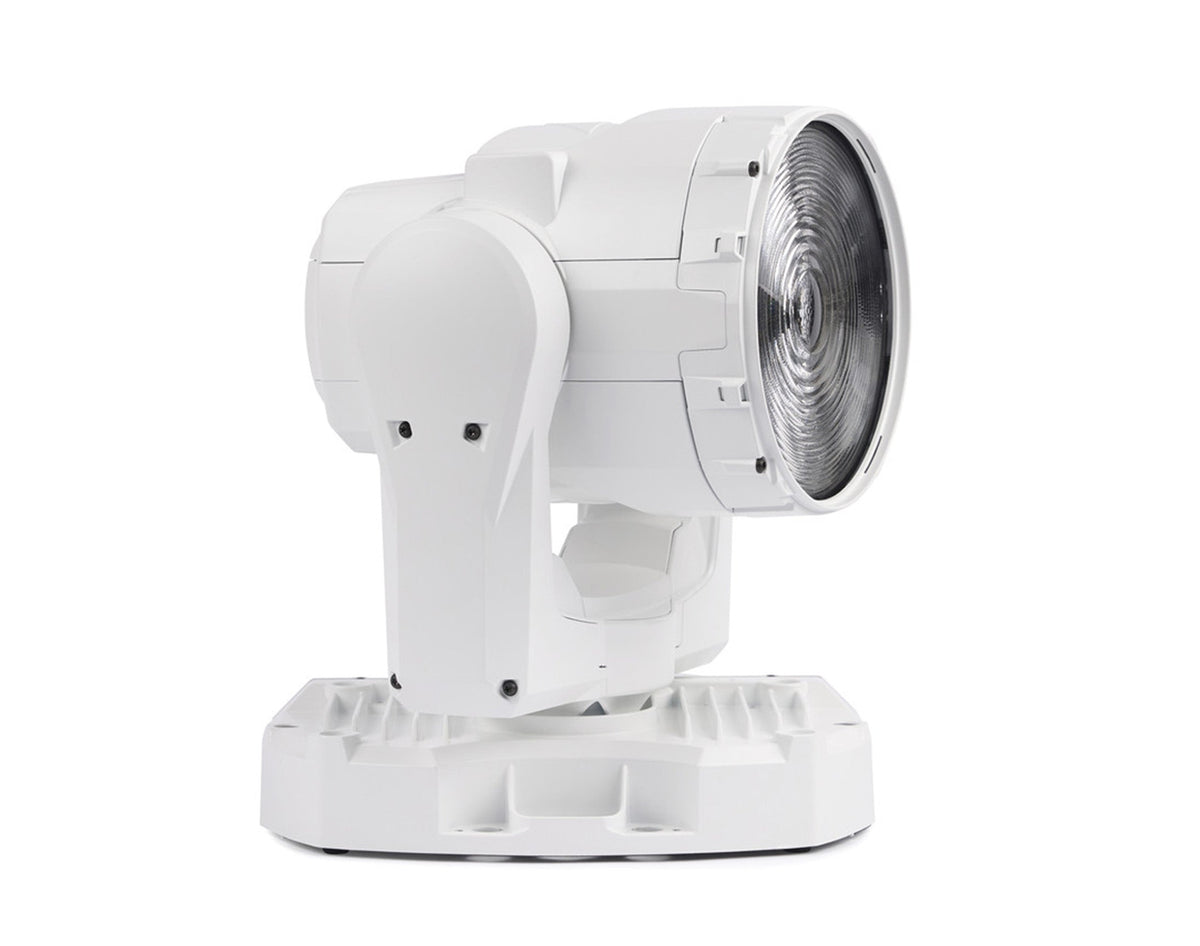

Martin Audio Martin Lighting MAC One White Creative in BeamWash Moving Head

The Martin Lighting MAR-90250210HU MAC One is a revolutionary compact moving head fixture that delivers Beam, Wash, and Eye-Candy effects in one versatile unit. Weighing just 4.4 kg (9.7 lbs) with dimensions of 254 mm x 297 mm x 220 mm (10.00 x 11.69 x 8.66 in.), MAC One packs a punch with 2,500 lumens output and a narrow beam intensity of 375,000 cd. Its 120 W custom-developed RGBL (Red, Green, Blue, Lime) LED engine provides superior light quality with higher CRI, TM-30, and TLCI compared to traditional RGBW fixtures. The integrated Fresnel lens offers a 4-27° zoom, delivering both tight, well-defined beams and soft-edged washes for engaging aerial effects and eye-catching stage visuals.

Innovative Features and Versatile Control

MAC One combines advanced features in an incredibly compact form factor. The fixture includes a backlight system with 24 RGB effect LEDs within the lens, creating striking eye-candy effects. It supports more than 200 built-in FX macros, P3 video mapping for beam and Fresnel backlight pixels, and extreme speed pan, tilt, and zoom for dynamic performances. Control is seamless via DMX, Art-Net, sACN, or Martin P3, with P3 Mix functionality allowing crossfades between video and DMX looks. MAC One is fully calibrated with Martin’s Full Gamut Color Calibration, offering precise color control from 2,000-12,850 K, calibrated green-magenta shift, tungsten emulation, and a virtual color wheel for creative flexibility.

Durable, Efficient, and Easy to Deploy

Designed for demanding environments, MAC One features CNC-grade construction with ultra-quiet cooling, achieving just 23 dB(A) in theater and broadcast mode. The fixture is compatible with optional accessories such as four-bar mounts and the VDO Grid Mount System for rapid deployment of multiple units in lines or matrices. Single omega bracket and M12 threaded holes allow secure attachment to clamps or four-bar systems. Lightweight, compact, and versatile, MAC One enables creative expression in tight spaces while reducing shipping and installation costs, making it ideal for rental companies, lighting designers, and event organizers seeking high-quality visual impact.

Product Specifications:

Beam & Backlight: 0-100% dimming, strobe (regular & random)

Dimming Curves: Choice of four curves for smooth control

Color Control: RGB mixing, color temperature 2,000-12,850 K, green-magenta tint shift ±0.05 Δuv

Virtual Color Wheel: 48 preset colors, continuous rotation, random color effects

Zoom: Motorized 1: 5 ratios with pulse effect

Pan/Tilt: Pan 540°, Tilt 225°

Pixel Mapping: Individual control of 24 Backlight LEDs

Pre-programmed FX: Beam, Backlight, or combined effects

LED Frequency Control: Adjustable PWM for flicker-free operation

Protocols: DMX, RDM, Art-Net, sACN, Martin P3

Modes: Compact, Basic, Ludicrous, Compact Direct

DMX Channels: 20, 36, 108, 20 (depending on mode)

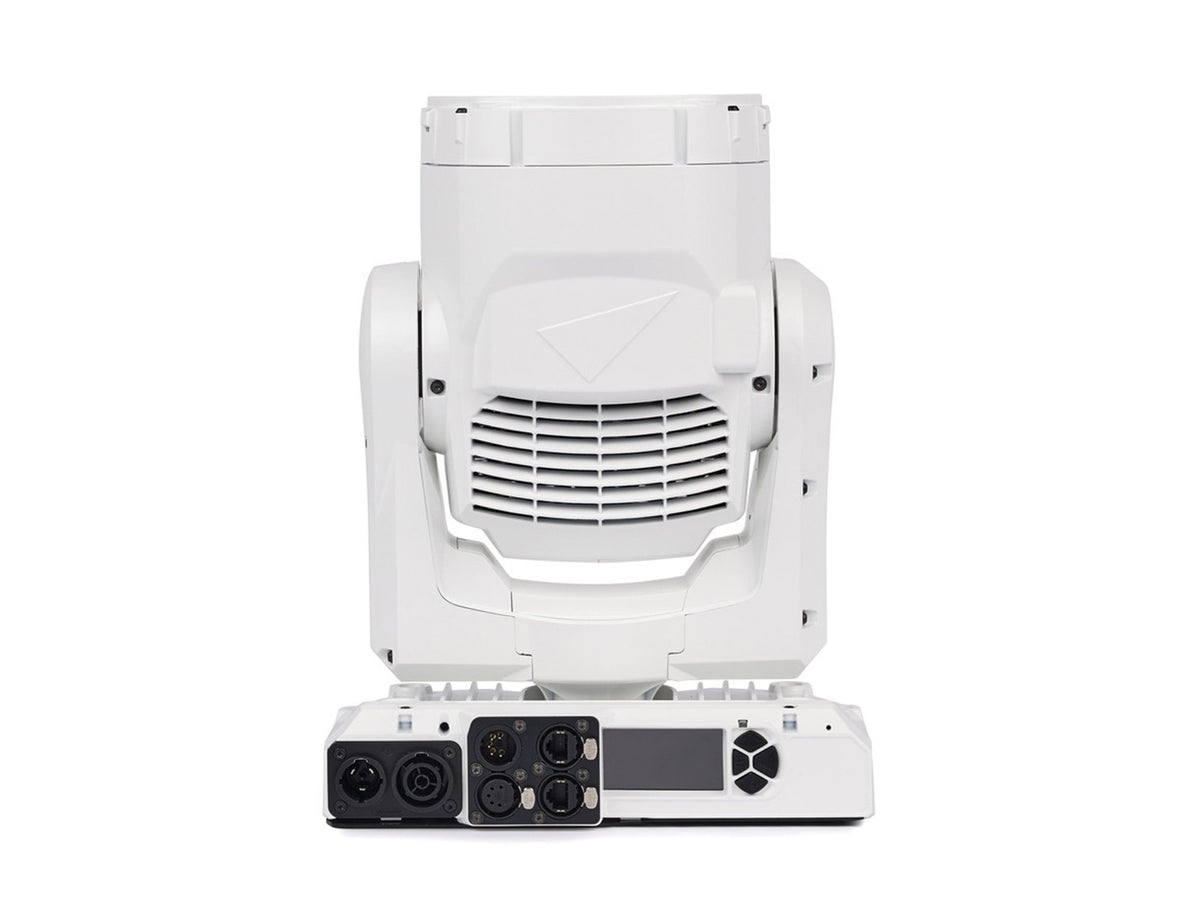

Connectors: Neutrik powerCON TRUE1 TOP, XLR 5-pin, etherCON

Multi-Universe: Supported in all modes

16-bit Parameters: Beam & Backlight Dimming, Color Mixing, Zoom, Pan, Tilt

Interface: Backlit LCD, RDM, Martin P3, addressable fixture ID

Front Lens Diameter: 150 mm (5.91 in)

Zoom Range: 1: 5 (Beam Angle 4°, 19°, Field Angle 6°, 27°)

Light Source:

Beam: 1 × 120 W RGBL LED

Backlight: 24 × 0.25 W RGB LEDs

LED Lifetime: >50,000 hours (>70% luminous output)

Housing: High-impact flame-retardant thermoplastic

Color: White

Protection: IP20

Orientation: Any, indoor or outdoor protected

Minimum distance to combustibles: 0.20 m (7.87 in)

Minimum distance to illuminated surfaces: 1.75 m (68.90 in)

AC Power: 100-240 V, 50/60 Hz, auto-ranging

Max Current: 2.0 A @100-120 V, 0.9 A @208-240 V

Max Power Consumption: 180 W, Typical 160 W, Idle 24 W, Hibernation 9 W

Cooling: Temperature-regulated, low-noise fans

Ambient Temp: 5-40°C (41-104°F)

Max Surface Temp: 55°C (131°F)

Product Weight: 11.35 lbs

Product Dimensions (L × W × H): 8.66 × 11.81 × 13.74 in

Shipping Weight: 15 lbs

Shipping Dimensions (L x W x H): 12 x 15 x 17 in
