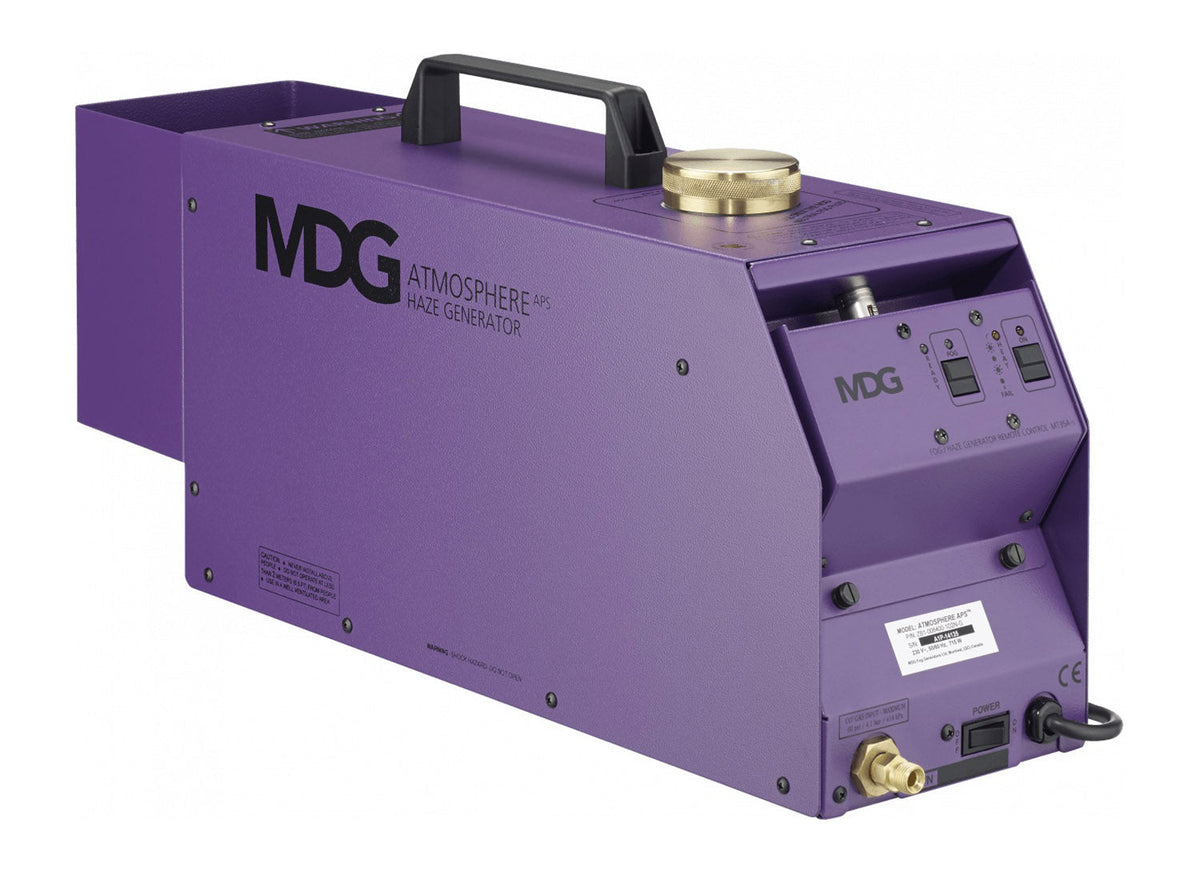

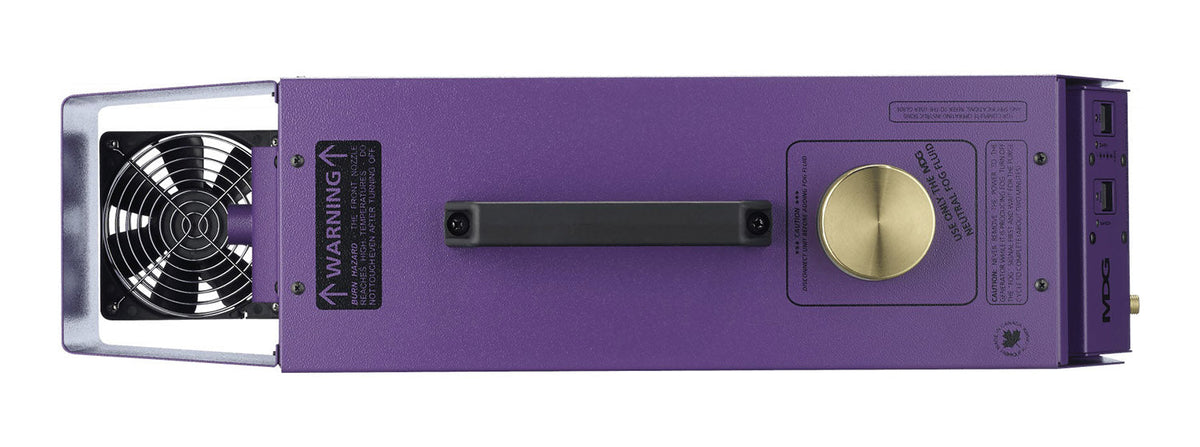

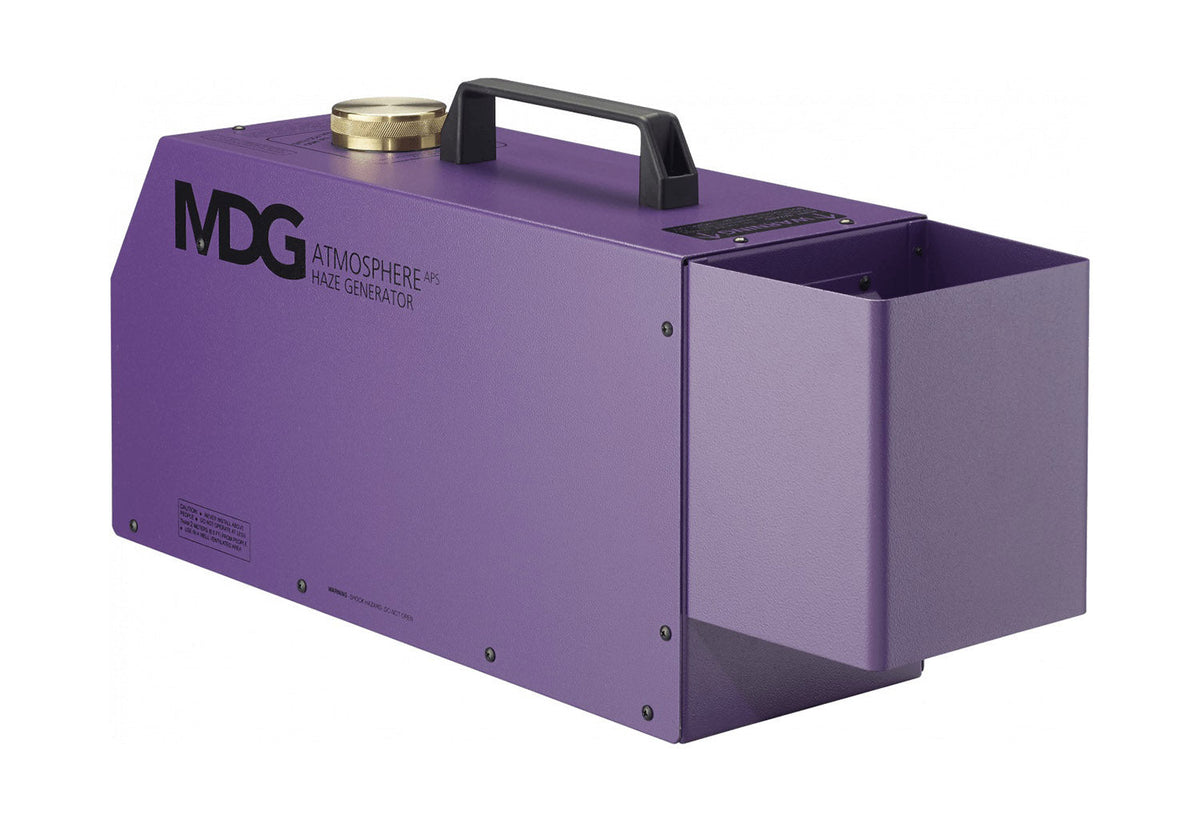

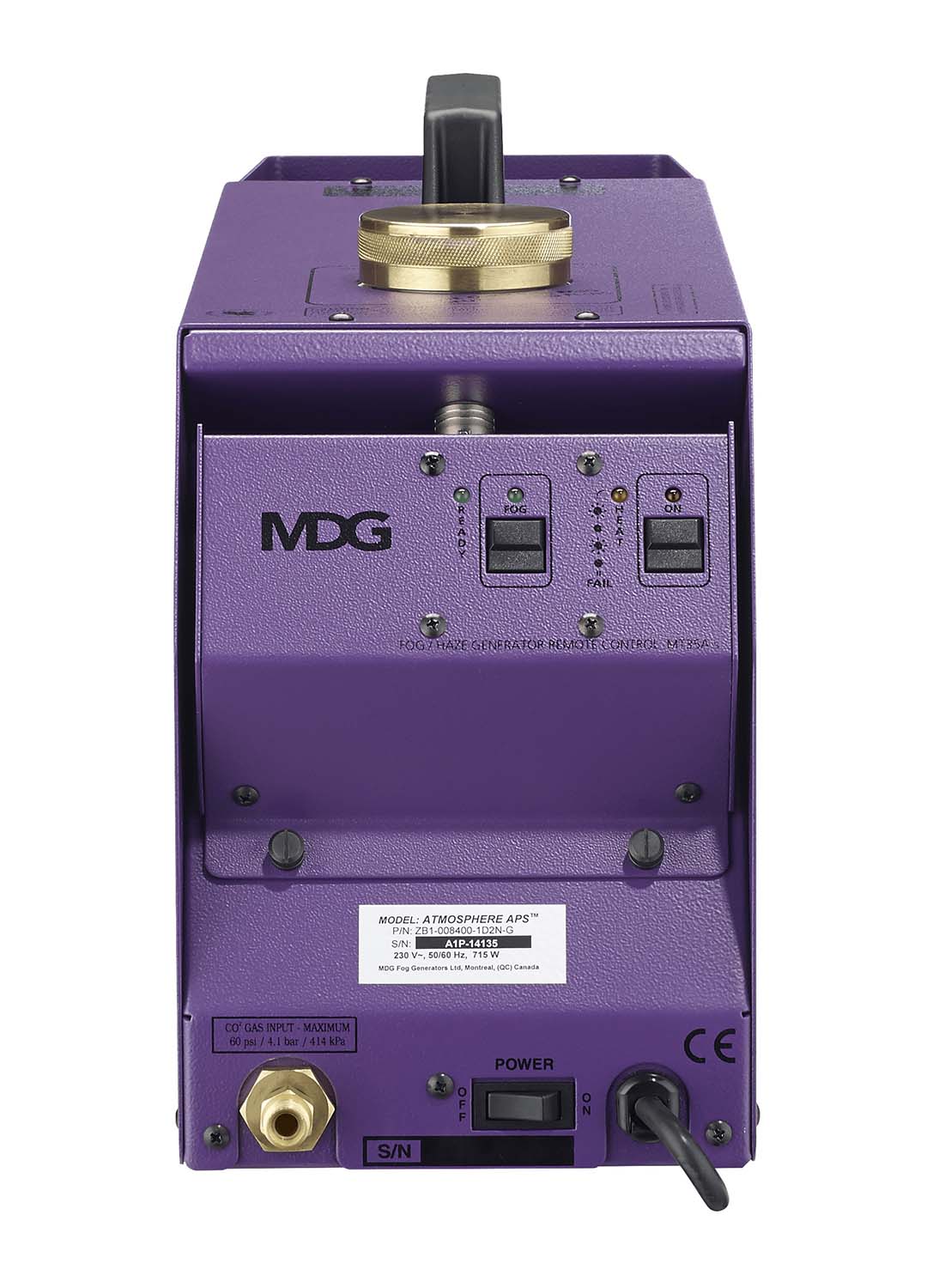

MDG ATMOSPHEREAPS Haze Generator
MDG ATMOSPHEREAPS Haze Generator
Model / SKU: H-MDG-ATMOSPHEREAPS
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The world-famous MDG ATMOSPHEREAPS, the industry standard professional haze generator for more than two decades, is the perfect match for your lighting effects.
The lowest fluid consumption on the market is 55 ml (1.86 oz) per hour at 1.38 bar (20 psi). Continuous or momentary haze emission. 100% duty cycle. APS (automatic purging system) to prevent build-up and clogging. Detachable remote control and 8 m (26 ft) cable included. Compatible with dmx interface and remote control timer. Virtually noiseless, producing the finest haze with the longest hanging time.
Product Specification:
Fluid consumption: 55 ml (1.86 oz) per hour at 1.38 bar (20 psi)
CO2 consumption: 0.18 kg (0.4 lb) per hour at 1.38 bar (20 psi)
Reservoir capacity: 2.5 L (0.66 US gallon)
APS (Automatic Purging System): Standard
Haze colour: Pure white
Particle size: 0.5 - 0.7 micron
Total running time: 46 hours at 1.38 bar (20 psi) with a full tank
Warm-up time: 8 minutes (maximum)
Fluid type: MDG Neutral
Operating voltage: 115 or 230 VAC, 50/60 Hz single phase
Power consumption: 715 W
Noise emission: 45.4 dB (A) at 1 m (3.3 ft)
Length: 68.5 cm (27”)
Width: 18 cm (7”)
Height: 30 cm (12”)
Weight: 42 lb
Shipping weight: 76 lb
