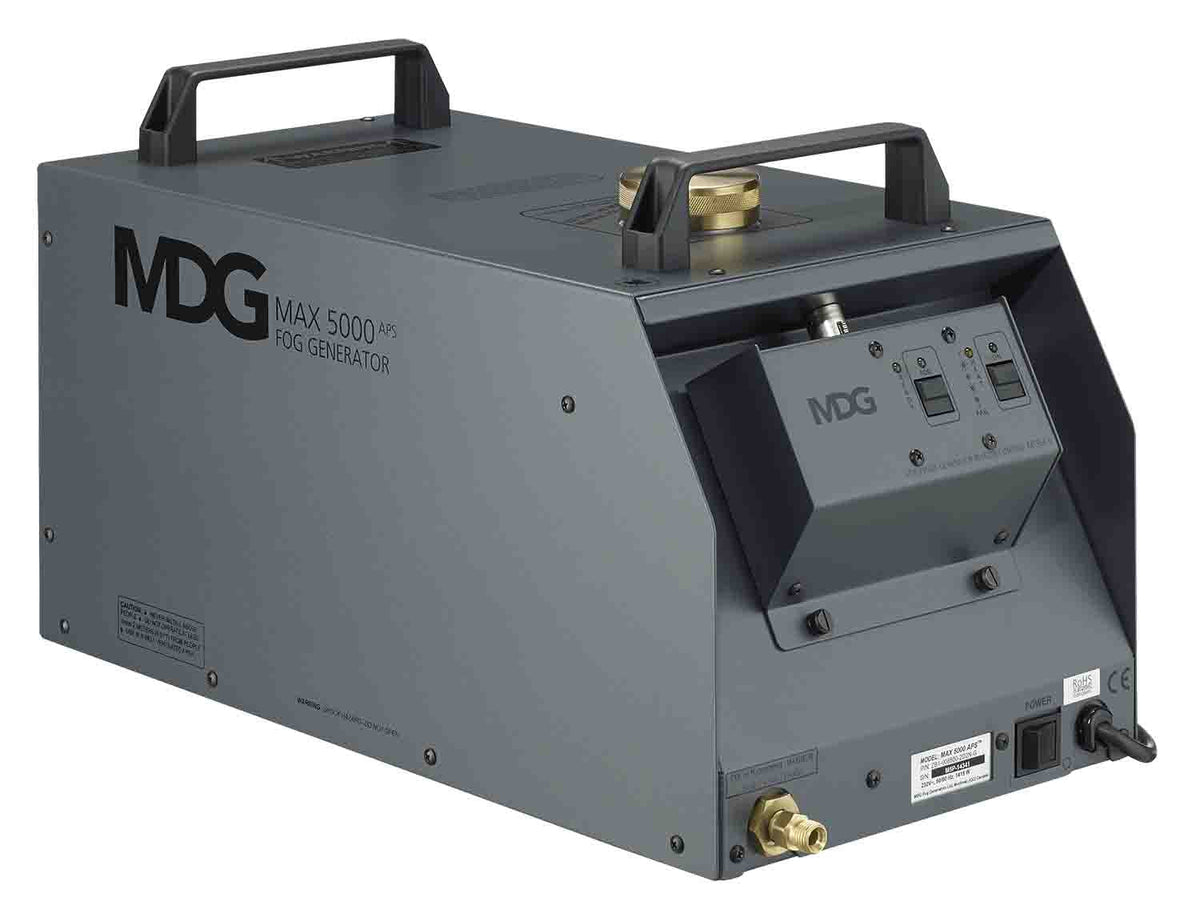

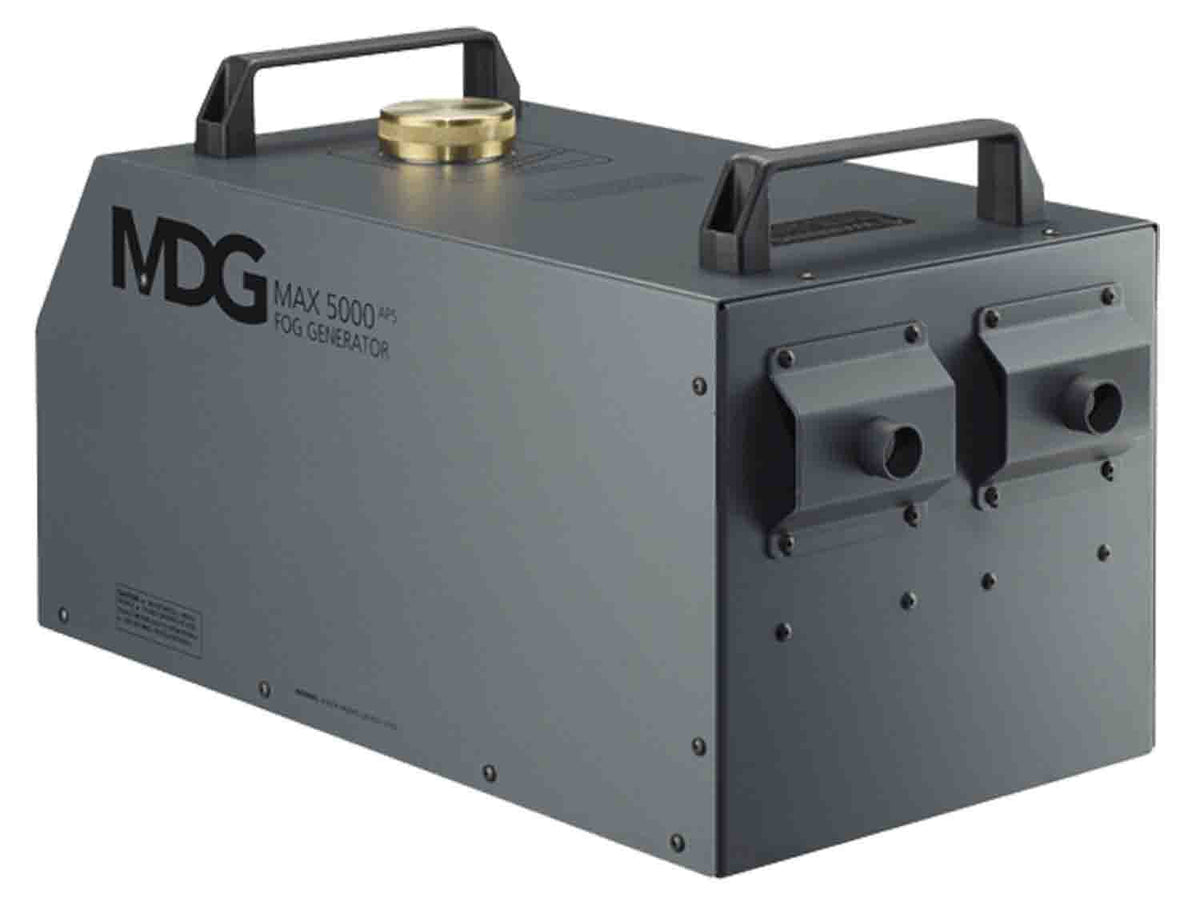

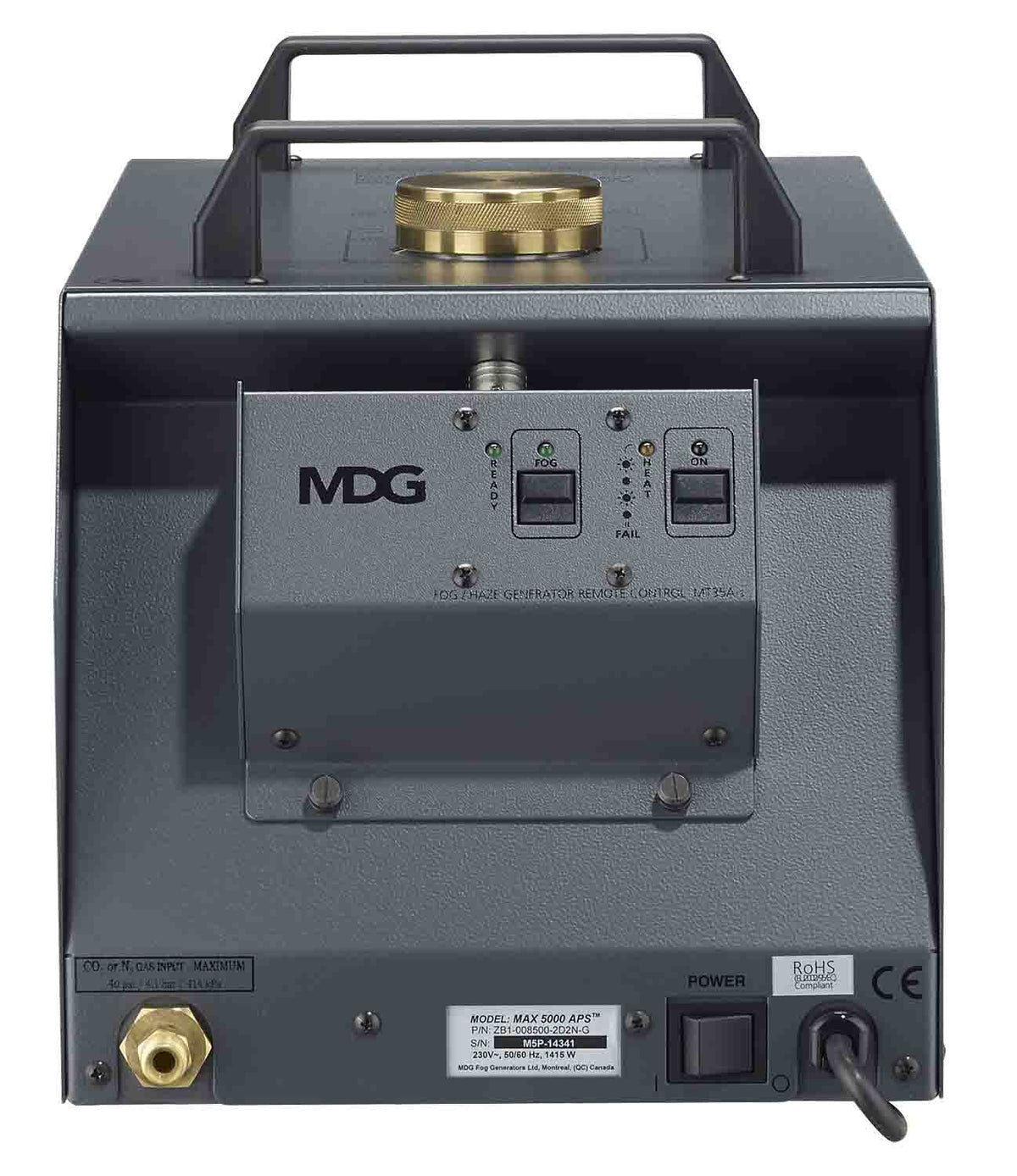

MDG MAX 5000 Fog Generator
MDG MAX 5000 Fog Generator
Model / SKU: H-MDG-M5
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The MDG MAX 5000 Fog Generator The mid-range of the MAX series, very powerful and always ready, the MAX 5000APS gives you fog the moment you need it, Maximum Fog Output Up To 218 M3 (7,698 Ft3) Per Minute, 100% Duty Cycle, Aps (Automatic Purging System) To Prevent Build-Up And Clogging, Virtually Noiseless, With The Finest Fog And The Longest Hanging Time, Detachable Remote Control And 8 M (26 Ft) Cable Included, Compatible With Dmx Interface And Remote Control Timer, Very Powerful, Manually Adjustable Fog Output.
Product Specifications:
Maximum Fog Output Per Minute: 218 m3 (7,698 ft3)
Fluid Consumption: 2.6 L (77 oz) per hour at 2.76 bar (40 psi)
Gas Type: CO2 or N2
Reservoir Capacity: 2.5 L (0.66 US gallon)
Fog Colour: Pure white
Particle Size: 0.5 - 0.7 micron
Warm-Up Time: 8 minutes (maximum) Fluid type
Operating Voltage: 115 or 230 VAC, 50/60 Hz single phase
Length: 61 cm (24”)
Width: 28 cm (11”)
Height: 30 cm (12”)
Weight: 26 kg (56 lb)
Shipping Weight: 38 kg (85 lb) with flight case
