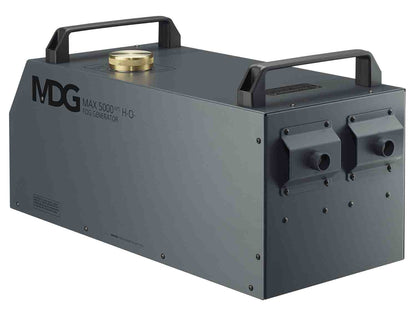

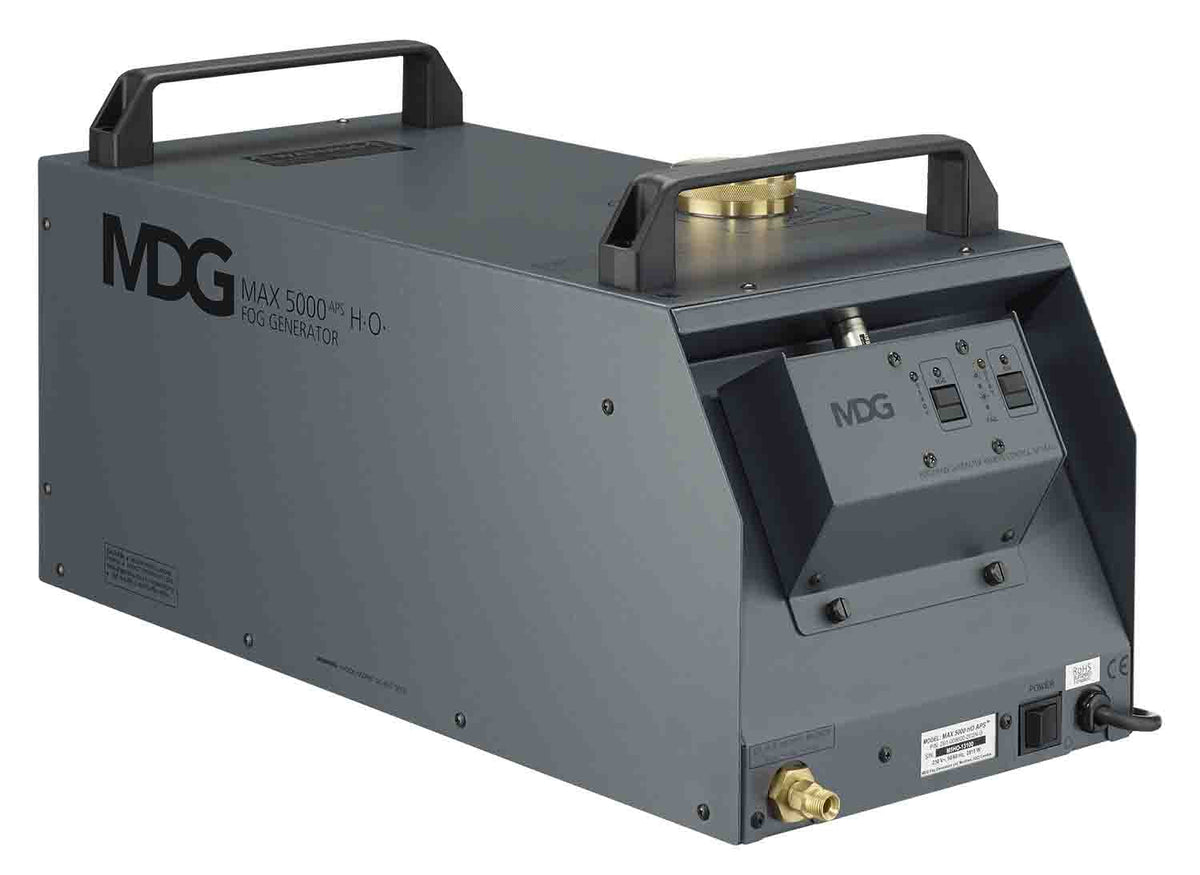

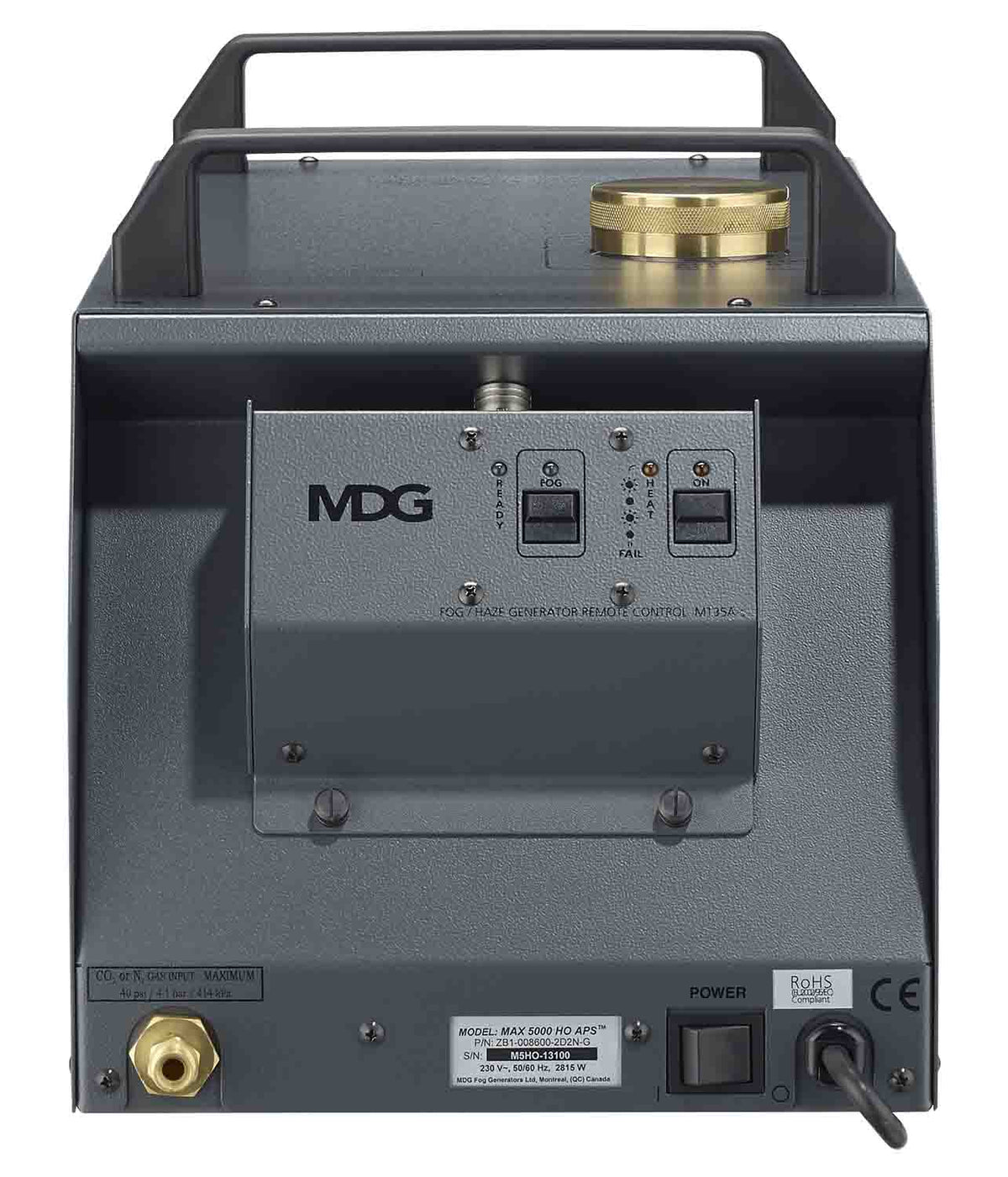

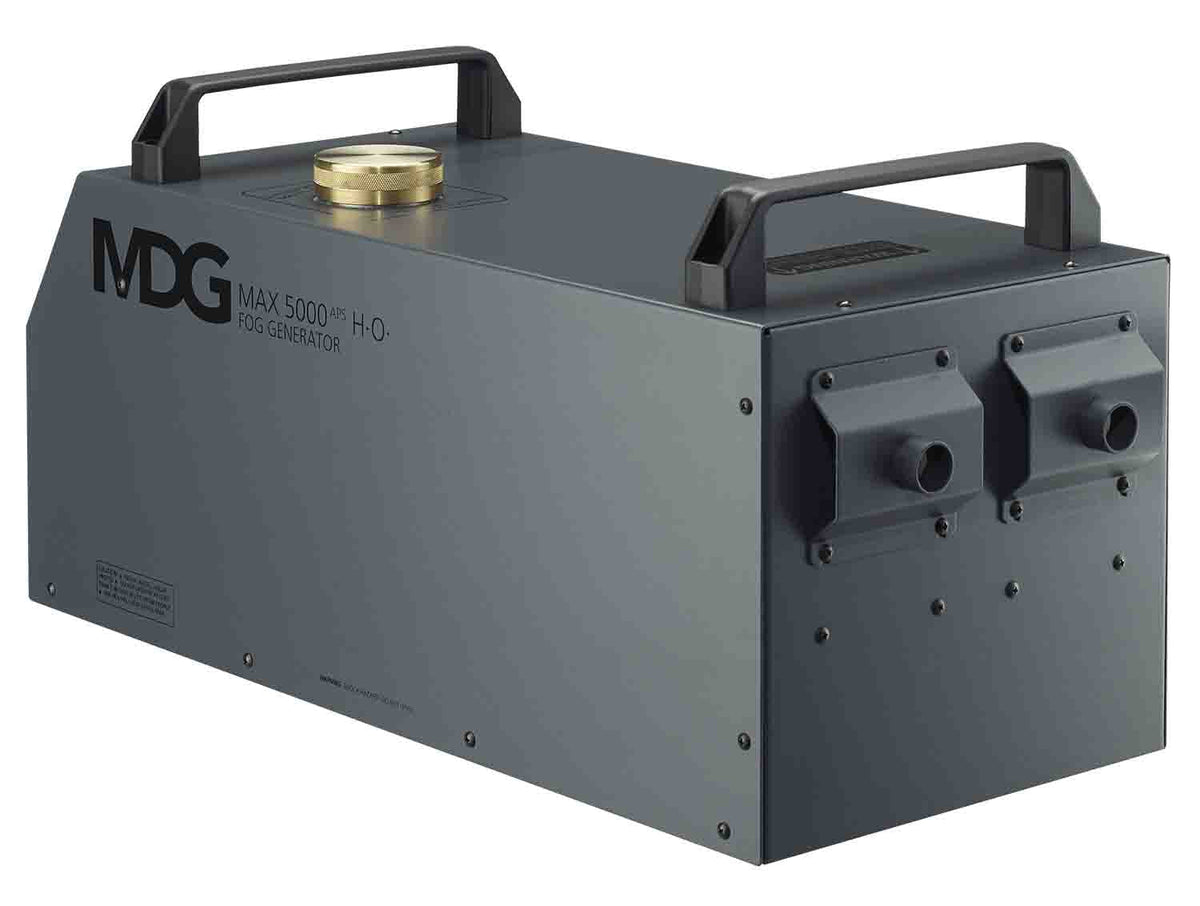

MDG MAX 5000 H.O High Output Fog Generator 208V
MDG MAX 5000 H.O High Output Fog Generator 208V
Model / SKU: H-MDG-M5HO208V
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The MDG MAX 5000 H.O is a High Output Fog Generator 208V, Maximum Fog Output Up To 445 M3 (15,715 Ft3) Per Minute. 100% Duty Cycle, Aps (Automatic Purging System) To Prevent Build-Up And Clogging, Virtually Noiseless, With The Finest Fog And The Longest Hanging Time, Detachable Remote Control And 8 M (26 Ft) Cable Included, Compatible With Dmx Interface And Remote Control Timer, Huge, Manually Adjustable Fog Output.
Product Specifications:
Fluid Consumption: 4.5 L (1.2 US gallon) per hour at 4.14 bar (60 psi)
Gas Type: N2
Gas Consumption: 5 kg (11 lb) per hour at 4.14 bar (60 psi)
Reservoir Capacity: P 6.5 L (1.7 US gallon)
Fog Colour: Pure white
Particle Size: 0.5 - 0.7 micron
Warm-Up Time: 8 minutes (maximum)
Fluid Type: MDG Neutral
Operating Voltage: 208 or 230 VAC, 50/60 Hz single phase
Power Consumption: 2,815 W
Length: 68.5 cm (27”)
Width: 28 cm (11”)
Height: 30 cm (12”)
Weight: 33 kg (72 lb)
Shipping Weight: 44 kg (97 lb) with flight case
