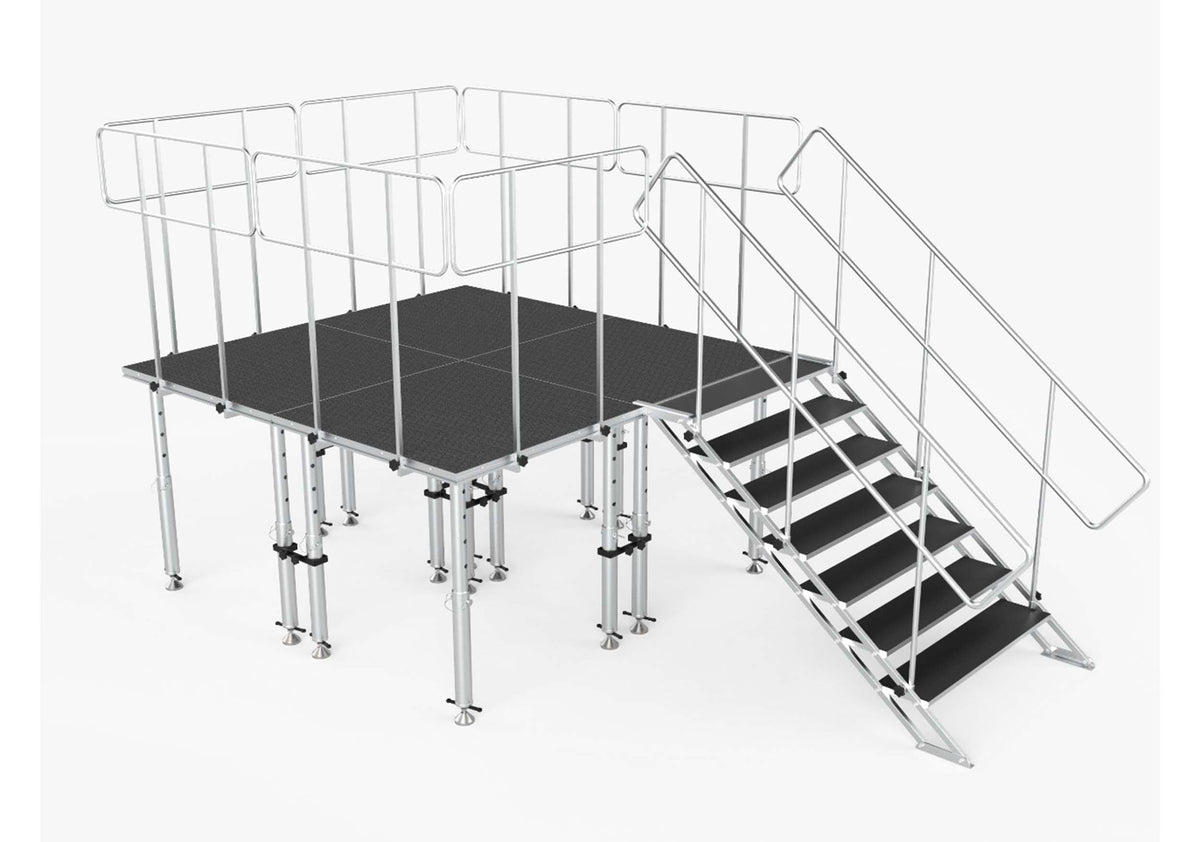

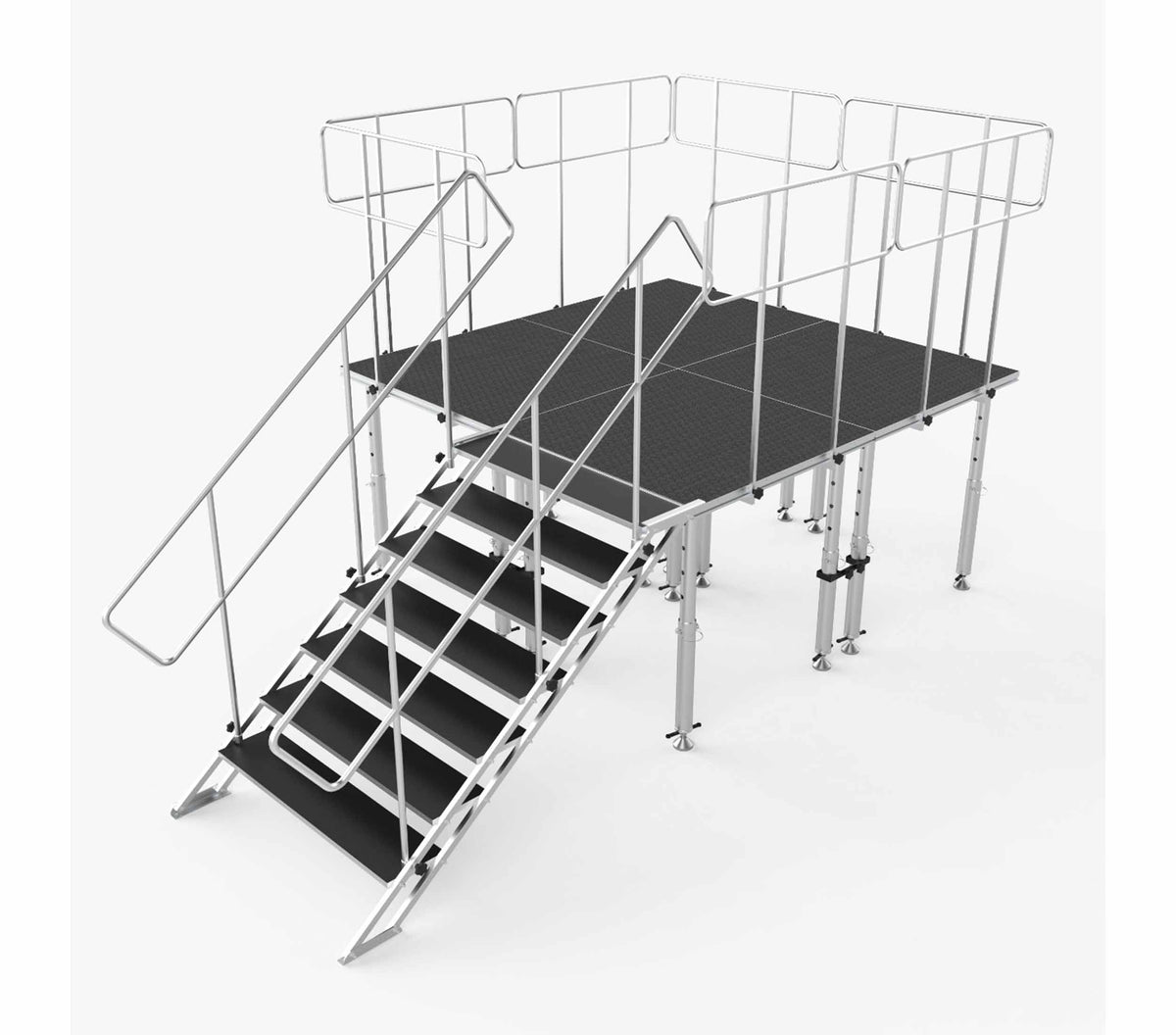

ProX XSQ-8X8PKG-44GRUST3, 8x8 StageQ Platform Package - 4x4 Decks with Adjustable Height, Steps and Guard Rails

The ProX XSQ-8X8PKG-44GRUST3 is a professional-grade modular staging package designed to build a complete 8 ft x 8 ft elevated platform system that delivers both visual impact and structural reliability. Ideal for VIP bottle service areas, lounges, nightclubs, corporate events, schools, and houses of worship, it creates a clean, elevated presentation that instantly enhances any space. Engineered for fast deployment and long-term use, this system balances portability with the strength required for demanding professional environments, making it a dependable choice for production companies and venues alike.

At the core of each platform is AAA-grade 7/8" birch plywood deck construction with minimal internal voids, ensuring long-term strength and resistance to flex under load. Each deck is reinforced with a high-strength aluminum frame and precision TIG-welded corners, providing exceptional rigidity and durability even under heavy touring or rental use. The surface is finished with ProX’s Signature Honeycomb Digital™ high-pressure laminate, which delivers superior grip, scratch resistance, and a refined professional look that performs equally well indoors or outdoors. With a 1500 lbs maximum load capacity per 4 ft x 4 ft section (evenly distributed), the system is built to handle professional stage loads with confidence.

This package is built around a fully modular configuration using four 4 ft x 4 ft StageQ platforms, creating a stable and unified 8 ft x 8 ft stage surface. Each platform is supported by ProX’s innovative 6-leg load distribution design, improving balance and reducing stress across the structure for enhanced stability. The system includes four telescoping legs per platform, adjustable from 28" to 48", allowing precise height customization depending on venue requirements. An integrated locking pin system ensures secure leg positioning during use, while micro-adjustable leveling feet with M16 threaded bolts provide fine-tuned stability on uneven surfaces, making it suitable for both indoor and outdoor installations.

What’s Included:

4 x StageQ 4 ft x 4 ft Stage Deck w/ 4 Adjustable 28 - 48-inch Legs

4 x Heavy Duty Clamp for 2 Legs StageQ Staging

1 x Heavy Duty Clamp for 4 Legs StageQ Staging

7 x 4 FT Professional Single Guard Rail for StageQ Portable Stage Platform

1 x StageQ 3 Step Heavy Duty Foldable Adjustable 18 to 28 Inch with Rail

Product Specifications:

Stage Size: 8 ft x 8 ft (2440 mm x 2440 mm)

Deck Material: AAA Grade 7/8" (22 mm) Exterior Birch Plywood

Surface Finish: Honeycomb Digital High-Pressure Laminate

Frame Material: High-Strength Aluminum

Corner Construction: Precision TIG-Welded

Support Design: 6-Leg Load Distribution System

Leg Type: Telescoping Adjustable Legs

Height Range: 28 in, 48 in (711 mm, 1219 mm)

Load Capacity: 1500 lb per 4 ft x 4 ft Section (Evenly Distributed)

Leveling System: Micro-Adjustable Feet with M16 Threaded Bolts

Locking System: Integrated Locking Pin System

Modular Design: Interlocking Platform Connectivity

Included Decks: 4 x 4 ft x 4 ft Stage Platforms

Included Legs: 16 x Adjustable Stage Legs (4 per platform)

Included Accessories: Guard Rails, Clamps, Foldable Adjustable Step Unit

Exterior Dimensions & Weight:

EACH (7):

Product Weight: 26 lbs.

Product Dimensions (L x W x H): 42 x 48 x 3 in

STAGE (4):

Product Weight: 68 lbs.

Product Dimensions (L x W x H): 47.50 x 47 x 3.50 in

LEGS (4):

Product Weight: 23 lbs.

Product Dimensions (L x W x H): 28 x 7.50 x 7.50 in
