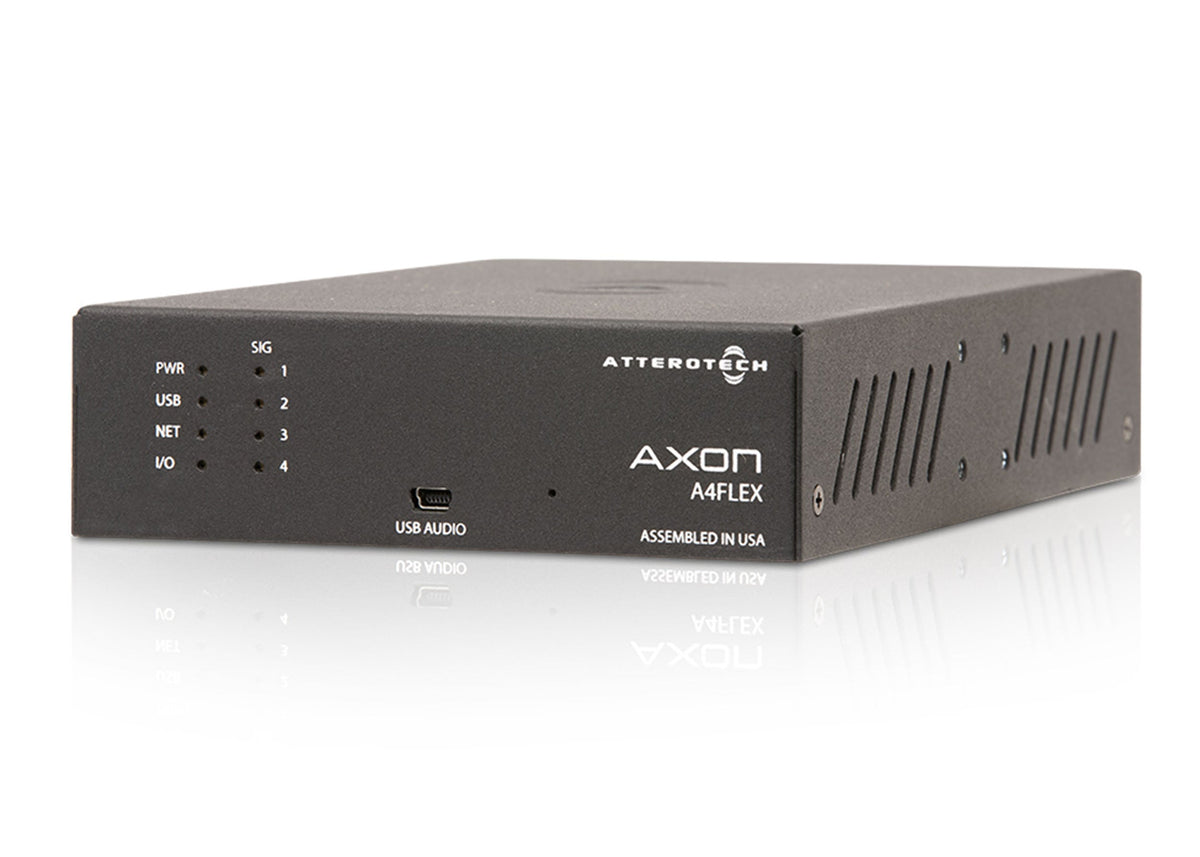

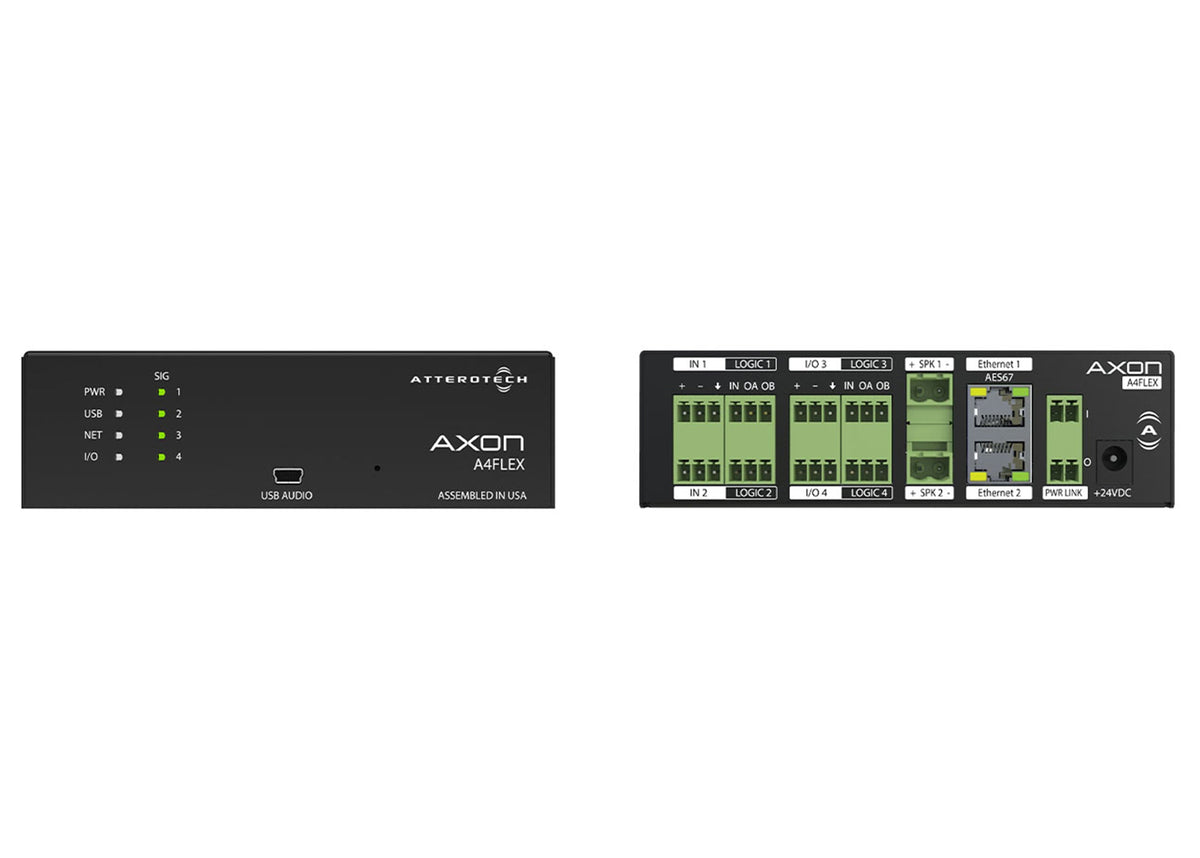

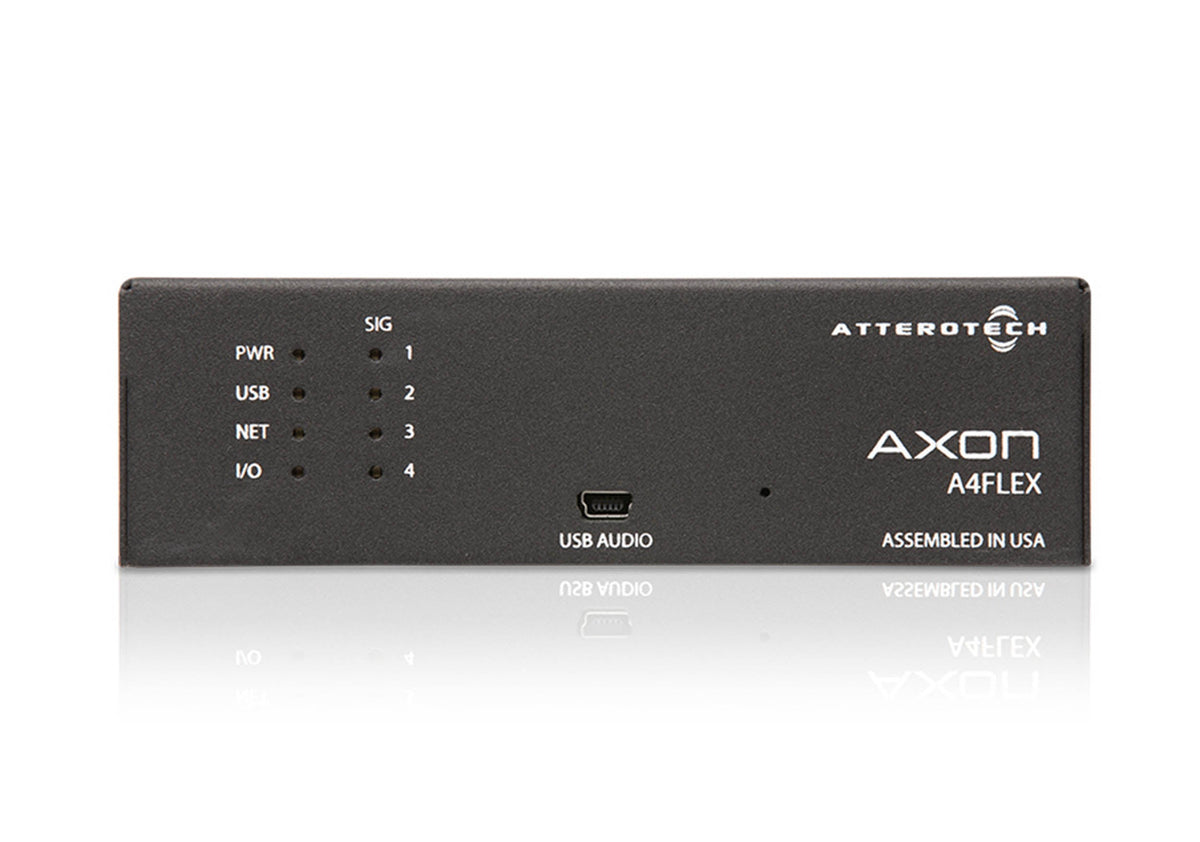

QSC A4FLEX Attero Tech Axon AES67 Networked Audio Connectivity
QSC A4FLEX Attero Tech Axon AES67 Networked Audio Connectivity
Model / SKU: H-QSC-A4FLEX
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The QSC A4FLEX Attero Tech Axon AES67 Networked Audio Connectivity is interface with four mic/line inputs (two of which are software-configurable as outputs), USB, logic I/O, AES67 audio and control interfaces, and a two-channel power amplifier.
Additionally, the Axon A4FLEX is well suited to act as a standalone integration solution for huddle spaces, lecture halls, courtrooms, education, conference centers, or any network audio I/O endpoint for a networked AV&C system in a wide range of applications. QSC has developed a Q-SYS control plugin that allows integration into the Q-SYS Ecosystem without any additional programming.
Product Specifications:
Audio Inputs: Mic/Line
Connector Type: 0.2" / 3.8 mm Euroblock, 3 Position (16-28 AWG)
Gain: -8 dB to +34 dB Gain, 1 dB Increments
Maximum Input Level: -8 dB Gain, Max Input = +16.5 dBu (+24 dBu with Pad)
Phantom Power: +48 V, Software Selectable per Channel
Audio Outputs: Mic/Line
Connector Type: 0.2" / 3.8 mm Euroblock, 3 Position (16-28 AWG)
Maximum Output Levels: +24 dBu (-15.5 dBu with Pad)
Phantom Power: +48 V, Software Selectable per Channel
Dynamic Range: 100 dB
Network:
Connectors: Dual RJ45
Cable Quality: Cat 5e or Better, UTP
Transmission Speed: 1 Gb/s
Product Weight: 1.8 lb / 830 g
Product Dimensions: 1.6 x 5.4 x 7.9 Inches
Shipping Weight: 2.365 lbs.
Shipping Dimensions (LxWxH): 11.1 x 7.4 x 1.9 Inches
