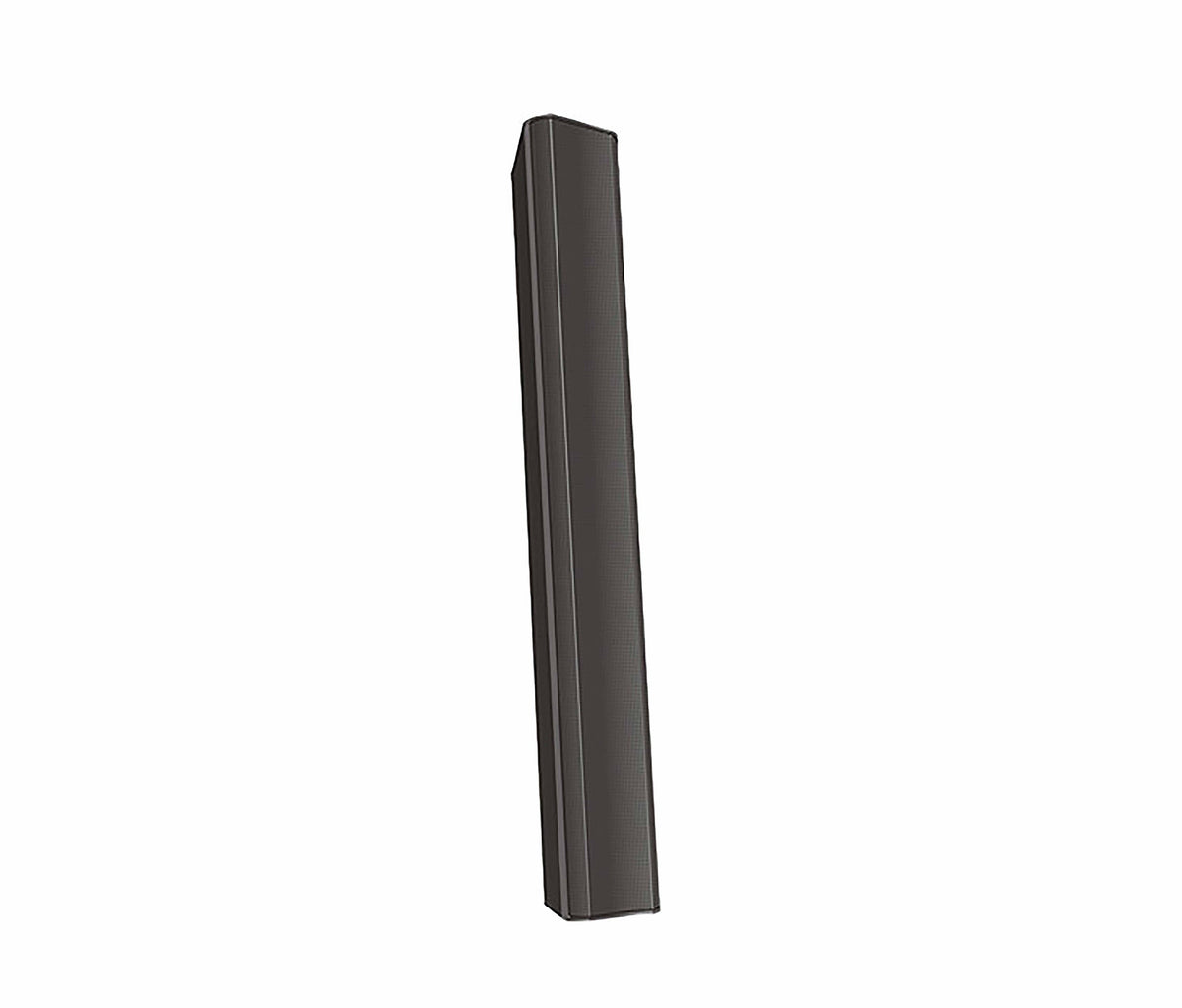

QSC AD-S162T-BK Acoustic Design Series 16-Driver Column Surface-Mount
QSC AD-S162T-BK Acoustic Design Series 16-Driver Column Surface-Mount
Model / SKU: H-QSC-ADS162TBK
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The QSC AD-S162T-BK Acoustic Design Series 16-Driver Column Surface-Mount Loudspeaker - Black is a 16-driver column surface-mount loudspeaker. This premium full-range system is capable of 70 V/100 V or 8 ohm bypass loads, making it ideal for a wide variety of foreground and background applications with acoustically challenged environments. Equipped with a unique pan/tilt mounting system, the column surface-mount loudspeakers offer multiple positioning locations allowing the loudspeaker to remain close to the wall while delivering up to -20° downward tilt.
Product Specifications:
Product Type: Speaker
Enclosure Color : Black, RAL 9011
Enclosure Material: Coated aluminum
Speaker Type: Passive
Nominal Output Power: 200 Watt
Frequency Response: 90 - 17000 Hz
Nominal Impedance: 8 Ohm
Recommended Amplifier Power: 250 Watt
Max Output Level (Max SPL): 112 dB
Sensitivity: 89 dB
Integrated Transformer: 70V/100V or 8 Ohm operation
Coverage: 160° x 15°
Recommended Placing: Outdoor, indoor
Driver Details:
Speaker: 16 x full-range driver - 2.75" - paper
Miscellaneous:
Included Accessories: Wall mounting bracket
Compliant Standards: IP54
Dimensions & Weight:
Width: 5.2 in
Depth: 5 in
Height: 45.7 in
Product Weight: 26.01 lbs.
Shipping Weight: 32.76 lbs.
Shipping Dimensions (LxWxH): 54.5 x 12 x 10 Inches
