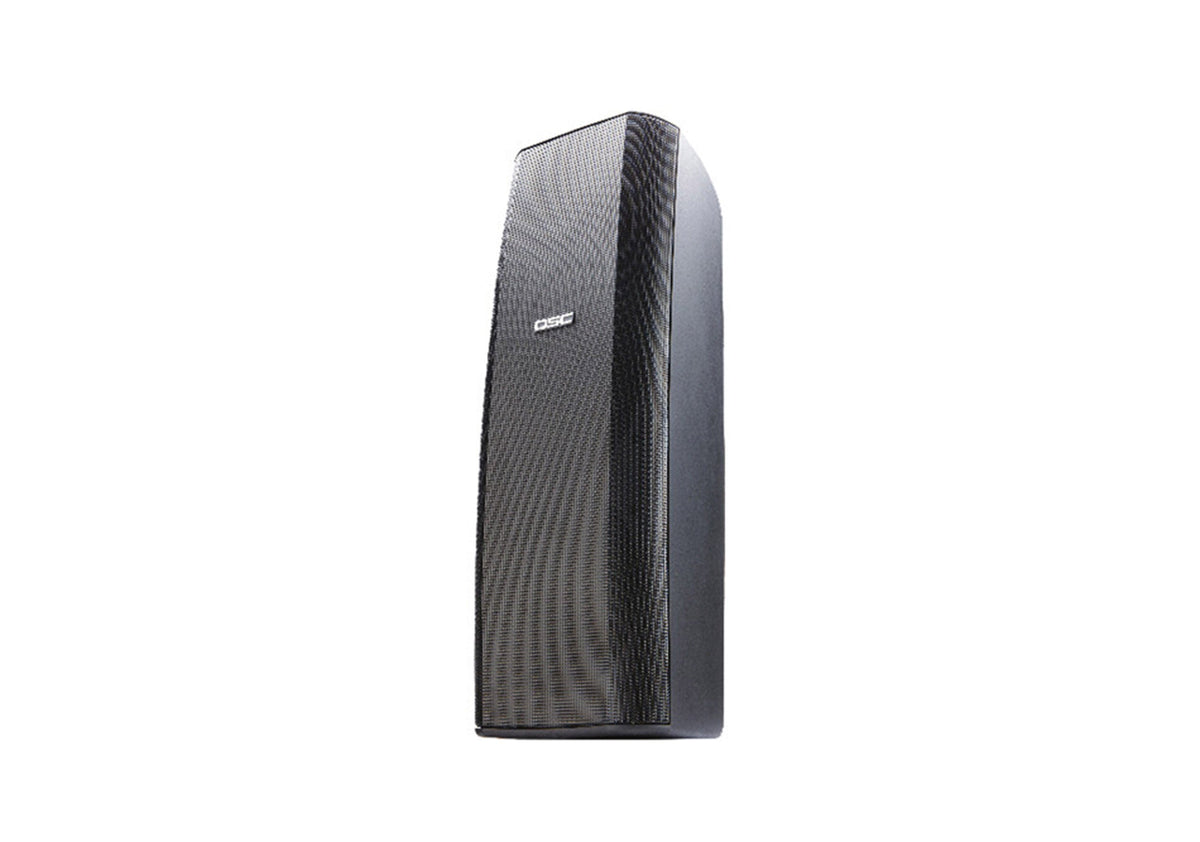

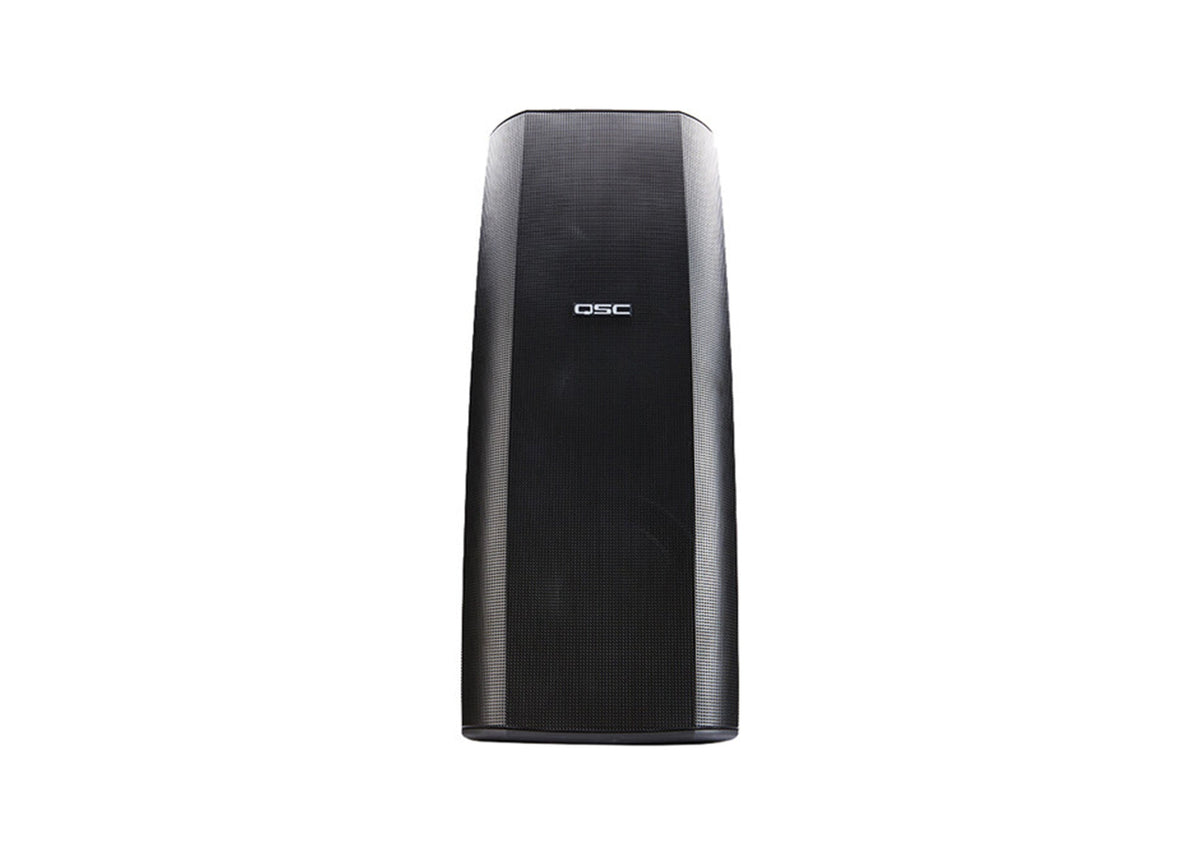

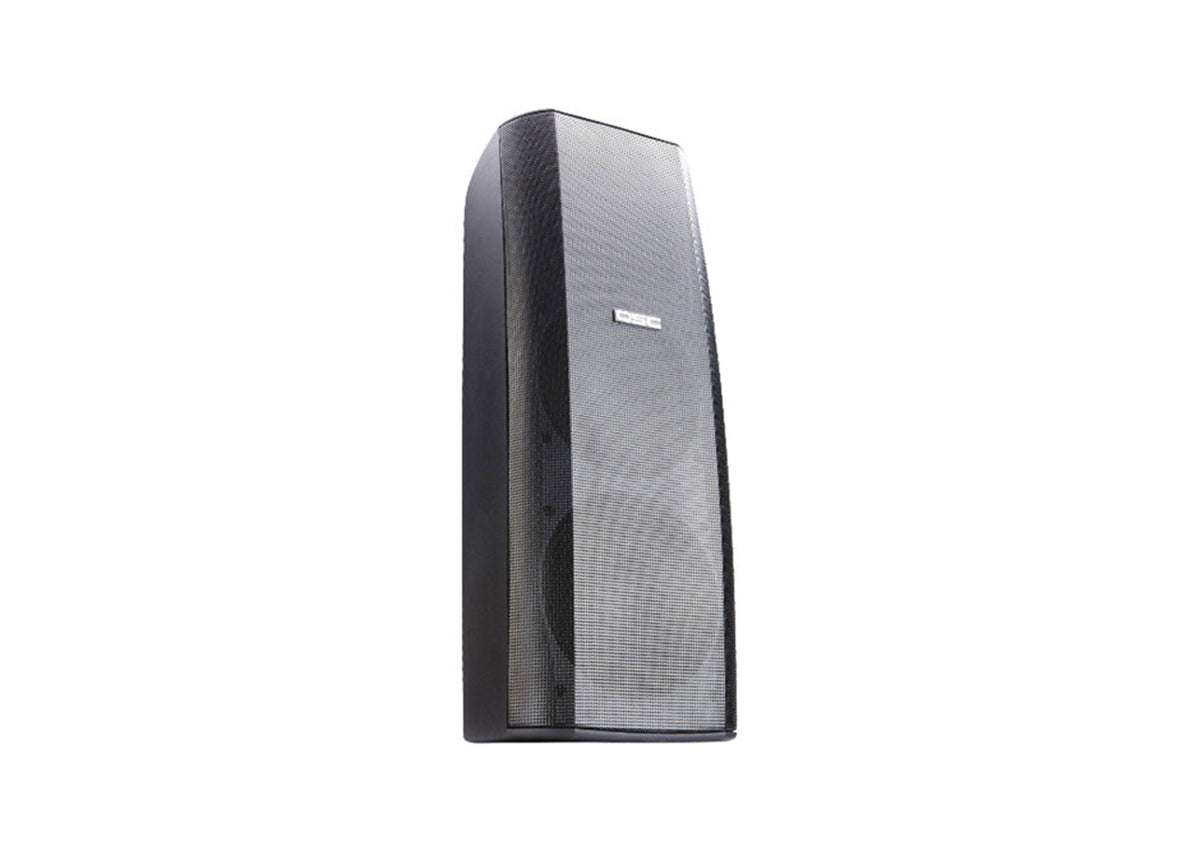

QSC AD-S282H-BK Acoustic Design Dual 8-Inch 2-Way Loudspeaker - Black

QSC AD-S282H-BK Acoustic Design Dual 8-Inch 2-Way Loudspeaker - Black

Request a quote

Model / SKU: H-QSC-ADS282HBK

In a hurry? Call us.

Free system design. Real people, Mon to Sat, 10 to 5 Pacific.

The QSC AD-S282H-BK 8-Inch 2-Way Loudspeaker - Black is a full-range, contemporary design, weather-resistant loudspeaker with a wide variety of applications. This speaker incorporates the Advanced Directivity Rotatable Waveguide. This proprietary feature gives you focused sound no matter in which direction you choose to mount your speakers. With the included yoke mount bracket, you can choose between horizontal and vertical orientations, and then aim the speaker for a perfect audio experience. This entire system is housed in a durable, weather-resistant, injection-molded polystyrene enclosure to give you the best protection possible for your valuable equipment.

Weather Resistant

The injection molded polystyrene housing protects your equipment from external damage and environmental influences. It's also attractively finished with a heavy-duty, black powder-coated aluminum grill.

Versatile Mounting Options

Mount your loudspeaker in either a horizontal or vertical orientation with the included yoke mount bracket, then aim it to provide the best audio presentation possible.

2-Way System

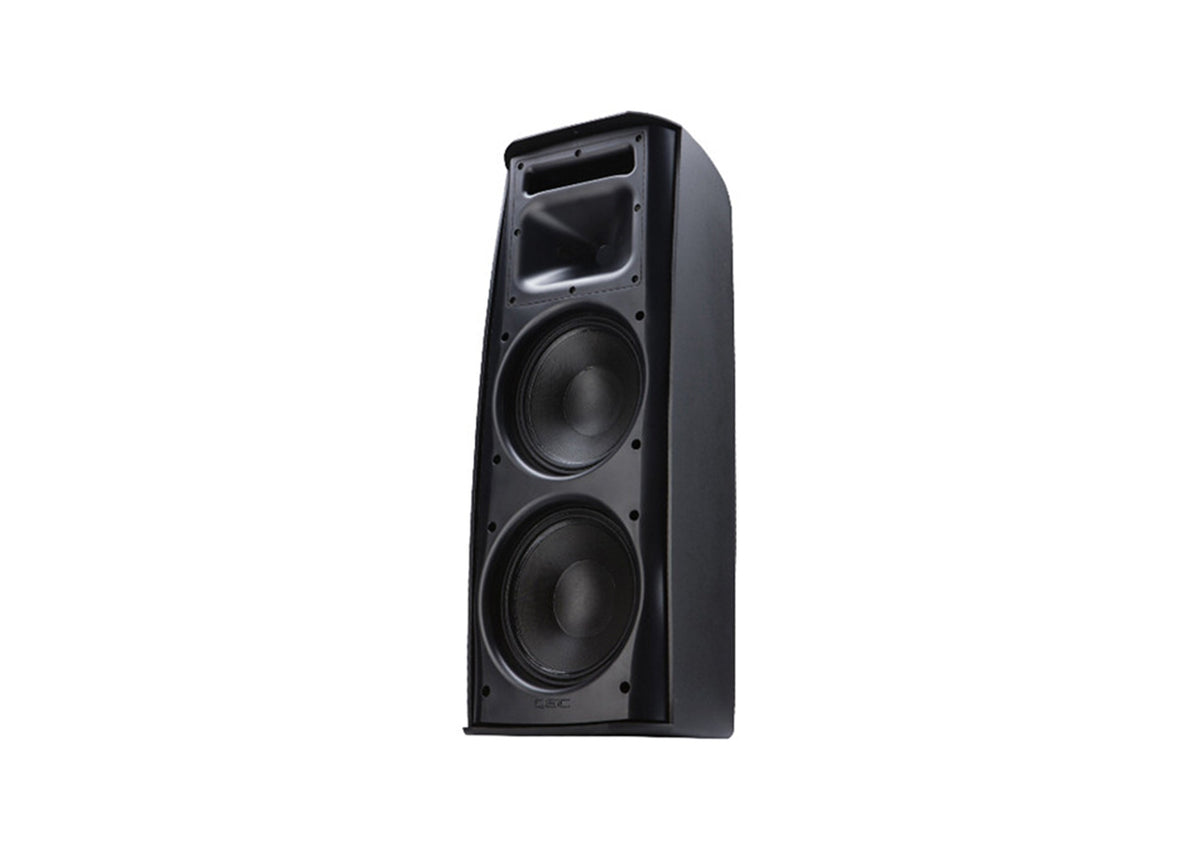

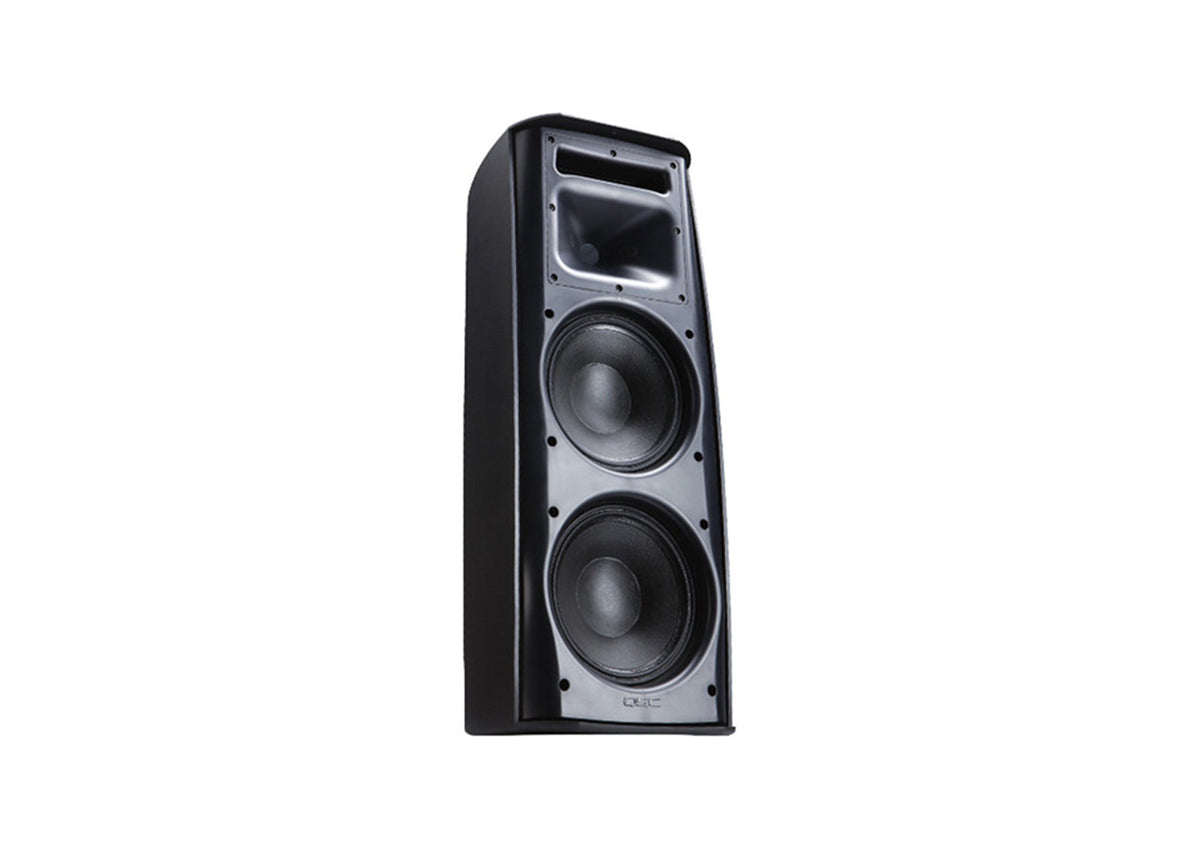

This 2-Way system features two 8" LF transducers with heavy-duty, double-roll cloth surrounds and a 1" exit compression HF driver coupled with the unique Advanced Directivity rotatable waveguide.

Advanced Directivity

This proprietary feature lets your loudspeaker deliver accurately focused sound no matter how you decide to mount it.

Low Impedance

The standard 8 ohms system lets you select either passive or active operation for greater flexibility.

Product Specifications:

Active or Passive: Passive

Frequency Response: 80 Hz - 27.7 kHz

Power Capacity: 450W RMS (8 hours IEC)

Maximum Sound Pressure Level (SPL): 125 dB

Nominal Sensitivity: 93 dB

Impedance: 8 Ohms

Low Frequency Driver: 8"

High Frequency Driver: 1" Exit Compression HF Driver

Enclosure Material: Injection Molded Polystyrene with Aluminum Grille

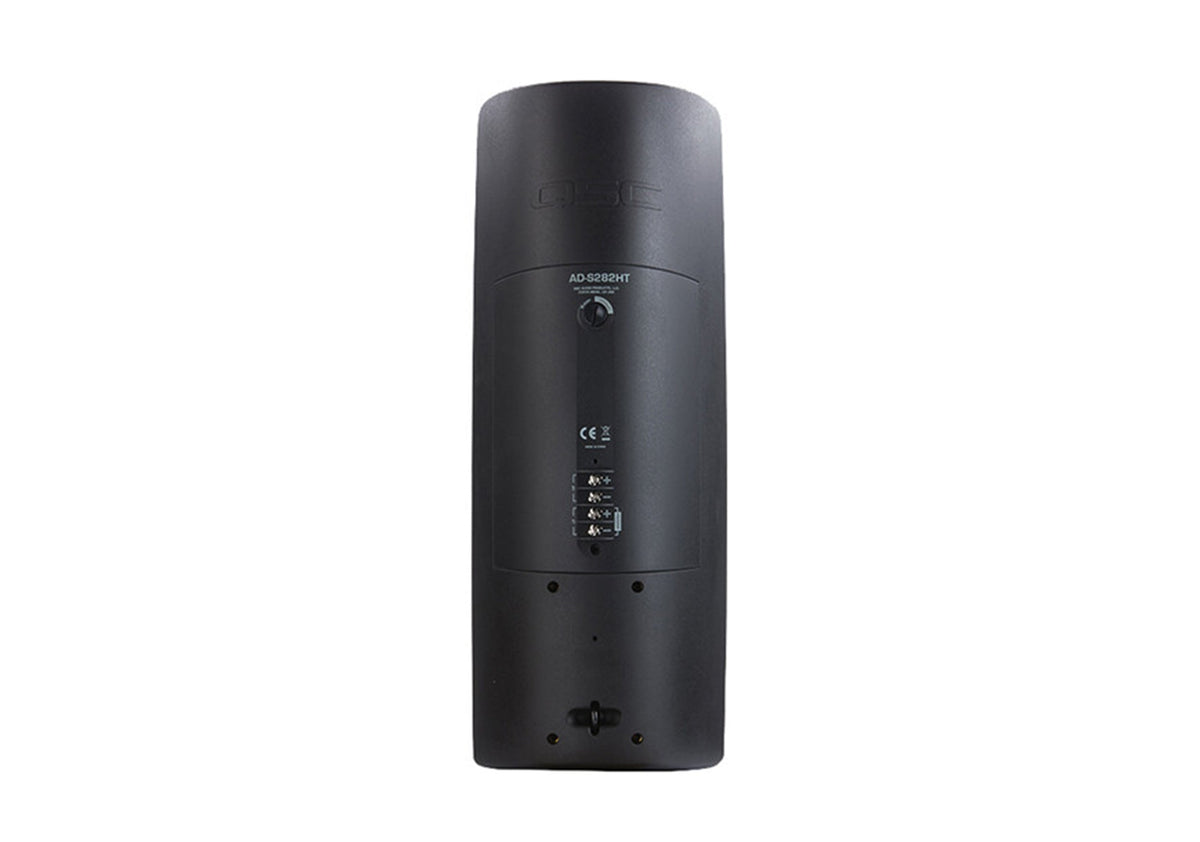

Input Connections: Barrier Strip

Switchable: Passive/Active on AD-S282H

Product Weight: 27.7 lbs. (12.6 kg)

Dimensions: 10.21 x 26.17 x 11.44" (259 x 685 x 290 mm)

Shipping Weight: 36.35 lbs.

Shipping Dimensions (LxWxH): 30.5 x 17.5 x 15 Inches
