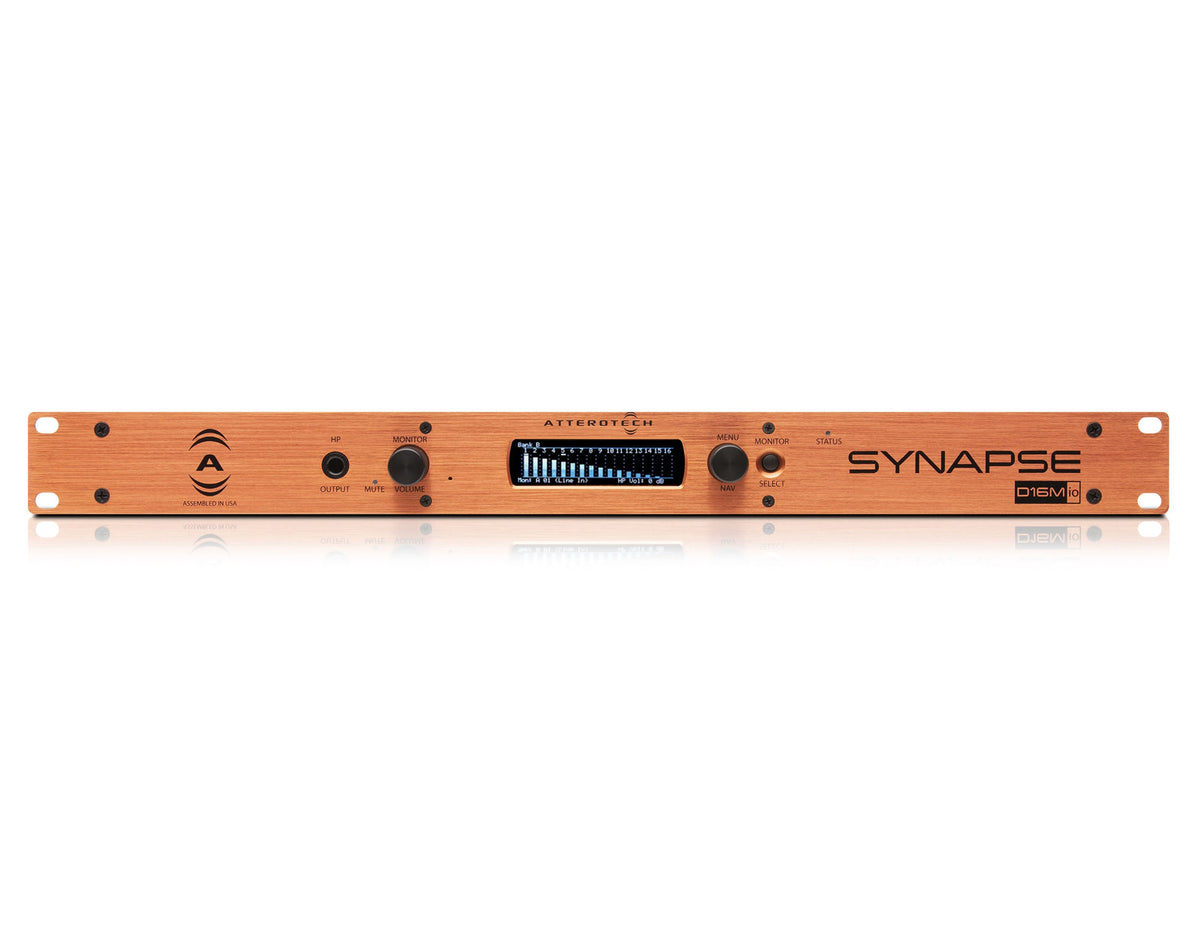

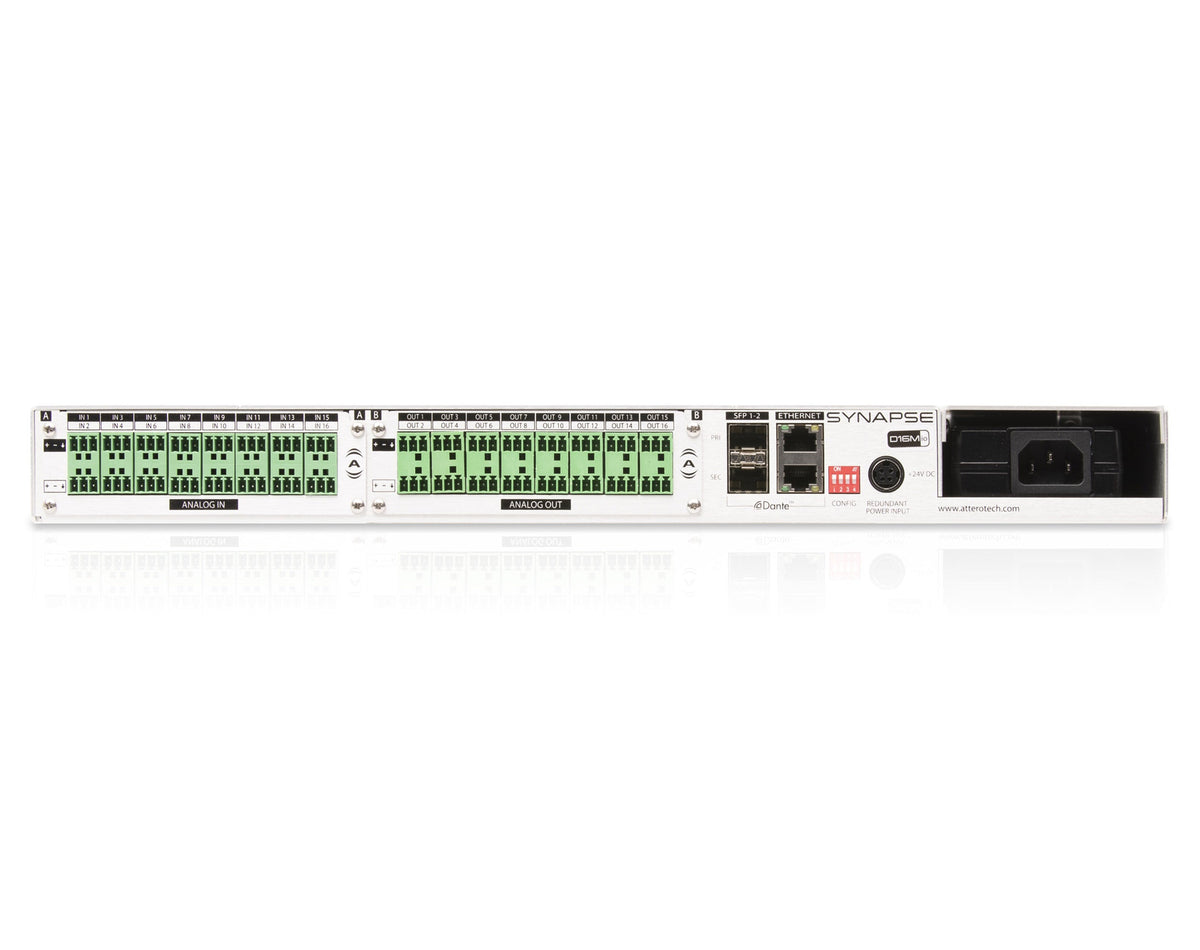

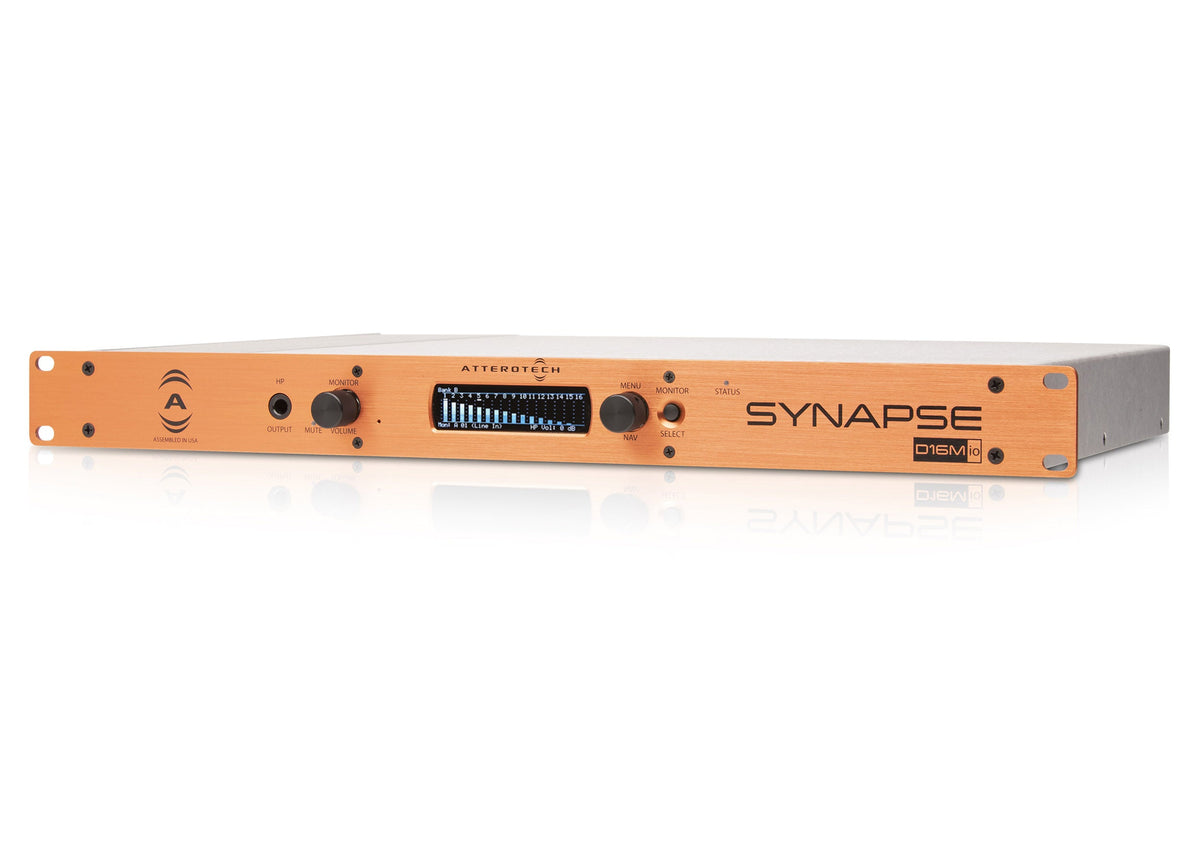

The QSC D16Mio Attero Tech Synapse D16Mio Dante is a high-performance networked audio interface supporting Dante with AES67 interoperability. The D16Mio features 16 channels of studio grade microphone preamplifiers, with up to 51 dB of digitally controlled gain in 3 dB steps. Each microphone input also supports +48 V switchable phantom power and a switchable pad for accommodation of professional line level inputs. The balanced line level outputs feature digitally controlled output attenuation from 0 to -100 dB.
Product Specifications:
Maximum input level: -43 dBu (max mic gain) +24 dBu (pad active, line mode)
Input type: 3-pin depluggable terminal block
Maximum output level: +24 dBu
Input type: 3.8 mm terminal blocks
Dynamic range: >110 dB
Connector: 1/4 in TRS jack
Load: 32 Ω minimum
Protocol support: Dante with AES67 support
Channel count: 16 Dante RX, 16 Dante TX
Ports: 2 - Gb Copper on RJ-45, 2 - Gb SFP
Sample rates: 16/24-bit, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Dimensions (H x W x D): 1.75 x 19 x 12.5 Inches
Weight: 6 lbs. (2.72 kg)
