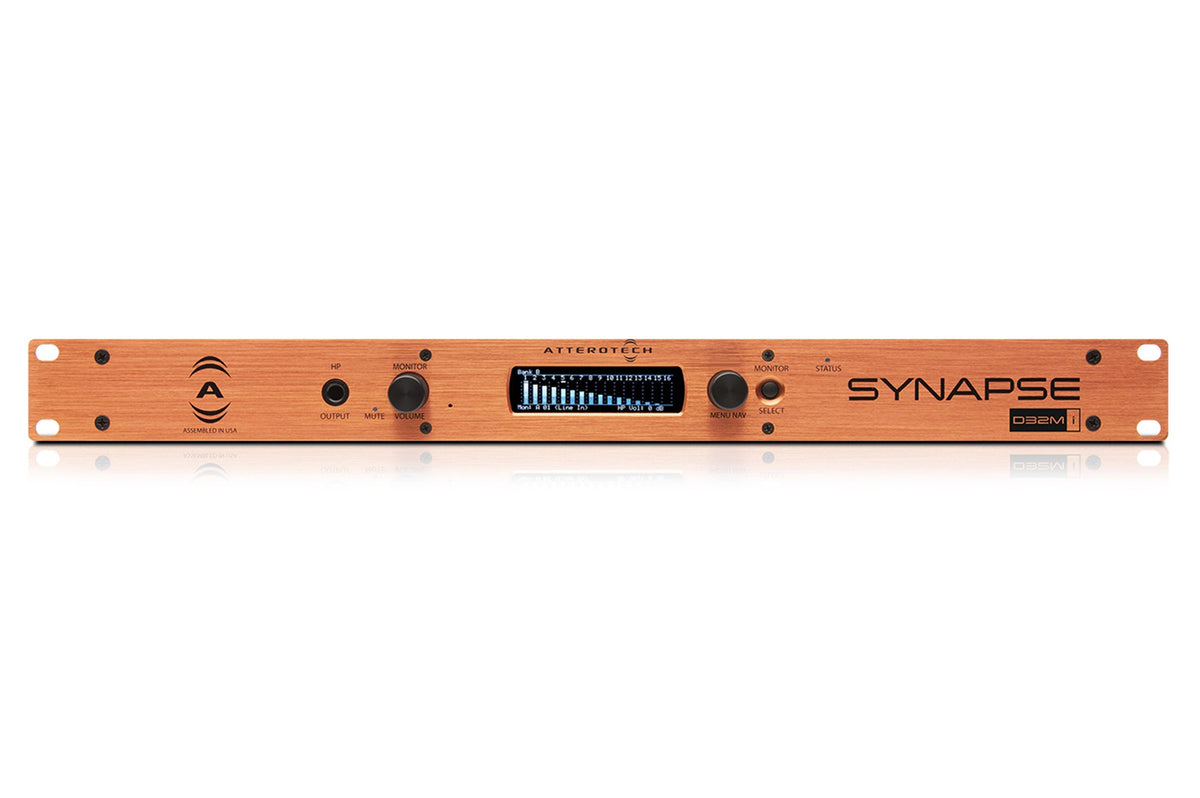

QSC D32Mi Attero Tech 32-Channel Dante
QSC D32Mi Attero Tech 32-Channel Dante
Model / SKU: H-QSC-D32MI
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The QSC D32Mi Attero Tech 32-Channel Dante is a high-performance, high-channel density networked audio interface supporting Dante with AES67 interoperability. It features 32 studio-grade mic/line preamps and is designed to address the needs of a wide range of commercial audio connectivity applications. It also offers quick access to gain, mute and phantom power controls along with front panel headphone access for local input and Dante confidence monitoring.
Product Specifications:
Maximum input level: +24 dBu (pad active - Line mode)
Input impedance: 2k Ω (mic) | 10k Ω (line)
Input type: 3-pin depluggable terminal block
Maximum output level: +24 dBu
Connector: 1/4 in TRS jack
Controls: Mute / volume encoder
Load: 32 Ω minimum
Protocol support: Dante with AES67 support
Channel count: 32 Dante RX, 2 Dante RX
Modes: Switched or Redundant mode
Ports: 2 - Gb copper on RJ-45, 2 - Gb SFP
Dimensions (H x W x D): 1.75 x 19 x 12.5 Inch
Weight: 6 lb (2.72 kg)
