QSC KLA-AF12-BK Array Frame for KLA Series Loudspeakers - Black

QSC KLA-AF12-BK Array Frame for KLA Series Loudspeakers - Black

Request a quote

Model / SKU: H-QSC-KLAAF12BK

In a hurry? Call us.

Free system design. Real people, Mon to Sat, 10 to 5 Pacific.

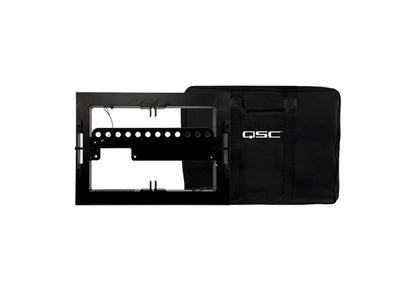

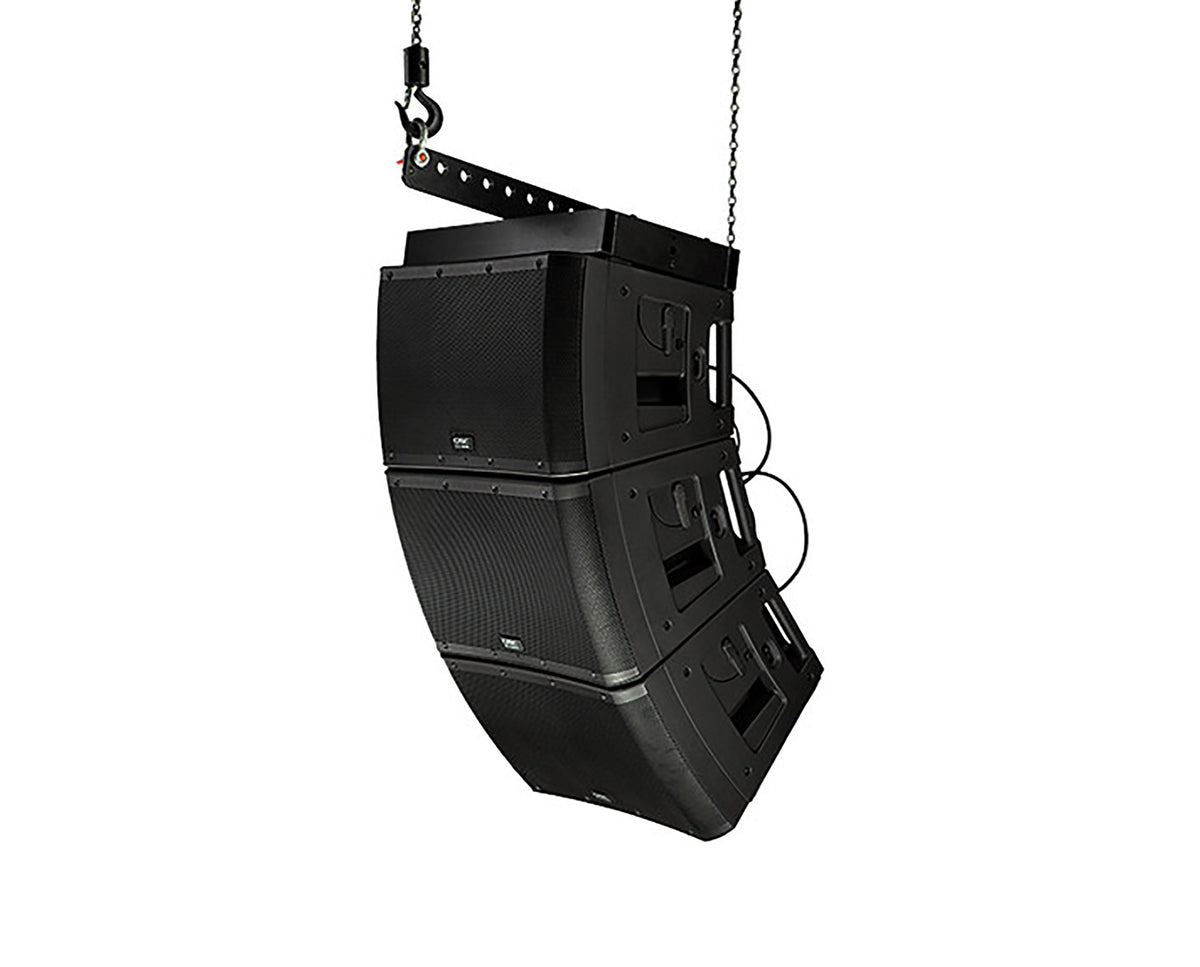

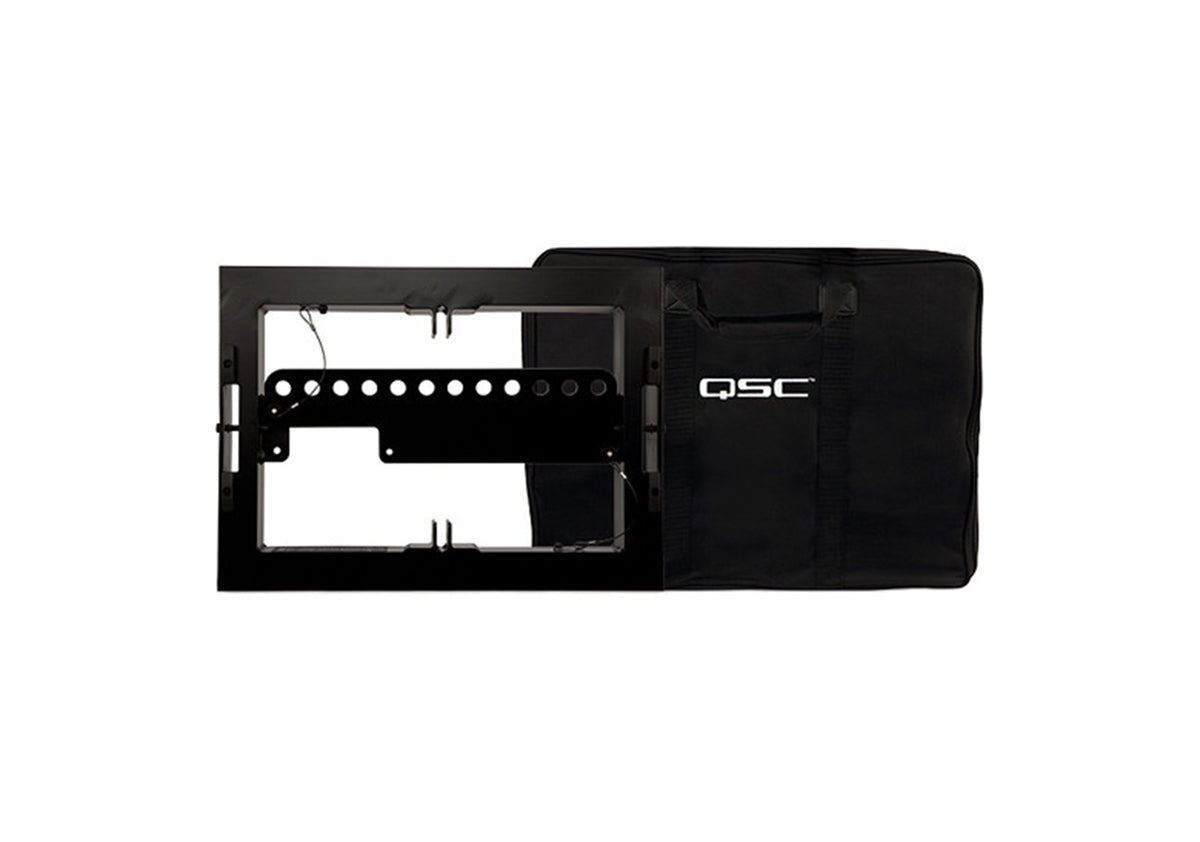

The QSC KLA-AF12-BK Array Frame for KLA Series Loudspeakers - Black is an aluminum array frame for KLA Series active line array loudspeakers. It enables you to rig and deploy arrays up to 480 lb, with a maximum of five KLA12 and two KLA181 enclosures. The KLA AF12 uses the KLA SOLO rigging system to connect to the top of speakers without the need for tools or external hardware.

Product Specifications:

Type: Hardware

Load Capacity: 480 lb / 218 kg

Material of Construction: Aluminum

Product Weight: 23 lbs.

Product Dimensions: 4.4 x 23 x 16.8 Inches

Shipping Weight: 27.5 lbs.

Shipping Dimensions (LxWxH): 25 x 19 x 6 Inches

View full details
