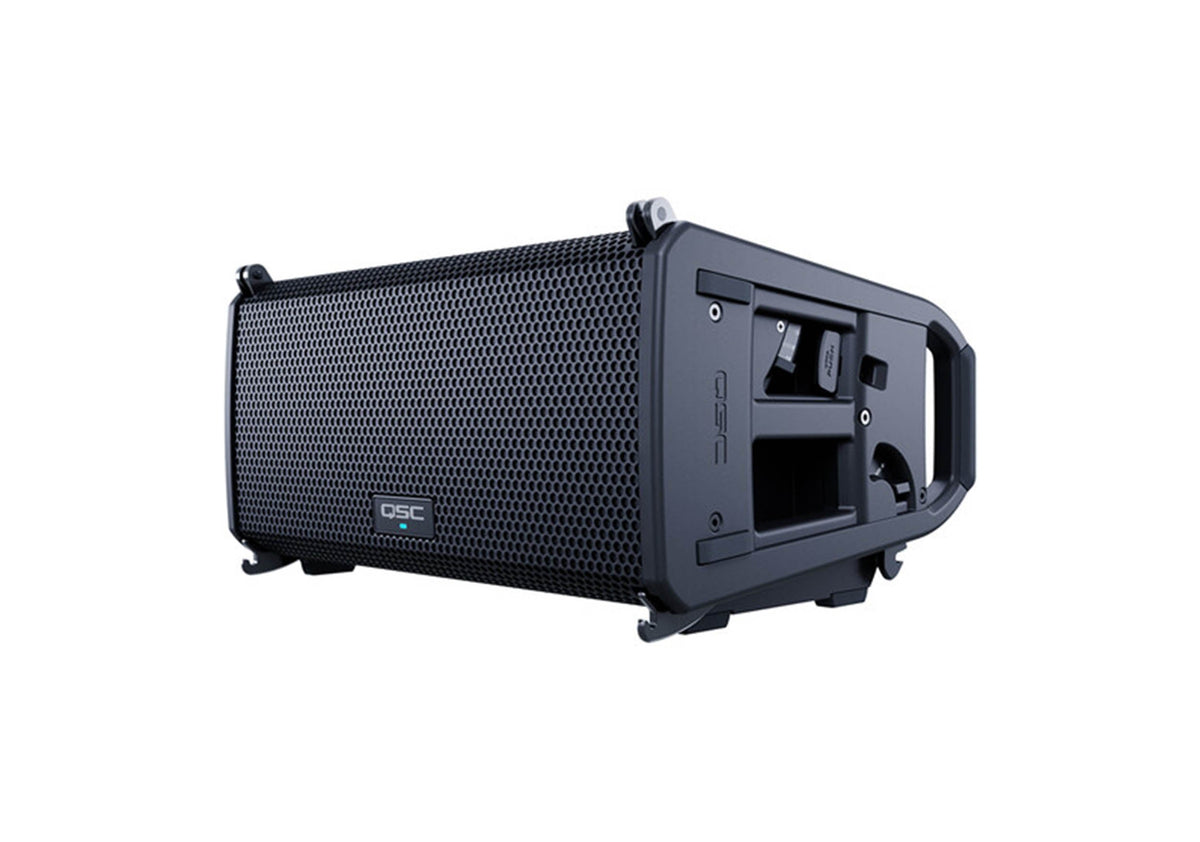

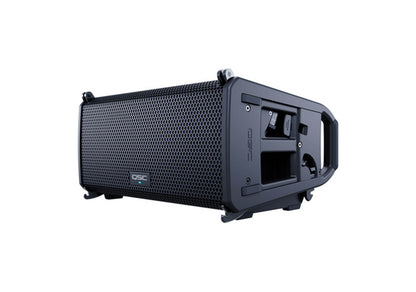

QSC LA108, 2-Way 8-Inch Powered Line Array Loudspeaker

QSC LA108, 2-Way 8-Inch Powered Line Array Loudspeaker

Request a quote

Model / SKU: H-QSC-LA108

In a hurry? Call us.

Free system design. Real people, Mon to Sat, 10 to 5 Pacific.

The QSC LA108, 8-Inch Powered Line Array Loudspeaker 2-Way is a next-generation, intelligent, active line array loudspeaker featuring a brilliant combination of leading-edge innovation, refined engineering and unparalleled ease of use in an easy-to-deploy package, well suited for live venues, fixed installations, mobile entertainers, AV rental, and event production.

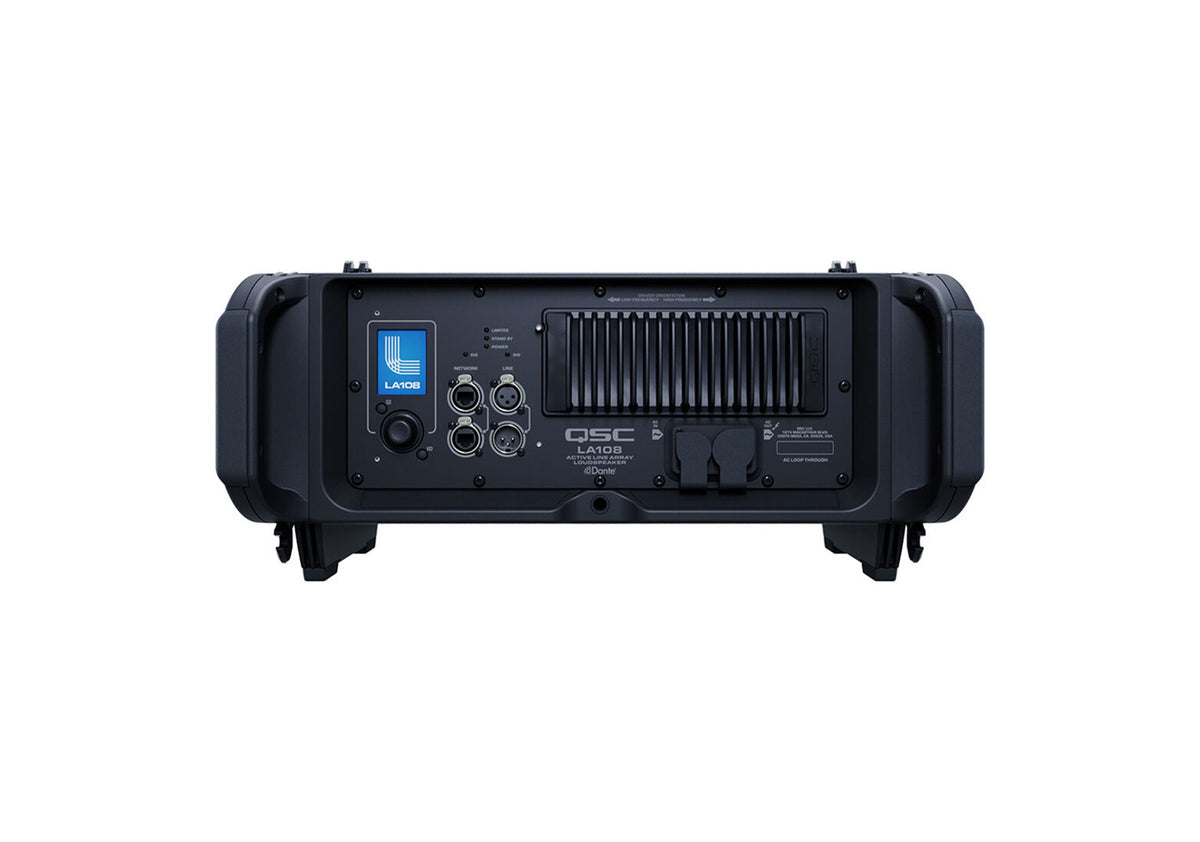

The LA108 utilizes a 1300W Class-D amplifier module, which delivers 1000W to the 8" woofer and 300W to the 1.75" compression driver for a combined frequency response of 62 Hz to 20 kHz with a max SPL of 134 dB. The rear panel features a 2.4" full-color display with rotary push button for setting up speaker configurations and fine-tuning the sound. There are two 3-pin XLR connectors, powerCON True 1 I/O connectors, and two RJ45 etherCON network I/O connectors that are Dante and QSC SysNav compatible. The LA 108 includes a powerCON TRUE 1 power cord.

Product Specification:

Configuration: Active 2-Way

Enclosure Type: Bass-Reflex Line Array

Total Power Capacity: 1300 W

Amplifier Power Rating:

LF: 1000 W

HF: 300 W

Amplifier Class: Class-D

Drivers:

HF Driver: 1 x 1.75" / 44 mm Compression Driver

LF Driver: 1x 8" / 203.2 mm Woofer

Performance:

Frequency Range: 57 Hz to 20 kHz -10 dB

Frequency Response: 62 Hz to 20 kHz -6 dB

Maximum SPL: 134 dB (Peak)

Coverage Angle: 100° H x 15° V

Connectivity:

Audio I/O:

1x XLR 3-Pin Female Line Input

1x XLR 3-Pin Male Line Thru

Network I/O: 2x RJ45 (Control/Dante/Network) In/Out

USB I/O: No

Wireless Connectivity: No

App Name: QSC SysNav

Signal Processing:

Filters: High-Pass

Dynamic Processing: Limiter

Power:

AC Input Power: 100 to 240 VAC, 50 / 60 Hz

AC Power I/O:

1x powerCON Input

1x powerCON Output

Current Consumption:

100 VAC: 0.8 A (1/8 Power)

120 VAC: 0.75 A (1/8 Power)

230 VAC: 0.5 A (1/8 Power)

Physical:

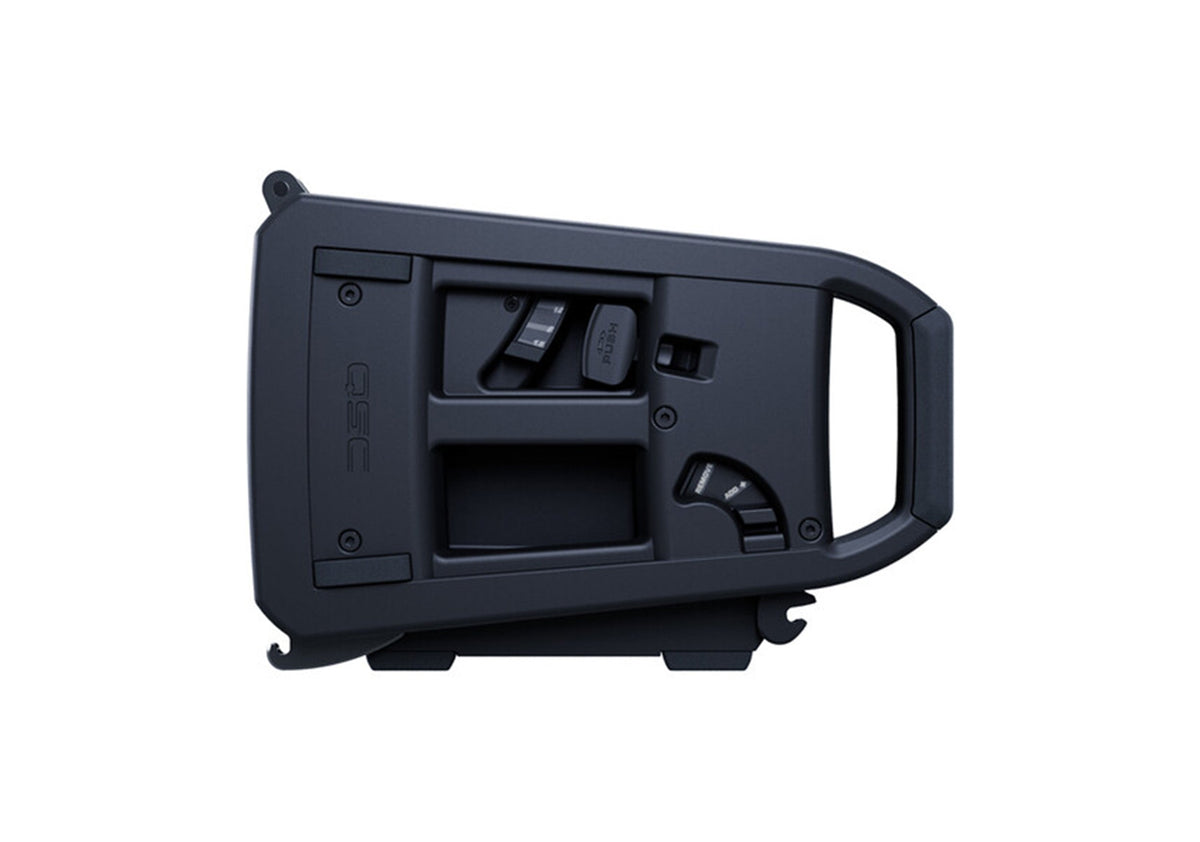

Mounting:

M10 Fly Point (Rear)

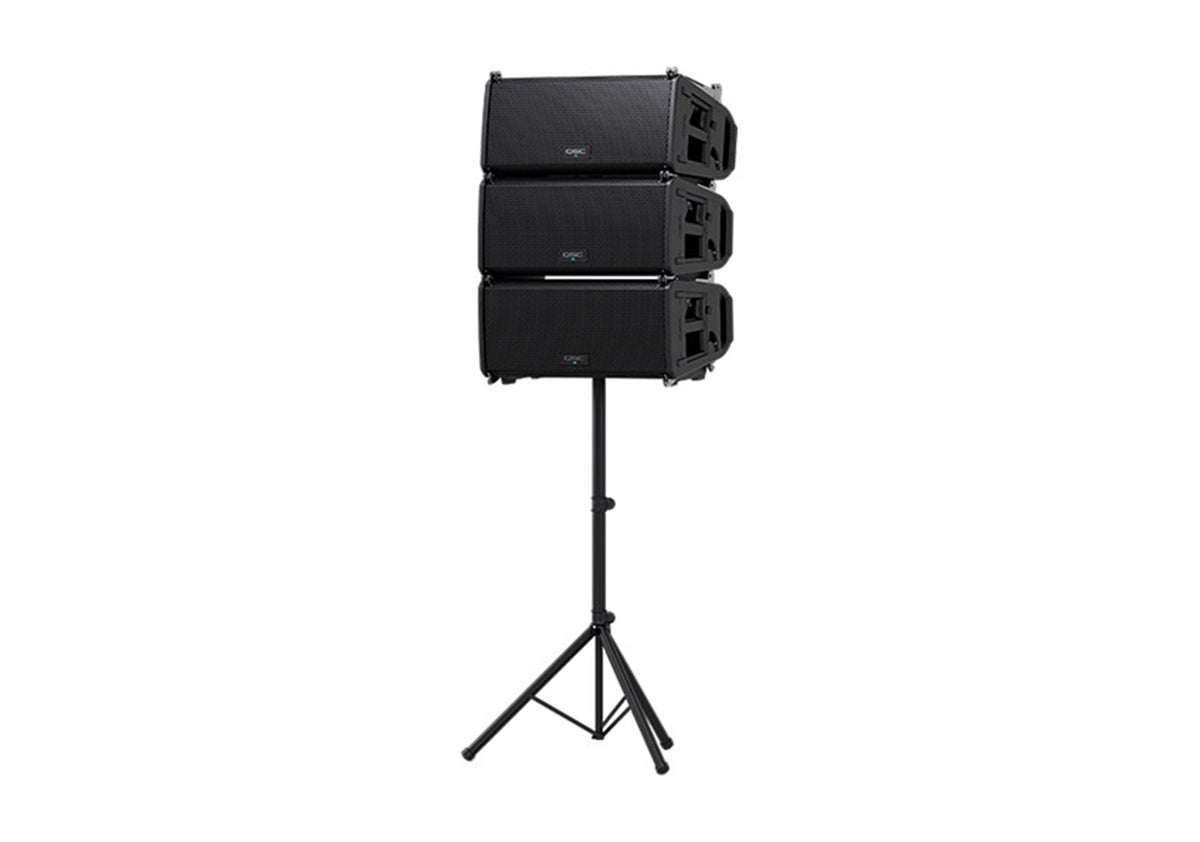

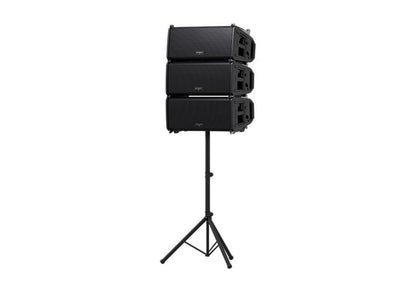

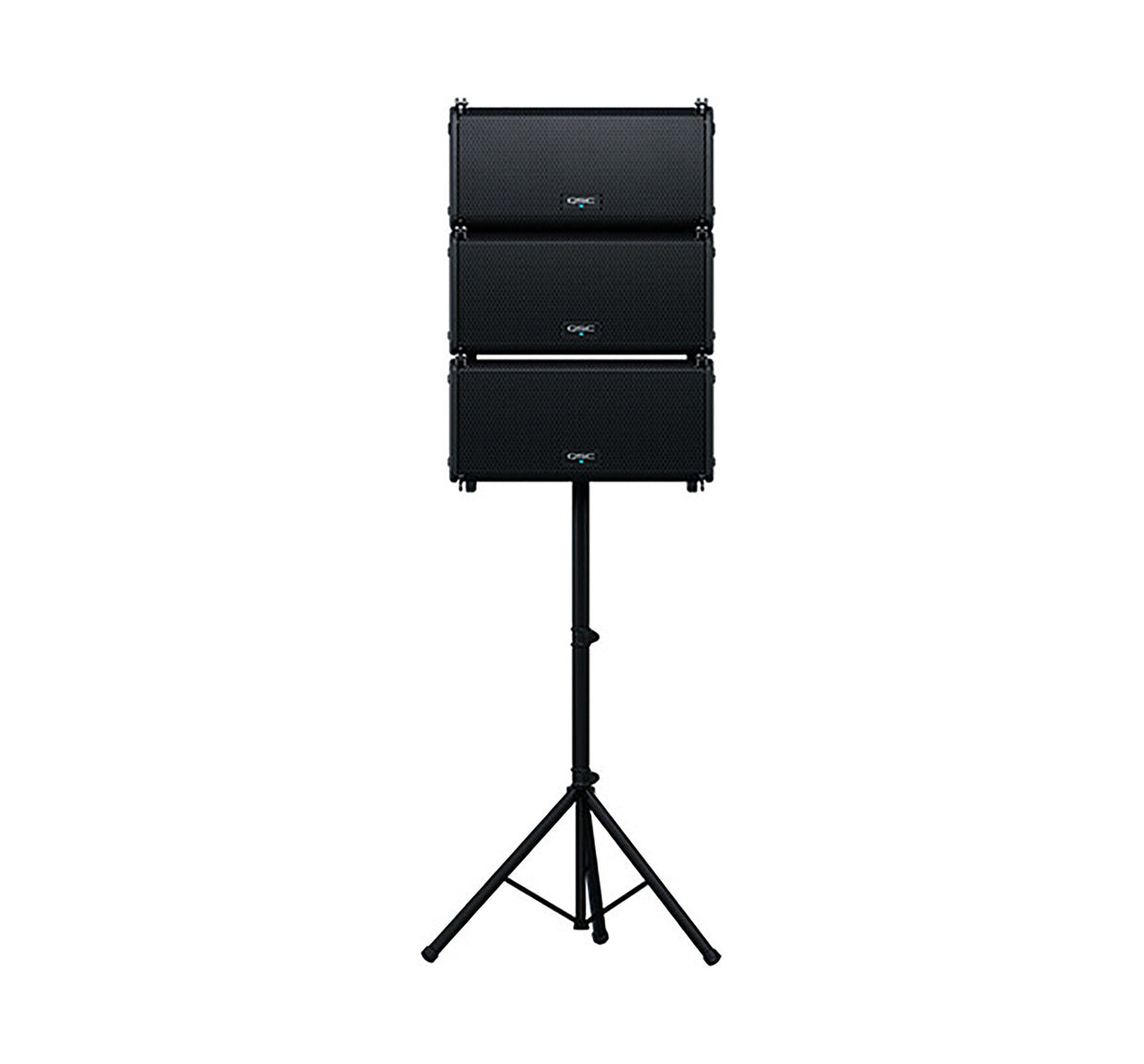

1 x Pole Socket (Dual Angle, Bottom)

Cooling: Convection

Construction Material: ABS, Metal Grille

Product Weight: 30.1 lbs. / 13.7 kg

Product Dimensions: 20.4 x 14.7 x 10.7 Inches

Shipping Weight: 39.085 lbs.

Shipping Dimensions (L x W x H): 22.2 x 20.4 x 13.7 Inches
