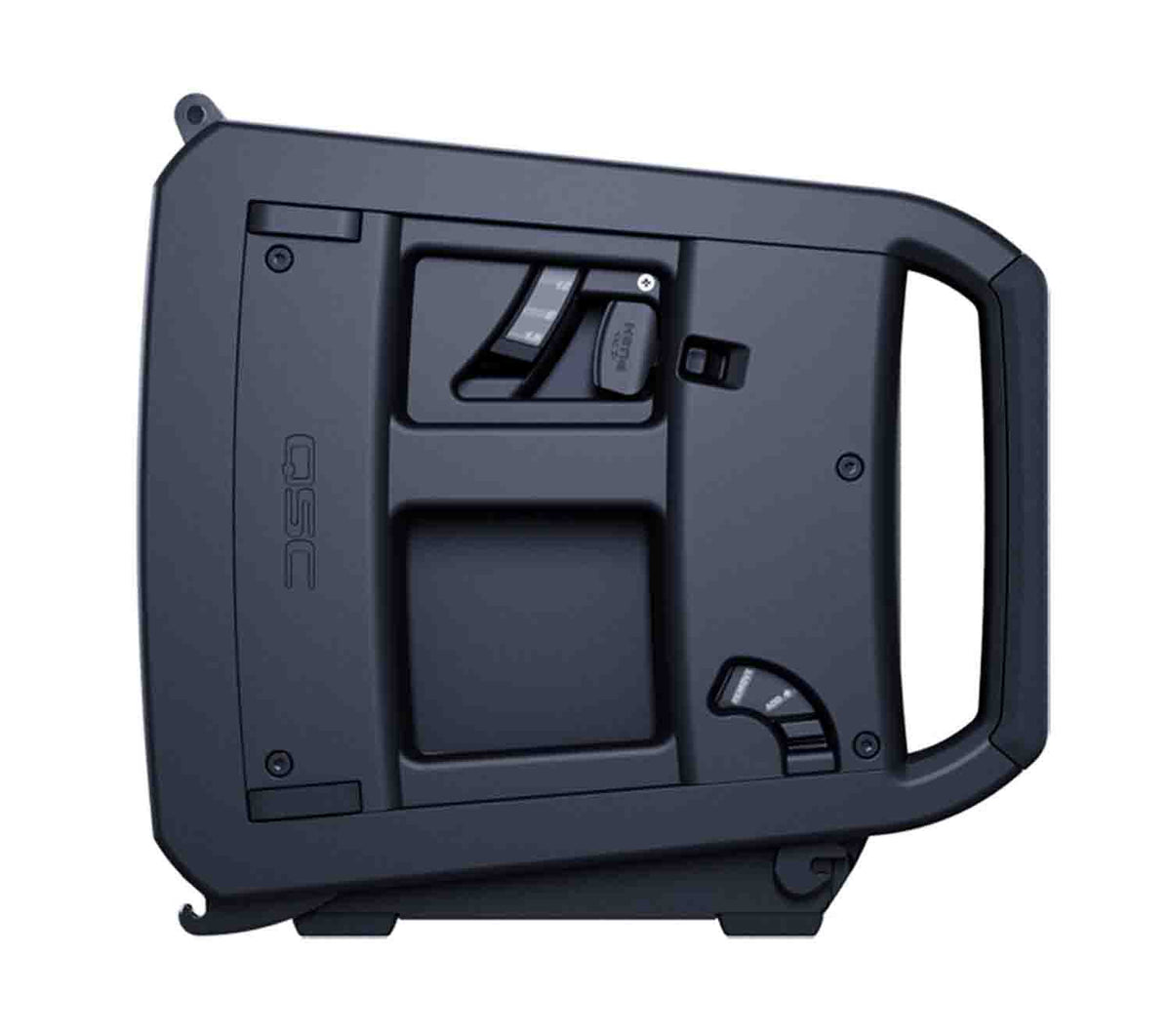

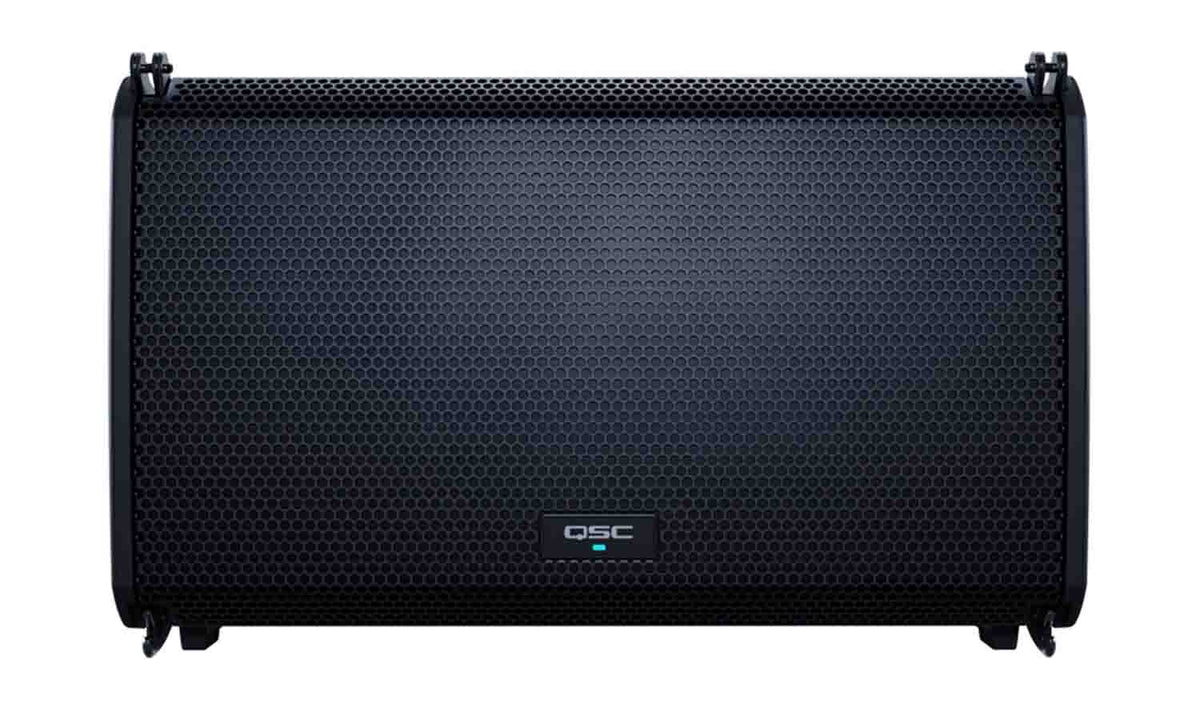

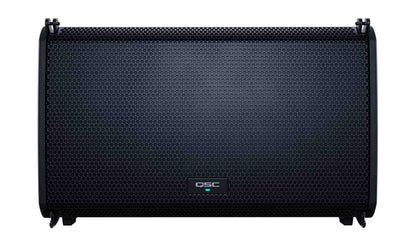

QSC LA112, 2-way 12" Powered Line Array Loudspeaker

The QSC LA112, 2-way 12" Powered Line Array Loudspeaker featuring a brilliant combination of leading-edge innovation, refined engineering and unparalleled ease of use in an easy-to-deploy package. Delivering extraordinary audio experiences and exceptional performance via system intelligence and premium components, the LA112 is the result of a deep understanding of customer needs and application requirements.

The LA112 is easy to configure and deploy for applications ranging from simple, portable, plug-and-play setups, to demanding, networked, high-tech AV productions and fixed installations. Solo entertainers, installers and production companies will value its intuitive splay angle adjustment and array optimization, as well as its flexible interoperability with networked audio systems (Dante).

Deployed using dedicated array frame, ground-stacked (array frame combined with optional sub-stack adapters), or mounted using loudspeaker stand/pole, the LA112 loudspeaker also features daisy-chain connections for analog, digital audio and AC power

Product Specifications:

Configuration: Two-way active line array loudspeaker

LF Transducer: 305 mm (12-inch), cone

HF Transducer: 2x 44 mm (1.75-inch), compression drivers with Polyimide diaphragm

Frequency Response (-6 dB): 58 Hz - 20 kHz

Frequency Range (-10 dB):   53 Hz - 20 kHz

Nominal Coverage Angle: 90° H x 15° V

Maximum Rated SPL1 (peak): 136 dB @1 m

Amplifier (peak): Class D, LF 1600 W / HF 800 W

Cooling: Convection cooling

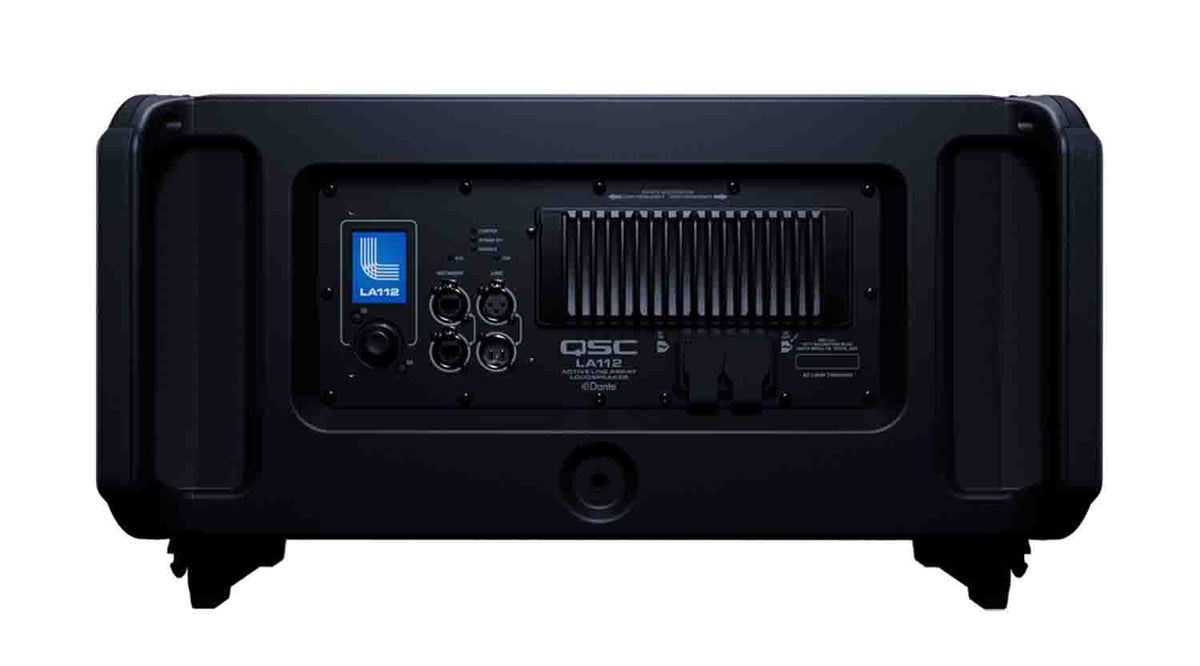

Connectors

XLR Female (Analog In)

XLR Male (Analog Thru)

2 x RJ45 EtherCON (Dante and QSC SysNav In/Thru)

2 x PowerCON TRUE1 (AC Power Inlet/Outlet)

Dimensions (H × W × D): 15.4 x 24.8 x 16.4 inches

Net Weight: 21.4 kg (47.2 lb)

Shipping Weight: 26.2 kg (57.7 lb)

Supplied Accessories: 1 x PowerCON TRUE1 power cable
