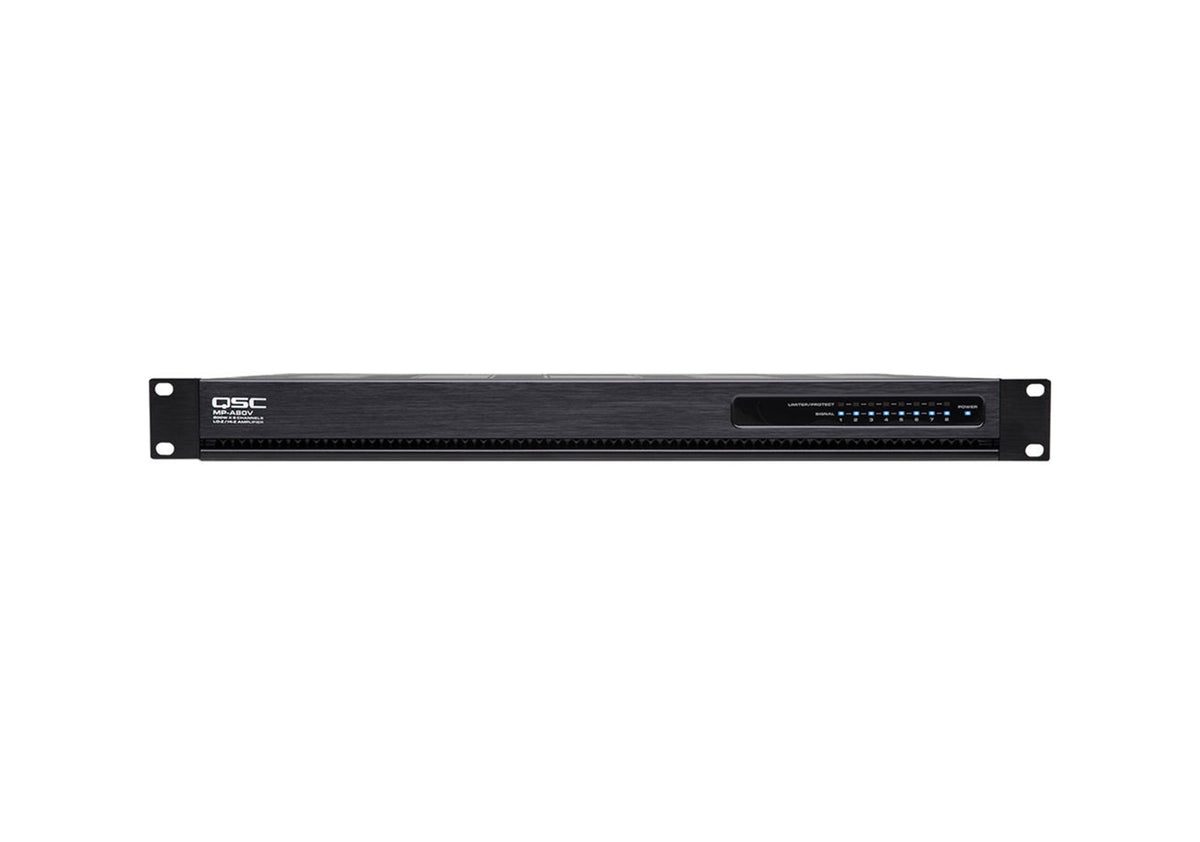

QSC MP-A80V Multi-Channel Amplifier - 8-Channel
QSC MP-A80V Multi-Channel Amplifier - 8-Channel
Model / SKU: H-QSC-MPA80V
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The QSC MP-A80V Multi-Channel Amplifier - 8-Channel is a designed for background music and paging applications. The amplifier utilizes Class-D output circuitry with a switch-mode power supply and active PFC. The amplifier provides a FlexAmp circuit topology that enables each pair of channels to deliver up to 400 Watts of total power in any ratio. This FlexAmp technology when combined with the ability to drive any type of output load (4/8 ohms or 70/100V) ensures remarkable flexibility.

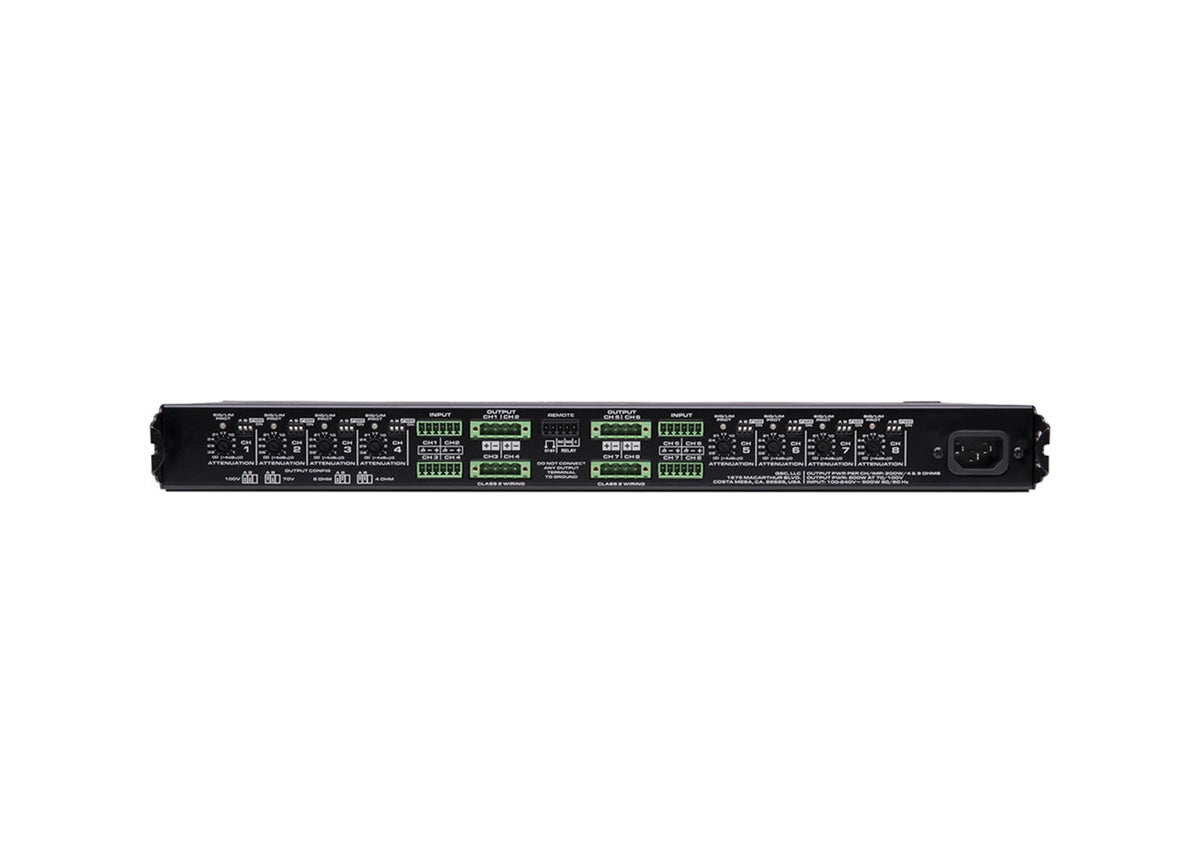

The rear panel offers 8 x 3-pin Euroblock inputs, 4 x 4-pin Euroblock outputs, and a single 5-pin Euroblock remote input for putting the amplifier into standby mode for fire safety systems and an amplifier status signal on the remote output for system verification. The MP-A80V includes an 80 Hz high-pass filter per channel and ships with Euroblock connectors, cable ties, and a power cord.
Product Specifications:
Amplifier:
Number of Channels: 8
Amplifier Power Rating:
4 Ohms / 8 Ohms / 70 V / 100 V: 8x 200 W RMS per Channel
Amplifier Class: Class-D
Load Impedance / Voltage:
Mono/Stereo:
4 / 8 Ohms per Channel
70 / 100 V per Channel
Performance:
Protections: DC Fault, Open Circuit, Overcurrent, RF, Short Circuit, Thermal
Frequency Response: 20 Hz to 20 kHz ±0.5 dB (8 Ohms)
Damping Factor: 100
Input Sensitivity:
Block Line: +4 dBu (Balanced)
Input Impedance:
Block Line: >10 Kilohms (Balanced/Unbalanced)
Max Gain: 30 dB (at 8 Ohms)
Max Input Level: +24 dBu / 12.3 V
SNR: > 103 dB
Distortion:
< 0.01% (at 4 Ohms, at 8 Ohms)
< 1% (at 4 Ohms, at 8 Ohms, Max)
Crossover: Yes
Filters:
1x High-Pass: 80 Hz
Connectivity:
Analog Audio I/O:
8x Block 3-Pin Balanced Line Input
4x Block 4-Pin Speaker Output
1x Block 5-Pin Remote Input
AC Input Power: Universal:
100 to 240 VAC, 50 / 60 Hz
AC Power Connector: 1x IEC 15 A / NEMA 5-15
Display & Indicators:
Front Panel:
1x Multi-Color LED (Power/Standby)
1x Multi-Color LED (Limit/Mute/Protect/Signal, per Channel)
Rear Panel:
1x Multi-Color LED (Limit/Protect/Signal/Standby)
Rackmount Size: 1 U
Cooling: 1x Fan (Variable Speed)
Certifications: CE, FCC, RoHS, UL, WEEE
Product Dimensions: 19.0 x 1.8 x 14.8" / 482.6 x 45.7 x 375.9 mm
Product Weight: 12.8 lb / 5.8 kg
Shipping Weight: 17.3 lbs.
Shipping Dimensions (LxWxH): 23.3 x 20.2 x 6.6 Inches
