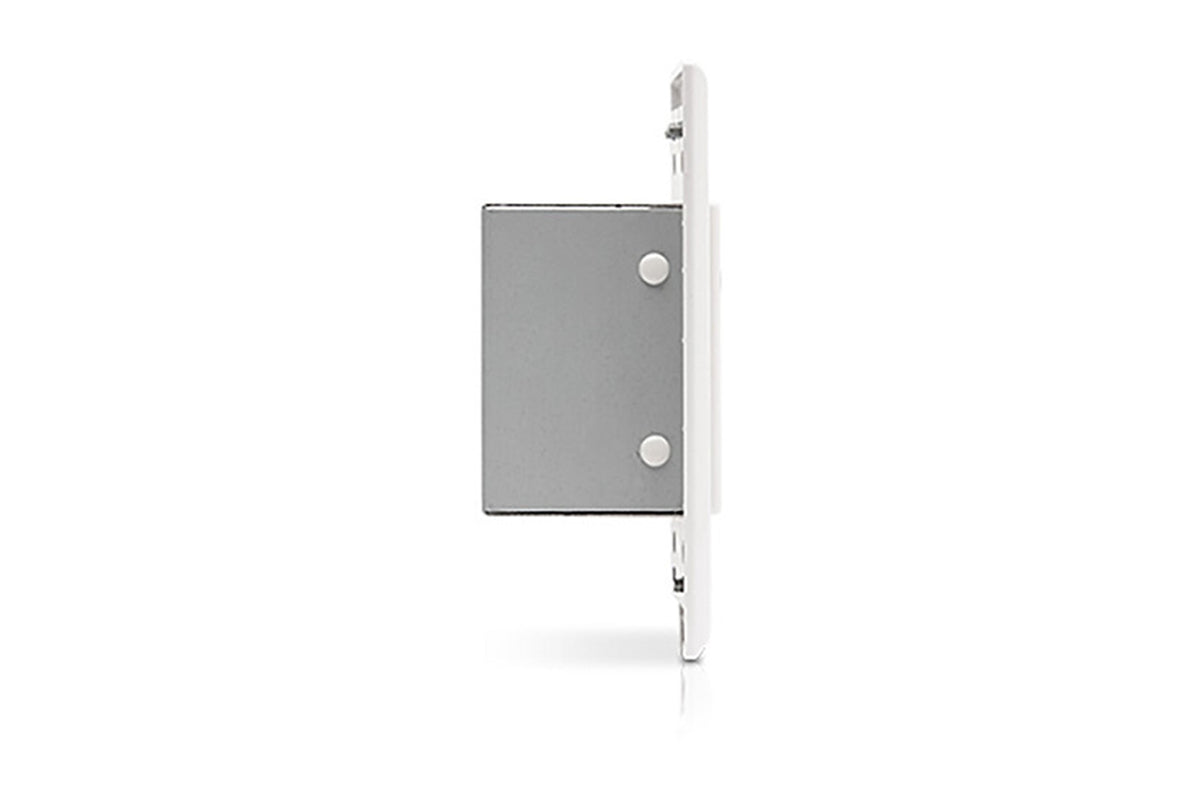

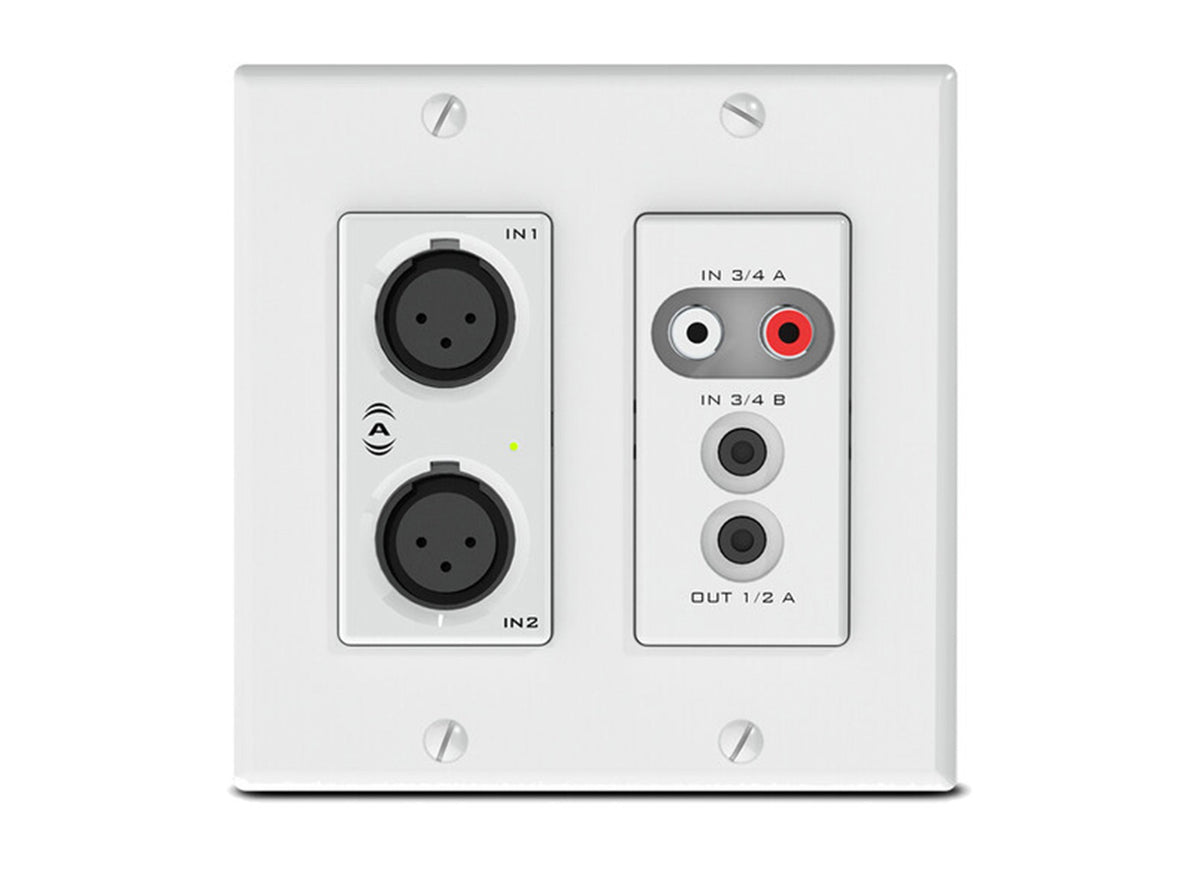

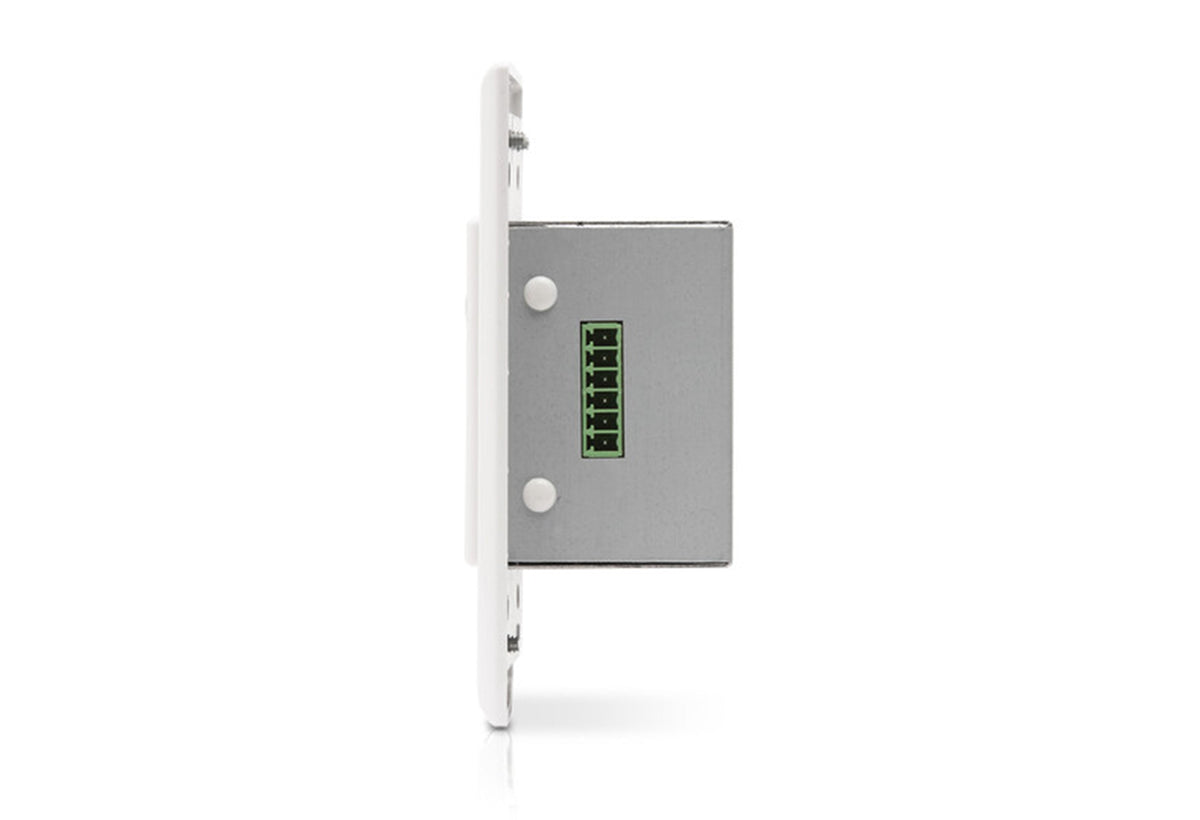

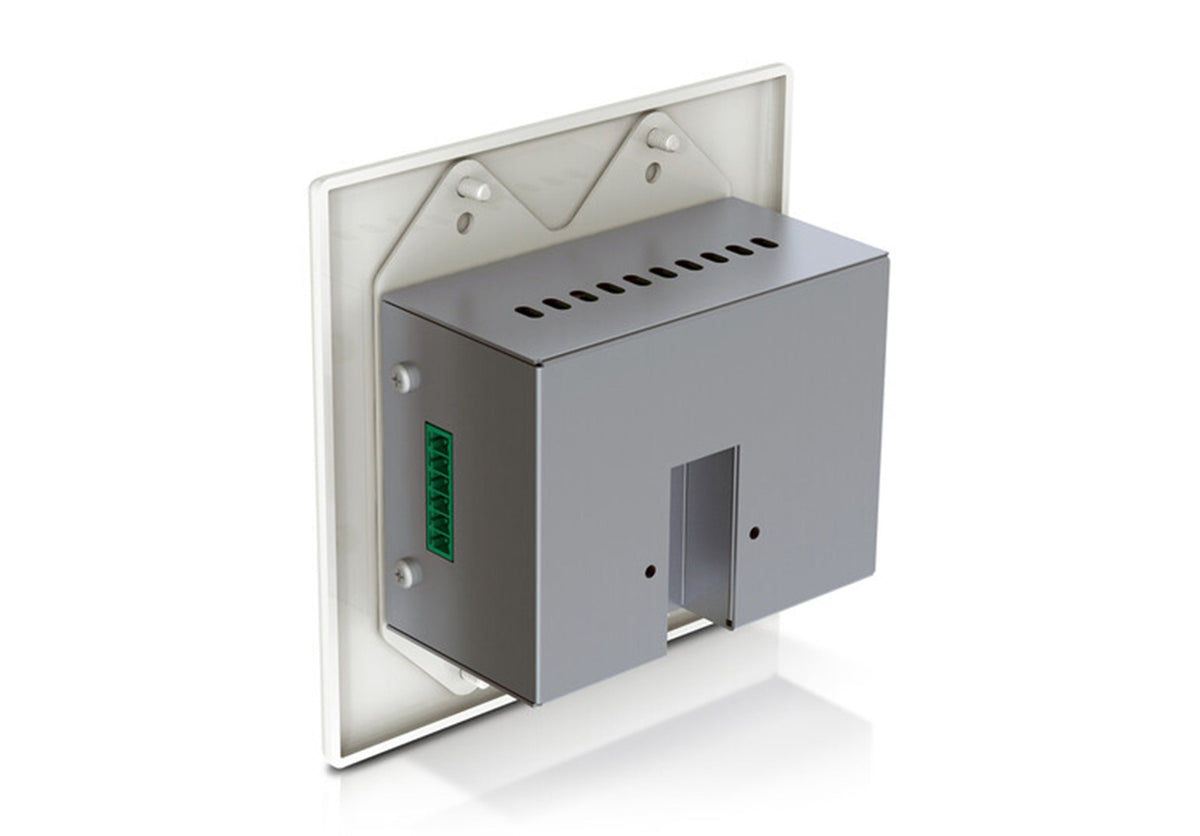

The QSC Und6io Attero Tech By QSC Dante Networked Audio Wall Plate is a cost-effective, multi-IO Dante network audio wall plate, featuring XLR, RCA and 3.5 mm inputs along with one 3.5 mm and two balanced outputs in a dual-gang form factor. The unD6IO is PoE enabled, delivering all connectivity (power, control and audio data) with a single CAT-5e/6 cable. The size and I/O density of the unD6IO make it easy to put Dante connectivity wherever it is needed - near the audio source or sink - thereby eliminating costly and interference-prone analog wiring.
Product Specifications:
Phantom Power: +48 V (inputs 1 & 2 only)
Attenuation Range: -60 dB to 0 dB (software-controlled)
Maximum Output Levels:
+12 dBu at 0 dB attenuation (output 1/2 A)
+20 dBu at 0 dB attenuation (output 1/2 B)
Physical level: Standard Ethernet
Connector: Single RJ-45
Cable Type: CAT-5e or higher
Supported Sample Rates: 44.1 kHz, 48 kHz
Power: PoE (802.3af)
Decora Wall Plate (2-Gang): 4.87 x 4.94 x 0.08”
Weight: 0.6 lbs. (.27 kg)
Dimensions (H x W x D): 4.2 x 3.5 x 2 Inches
Shipping Weight: 1 lbs.
Shipping Dimensions ( H x W x D): 6 x 4 x 3 Inches
