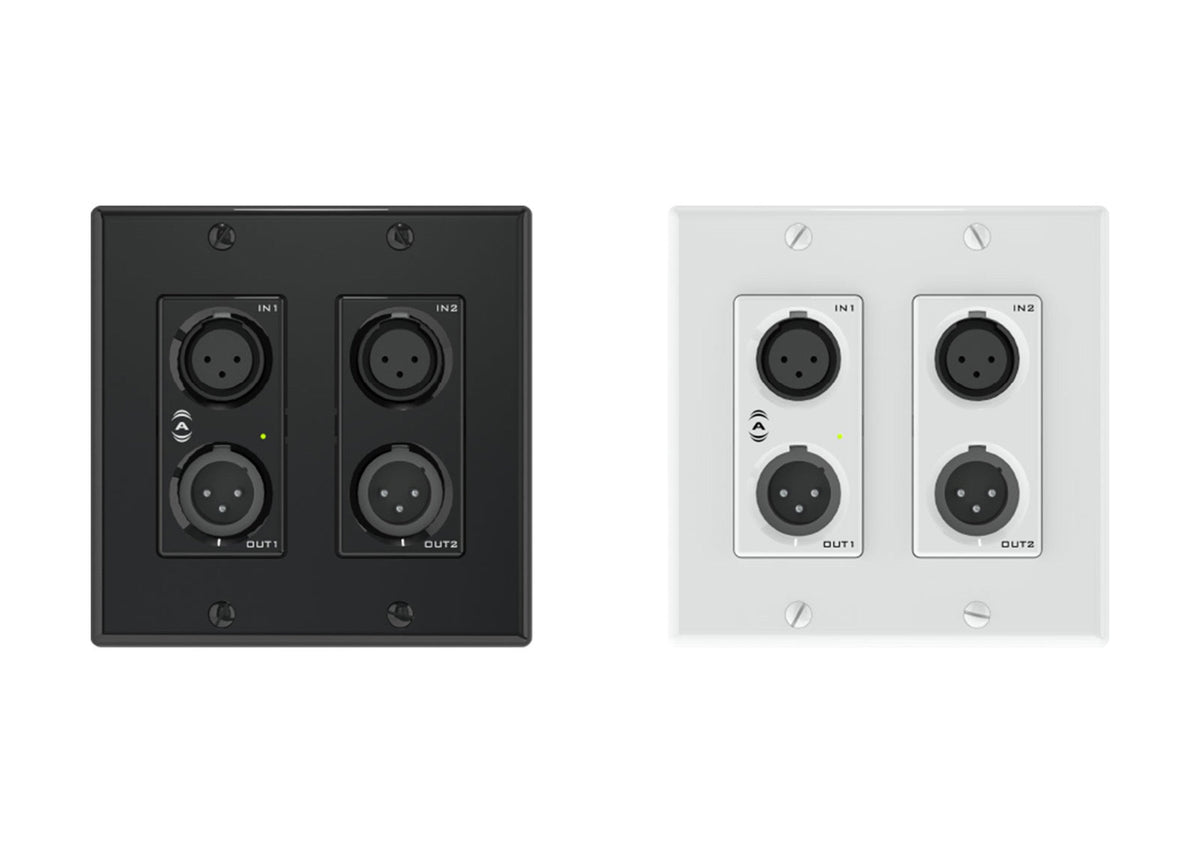

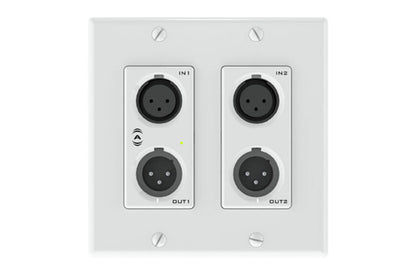

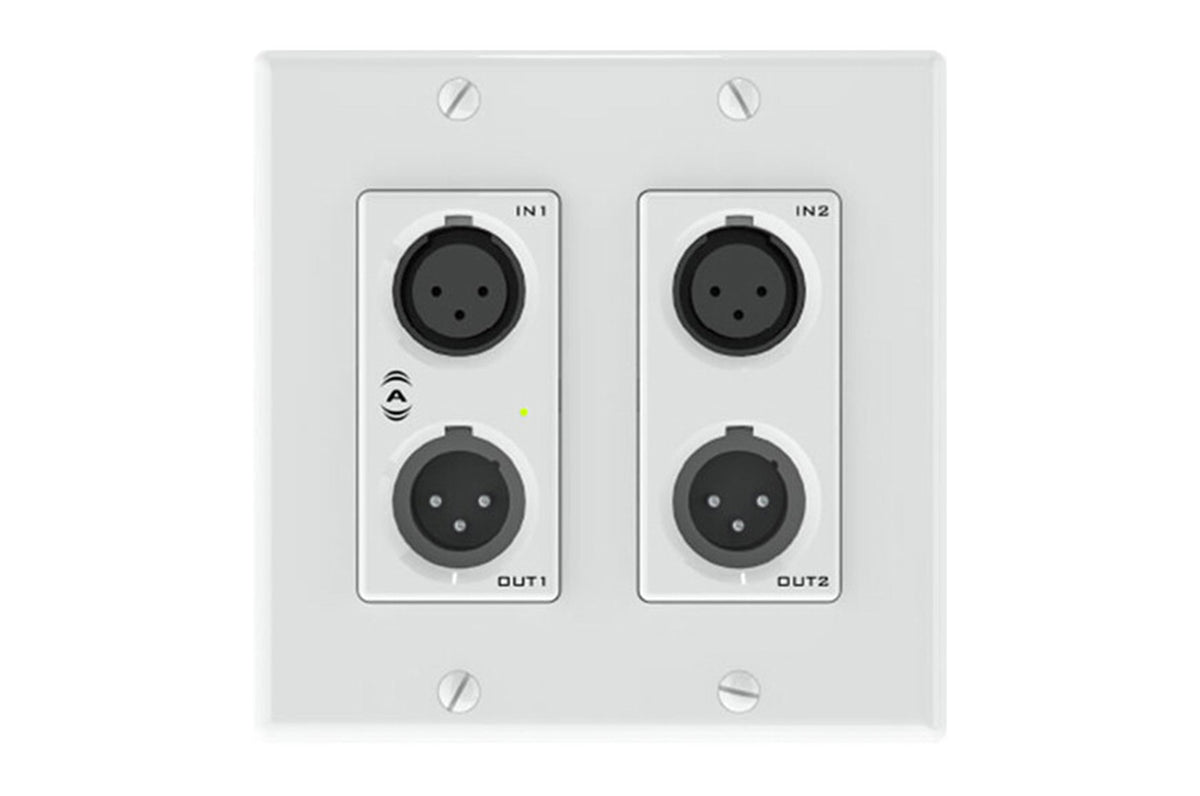

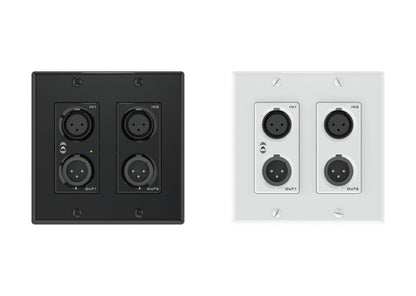

QSC unDX2IO+, QSC Dante/AES67 Network XLR Audio Wall Plate
QSC unDX2IO+, QSC Dante/AES67 Network XLR Audio Wall Plate
Model / SKU: H-QSC-UNDX2IOPLUS
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The QSC unDX2IO+, QSC Dante/AES67 Network XLR Audio Wall Plate is a cost-effective multi-IO Dante audio network wall plate, featuring two balanced mic/line XLR inputs, two balanced XLR line outputs and two balanced line level inputs. All inputs and outputs can be used simultaneously and all audio channels are available separately. The unDX2IO+ is designed to fit into all dual-gang US junction boxes, mud rings and old work brackets. This accessory is PoE enabled, so all connectivity (power, control, and data) is provided by a single CAT-5/6 cable.
Product Specifications:
Input types: 3-pin XLR (balanced and RF filtered)
Gain: -18 dB, -3 dB, +25 dB, +40 dB, software-selectable
Phantom power: +48 V, software-selectable
Output type: Balanced line level with automatic muting on loss of Dante signal
Maximum output level: +20 dBu
Physical level: Standard ethernet
Connector: Single RJ-45
Supported sample rates: 44.1 kHz, 48 kHz
Dimensions (HWD): 4.2 x 3.5 x 2”
Decora wall plate (2-gang): 4.87 x 4.94 x 0.08”
Weight: 0.6 lb (.27 kg)
