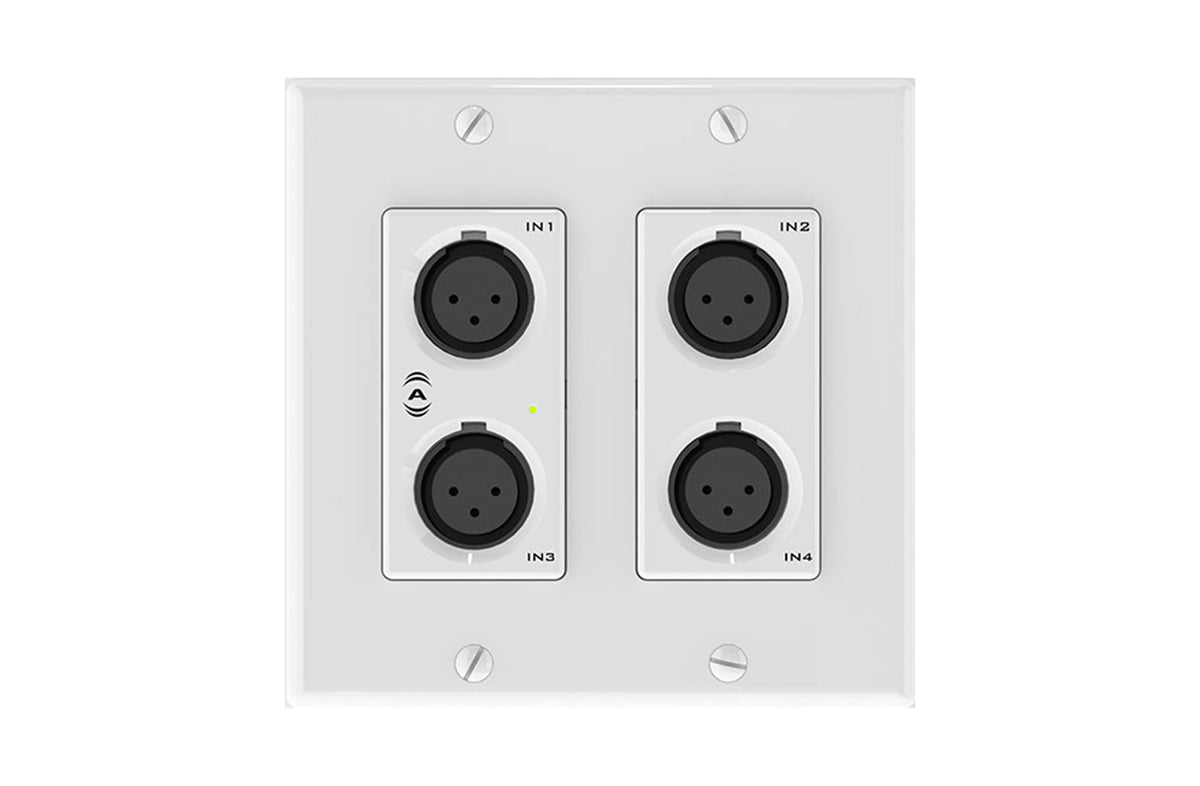

QSC Undx4i Attero Tech 4x2 Dante Networked Audio Wall Plate

The QSC Undx4i Attero Tech 4x2 Dante Networked Audio Wall Plate is a cost-effective multi-IO Dante network audio I/O wall plate, featuring four balanced mic/line XLR inputs and two balanced line outputs on a Phoenix connector. Designed to fit into most dual gang US junction boxes, the unDX4I is PoE enabled, so all connectivity (power and data) is provided by a single CAT-5 cable. The unDX4I’s size and I/O density make it easy to put Dante connectivity wherever it’s needed - near the audio source or sink - thereby eliminating costly and interference prone analog wiring.

Product Specifications:

Input types: 4x XLR (balanced and RF filtered)

Gain: -18 dB, -3 dB, +25 dB and +40 dB, software selectable

Maximum input level: +20 dBu @ -18 dB gain,

+6 dBu @ - 3 dB gain,

-23 dBu @ +25 dB gain

-38 dBu @ +40 dB gain

Phantom power: +48 V, software selectable

Output type: Two balanced line level with automatic muting on loss of Dante signal on 3-pin depluggable Phoenix

Attenuation range: Software controlled volume (0 to -60 dB, 1 dB increments)

Maximum output levels: +20 dBu at 0 dB attenuation

Physical level: Standard ethernet

Connector: Single RJ-45

Cable quality: CAT-5e or higher

Transmission speed: 100 Mbps

Supported sample rates: 44.1 kHz, 48 kHz

PoE: 802.3af PoE PD compliant

Dimensions (HWD): 4.2 x 3.5 x 2 Inches

Decora wall plate (2-gang): 4.87 x 4.94 x 0.08”

Weight: 0.6 lbs. (.27 kg)
