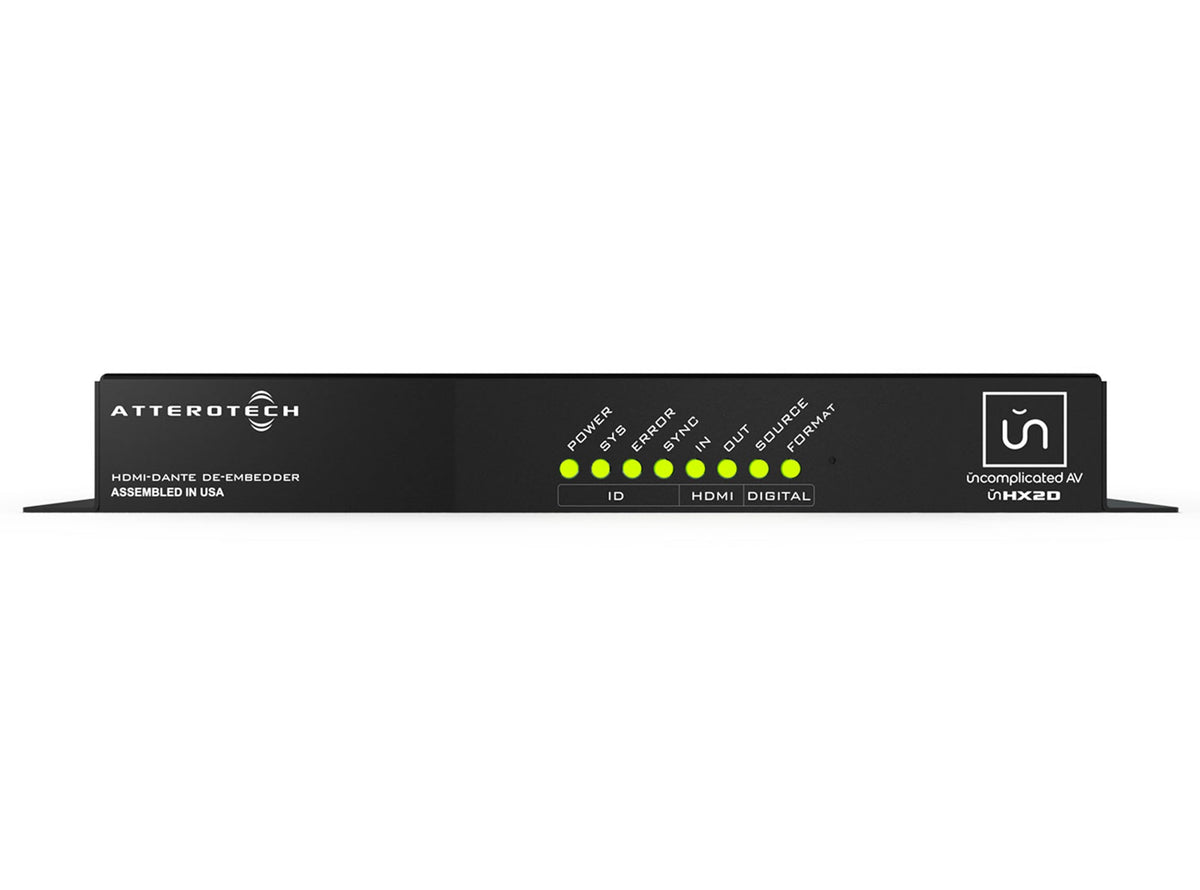

QSC Unhx2d Attero Tech HDMI Audio D-Embedder
QSC Unhx2d Attero Tech HDMI Audio D-Embedder
Model / SKU: H-QSC-UNHX2D
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.

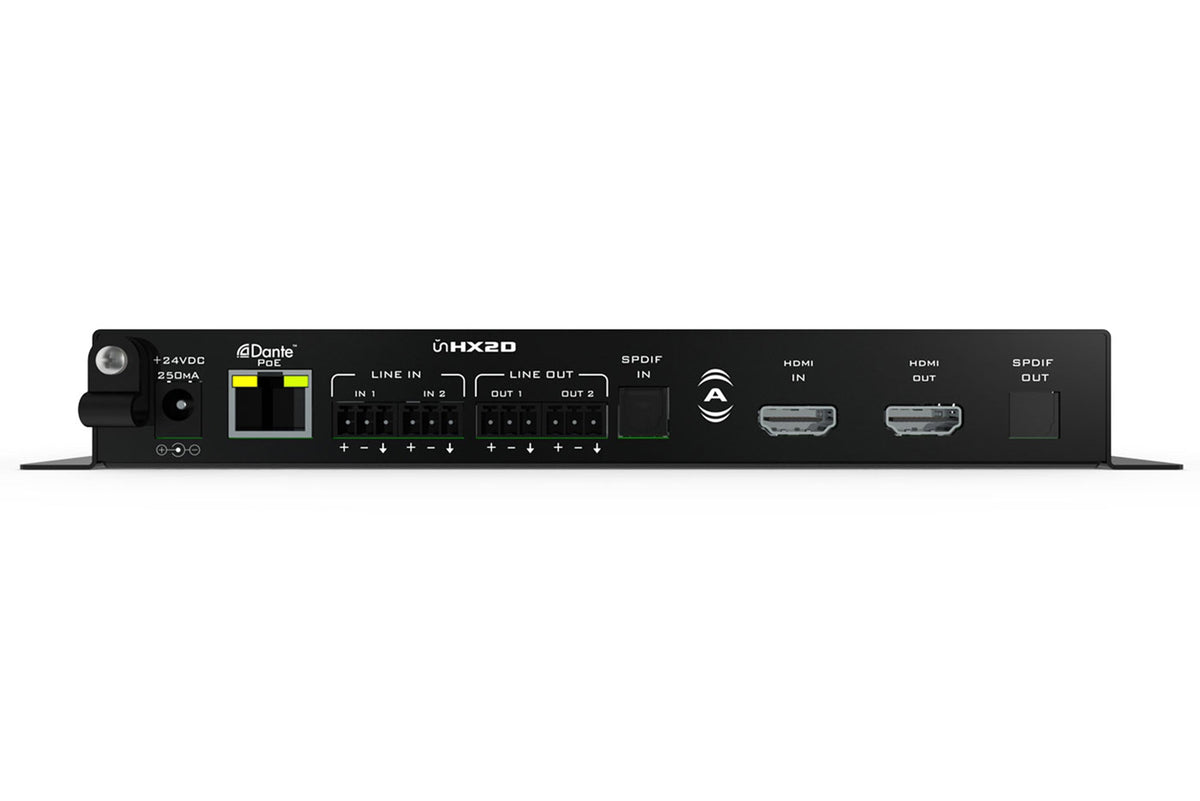

The QSC Unhx2d Attero Tech HDMI Audio D-Embedder is HDMI audio embedder/de-embedder designed to bridge two-channel PCM HDMI audio to and from a Dante/AES67 audio network. In addition, the unHX2D includes line level analog I/O that can be independently bridged to/from Q-SYS via Dante/AES67. The HDMI output operates as a pass thru repeater of HDMI input video source.
Product Specifications:
Input types: Balanced 3-pin line level
Input sensitivity: , 10 dBV (consumer) or +4 dBu (professional) software selectable
Maximum input levels: +20 dBu (+/- 0.5 dB) @ +4 dBu input sensitivity +10 dBV (+/- 0.5 dB) @ -10 dBV input sensitivity
Output type: Balanced 3-pin line level
Maximum output level: +20 dBu (+/- 0.5 dB)
Supported formats: S/PDIF 2ch PCM, 24 bit
Supported sample rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 192 kHz
Supported formats: S/PDIF 2ch PCM, 24 bit
Supported sample rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 192 kHz
Supported formats: 2ch PCM, 24 bit
Supported sample rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 192 kHz
Supported formats: 2ch PCM, 24 bit
Supported sample rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 192 kHz
HDCP: v2.2
HDMI: v2.0
Supported resolutions: up to 4K60 4:4:4
Max color depth: 48 bit
Connectors: HDMI Type A
Physical Layer: Ethernet
Connector: Single RJ-45
Supported sample rates: 48 kHz
Minimum Dante network latency: 1 ms
PoE: 802.3af PoE PD compliant
Physical Dimensions (H x W x D): 1 x 9.2 x 4 Inches
Weight: 1.3 lbs. (.6 kg)
