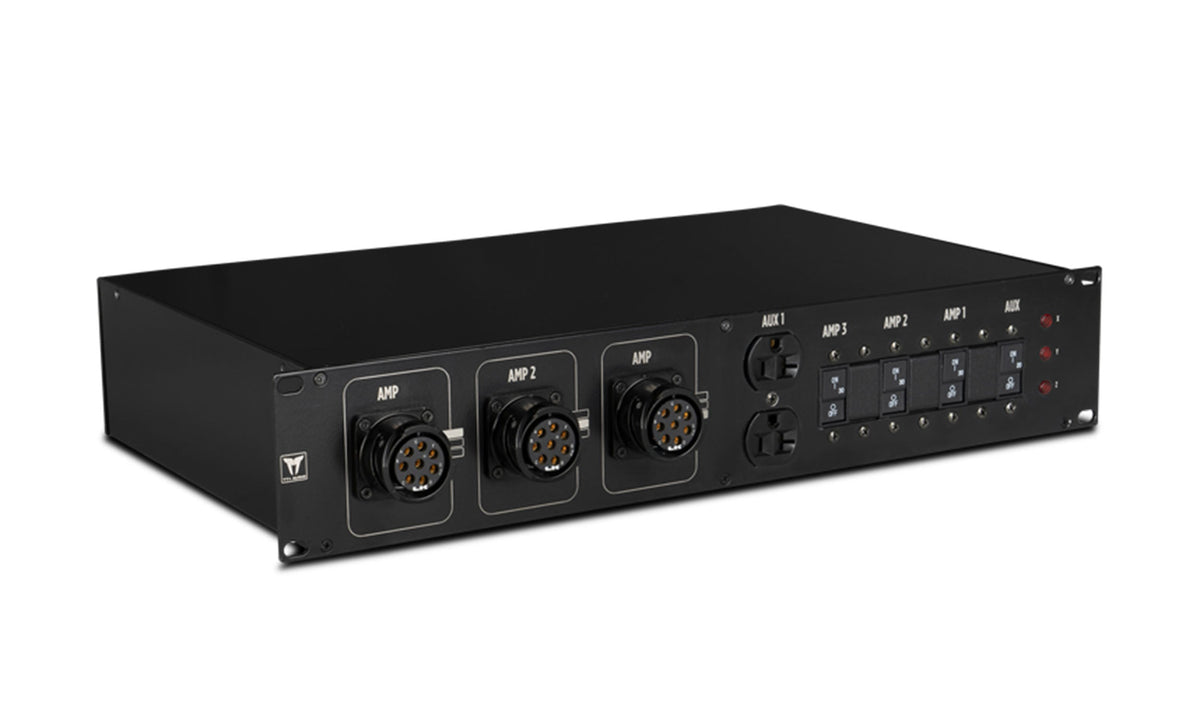

RCF AC Power Distribution Box for Three XPS 16K Amplifiers

The RCF PD 30A is a professional AC power distribution box designed to supply power to three XPS 16K amplifiers installed in a 19" rack. Its 2RU metal chassis provides a compact and organized power management solution for professional audio systems, touring racks, installations, and live production environments. The unit uses a 1.5-meter input cable terminated with a 30A NEMA L21-30P five-pole plug and supports either 120V line-to-neutral or 208V line-to-line power configurations.

Each XPS 16K amplifier output is protected by an individual 30A 1P+N circuit breaker and terminates in a Neutrik PowerCON NAC3FCH connector. Three outputs are provided with different cable lengths to help optimize internal rack wiring. The PD 30A also includes six internal Speakon NL4 cables that connect to three P-COM 8-pole connectors on the front panel, providing an organized connection system for the amplifiers. Three neon indicators show phase presence for convenient power monitoring.

Auxiliary power is provided through a front-panel double NEMA 5-15 outlet protected by a 20A upstream circuit breaker, along with two rear PowerCON NAC3MPB auxiliary connectors located on phases Y and Z and protected by fuses. The 482 mm wide, 2RU chassis is constructed from 1.5 mm sheet metal and provides IP31 protection. With its dedicated amplifier distribution, auxiliary outputs, circuit protection, phase indicators, and rackmount construction, the PD 30A is designed for professional power management in demanding audio applications.

Product Specifications:

Product Type: AC Power Distribution Box

Application: Three XPS 16K Amplifiers and Auxiliary Power

Rack Configuration: 19", 2RU

Nominal Voltage: 250V

Nominal Current: 30A

Frequency: 50-60 Hz

Power Input: 1 x 1.5 m Cable with NEMA L21-30P IP44 3P+N+E Plug

Power Selection: 120V L-N or 208V L-L

Main Circuit Breaker: 1 x 20A 1P+N, 4.5kA

Amplifier Circuit Breakers: 3 x 30A 1P+N, 4.5kA

Amplifier Inputs: 6 x Flying Cables with Speakon NL4 Connectors

Amplifier Outputs: 3 x Flying Cables with PowerCON NAC3FCH Connectors

Front Power Output: 1 x Double NEMA 5-15, 20A, 110V

Auxiliary Outputs: 2 x PowerCON NAC3MPB-1

Front Amplifier Connections: 3 x P-COM 8-Pole Connectors

Phase Indicators: 3 x Neon Phase Signal Lamps

Protection Rating: IP31

Safety Compliance: CE Compliant

Cabinet Material: Metal

Sheet Metal Thickness: 1.5 mm

Rack Mounting: 2 x Rack-Mount Handles

Color: Black

Cable Length: 1.5 m

Product Weight: 7.72 lbs.

Product Dimensions (H x W x D): 3.46" x 18.98" x 10.63"
