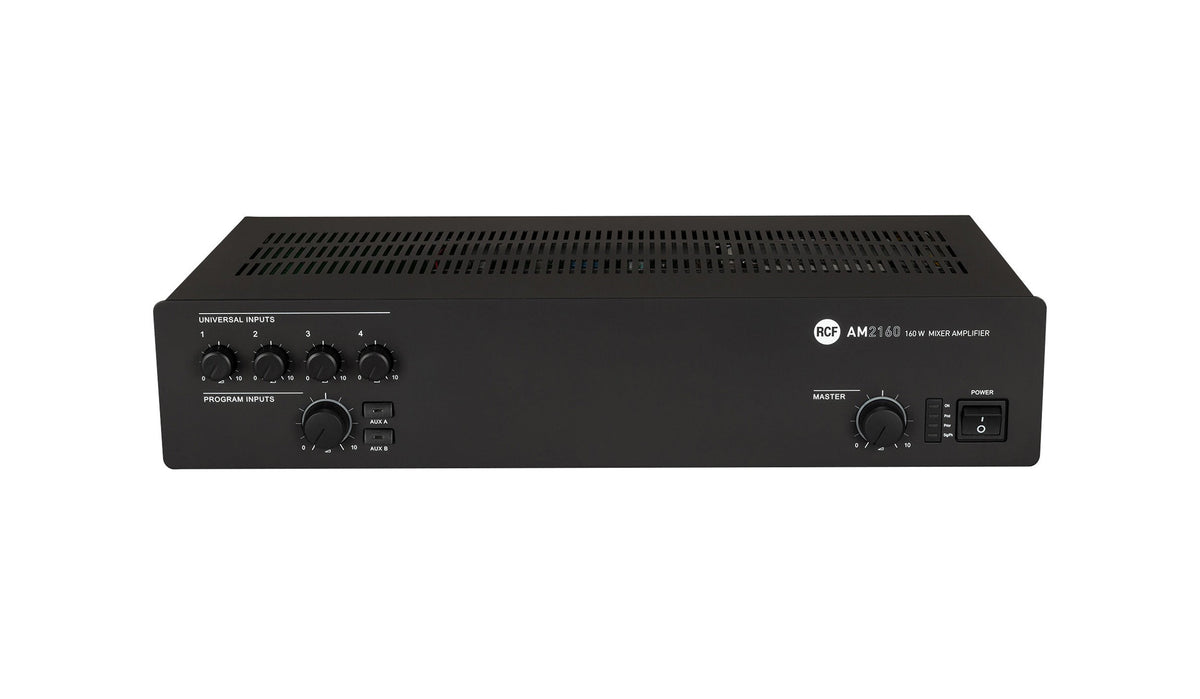

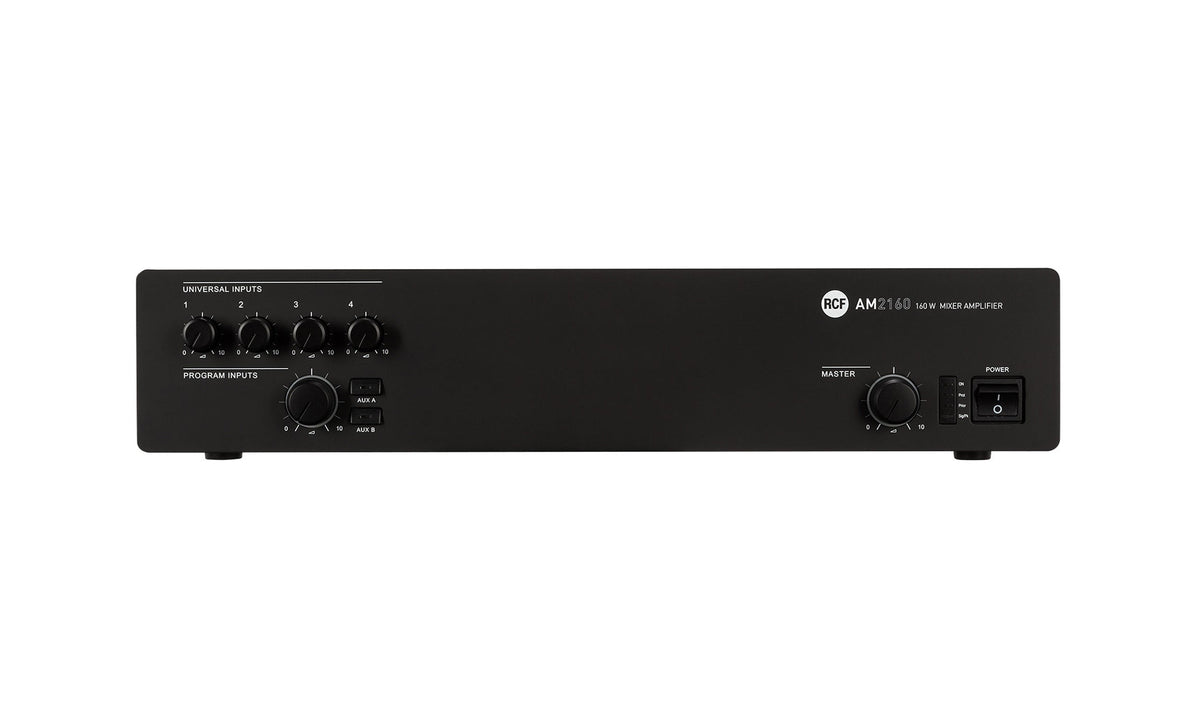

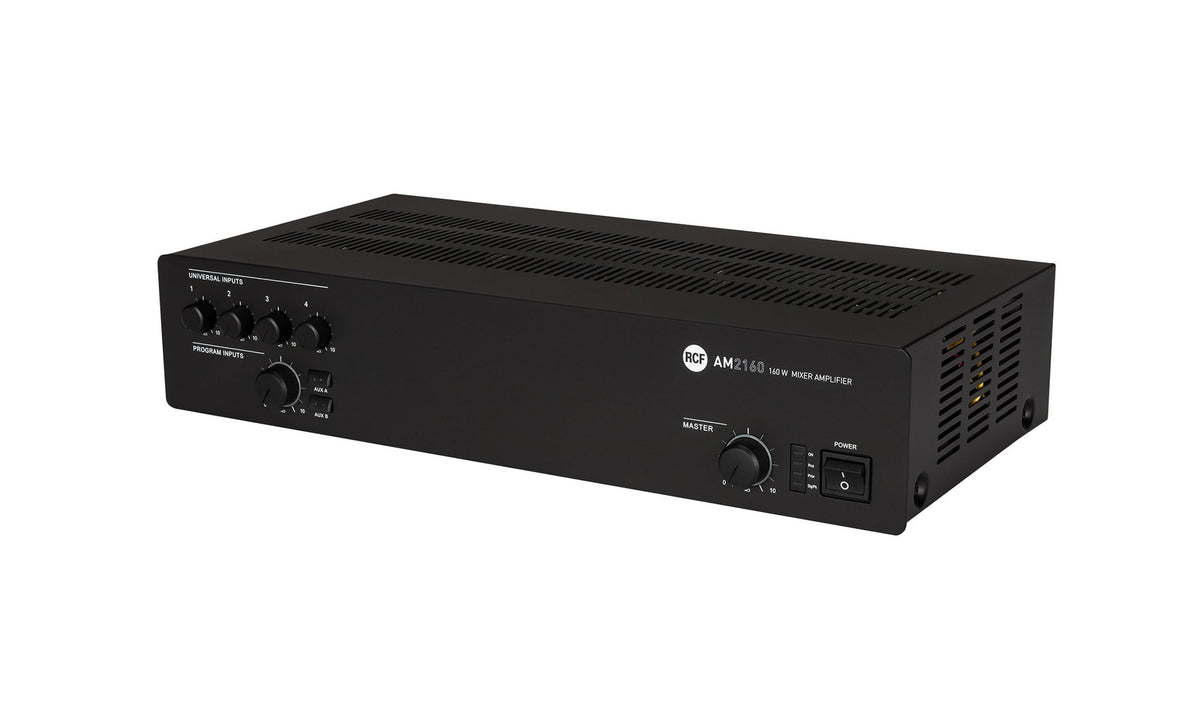

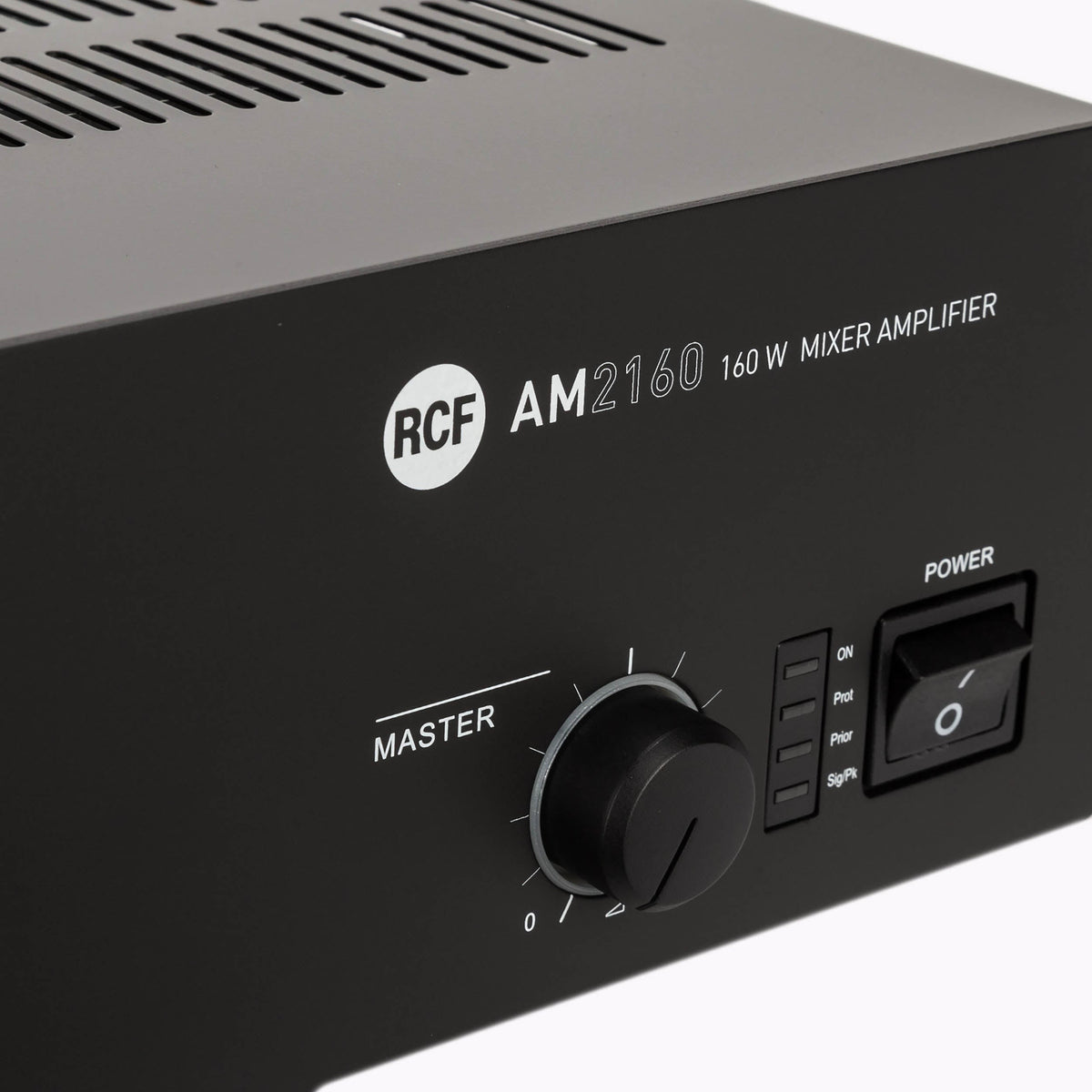

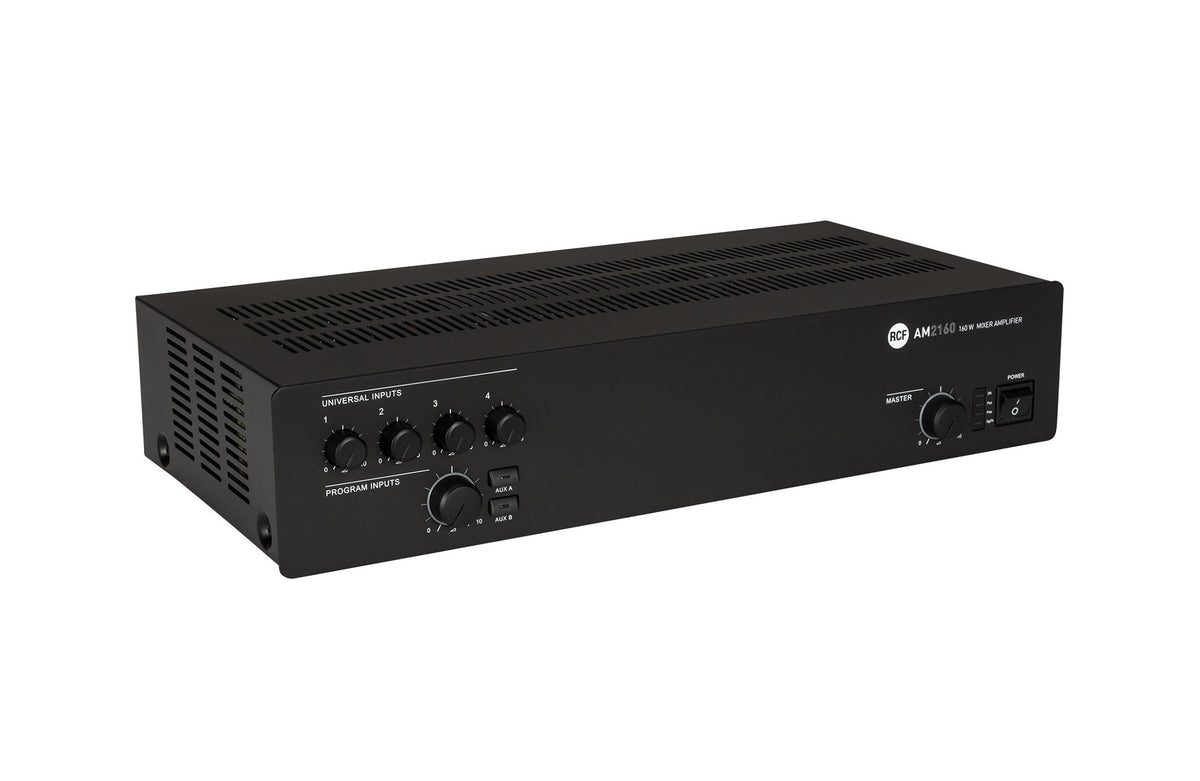

RCF AM2160 4-Input Digital Mixer Amplifier, 4 Ohm/70/100V - 320 W

The RCF AM2160 4-Input Digital Mixer Amplifier, 4 Ω/70/100V - 320 W with 4 mic-line audio inputs on removable connectors (the first input also has an XLR socket) and 2 aux inputs for music sources (e.g., CD players, tuners, etc.). 160 W nominal output power available either for low impedance loudspeakers or 100 to 70 V constant voltage line.

Product Specifications:

Amplifier Section:

Amplifier Class: D

Output Power: 1 × 160 W @ 4 Ω

Frequency Response (−3 dB): 50 Hz, 14 kHz

THD + N @ 1 kHz (Nominal Power): < 0.3 %

Input Section:

Total Inputs: 8

Balanced: 7

Unbalanced: 2

Mono:

Stereo: 2

Line Inputs: 2 × RCA

Mic + Line Inputs: 4 × Euroblock / XLR

Phantom Power: 32 V DC

VOX Priority: Yes

Paging Inputs: 2 × RJ45

Paging Command: Contact

General Purpose Inputs (GPI): 2

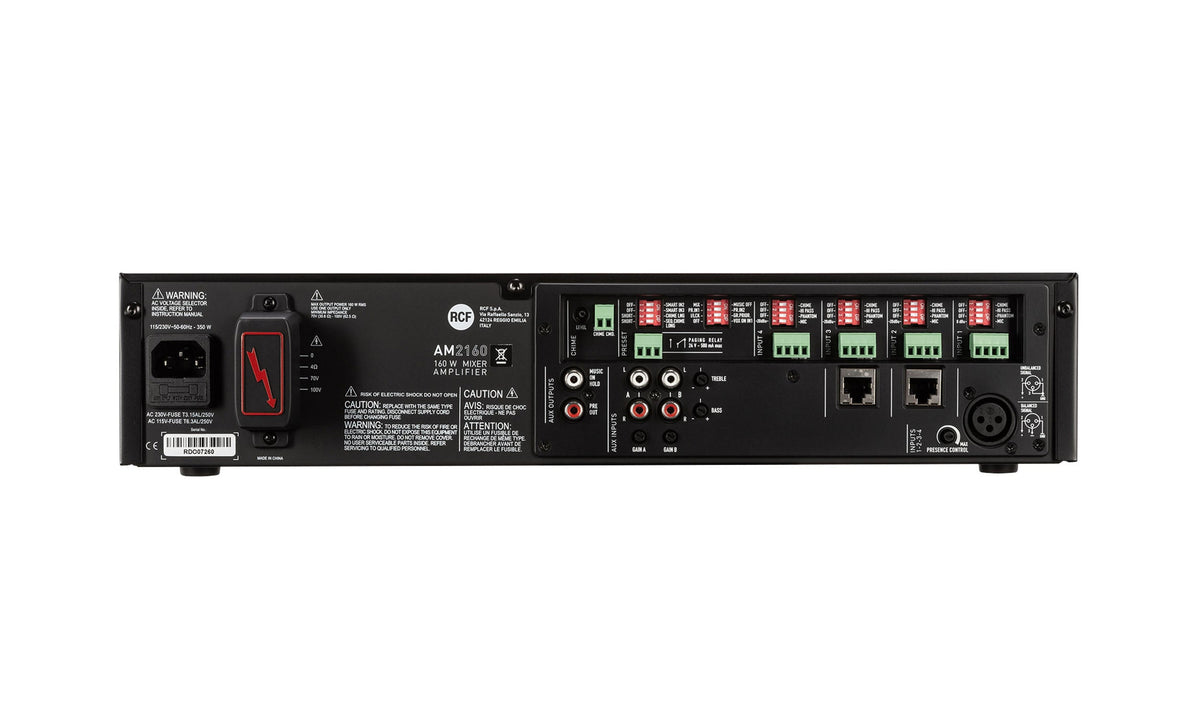

Output Section:

Signal Outputs: 2 × RCA

Power Output Connectors: Euroblock

Processing / Control:

Tone Controls: Yes

High-Pass Filter: 150 Hz

Presence Control: Yes

Configuration: Front Panel / DIP Switch

Priority: Yes

Music-on-Hold: Yes

Chime Tone: Yes

Protections:

Cooling: Convection

Short Circuit: Yes

Thermal: Yes

DC Protection: Yes

Fuses: Yes

Power Requirements:

Operating Voltage: 220-240 / 115 V AC 50/60 Hz

Voltage Selection: Internal

Power Consumption (Max): 350 W

Compliance:

Safety Standard: CE Compliant

Physical Specifications:

Cabinet Material: Metal

Color: Black

Rack Mounting: 19″ / 2U

Product Height: 88 mm (3.46 in)

Product Width: 442 mm (17.4 in)

Product Depth: 230 mm (9.06 in)

Product Weight: 5.4 kg (11.9 lbs.)

Shipping Height: 200 mm (7.87 in)

Shipping Width: 500 mm (19.69 in)

Shipping Depth: 330 mm (12.99 in)

Shipping Weight: 6.45 kg (14.22 lbs.)
