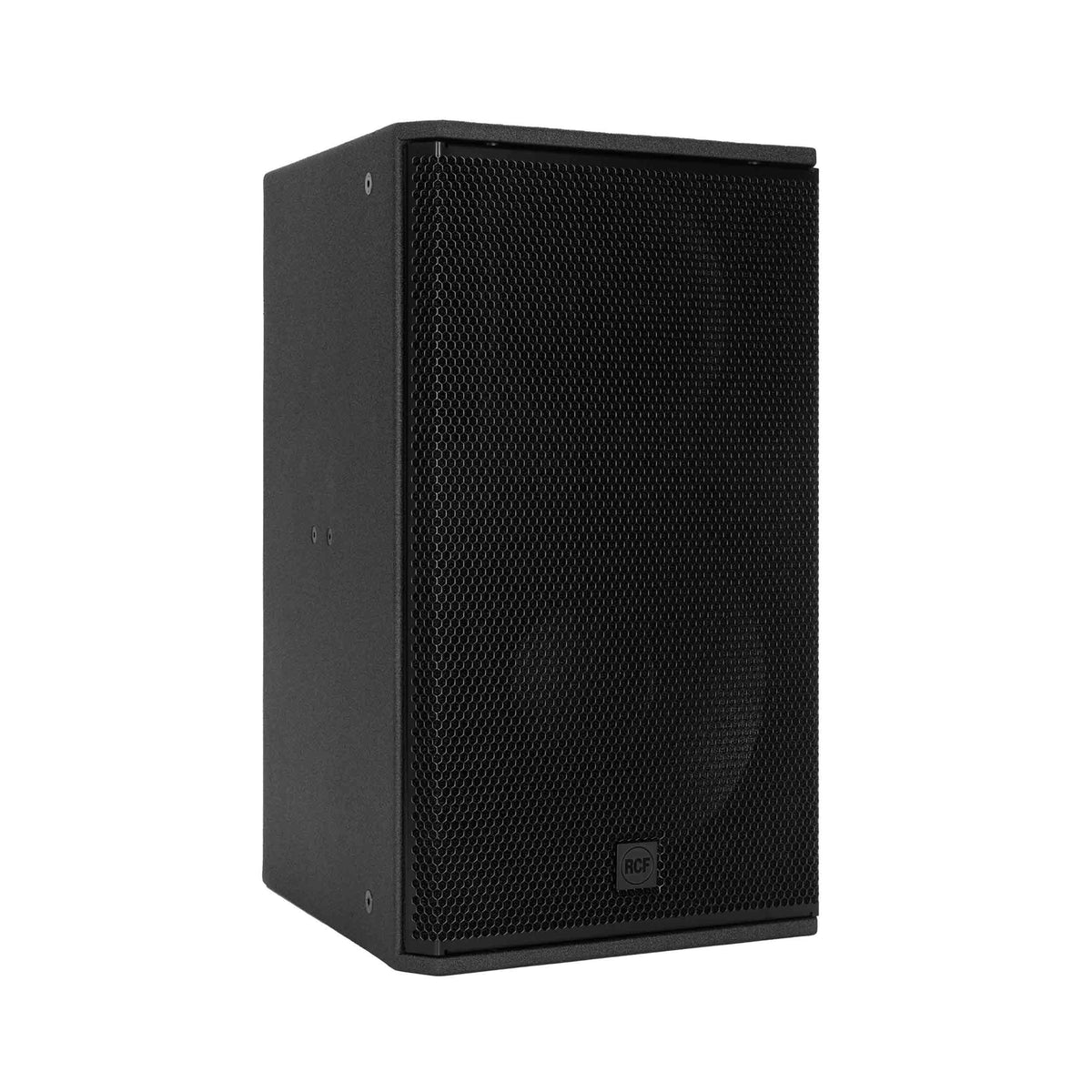

RCF C 45 WP Passive 2800W 15" 2-Way Compact Speaker w/ 4" HF Driver

Name: RCF C 45 WP Passive 2800W 15" 2-Way Compact Speaker w/ 4" HF Driver
Brand: RCF
SKU: H-RCF-C45WP

Request a quote

Model / SKU: H-RCF-C45WP

In a hurry? Call us.

1-800-700-4542
System design direct line: (213) 816-4102

Free system design. Real people, Mon to Sat, 10 to 5 Pacific.

The RCF C 45 WP is a multipurpose two-way point source speaker designed for near and mid-distance applications, including outdoor environments. It features a 4" neodymium compression driver and a 15" neodymium woofer, delivering powerful, distortion-free sound with high SPL. The rotatable constant directivity waveguide provides consistent 100° x 50° coverage, ensuring even sound distribution. Its sleek wooden cabinet with polyurea coating and protective grille makes it suitable for both indoor and outdoor installations.

High & Low Frequency Performance

The high-frequency section uses a titanium dome compression driver that offers natural sound reproduction, excellent power handling, and long-term durability. This design allows a lower crossover point, enhancing vocal clarity and improving midrange performance. The low-frequency transducer is engineered for stability under high current, reducing distortion while ensuring efficient heat dissipation. Each woofer undergoes strict testing, including 200 hours of continuous signal stress, to guarantee reliability in demanding conditions.

Weatherproof Design & Installation Flexibility

Built for durability, the RCF C 45 WP features a weatherproof birch plywood cabinet with a rugged polyurea coating for enhanced scratch resistance and longevity. The steel grille includes an acoustically transparent, water-repellent fabric for added protection against moisture. The WP version is equipped with IP67-rated Amphenol Ecomate connectors, ensuring reliable performance in outdoor environments. Multiple rigging points and optional accessories allow for flexible mounting options, including wall, ceiling, truss, or flown installations.

Waveguide Control & Certified Performance

The rotatable constant directivity waveguide ensures precise sound control, improving intelligibility even in challenging acoustic spaces. With optional accessories, the dispersion can be modified to 100° x 25° or 60° x 25° for tailored coverage. The speaker is EN 54-24:2008 certified, making it suitable for voice alarm and emergency systems in critical installations. As part of the Compact C Series, it combines compact size with powerful output, delivering reliable performance for both speech and music in professional applications.

Product Specifications

Frequency Response: 48 Hz, 20 kHz (-10 dB)

Max SPL: 138 dB @ 1m

Horizontal Coverage: 100°

Vertical Coverage: 50°

Sensitivity: 98 dB

Directivity Index (Q): 10

Amplification: Full Range

Impedance: 8 Ohm

Power Handling: 700W RMS

Peak Power Handling: 2800W Peak

Protection: Dynamic Active MOSFET
