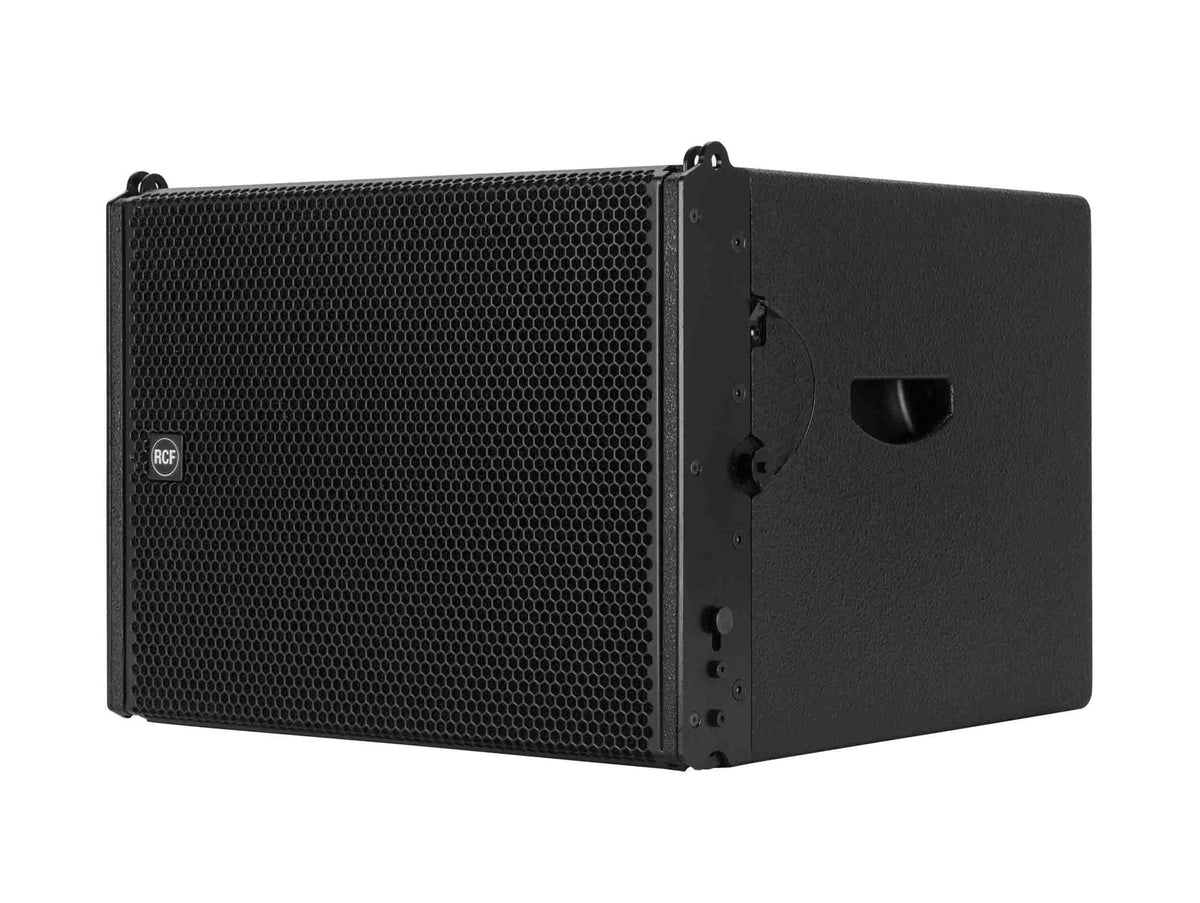

  • RCF HDL 12-AS, 1400W 12-inch Compact Active Flyable Subwoofer - Black, view 3
  • RCF HDL 12-AS, 1400W 12-inch Compact Active Flyable Subwoofer - Black, view 4
  • RCF HDL 12-AS, 1400W 12-inch Compact Active Flyable Subwoofer - Black, view 5
  • RCF HDL 12-AS, 1400W 12-inch Compact Active Flyable Subwoofer - Black, view 6

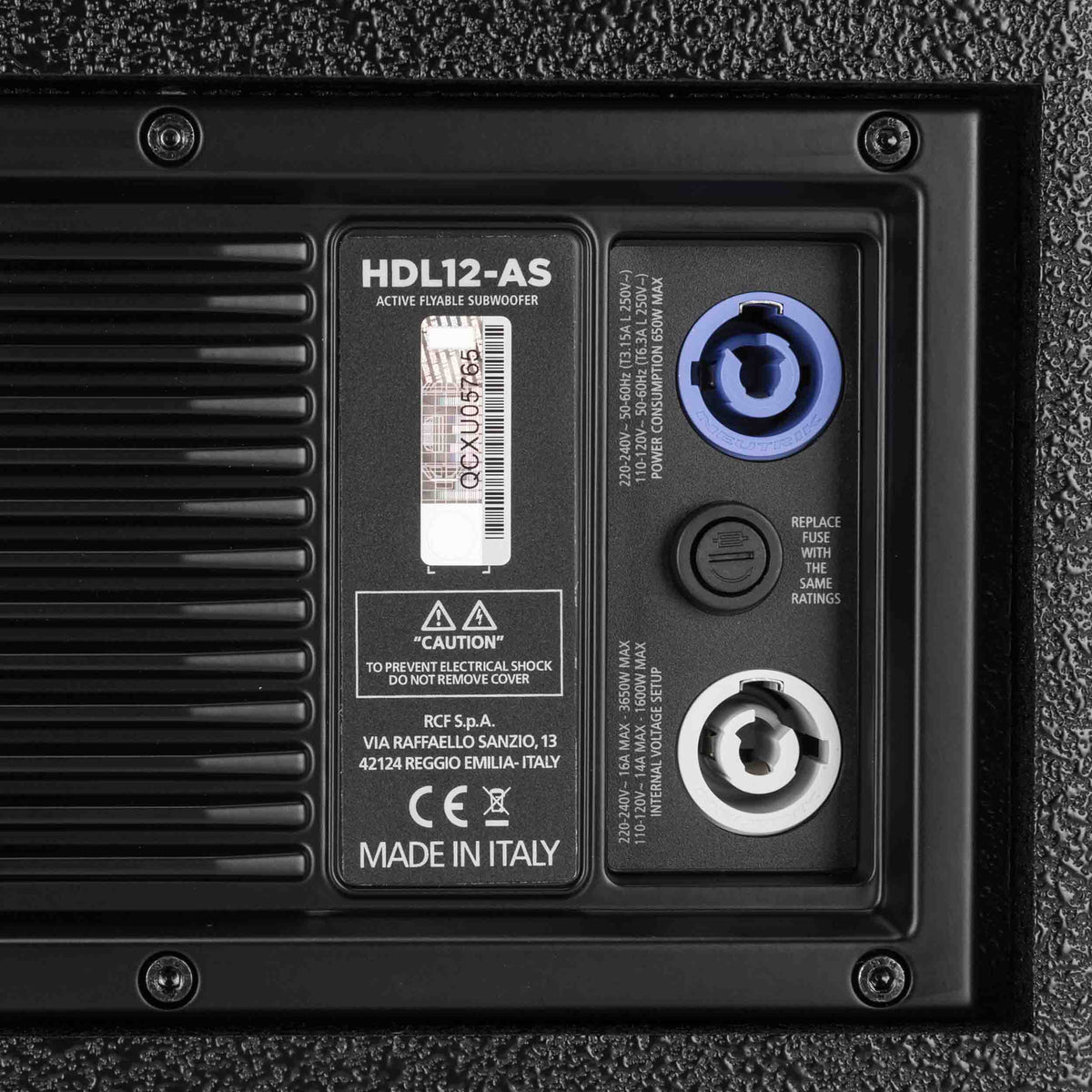

  • RCF HDL 12-AS, 1400W 12-inch Compact Active Flyable Subwoofer - Black, view 7
  • RCF HDL 12-AS, 1400W 12-inch Compact Active Flyable Subwoofer - Black, view 8
  • RCF HDL 12-AS, 1400W 12-inch Compact Active Flyable Subwoofer - Black, view 9
  • RCF HDL 12-AS, 1400W 12-inch Compact Active Flyable Subwoofer - Black, view 10
1 10

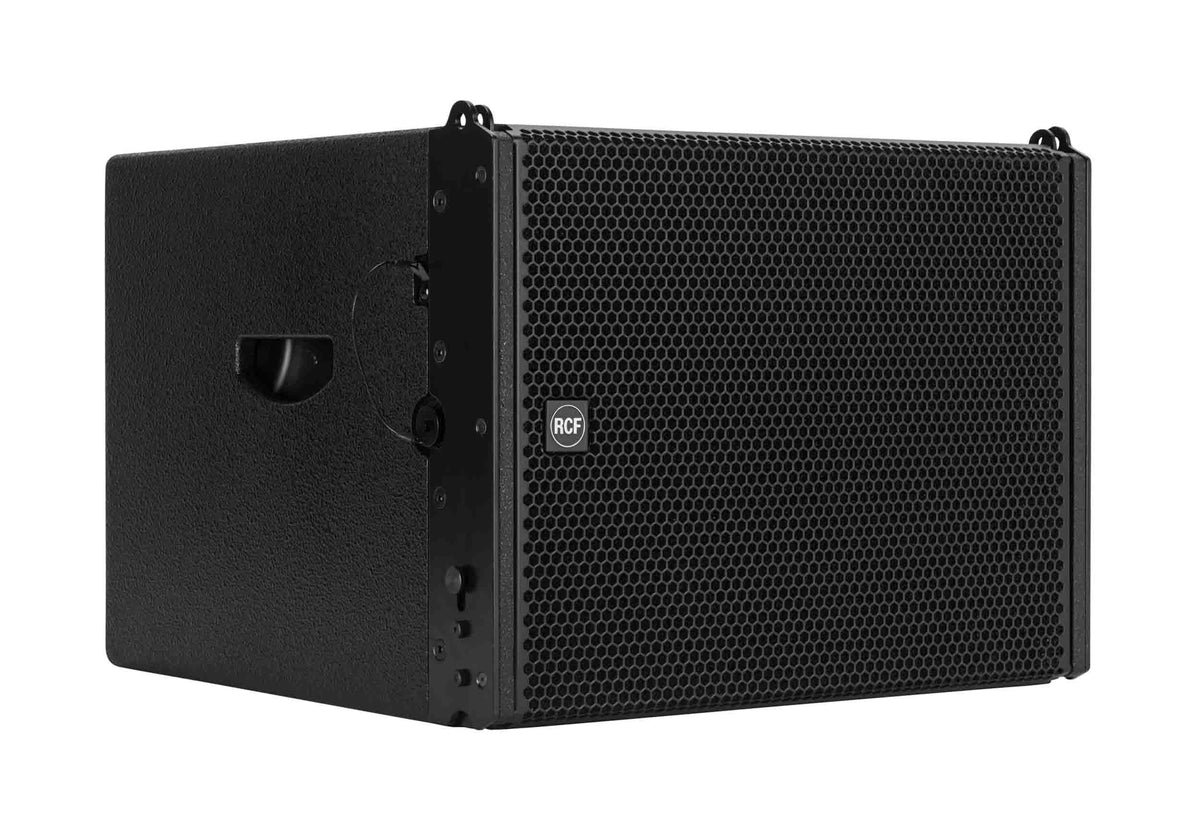

RCF HDL 12-AS, 1400W 12-inch Compact Active Flyable Subwoofer - Black

RCF HDL 12-AS, 1400W 12-inch Compact Active Flyable Subwoofer - Black

Request a quote

Model / SKU: H-RCF-HDL12AS

In a hurry? Call us.

Free system design. Real people, Mon to Sat, 10 to 5 Pacific.

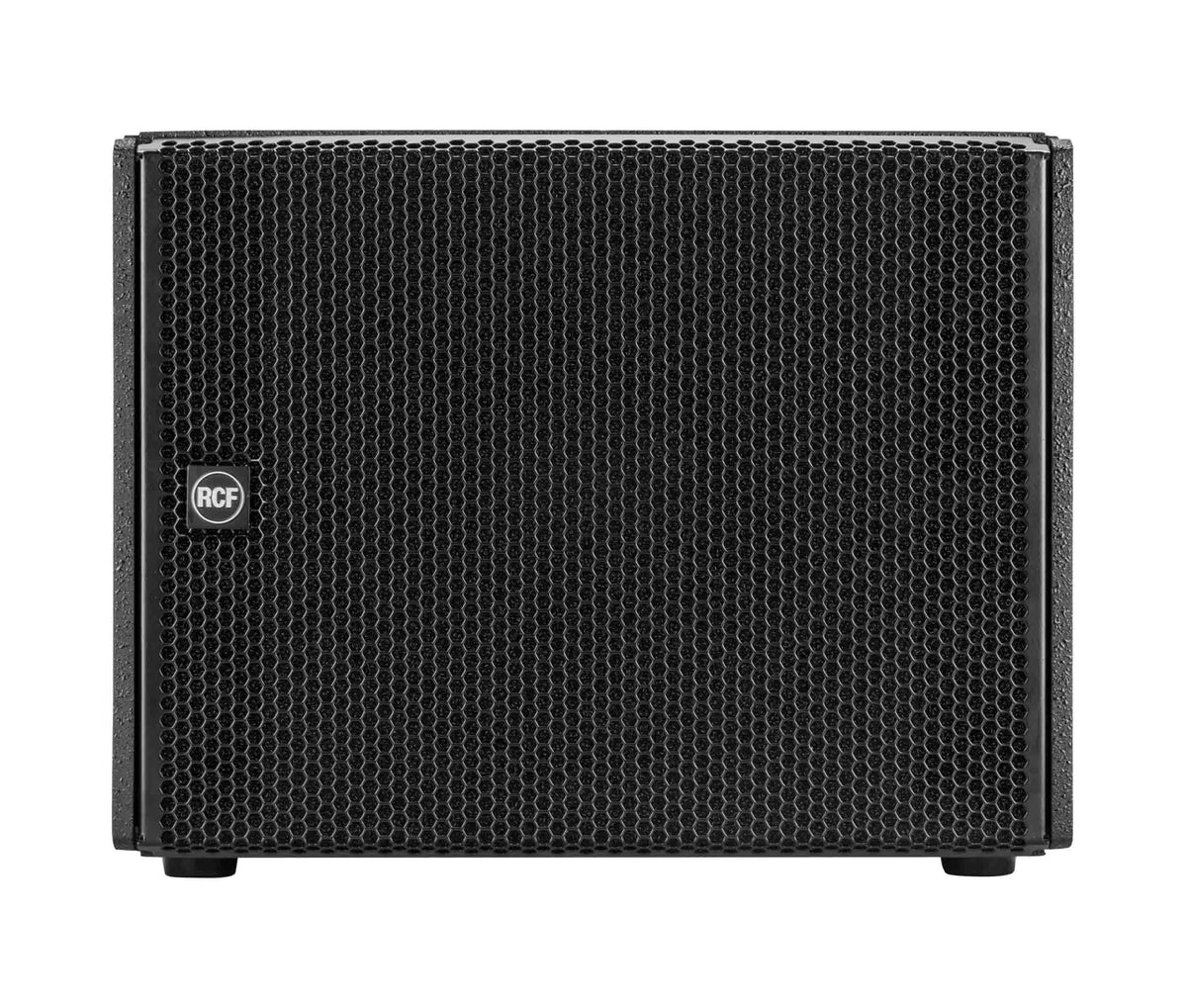

The RCF HDL 12-AS is the companion subwoofer for HDL 6-A. Housing a 12” woofer, the HDL 12-AS, is a very compact active sub enclosure and features a 1400 W powerful digital amplifier. It is the ideal complement to create flown HDL 6-A clusters with outstanding performance. It features a built-in digital stereo crossover (DSP) with adjustable crossover frequency to connect the HDL 6-A line array module or a satellite. The integrated mechanics are both fast and reliable. The heavy-duty front grille is power coated. A special transparent-to-sound foam backing inside helps the further protection of the transducers from dust.

Product Specifications

Enclosure Type: Subwoofer

Total Power Capacity:

700 W RMS

1400 W Peak

MF Driver: No

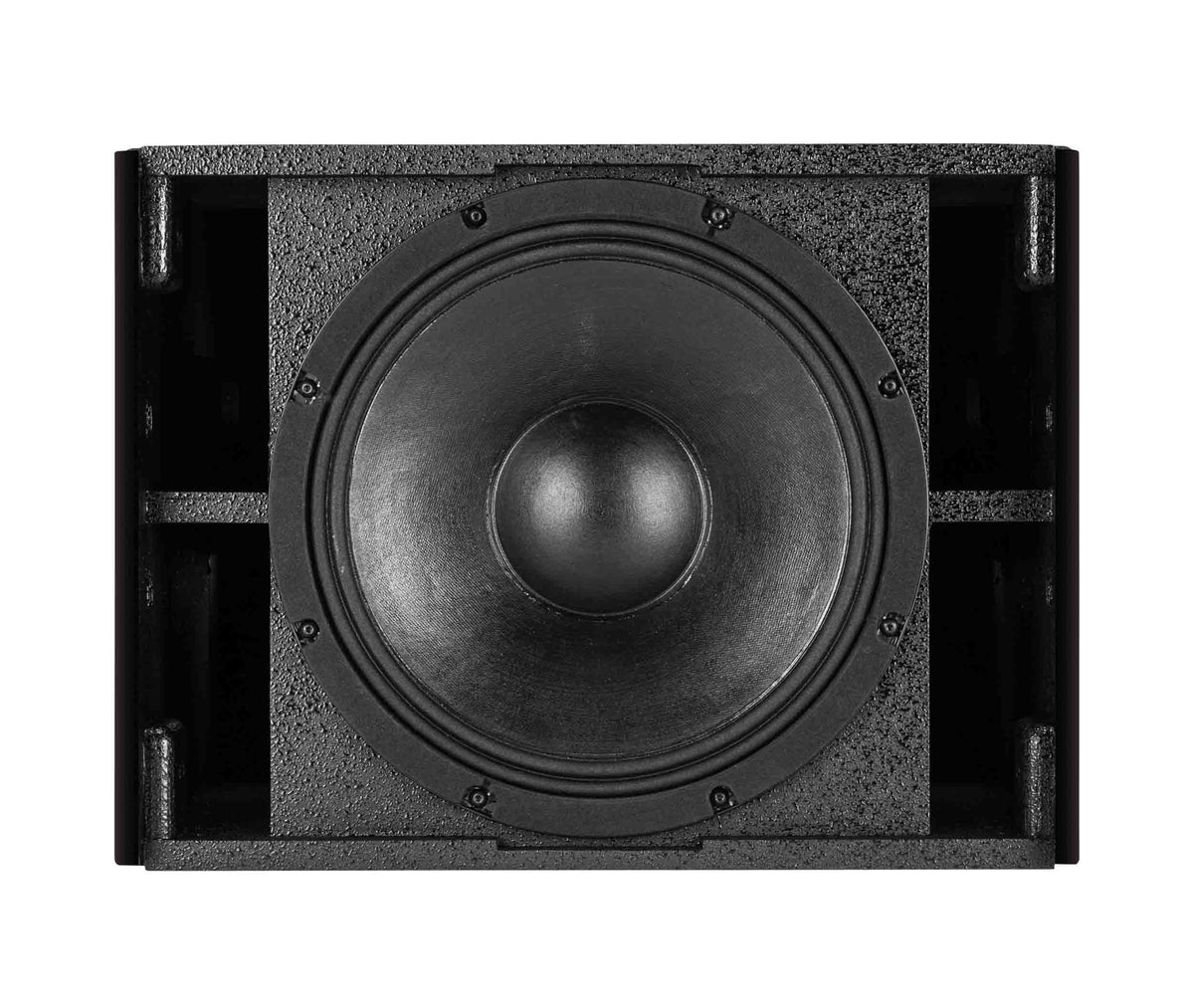

LF Driver: 1x 12" / 304.8 mm

LF Voice Coil: 3" / 76.2 mm

Frequency Response: 40 Hz to 120 Hz

Maximum SPL: 131 dB

Input Sensitivity: -2 dBu

Protections: RMS, Thermal

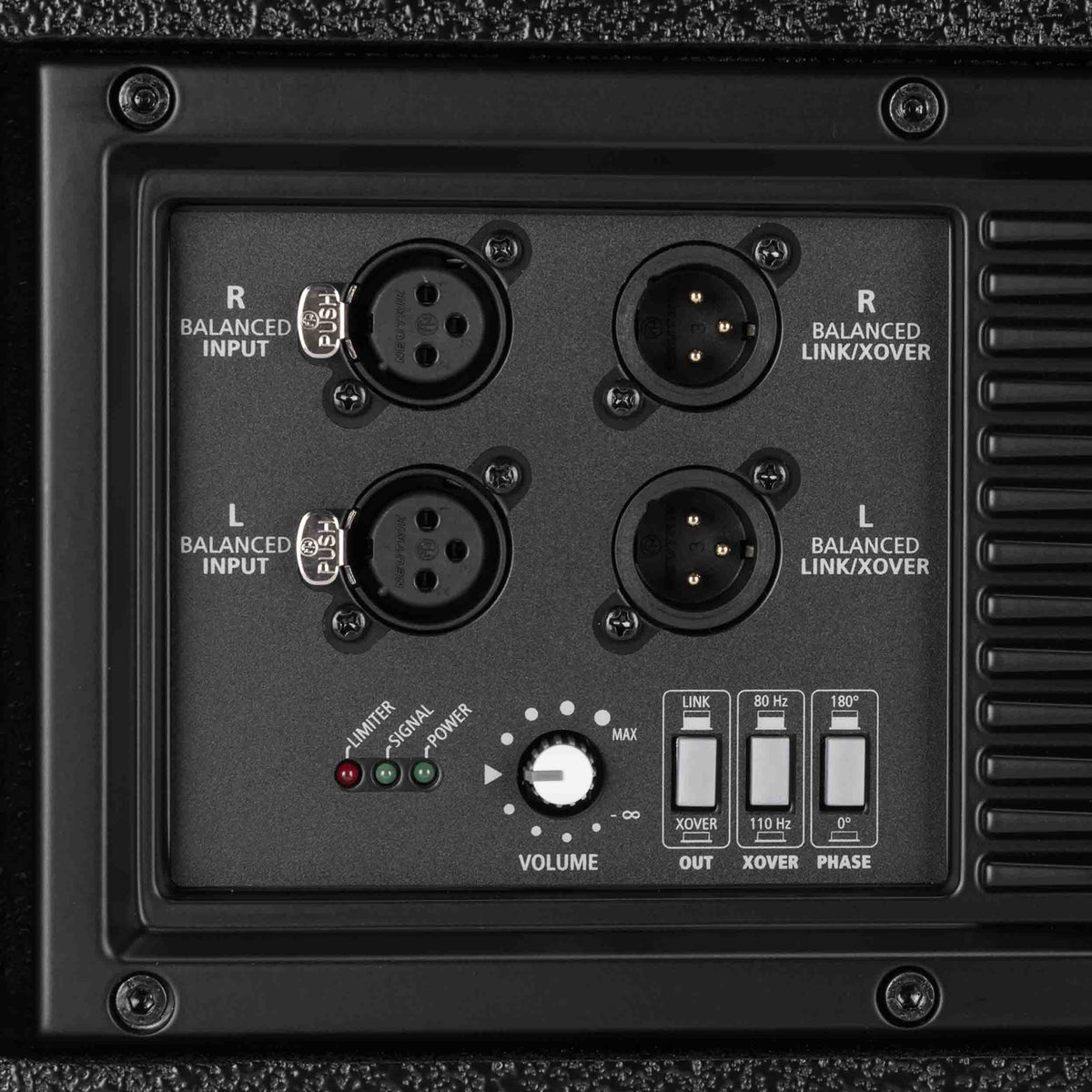

Audio I/O:

2x XLR 3-Pin Female Balanced/Unbalanced Input

2x XLR 3-Pin Male Balanced Link Output

Network I/O: No

USB I/O: No

Wireless Connectivity: No

Crossover

Low-Pass: 80 to 110 Hz

High-Pass: 40 Hz

EQ: Yes

Parametric EQ: No

Semi-Parametric EQ: No

Filters:No

Dynamic Processing: Soft Limiter

Alignment Delay: No

Phase Adjustment: Yes

AC Input Power: 115 to 230 VAC, 50 / 60 Hz (3.15 A 250 V)

AC Power I/O:

1x powerCON Input (Locking)

1x powerCON Output (Locking)

Handles: 2x Side

Cooling: Convection

Environmental Protection: No

Construction Material: Plywood

Dimensions: to 14.918.5 x 20" / to 469.9 x 508 mm

Weight: 55.1 lb / 25 kg
