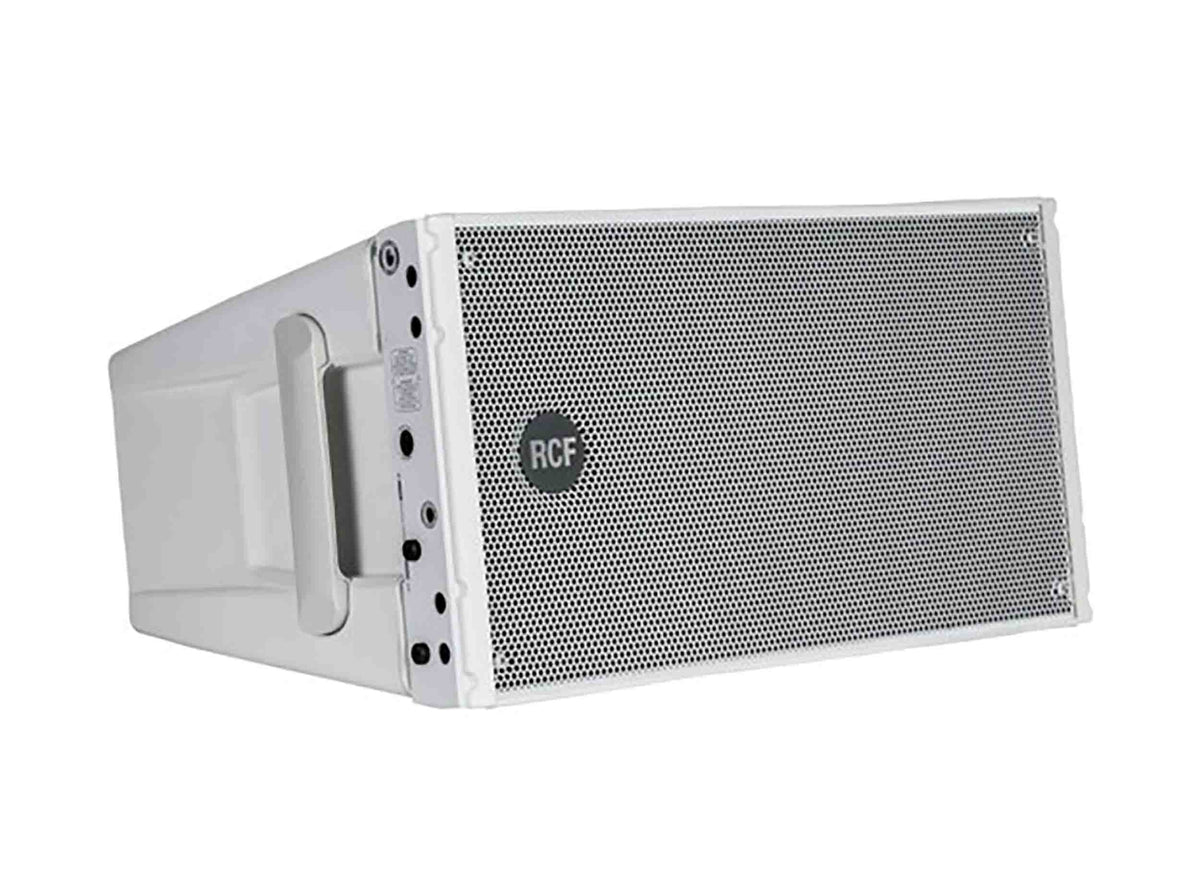

RCF HDL10-A-W, 1400W Dual 8-Inch Active Line Array Module - White

The RCF HDL10-A-W 1400-Watt Dual 8-Inch Active Line Array Module is designed for use in live sound reinforcement and installed situations. The system is powered from a 1400W peak power two-way digital amplifier (400W for the HF and 1000W for the LF), and sound is processed from a powerful DSP. The system features two 8" transducers with a 2" voice coil for a solid bass reproduction, and a large-format 2" compression driver to deliver vocal clarity and high definition. The custom-designed waveguide allows a coverage of 100 x 15°, whilst also delivering linear high-frequency response.

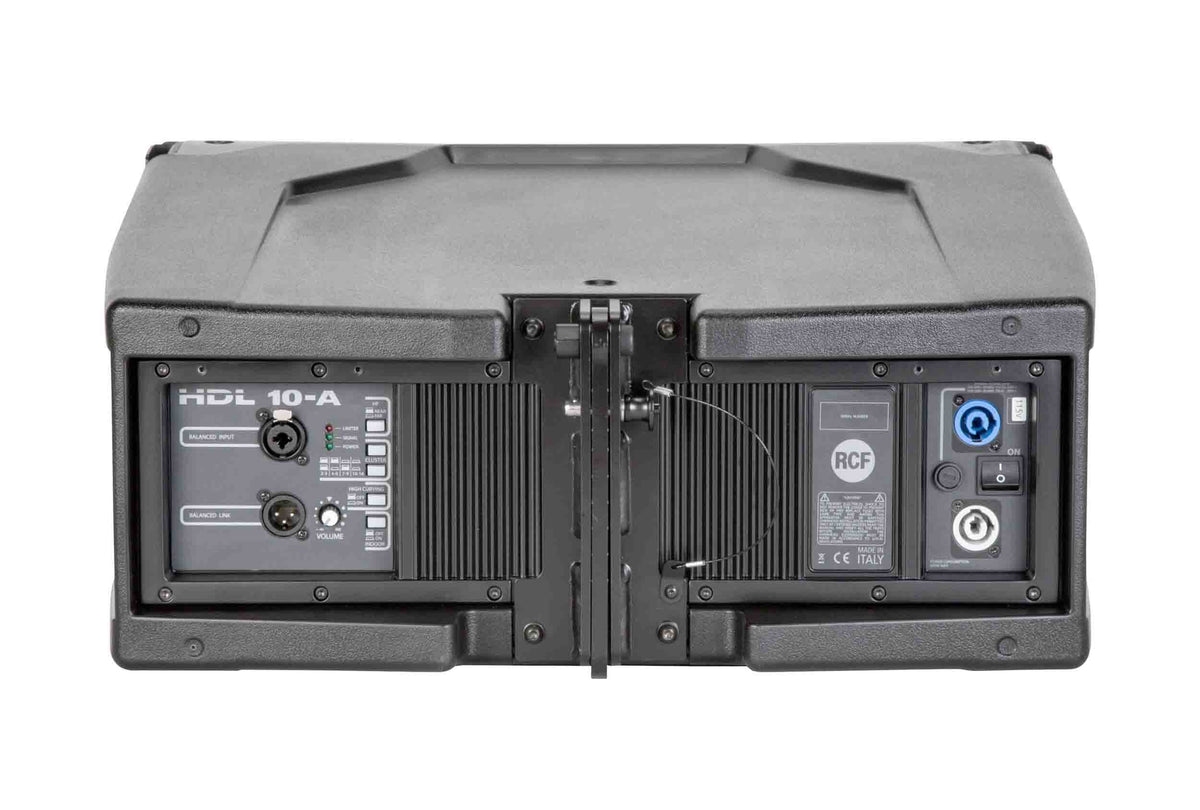

The ND 640 compression driver's 2.5" voice coil allows a crossover point of 800 Hz, which allows a wide vocal range to be produced by this driver. The DSP also includes presets for indoor/outdoor usage and highly curved arrays. The back-panel controls allow a number of simple optimizations to be carried out: two possible HF settings, four possible cluster configurations, an EQ setting for high-curved configurations, and an Indoor Correction EQ. A volume knob allows to set the overall volume of the speaker, according to its application. This unit provides Power, Signal, and Status LEDs for monitoring the system.

The HDL10-A-W features configurable mechanic; angles between cabinets are selectable with 2° resolution and allow the system engineer to create J-shaped or spiral arrays. HDL10-A-W cabinets are molded on a polypropylene composite material designed to dampen-down vibrations, even at maximum volume settings. The module is equipped with two aluminum side handles with a rubber handgrip for portability. The system is equipped with a heavy-duty fly bar. The steel construction mechanics make it possible to fly up to 16 modules in daisy chain manner.

Product Specifications:

Configuration: Active 2-Way

Enclosure Type: Sealed Line Array

Amplifier Class: Class-D

HF Driver: 1 x 2" / 50.8 mm Compression Driver

HF Voice Coil: 2.5" / 63.5 mm

MF Driver: None

LF Driver: 2 x 8" / 203.2 mm Carbon Fiber Woofer

LF Voice Coil: 2" / 50.8 mm

Magnet: Ferrite

Frequency Response: 65 Hz to 20 kHz

Maximum SPL: 133 dB

Coverage Angle: 100° H x 15° V

Input Sensitivity: +4 dBu to -2 dBu

Protections: RMS, Thermal

Handles: 2 x Side

Cooling: Convection

Construction Material: Composite

Dimensions: to 11.522.4 x 17" / to 569 x 431.8 mm

Weight: 51 lb

Package Weight: 56 lb

Box Dimensions (LxWxH): 25.5 x 19.7 x 14.6"
