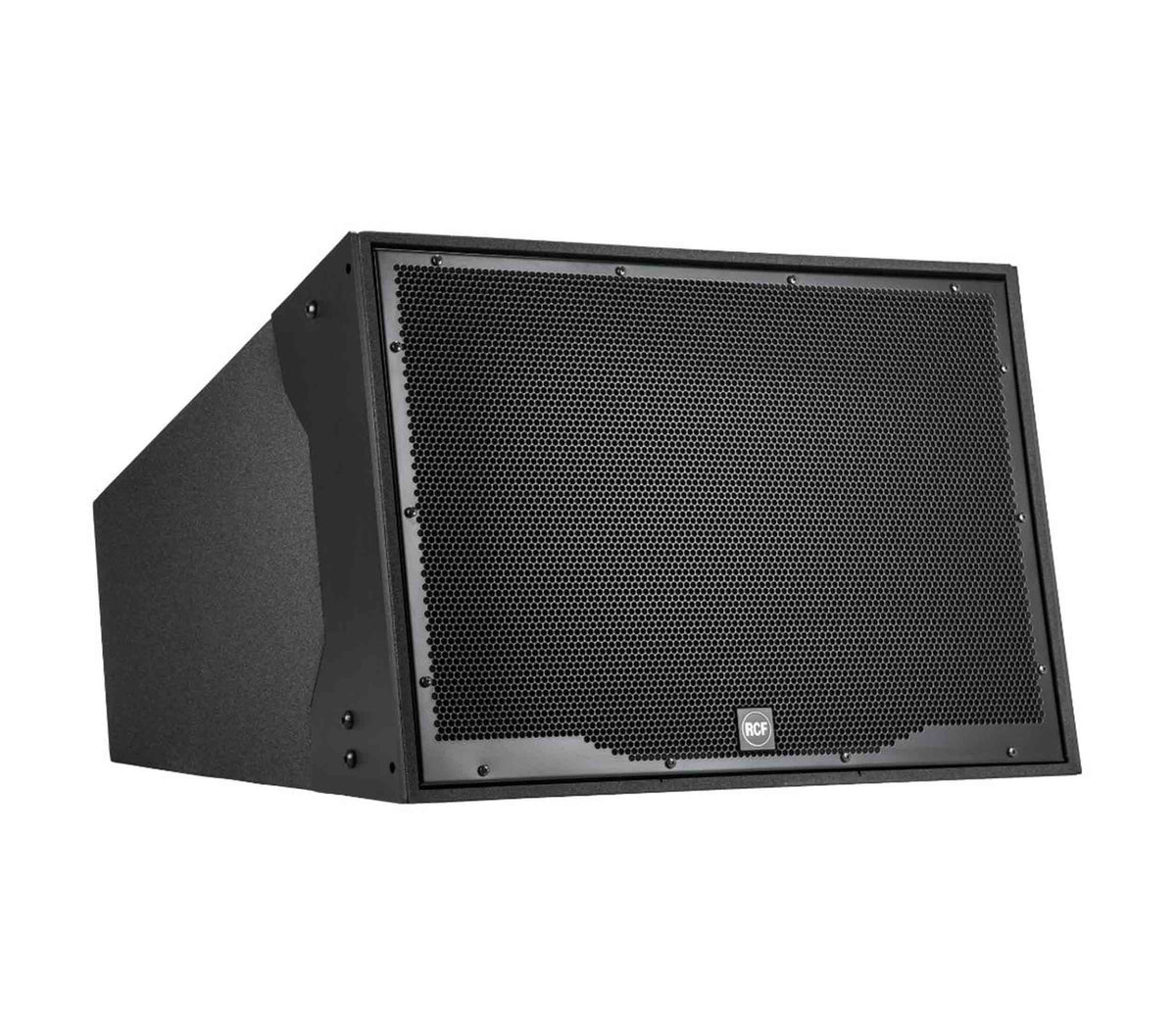

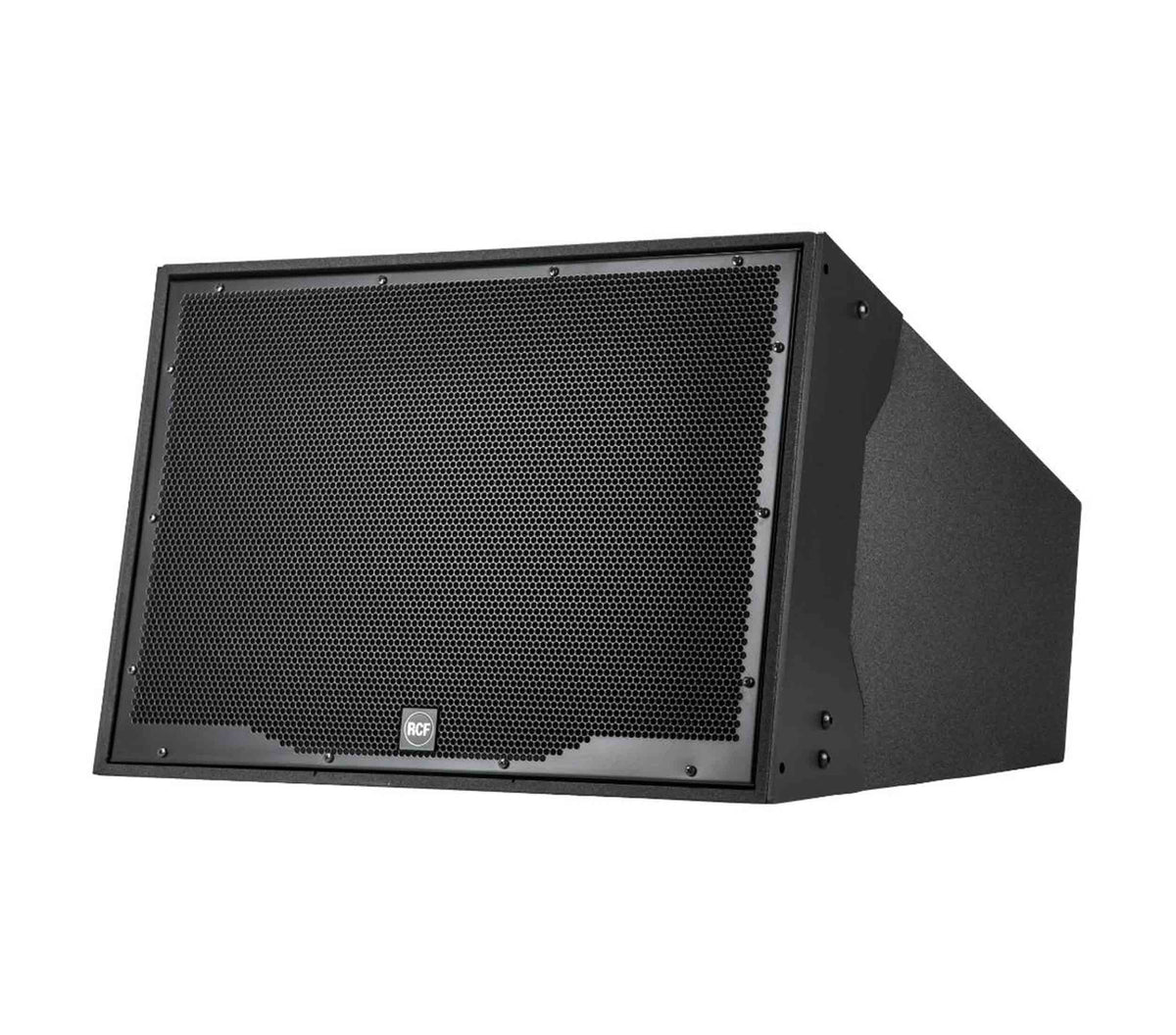

RCF HL 2240 Dual 12in Horn-Loaded Array System - 141 dB

Name: RCF HL 2240 Dual 12in Horn-Loaded Array System - 141 dB
Brand: RCF
SKU: H-RCF-HL2240

Request a quote

Model / SKU: H-RCF-HL2240

In a hurry? Call us.

1-800-700-4542
System design direct line: (213) 816-4102

Free system design. Real people, Mon to Sat, 10 to 5 Pacific.

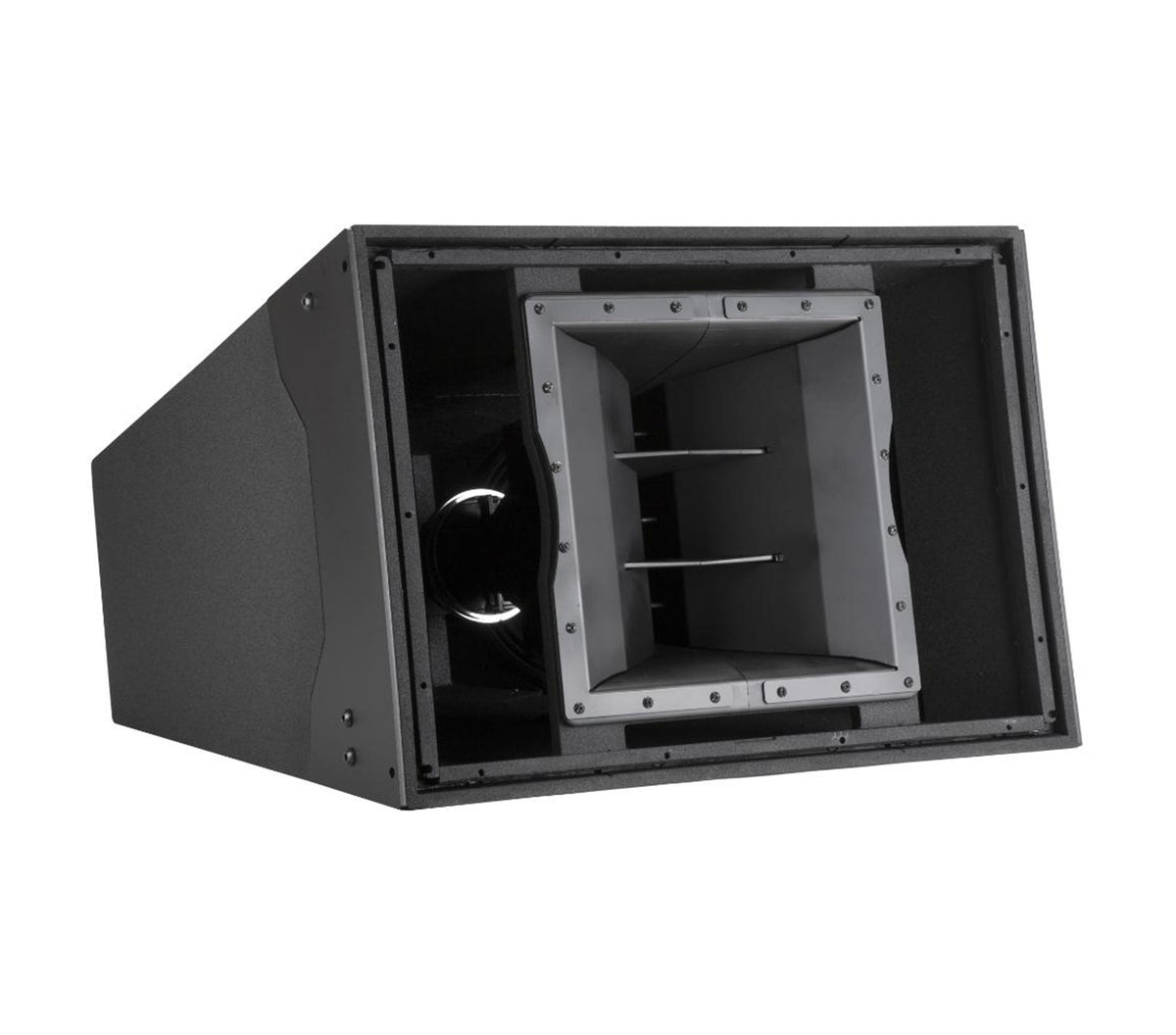

The RCF HL 2240 is a horn-loaded, two-way bi-amped array system designed for high-output mid-distance and long-throw applications. Featuring dual 12-inch high-power woofers and a 4-inch voice coil neodymium compression driver, it delivers powerful low-frequency performance, clear vocal reproduction, and accurate sound across a wide operating range.

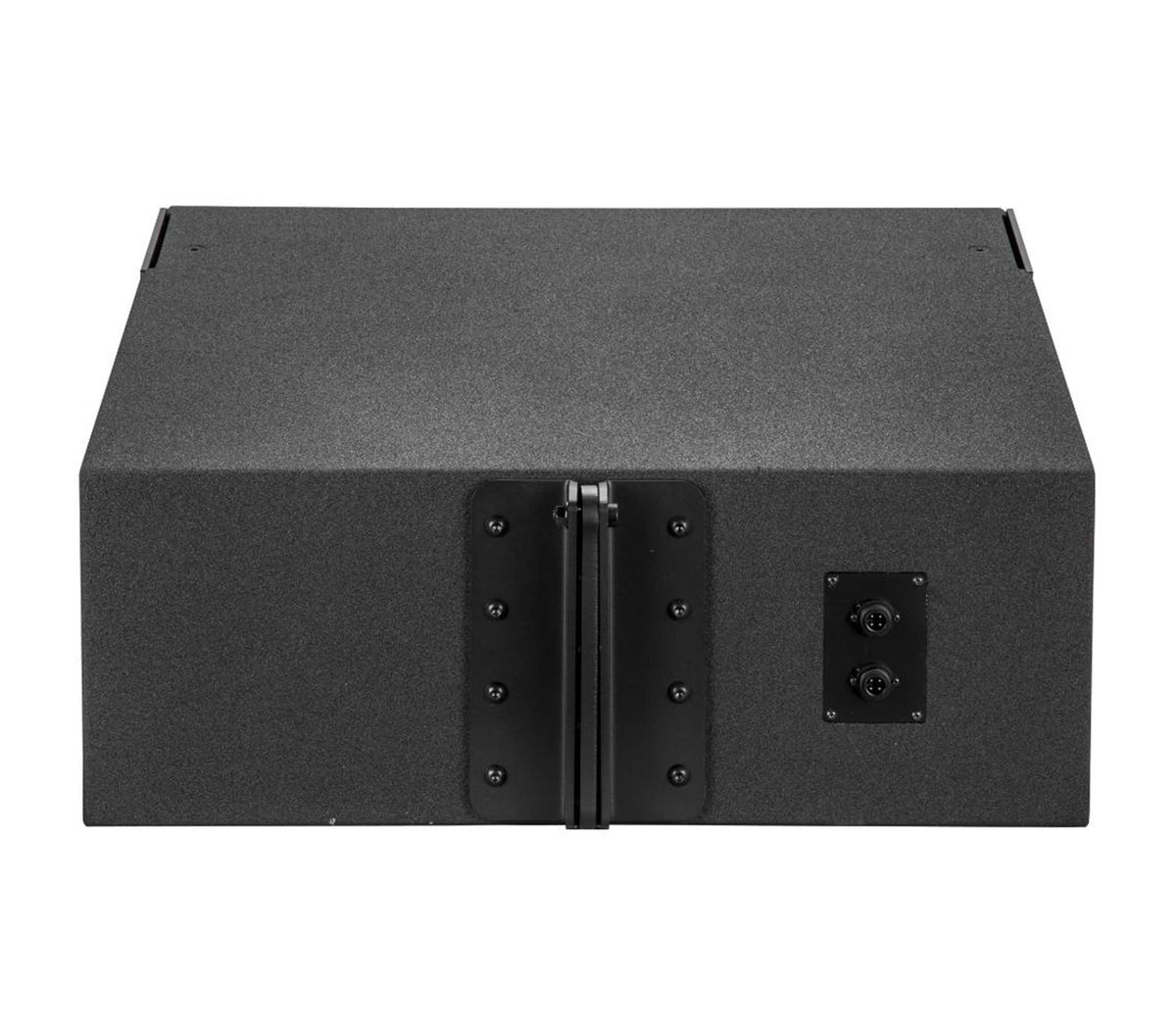

Its 40° × 22.5° constant directivity makes the HL 2240 suitable for point-source applications and clustered configurations. The trapezoidal enclosure provides a 22.5° coupling angle on each side, allowing multiple cabinets to be combined for long-throw coverage. Variable array mechanics provide secure and flexible system deployment.

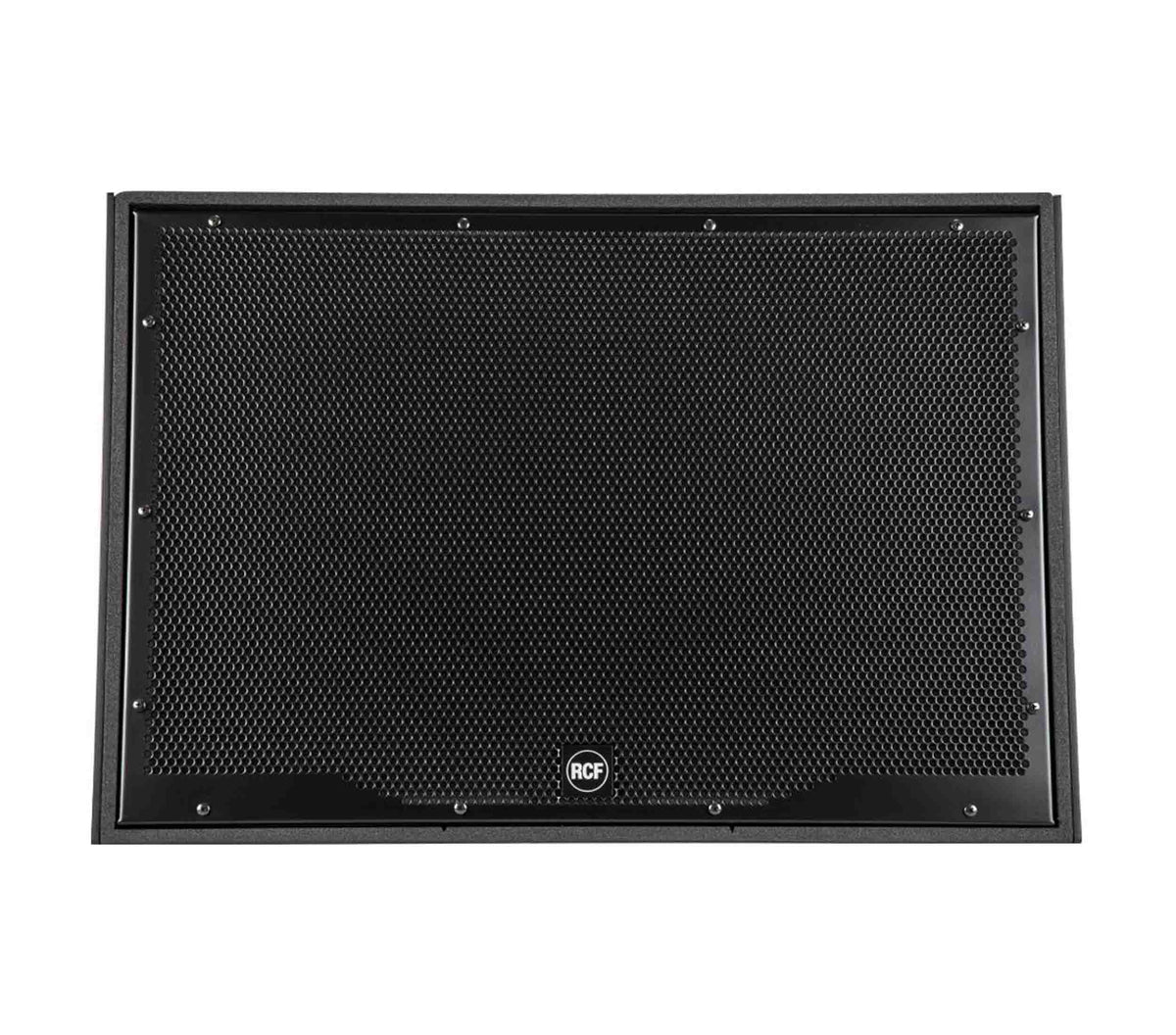

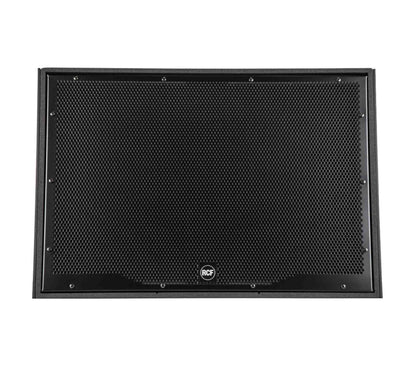

Built for demanding professional applications, the cabinet uses Baltic birch marine plywood with internal structural metal bracing and a durable polyurea black finish. A perforated steel grille with water-repellent backing and IP67-rated Amphenol connectors complement the IP55 weather-protected enclosure for reliable operation in challenging environments.

Product Specifications:

Frequency Response (-10 dB): 60 Hz, 20,000 Hz

Frequency Response (-3 dB): 80 Hz, 20,000 Hz

Maximum SPL @ 1m: 141 dB

Horizontal Coverage Angle: 40°

Vertical Coverage Angle: 22.5°

Directivity Index Q: 13

Amplification: Bi-Amp

Crossover Frequency: 600 Hz

Nominal Impedance LF: 8 ohm

Power Handling LF: 1350W

Peak Power Handling LF: 5400W
