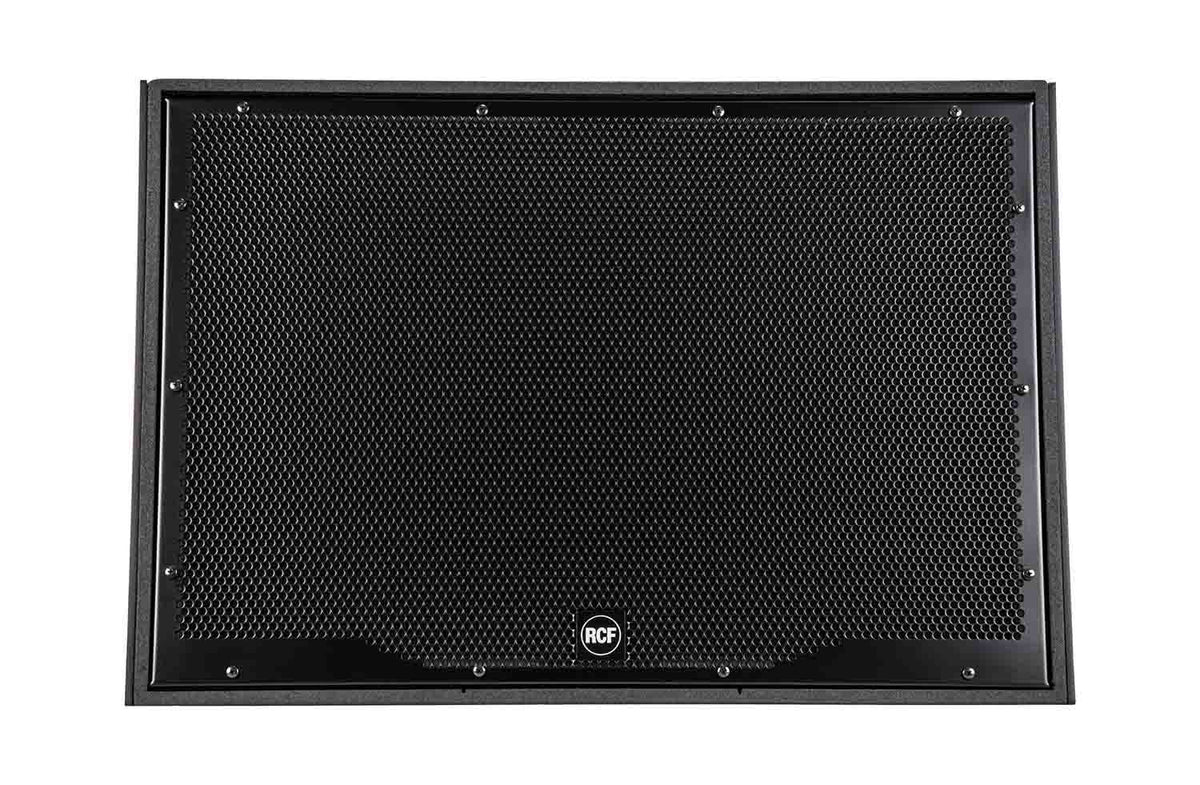

RCF HL2260 Horn Loaded Two-Way Array - 22.5° x 60°

The RCF HL2260 Horn Loaded Two-Way Array - 22.5° x 60° is a horn loaded two-way full-range array system that incorporates a 2 x 12" woofer and a 2" exit 4" voice coil titanium compression driver for mid distance and long throw applications. The system is compact and provides high-output and accurate voice & sound reproduction. The system is equipped with the latest generation of RCF precision transducers.

The system has a vertical dispersion of 22.5° and is ideally used in point source configuration for mid-distance applications, or can be clustered with narrower angles for long throw applications. The loudspeaker enclosure shape is trapezoidal and offers a 22.5° coupling angle each side. Connections to the amplifier are made through a watertight Amphenol multi-pole connector. The grille is in custom perforated steel, and is epoxy coated, with open-cell fibers and water-repellent woven fabric backing. The cabinet is constructed of multi-ply Baltic birch marine plywood and finished in a highly resistant, textured, polyurea black paint.

Product Specifications:

Frequency Response: 60 Hz - 20 kHz @ -10 dB

Maximum Sound Pressure Level (SPL): 141 dB @ 1m

Recommended Amplifier Power: 3000 W

Crossover Frequencies: 600 Hz

Compression Driver: 1.5", 4" voice coil

Nominal Impedance: 8 ohms

Power Rating: 150 W, AES

Sensitivity: 113 dB

Woofer: 2 x 12", 3.5" voice coil

Nominal Impedance: 8 ohms

Power Rating: 1350 W, AES

Sensitivity: 104 dB

Connector: Amphenol eco/mat IP 67

Material: Trapezoidal, 15 mm birch plywood construction

Hardware: Side and rear array rigging point

Grille: Custom perforated steel grille

Dimensions: 20.9 x 30.4 x 25.0" (53.0 x 77.1 x 63.5 cm)

Weight: 146 lb
