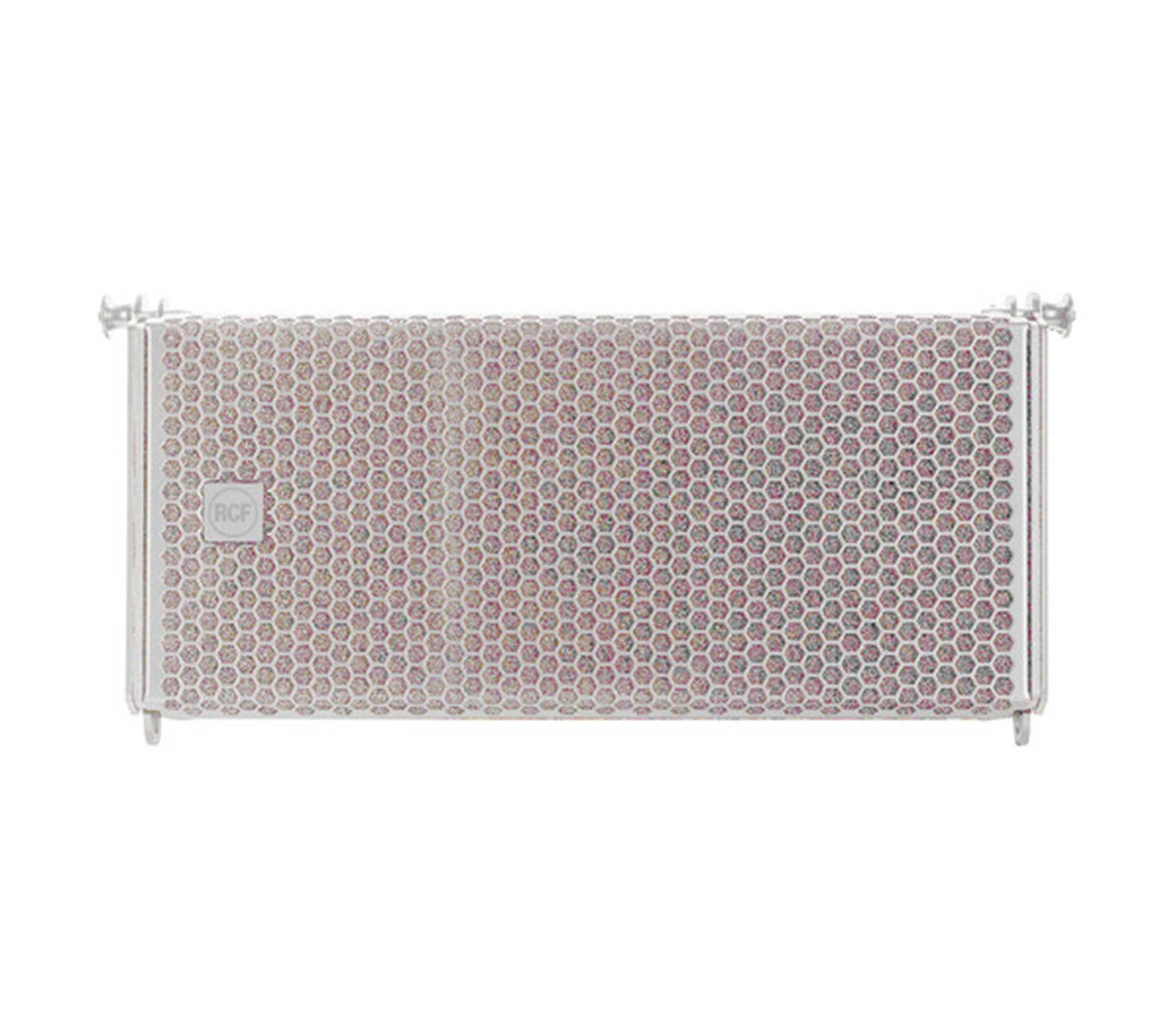

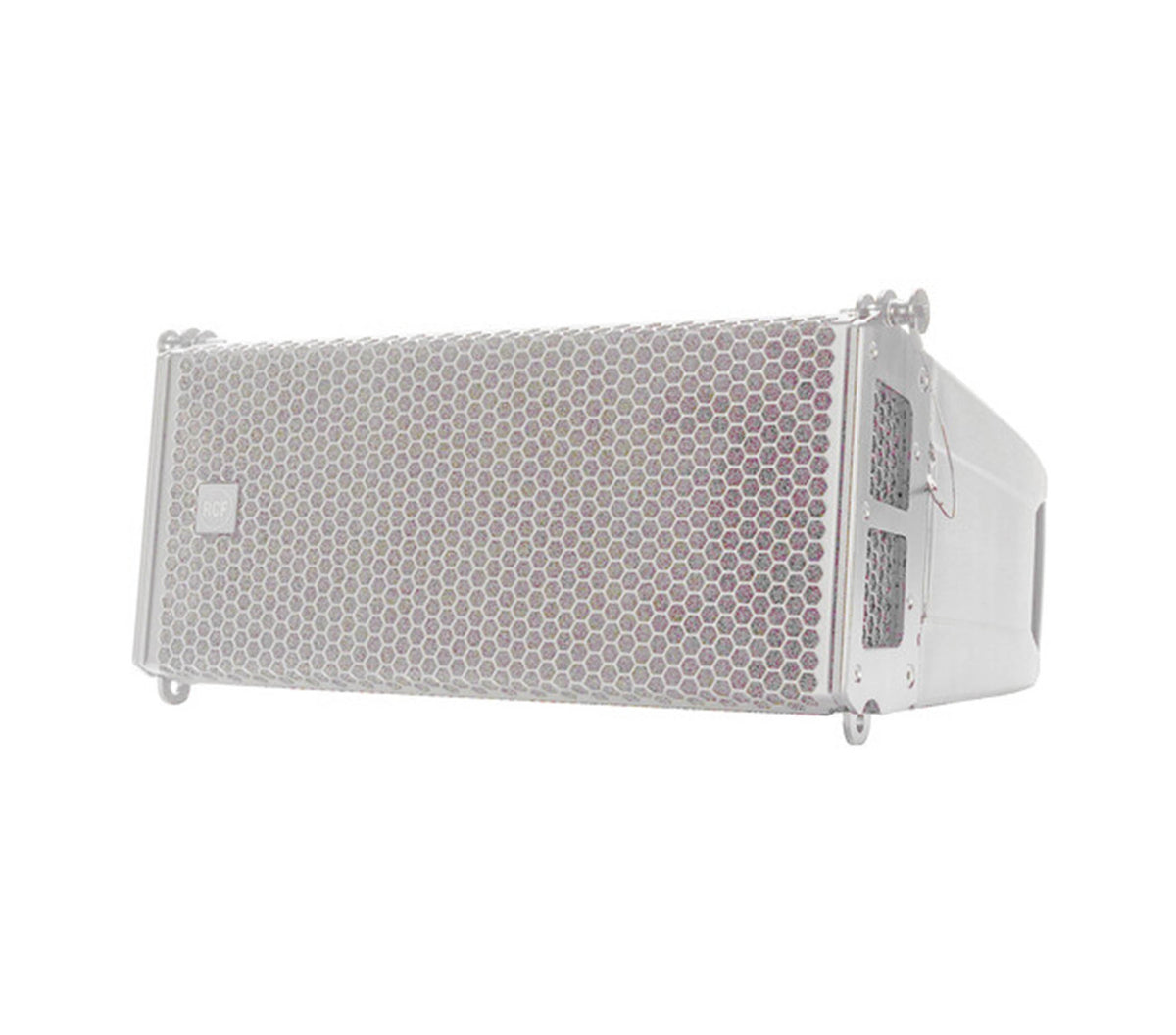

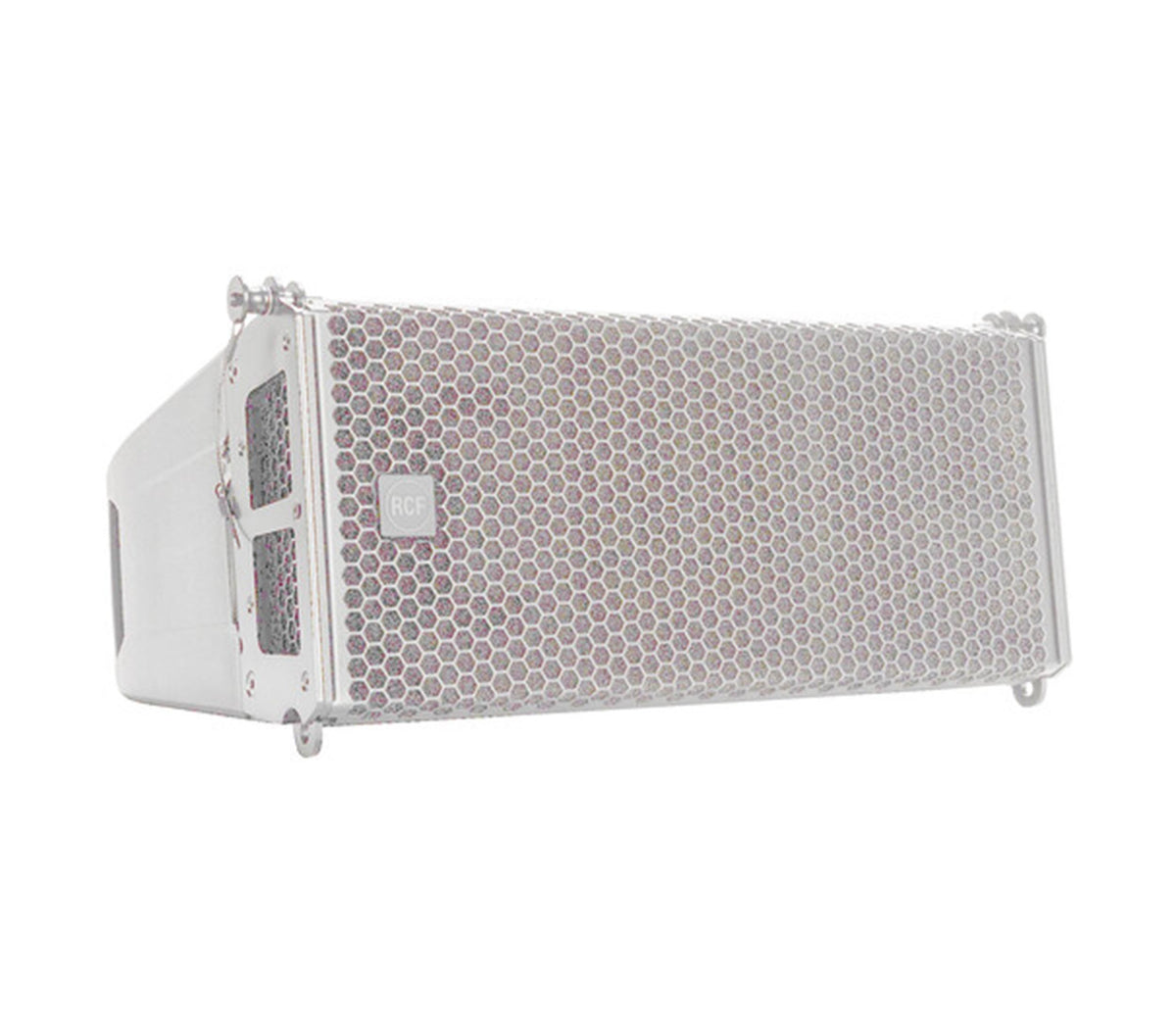

RCF HL6-W Two-Way Line Array Module - 1000W Peak

The RCF HL6-W is an ultra-compact passive two-way full-range line array module designed for small and medium-sized venues. Its combination of high output, wide horizontal coverage, and compact construction makes it suitable for a variety of professional sound reinforcement applications.

A 1.75-inch neodymium compression driver works with a constant-directivity waveguide to provide consistent 100° horizontal coverage across the vocal range. Two high-powered 6-inch neodymium woofers extend the system's low-frequency response while delivering up to 131 dB SPL.

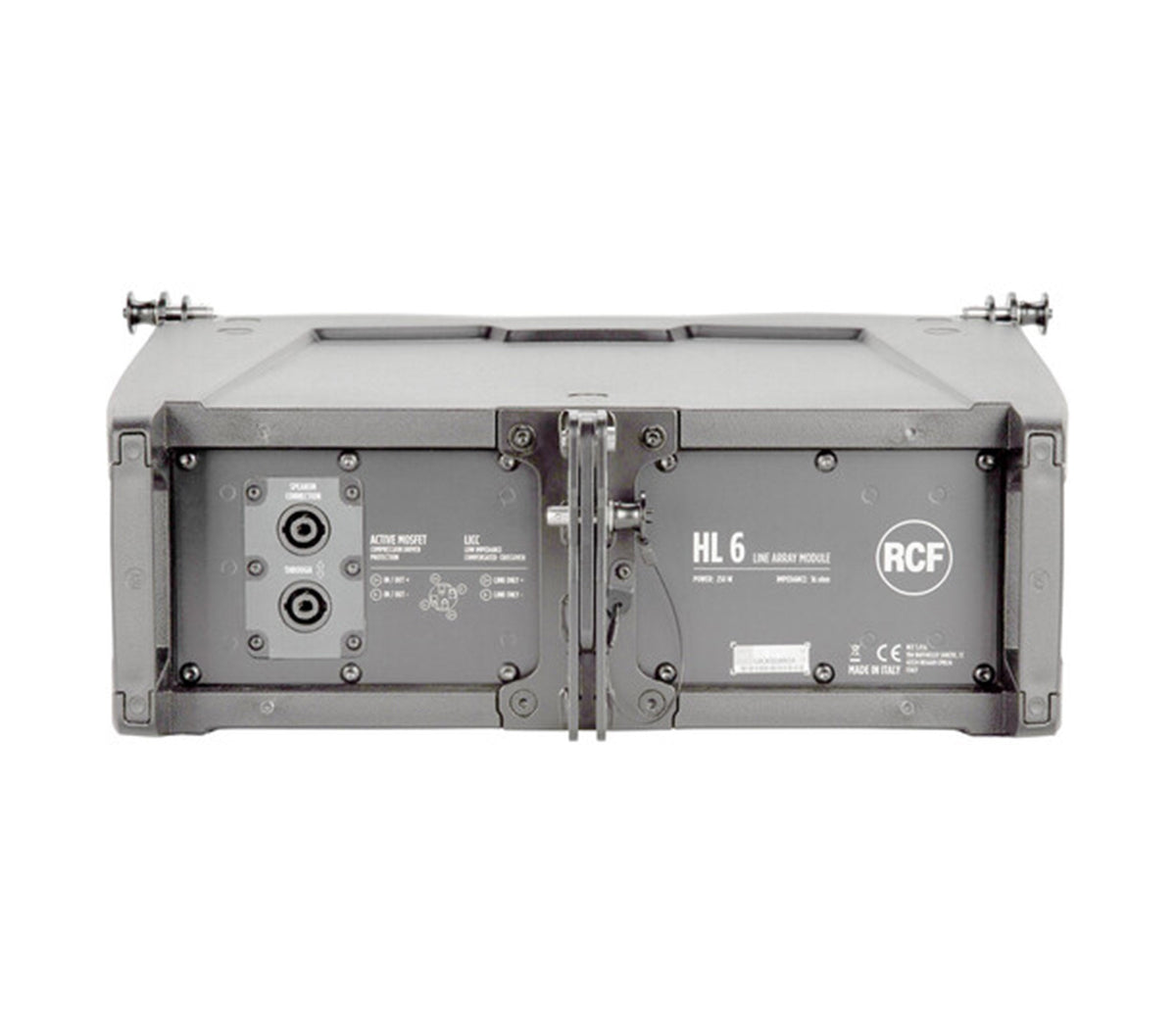

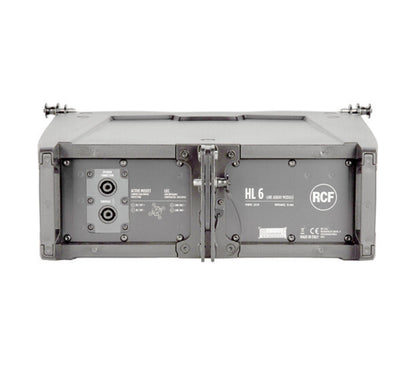

The lightweight PP composite cabinet features integrated array mechanics, two rear handles, and Speakon input and output connections. With 250W nominal and 1000W peak power handling, the HL 6 can be deployed individually or combined with additional modules in line-array configurations.

Product Specifications:

Product Type: Passive Two-Way Line Array Module

Frequency Response (-10 dB): 65 Hz, 20 kHz

Maximum SPL @ 1 m: 131 dB

Horizontal Coverage: 100°

Vertical Coverage: 10°

Directivity Index Q: 16

Amplification: Full Range

Nominal Impedance: 16 ohms

Power Handling: 250 W

Peak Power Handling: 1000 W Peak

Protection: Dynamic Active MOSFET

Crossover Frequency: 900 Hz

Compression Driver: 1 × 1.0 in Neo, 1.75 in Voice Coil

Woofers: 2 × 6.0 in Neo, 2.0 in Voice Coil

Input Connectors: Speakon

Output Connectors: Speakon

Cabinet Material: PP Composite

Array Hardware: Integrated Array Mechanics

Handles: 2 Rear Handles

Grille: Steel

Safety Compliance: CE Compliant

Product Weight: 26.01 lbs

Product Dimensions: 9.33 H × 18.50 W × 14.84 L

Shipping Weight: 29.32 lbs

Shipping Dimensions: 10.24 H × 21.65 W × 16.73 L
