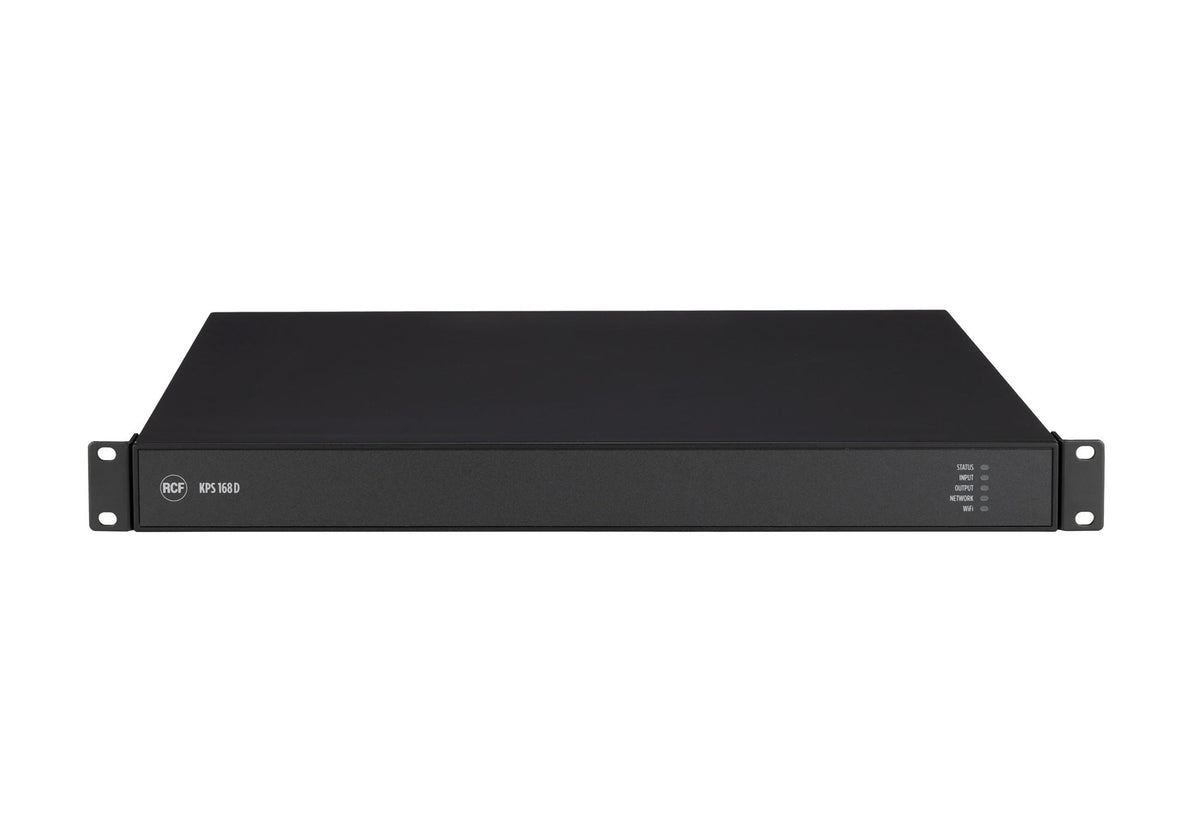

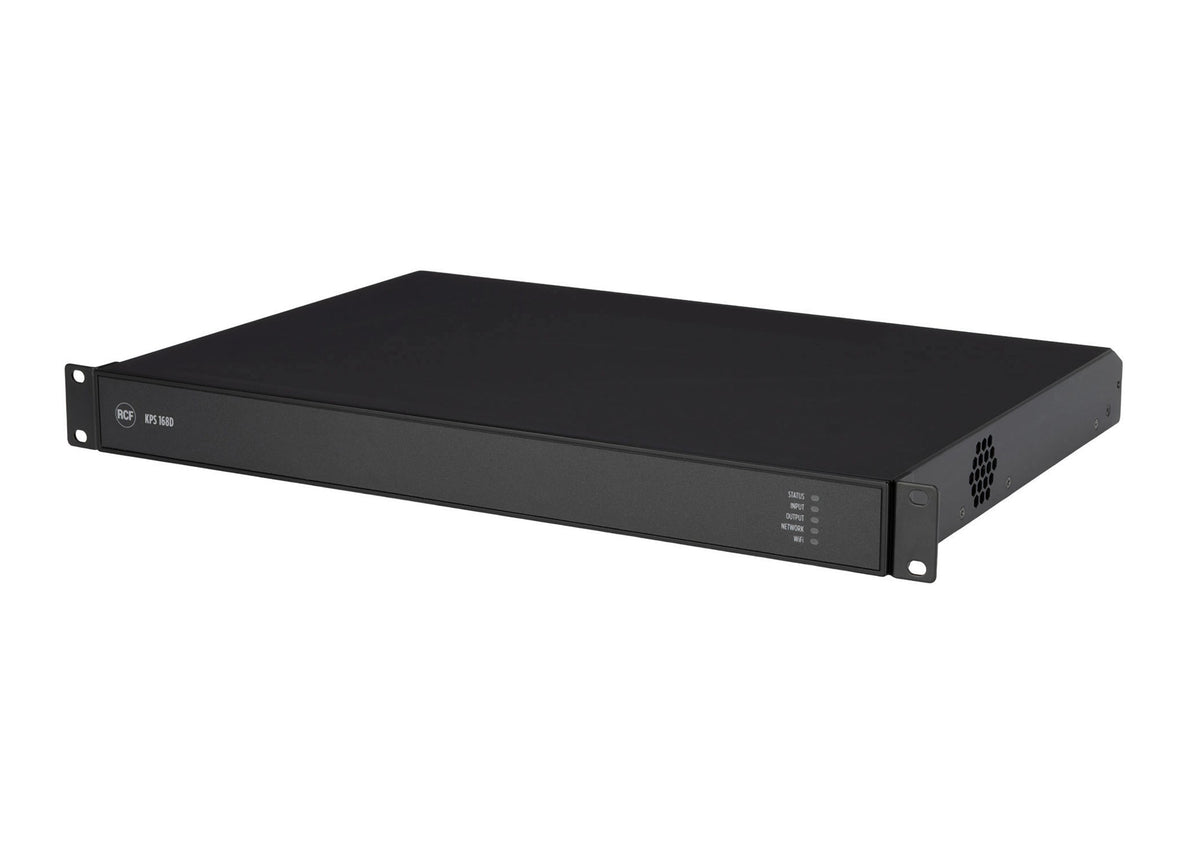

RCF KPS 168D Class D 8-Channel Amplifier with DSP and Dante - 2 x 800 W

The RCF KPS 168D is a professional 8-channel amplifier delivering a total output power of 1280 W, designed for demanding audio installations that require flexibility, reliability, and advanced system control. Its Class-D amplification technology ensures efficient performance while maintaining high audio quality for professional applications.

The amplifier features integrated DSP for complete and precise signal processing, with easy configuration through RCF RDSpace software. It also includes a library of RCF loudspeaker presets, simplifying system setup and helping achieve optimal audio performance across different installation environments.

With native Ethernet connectivity, the KPS 168D is ideal for distributed audio systems with independent zone control. The integrated wireless access point allows direct connection with mobile devices, while the built-in Audinate Dante AoIP network interface enables the distribution of 4 digital audio channels for advanced networked audio applications.

Product Specifications:

Amplifier Class: D

Output Power: 8 × 160 W @ 4 ohm, 8 × 160 W @ 8 ohm, 4 × 320 W @ 4 ohm (bridge), 4 × 320 W @ 8 ohms (bridge)

Output Power @ 100 V: 4 × 320 W

Output Power @ 70 V: 4 × 320 W

Frequency Response (-3dB): 20 Hz, 20000 Hz

SNR Analog Inputs (A weighted): >106 dB

SNR Digital Inputs (A weighted): >106 dB

Distortion (THD+N) 20 Hz, 20000 Hz, 160 W @ 8 ohm: <0.05 %

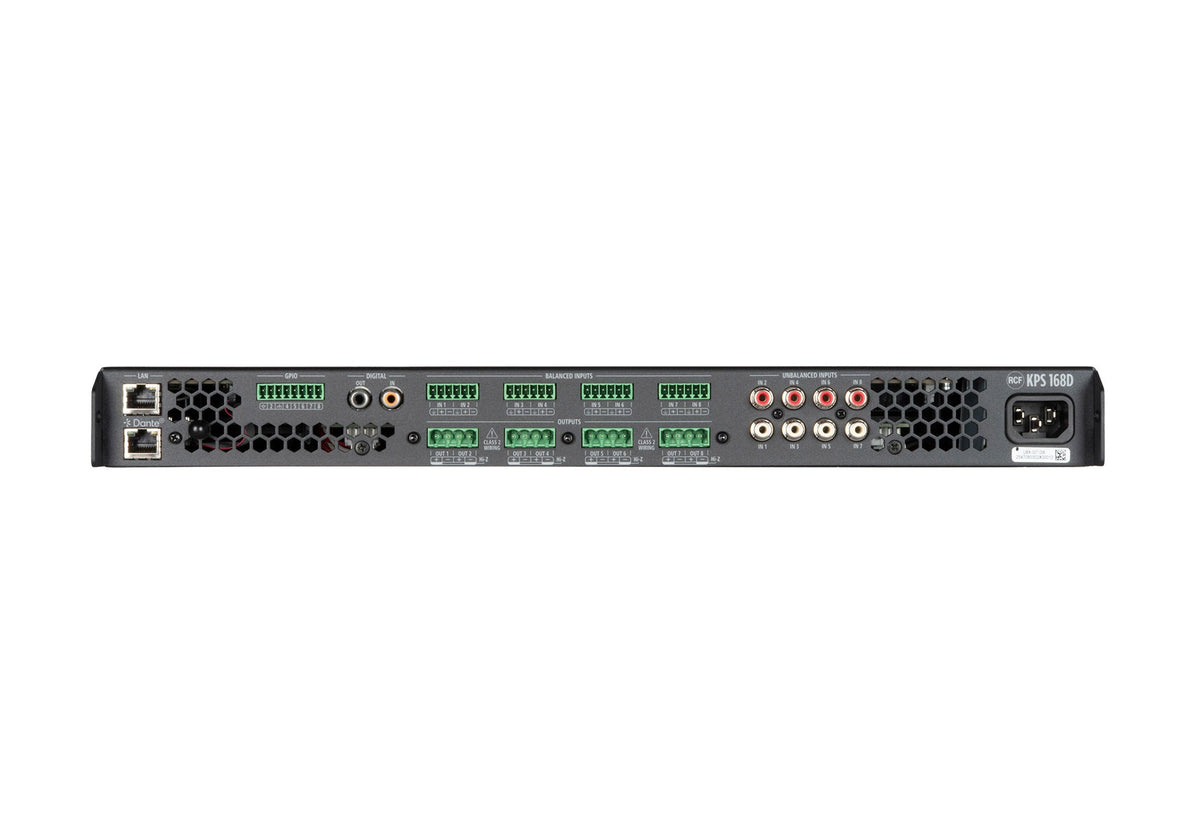

Total Number of Inputs: 13

Mic+Line Inputs: 8

Mic+Line Connectors: Euroblock, RCA

Digital Inputs: 5

Digital Connectors: RCA, RJ45

Digital Type: Dante, S/PDIF

General Purpose Inputs (GPI): 5

Programmable GPI: Yes

Signal Output Number: 1

Signal Output Connectors: RCA

Power Output Connectors: Euroblock

General Purpose Outputs (GPO): 5

Programmable GPO: Yes

DSP: Yes Configuration and Control

Configuration: PC Software

Network: Ethernet

RCF Speakers Presets: Yes

Priority: Yes

Protocols for System Integration: AMX, CRESTRON, Q-SYS, Symmetrix

Cooling: Forced

Short Circuit: Yes

Thermal: Yes

DC: Yes

Fuses: Yes

VHF (Very High Frequencies): Yes

Operating Voltage: 90-240 V~ 50/60 Hz

Power Consumption (MAX): 300 W

Safety Agency: CE Compliant, UL62368-1

Cabinet Material: Metal

Color: Black

Rack Mounting: 19 inches, 1U

Product Dimensions (H×L×D): 1.73 × 18.98 × 12.56 inches

Product Weight: 8.38 lbs.

Shipping Dimensions (H×L×D): 3.15 × 14.17 × 22.83 inches

Shipping Weight: 11.68 lbs.
