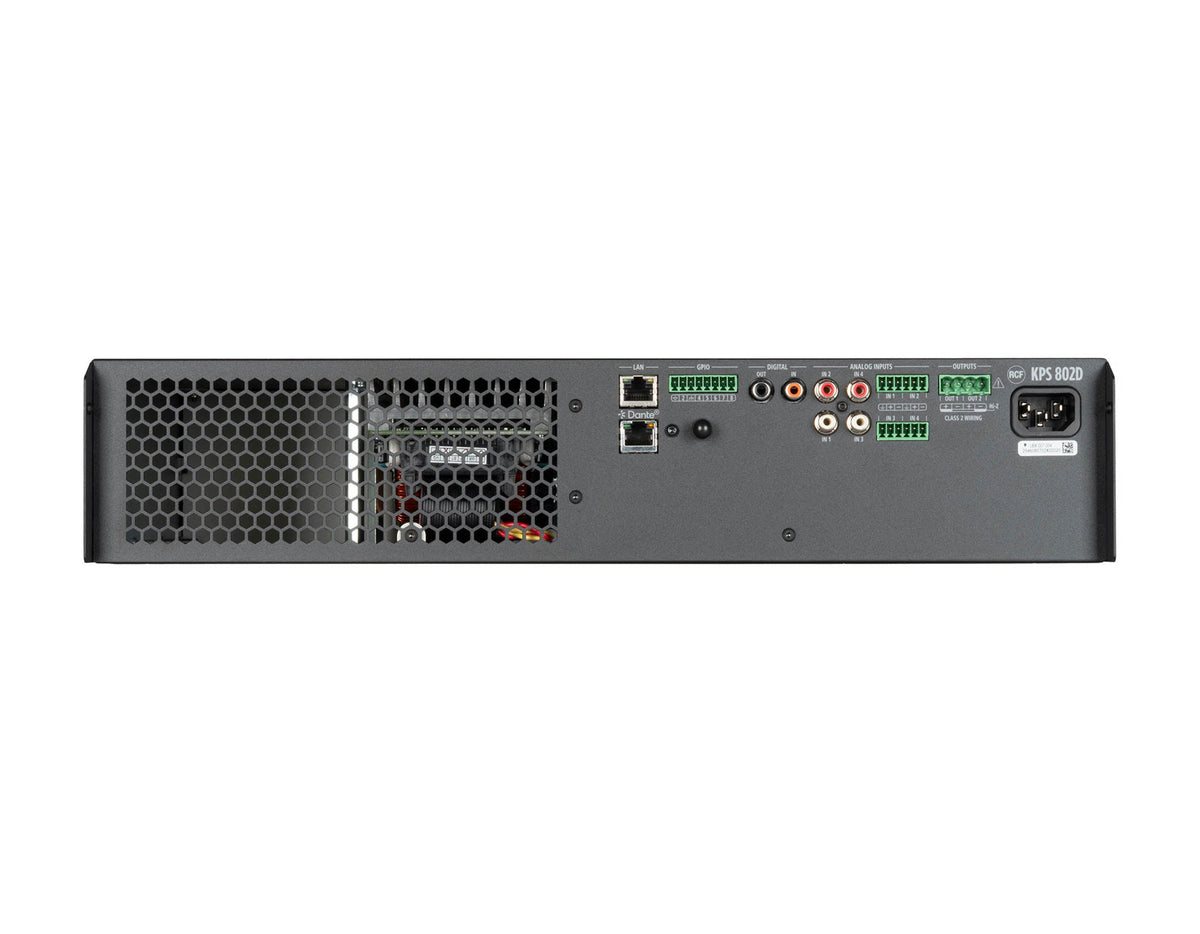

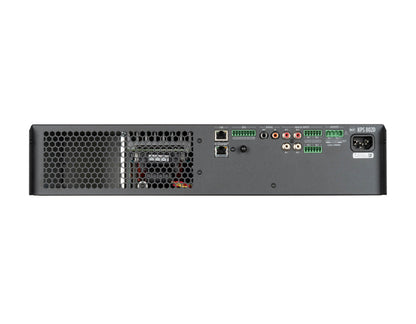

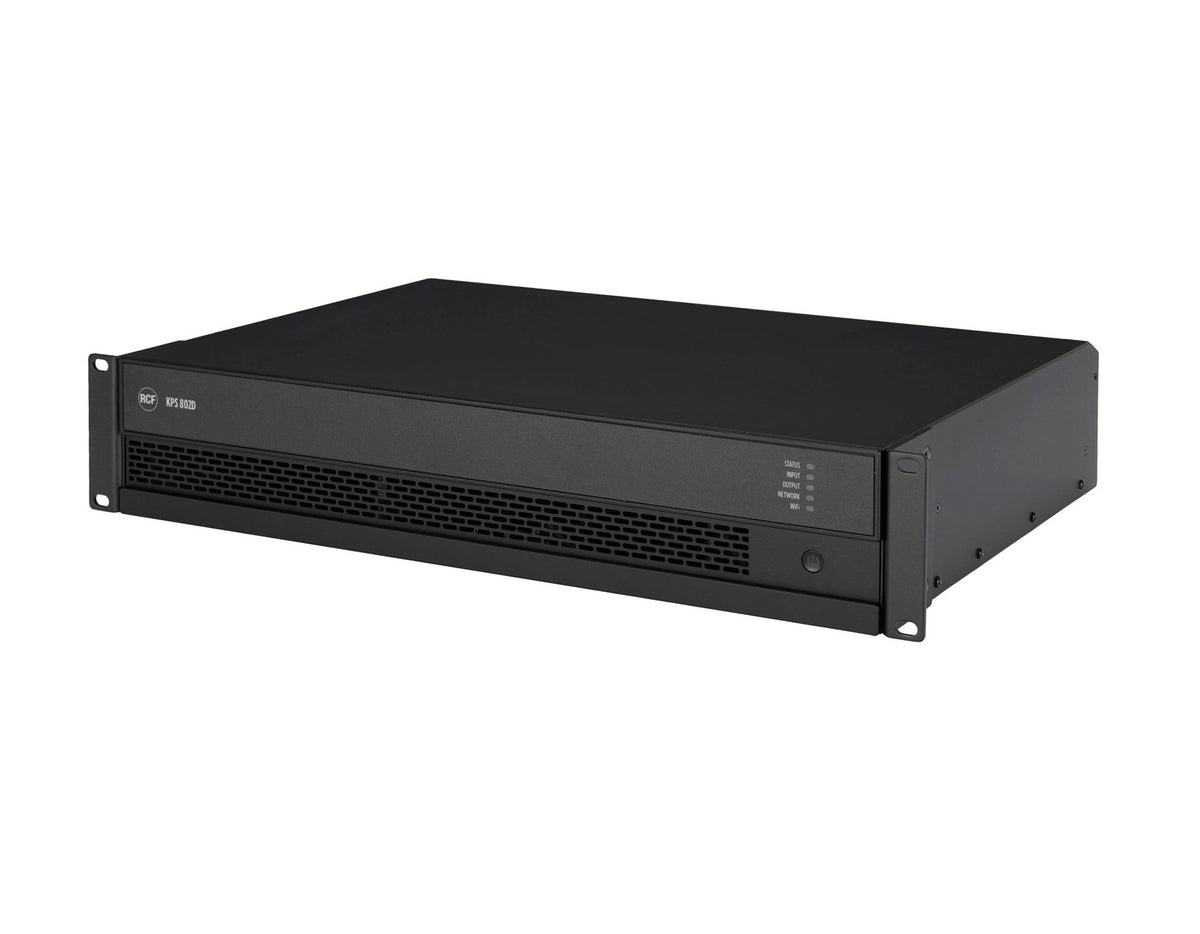

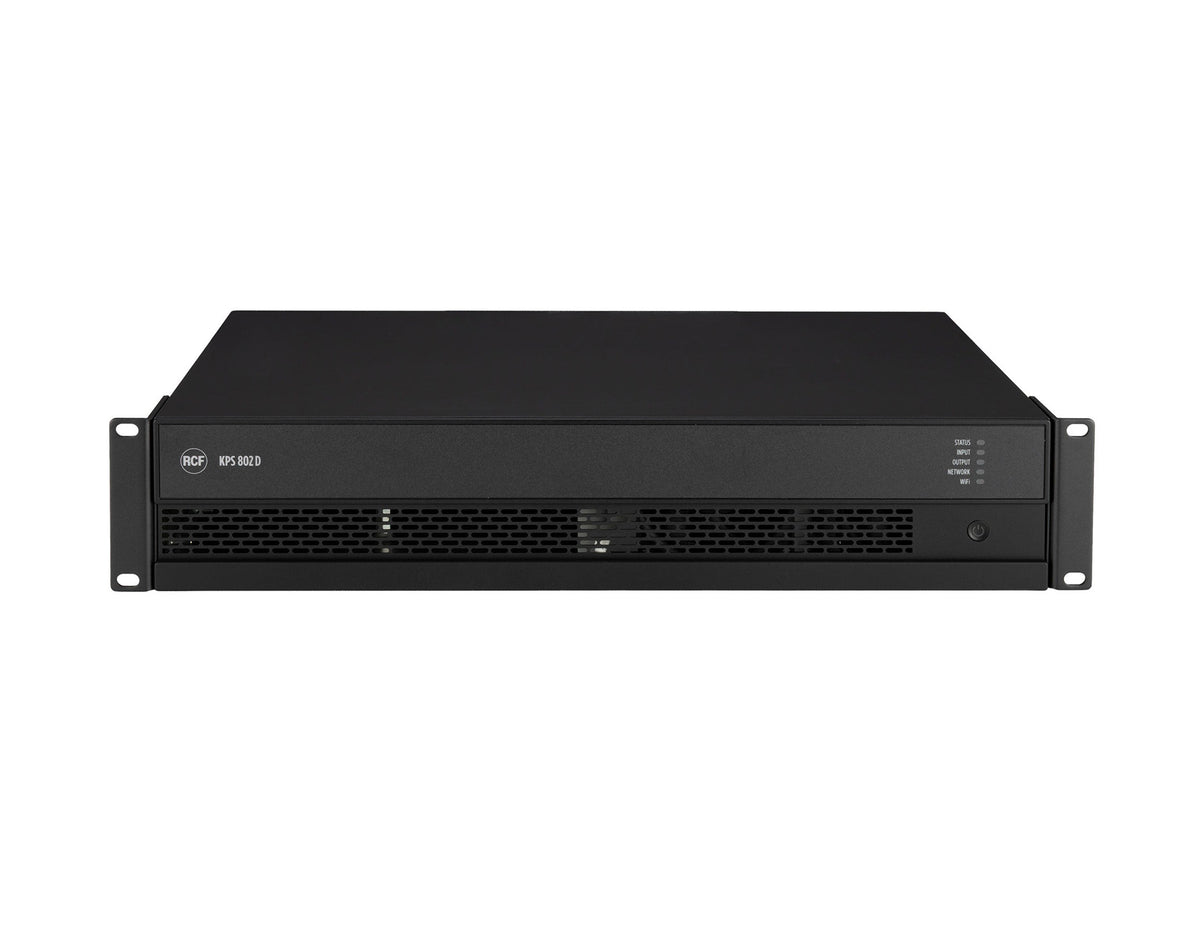

RCF KPS 802D Class D Power Amplifier with DSP and Dante - 2 x 800 W

The RCF KPS 802D is a professional 2-channel amplifier delivering a total output power of 1600 W, designed for demanding audio installations that require flexibility, reliability, and advanced control capabilities. Its Class-D amplification technology provides efficient and consistent performance for professional audio applications.

The amplifier includes integrated DSP for accurate and complete signal processing, with simple and intuitive configuration through RCF RDSpace software. A built-in library of RCF loudspeaker presets further simplifies setup and helps ensure optimal audio performance across different installation environments.

With native Ethernet connectivity, the KPS 802D is ideal for distributed systems with independent zone control. The integrated wireless access point allows direct connection with mobile devices, while the built-in Audinate Dante AoIP network interface enables the distribution of 4 digital audio channels for advanced networked audio integration.

Product Specifications:

Amplifier Class: D

Output Power: 2 × 1200 W @ 2.7 ohm

2 × 800 W @ 4 ohm

2 × 400 W @ 8 ohm

1 × 1600 W @ 4 ohm (bridge)

1 × 1600 W @ 8 ohm (bridge)

Output Power @ 100 V: 1 × 1600 W

Output Power @ 70 V: 1 × 1200 W

Frequency Response (-3dB): 20 Hz, 20000 Hz

SNR Analog Inputs (A weighted): >108 dB

SNR Digital Inputs (A weighted): >108 dB

Distortion (THD+N) 20 Hz, 20000 Hz, 400 W @ 8 ohm: <0.05 %

Total Number of Inputs: 9

Mic+Line Inputs: 4

Mic+Line Connectors: Euroblock, RCA

Digital Inputs: 5

Digital Connectors: RCA, RJ45

Digital Type: Dante, S/PDIF

General Purpose Inputs (GPI): 5

Programmable GPI: Yes

Signal Output Number: 1

Signal Output Connectors: RCA

Power Output Connectors: Euroblock

General Purpose Outputs (GPO): 5

Programmable GPO: Yes

DSP: Yes

Cooling: Forced

Short Circuit: Yes

Thermal: Yes

DC: Yes

Fuses: Yes

VHF (Very High Frequencies): Yes

Operating Voltage: 90-240 V~ 50/60 Hz

Power Consumption (MAX): 350 W

Safety Agency: CE Compliant, UL62368-1

Cabinet Material: Metal

Color: Black

Rack Mounting: 19 inches, 2U

Product Dimensions (H×L×D): 3.46 × 19.02 × 12.6 inches

Product Weight: 13.01 lbs.

Shipping Dimensions (H×L×D): 7.48 × 15.35 × 22.05 inches

Shipping Weight: 17.42 lbs.
