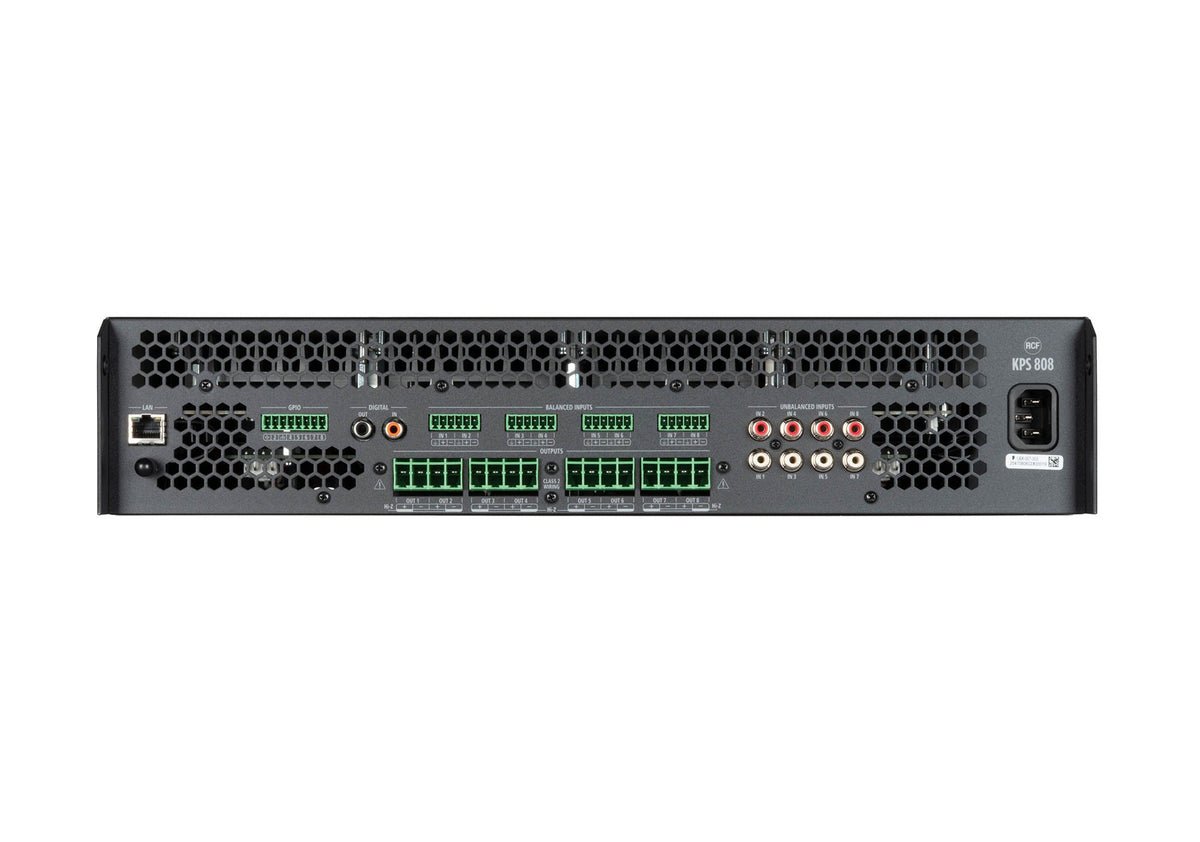

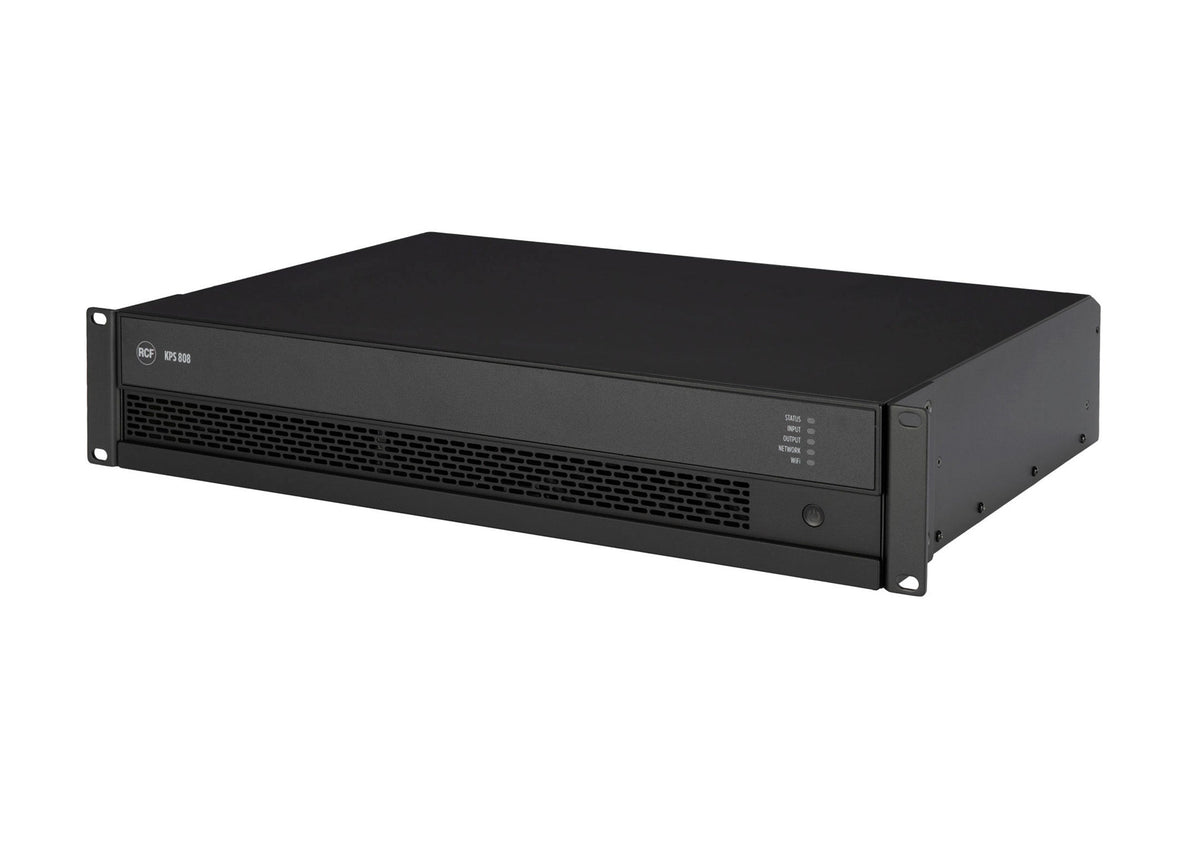

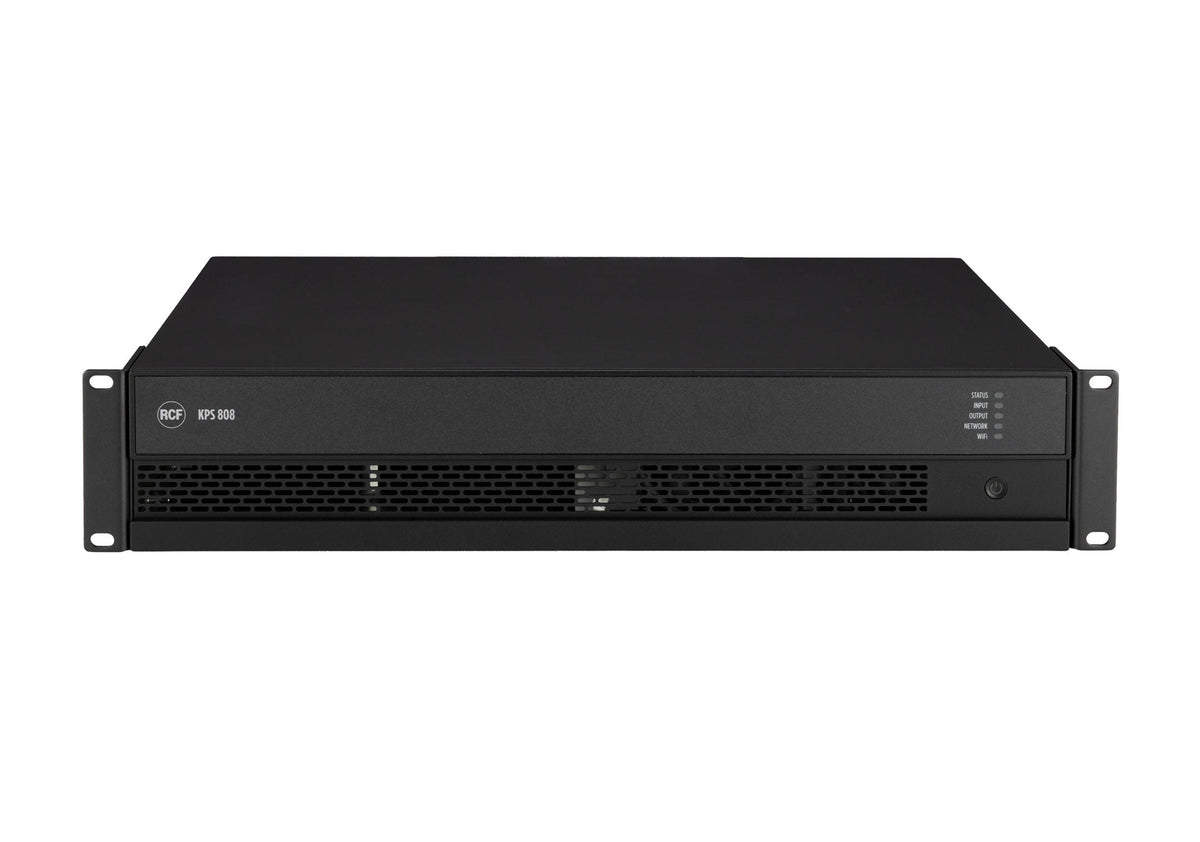

RCF KPS 808, 8-Channel Class D Power Amplifier with DSP - 8 X 800W

The RCF KPS 808 is a high-performance 8-channel Class-D power amplifier engineered for large-scale professional audio installations that require powerful output, advanced DSP control, and scalable system management. Delivering 8 x 800 watts for a total output power of 6400 W, the KPS 808 is designed for demanding commercial, hospitality, corporate, entertainment, and distributed audio environments where reliability and flexibility are critical.

Equipped with integrated digital signal processing, the KPS 808 provides precise audio optimization and system management directly within the amplifier. Built-in presets for RCF loudspeakers simplify system setup while ensuring consistent performance and speaker protection. The amplifier supports both low-impedance and high-impedance output configurations, making it adaptable to a wide variety of installation requirements. Its flexible multi-zone architecture allows independent routing and control across multiple audio zones, making it ideal for complex distributed sound systems and scalable installations.

The KPS 808 features native Ethernet connectivity for remote configuration, monitoring, and management through RCF’s RDSpace software, along with API drivers for integration with third-party control systems and PoE wall accessories for convenient remote operation. A built-in wireless access point enables direct connection from smartphones and tablets for streamlined mobile control. Designed for continuous professional operation, the amplifier also includes a multi-stage protection system for enhanced safety against overloads and short circuits, while the universal power supply with Power Factor Correction (PFC) ensures stable worldwide operation across varying power conditions.

Product Specifications:

Amplifier Class: D

Output Power: 8 × 1200 W @ 2.7 ohm, 8 × 800 W @ 4 ohm, 8 × 400 W @ 8 ohm, 4 × 1600 W @ 4 ohm (bridge), 4 × 1600 W @ 8 ohm (bridge)

Output Power @ 100 V: 4 × 1600 W

Output Power @ 70 V: 4 × 1200 W

Frequency Response (-3dB): 20 Hz, 20000 Hz

SNR Analog Inputs (A weighted): >108 dB

SNR Digital Inputs (A weighted): >108 dB

Distortion (THD+N) 20 Hz, 20000 Hz, 400 W @ 8 ohm: <0.05 %

Total Number of Inputs: 9

Mic+Line Inputs: 8

Mic+Line Connectors: Euroblock, RCA

Digital Inputs: 1

Digital Connectors: RCA

Digital Type: S/PDIF

General Purpose Inputs (GPI): 5

Programmable GPI: Yes

Signal Output Number: 1

Signal Output Connectors: RCA

Power Output Connectors: Euroblock

General Purpose Outputs (GPO): 5

Programmable GPO: Yes

DSP: Yes

Configuration: PC Software

Network: Ethernet

RCF Speakers Presets: Yes

Priority: Yes

Protocols for System Integration: AMX, CRESTRON, Q-SYS, Symmetrix, Control4, RT

Cooling: Forced

Short Circuit: Yes

Thermal: Yes

DC: Yes

Fuses: Yes

VHF (Very High Frequencies): Yes

Operating Voltage: 90-240 V~ 50/60 Hz

Power Consumption (MAX): 1400 W

Safety Agency: CE Compliant, UL62368-1

Cabinet Material: Metal

Color: Black

Rack Mounting: 19 inches, 2U

Product Weight: 25.57 lbs.

Product Dimensions (H×L×D): 3.46 × 19.02 × 16.3 inches

Shipping Weight: 29.98 lbs.

Shipping Dimensions (H×L×D): 7.48 × 19.29 × 22.05 inches
